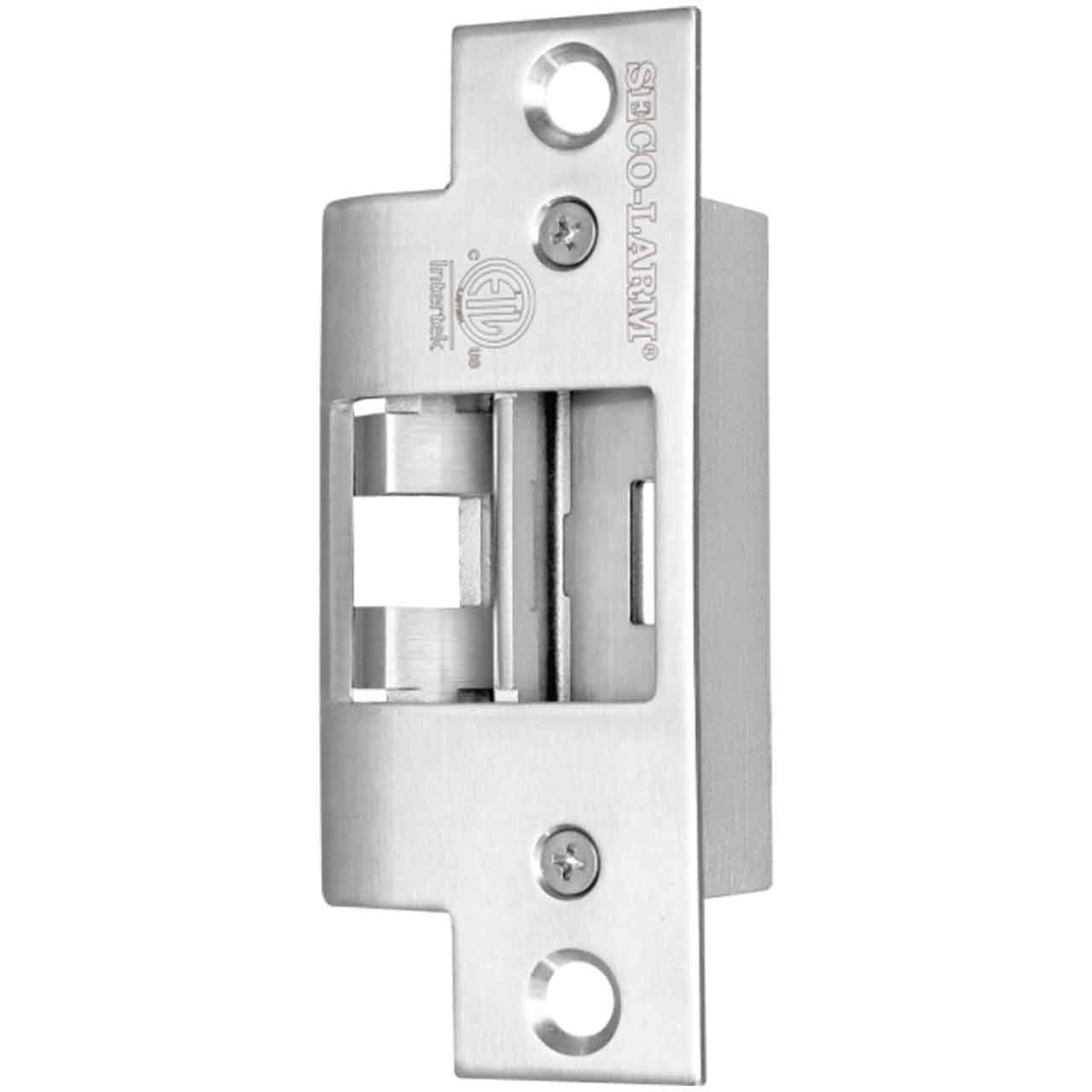

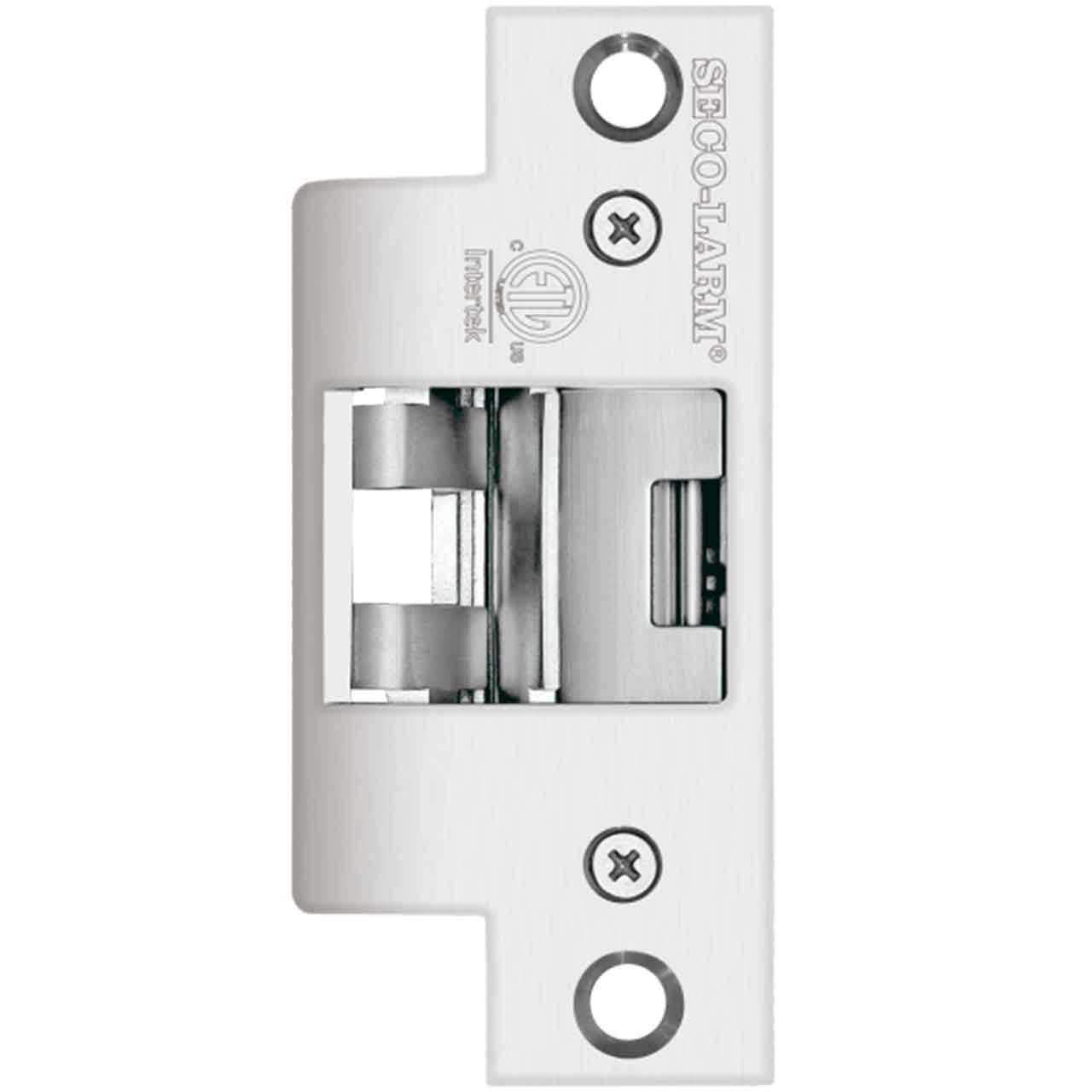

SD-995C-D3F Seco-Larm Fire-Rated No-Cut Electric Door Strike

SKU: SD-995C-D3F
Brand: Seco-Larm
Fire-Rated No-Cut Electric Door Strike

Key Features:

  • ETL Listed. Conforms to UL Std. 10C, 10B, CAN/ULCS 104, and NFPA 252
  • 12/24 VDC Operating voltage
  • Low profile: Strike is only 1-1/16" deep for use with aluminum & metal frames
  • Field selectable for fail-safe or fail-secure operation
  • Mounting tabs included for mounting to hollow aluminum & metal frames
  • Reversible non-handed design fits either right-hand or left-hand doors
  • For indoor use only
  • Static strength – 1,500-lb (680kg)
  • Dynamic strength – 70ft-lb (9.68m-kg)
  • Tested to 1,000,000 cycles (Factory Tested)
More details...
MPN: SD-995C-D3F
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.
Become a DWG Dealer → DWG Dealer Sign In


ETL Listed. Conforms to UL Std. 10C, 10B, CAN/ULCS 104, and NFPA 252 Fire-rated and built to last, the SECO-LARM Fire Rated No-Cut Electric Door Strike combines safety and convenience with a sleek 1-1/16? profile and easy installation on aluminum frames. With a 1-million-cycle durability and seamless compatibility with panic hardware, it’s the smart, worry-free choice for secure indoor access.

Product Details

Specifications

  • Operating Voltage: 12/24 VDC
  • Current draw:
    • 12VDC: 300mA
    • 24VDC: 150mA
  • Latch throw: 3/4" (19mm)
  • Keeper width: 1-7/16? (36mm)
  • Endurance: 1,000,000 cycles (Factory Tested), Level IV
  • Destructive attack: Level I
  • Line security: Level I
  • Standby power: Level I
  • Static strength: 1,500-lb (680kg)
  • Dynamic strength: 70ft-lb (9.68m-kg)
  • Operating humidity: 0~85% non-condensing
  • Operating temperature: 14°~120° F (-10°~49° C)
  • Dimensions: 4-7/8"x1-1/4"x1-1/16" (124x32x27.5 mm)
  • Weight: 11.3-oz (320g)
Shop by Brand:
SECO-LARM › Seco-Larm Door Strikes

FAQ

Door Does Not Open When the Electric Strike Is Activated

  1. Check that the door latch is operating properly, and replace it if necessary.
  2. The position of the electric strike may need to be adjusted by moving it or adding washers or shims.

Electric Strike Does Not Activate

  1. Unmount the strike and check that the two wires are connected properly.
  2. Ensure the wires are connected to a 12VDC or 24VDC power source.
  3. Use a multimeter to test that the strike is receiving the proper voltage and amperage. If it is not, it may be necessary to use heavier-gauge wires or increase the output of the power supply.
  4. Make sure the activation device, such as a keypad or push-button switch, is working properly.

Strike Makes a Buzzing Sound

  1. Use a DC power supply instead of an AC power supply.
