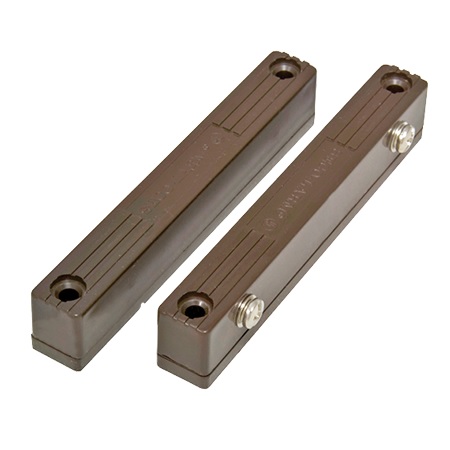

SM-216Q/BR-10 Seco-Larm Surface Mount N.C. Magnetic Contact w/ Screw Terminals - Brown - Pack of 10

SKU: SM-216Q/BR-10

Wide gap for loose-fitting doors and windows
Surface-mount magnetic contacts
Screw mount
ABS plastic case has integrated mounting holes
Contact reed switch is SPST, deactivated rhodium on gold underplating for a longer expected life
For closed loop circuits
23/4" (70mm) Gap
Spacers included

MPN: SM-216Q/BR-10

MSRP Price: $134.00

Price: $134.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Model Number - SM-216Q/GY
Loop type - Closed loop
Electrical configuration - N.O. (SPST)
Operation gap - 23/4" (70mm)
Connectors - Screw terminals
Color - Brown
Material
- Case - High-impact ABS plastic
- Contact - Deactivated rhodium on gold underplating
Contact rating
- 1.0A@10VDC (max.)
- 10W (max)
Operating voltage - 12~24 VDC
Temperature - -15Â°~160Â°F (-25Â°~70Â°C)
Switch cycles - 50 Million (0.1mA@5VDC)
Switch dimensions - 315/16"x9/16â€³x1/2â€³ (100x14x13 mm)
Magnet dimensions - 315/16â€³x9/16â€³x1/2â€³ (100x14x13 mm)
Magnet - Alnico 5
