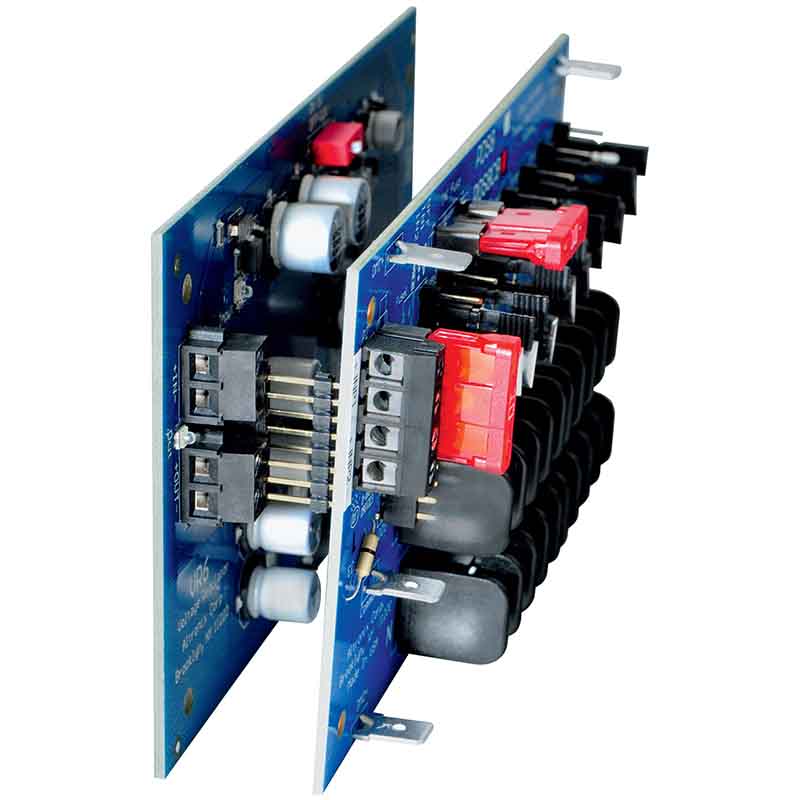

PDS8CBK1 Altronix VR6/PDS8CB Kit

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.

Specifications

VR6

• Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
• Input: 24VDC @ 3.5A – Output: 12VDC @ 6A

Output

• 5VDC or 12VDC regulated output.
• Output rating 6A max. non power-limited.
• Surge suppression

LED Indicators

• Input and output LEDs

BTU/Hr (approx.)

• 5VDC: 15 BTU/Hr.
12VDC: 37 BTU/Hr

PDS8CB

• 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.

Outputs

• Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
• Surge suppression

LED Indicators

• Individual voltage LED indicates 12VDC (Green) or 24VDC (Red/Green).

Temperature

• Operating Temperature - 0°C to 49°C (32°F to 120°F).
• Storage Temperature - 20°C to 70°C ( - 4°F to 158°F).
• Relative Humidity - 85% +/- 5%
• Board Dimensions (L x W x H) - 5.375" x 3" x 1" (136.5mm x 76.2mm x 25.4mm)
• Product Weight - 0.8 Lbs. (0.36 kg)
• Shipping Weight - 1 Lbs. (0.46 kg).

Agency Listings

• Access Control System Units (UL294)
• CAN/ULC - s319-05, Electronic Access Control Systems.
