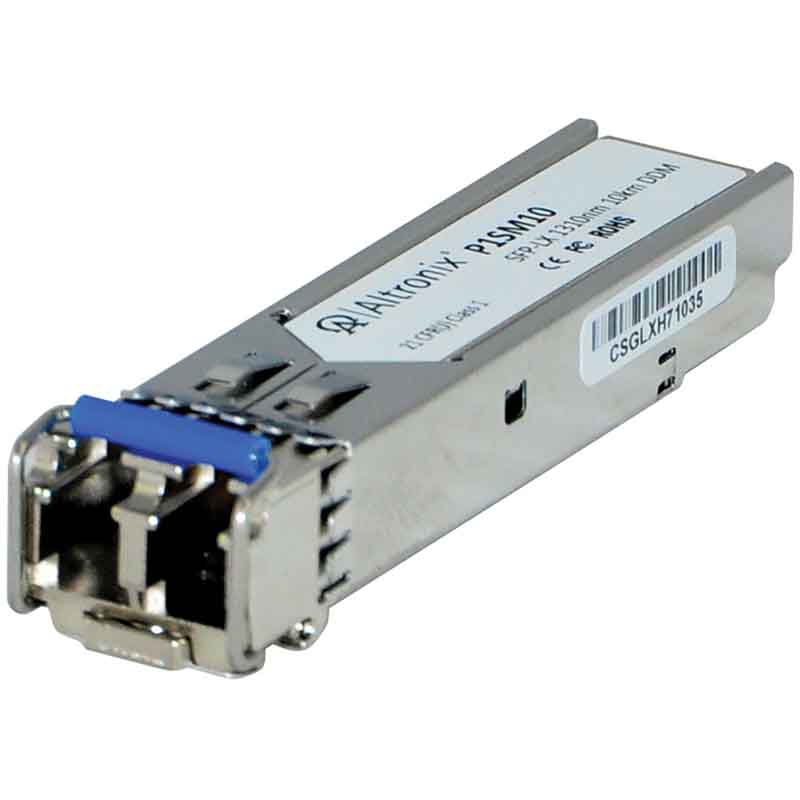

P1SM10 Altronix SFP 10KM 1.25GBPS Single Mode Transceiver

Altronix P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1SM10 is to be used with Single-Mode Fiber for distances up to 10Km. It is recommended to pair (two per fiber link) remote and head-end with same SFP module.

Specifications

Standards

• Class 1 FDA and IEC60825-1 Laser Safety Compliant.
• Compliant with MSA SFP Specification.
• Compliant with SFF-8472.

Connector Type

• LC Duplex.

Data Rate

• Up to 1.25Gbps.

Wave

• 1310nm FP Laser Transmitter.

Distance

• 10km with 9/125 μm SMF.

Agency Listings

• FCC - FCC Compliant
• CE - European Conformity
• ROHS

Physical and Environmental

• Dimensions (L x W x H) - 2.25" x 0.5" x 0.625" (57.15mm x 12.7mm x 15.75mm).
• Product Weight - 0.00625 lbs. (0.003 kg).
• Shipping Weight - 0.09375 lbs. (0.042 kg).
• Operating Temperature - 0°C to 70°C (32°F to 158°F).
• Storage Temperature - -40°C to 85°C (-40°F to 185°F).
• Relative Humidity - 85% +/-5%.
