WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+	WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+	WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

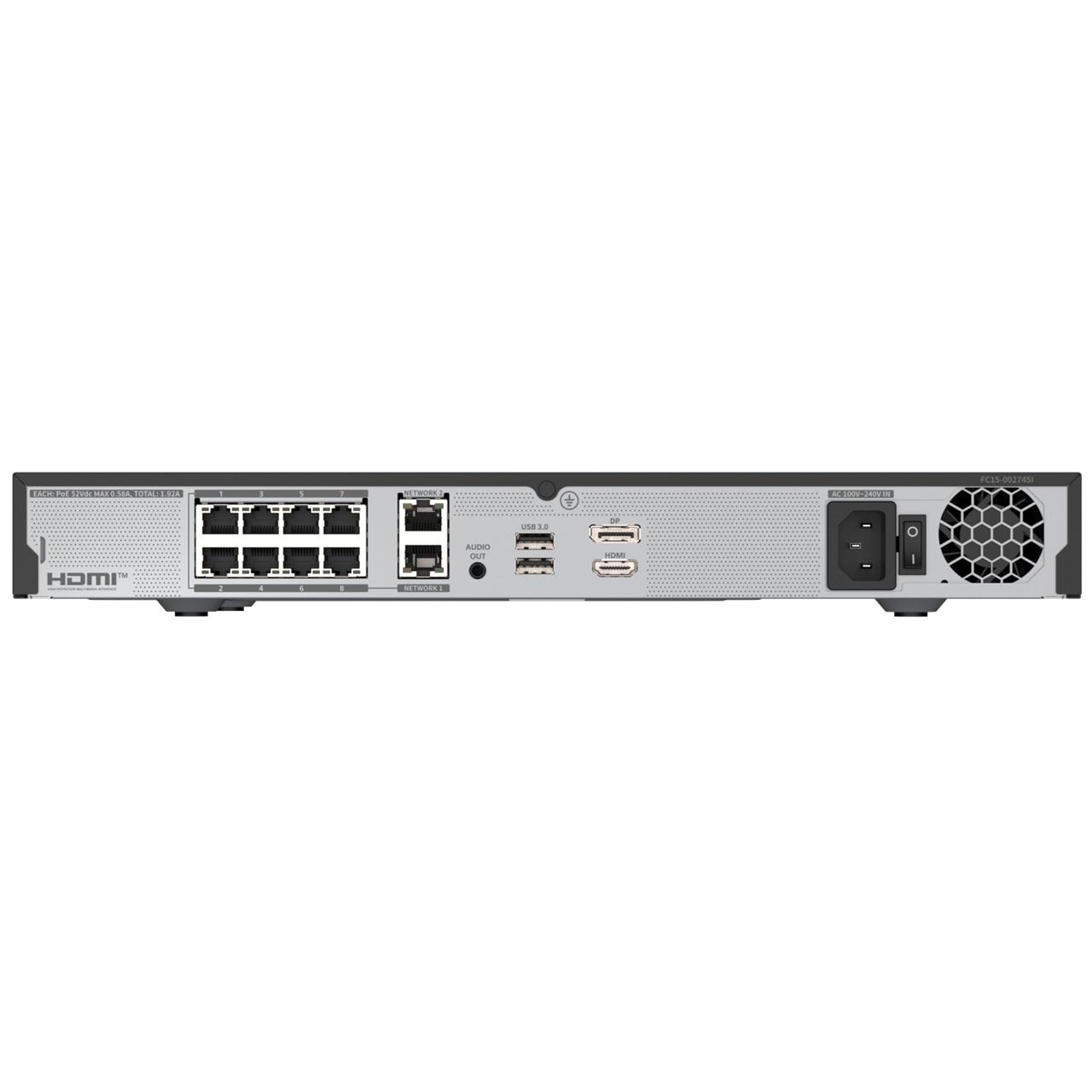

(Click to see larger image and other views)

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+	WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+	WRN-816S-20TB Hanwha Vision 16 Channel NVR 150 Mbps Max Throughput - 20TB w/ Built-in 8 Port PoE+

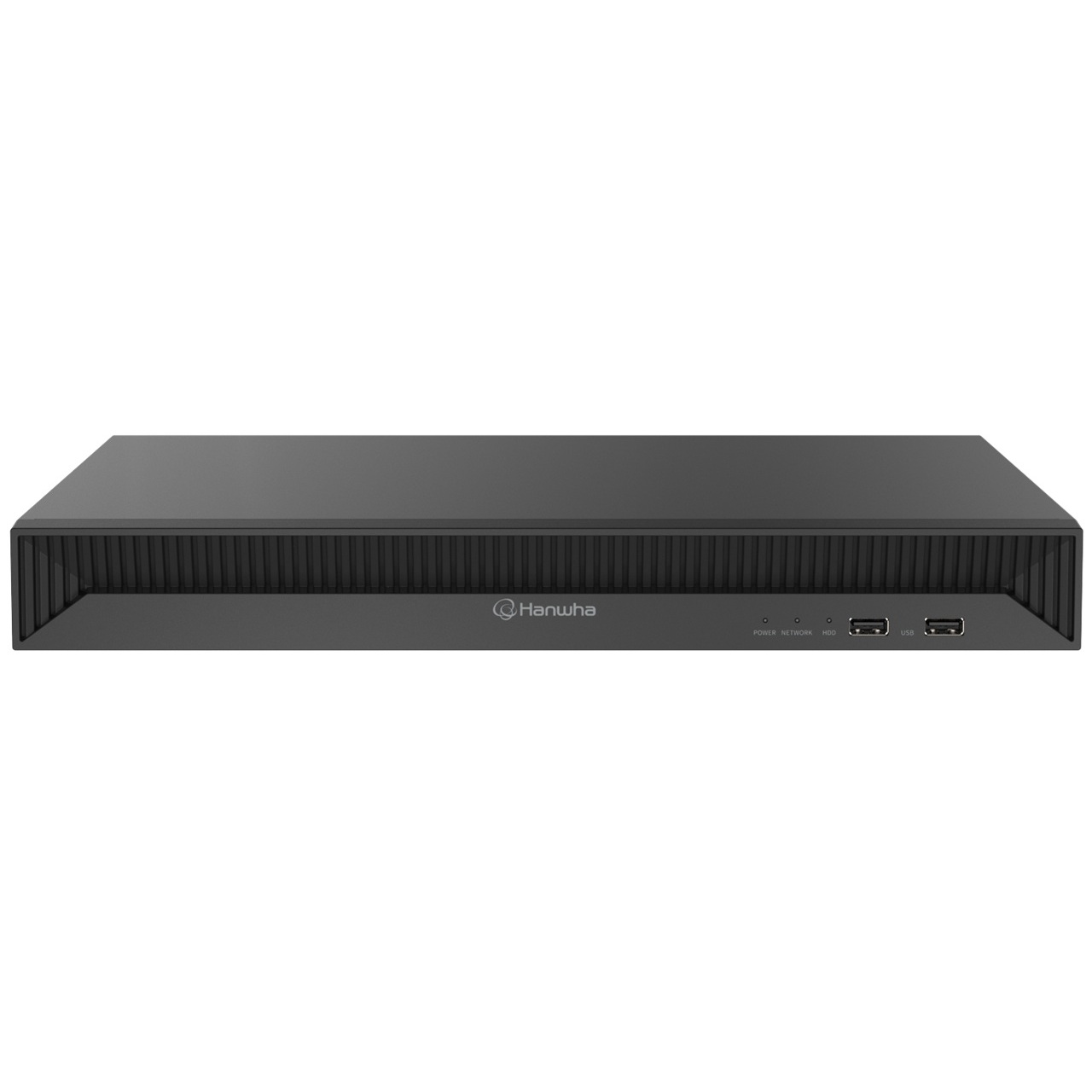

(Click to see larger image and other views)

Search available promotions and discounts for this Item

SKU: WRN-816S-20TB

Brand: Hanwha Vision

Wisenet WAVE PoE+ NVR

Features:

Supported by Wave client, mobile and Cloud Sync
Supports AI metadata
150 Mbps of recording throughput
Supports up to 20TB internal storage
HDMI/DP monitor outputs for configuration and basic monitoring
8 PoE/PoE+ ports, with a total power budget of 100W
Includes USB mouse and rack mount brackets

NDAA

More details...

Search available promotions and discounts for this Item

MPN: WRN-816S-20TB
EAN: 849688023020

Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Display

Decoding - Local Display HDMI (1), DP (1)

Performance

Operating System - Embedded, Ubuntu 22.04 LTS
Record - Recording Bandwidth, Max. 150Mbps
Storage - Supported HDD Up to 10TB
HDD Slot - SATA 2ea (Max. 20TB)

Interface

Front - Indicator Power, Network, HDD
HDMI - 1EA
DP - 1EA
Audio - Audio output
Ethernet - PoE RJ-45(LAN, 10/100) 8 EA, RJ-45 2ea (WAN, 1Gbps)
USB - Front USB 2.0(2), Rear USB 3.0(2)

Environmental

CPU - Dual core
RAM - DDR4 8GB
OS HDD - eMMC 32GB
Operating Temperature - 0Â°C to +40Â°C (32â„‰ to 104â„‰)
Operating Humidity - 20% ~ 85% RH

Electrical

Power Input - 100 ~ 240 VAC Â±10%; 50/60 Hz
Power Consumption - 170W
PoE Budget - 100W

Mechanical

Color/Material - Black/Metal
Dimensions (WxDxH): - 370.0 x 50.7 x 320 mm
Weight: - 2.78Kg

WRN-816S-20TB Specifications PDF
