QRN-430S-2TB Hanwha Techwin 4 Channel at 4K (2160p) NVR 40Mbps Max Throughput - 2TB w/ Built-in 4 Port PoE

Specifications

Display

Network Camera

• Inputs - Max. 4 ch
• Resolution - 8MP ~ CIF
• Protocols - SUNAPI, ONVIF

Decoding

• Local Display - HDMI
• Resolution - [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)

Performance

Record

• Compression - H.265, H.264, MJPEG
• Recording Bandwidth - Max. 40Mbps
• Resolution - 8MP ~ CIF
• Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
• Event Trigger - Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
• Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Search & Play

• Playback Bandwidth - Max. 32Mbps
• User - Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback - Max. 16CH(Local 4CH, Remote 4CH per user)
• Fish-Eye Dewarping - CMS

Storage

• Supported HDD - Up to 6TB
• HDD Slot - SATA 1ea(Max. 6TB)

Backup

• File backup - BU/Exe(GUI), JPG/AVI(Network)
• Function - Multi channel (Upto 4 ch) Play, Date-Time / Title display

Functions

Camera Setup

• Item - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ

• Control - Via GUI, Webviewer

Smart Phone

• Support Model - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI (SUNAPI)
• Control - Live (4 ch) : Multi-Profile Support , Playback (4 ch)
• Max. Remote Users - Search (3), Live Unicast (10)

Redundancy

• Failover - N+1
• ARB - Support
• Easy configuration - P2P(QR code)

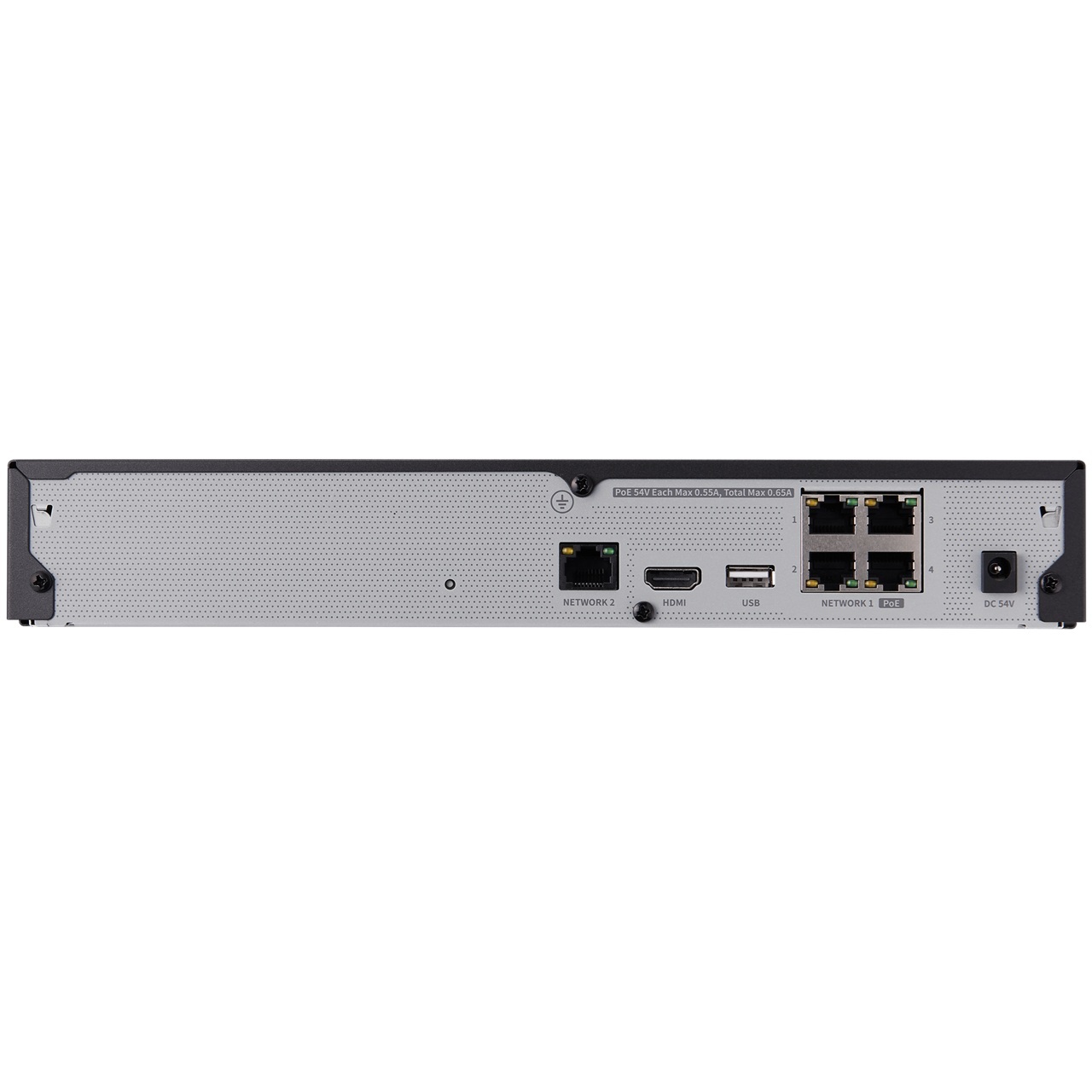

Interface

• HDMI - 1EA 3840x2160 30Hz
• Ethernet - PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100)
• USB - 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
• Power inlet - DC Adaptor

System

• System Control - Mouse, Web
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

• Operating Temperature / Humidity - 0°C to +40°C(32℉ to 104℉)
• Humidity - 20% ~ 85% RH

Electrical

• Power Input - 100 ~ 240 VAC ±10%; 50/60 Hz
• Power Consumption - Max 52W(1HDD, PoE On)
• PoE Budget - 35 W

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch)
• Weight - 1.03Kg (2.27lb)

Network

• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Hanwha DDNS
• Transmission Bandwidth - Max. 50Mbps
• Audio Input/Output - 4CH (network)
• Audio Compression - G.711, G.726, AAC(16/48KHz)
• Audio Communication - 2-Way
• Max Remote Users - Search (3), Live Unicast (10), Multicast (20)
• Security - IP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware
• Viewer Software - WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile, Support CGI(SUNAPI) for integration to 3'rd party VMS
