XRN-426S-1T Hanwha Techwin 4 Channel at 4K (2160p) NVR 40Mbps Max Throughput - No HDD

Specifications

Display

Network camera

• Inputs - Max. 4CH
• Resolution - 8MP ~ CIF
• Protocols - SUNAPI, ONVIF

Decoding

• Local Display - HDMI1: 3840x2160(30Hz)
• Multi Screen Display - Dynamic layout, Virtual channel view, Up to 4 Div. [Web] 1/ 2H/ 2V/ 3V/ 4
• Resolution - [Local Monitor]8M(30fps), 1080p(4ch@30fps), 720P(4ch@30fps), D1(4ch@30fps)

Performance

Operating System

• Embedded - Linux

Record

• Compression - H.265, H.264, MJPEG
• Recording Bandwidth - Max. 40Mbps
• Resolution - 8MP ~ CIF
• Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
• Event Trigger - Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
• Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown

Search & Play

• Playback Bandwidth - Max. 32Mbps
• User - Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback - Max. 16CH(Local 4CH, Remote 4CH per user)
• Mode - Time/ Event/ Text/ ARB/ Bookmark/ Smart search
• Resolution - CIF ~ 8MP
• Playback Control - Fast/Slow Forward / Backward, Move one step Up / Down

Storage

• Supported HDD - Pre-installed 1TB SSD
• HDD Slot - M.2 SSD 1EA

Backup

• File backup - Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network)
• Function - Multi channel(Up to 4CH) Play, Date-Time/Title display

Network

• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Hanwha DDNS
• Transmission Bandwidth - Max. 80Mbps

Audio

• Input/Output - 4CH (network)/output (Set)
• Compression - G.711, G.726, AAC(16/48KHz)
• Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security - IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware

Web viewer

• Supported OS - Windows10 or higher, macOS 13.5.2 or higher
• Supported browser - Google Chrome, Microsoft Edge, Mac Safari
• Viewer Software - WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI(SUNAPI) for integration to 3'rd party VMS

Functions

Camera Setup

• Register - Auto, Manual
• Item - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ

• Control - Via GUI, Webviewer
• Preset - 300 Presets

Smart phone

• Support Model - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
• Control - Live: Multi-Profile Support, Multi Channel Playback
• Max. Remote Users - Search(3), Live Unicast(10)

Redundancy

• Failover - N+1
• ARB - Support
• Easy configuration - P2P(QR code)

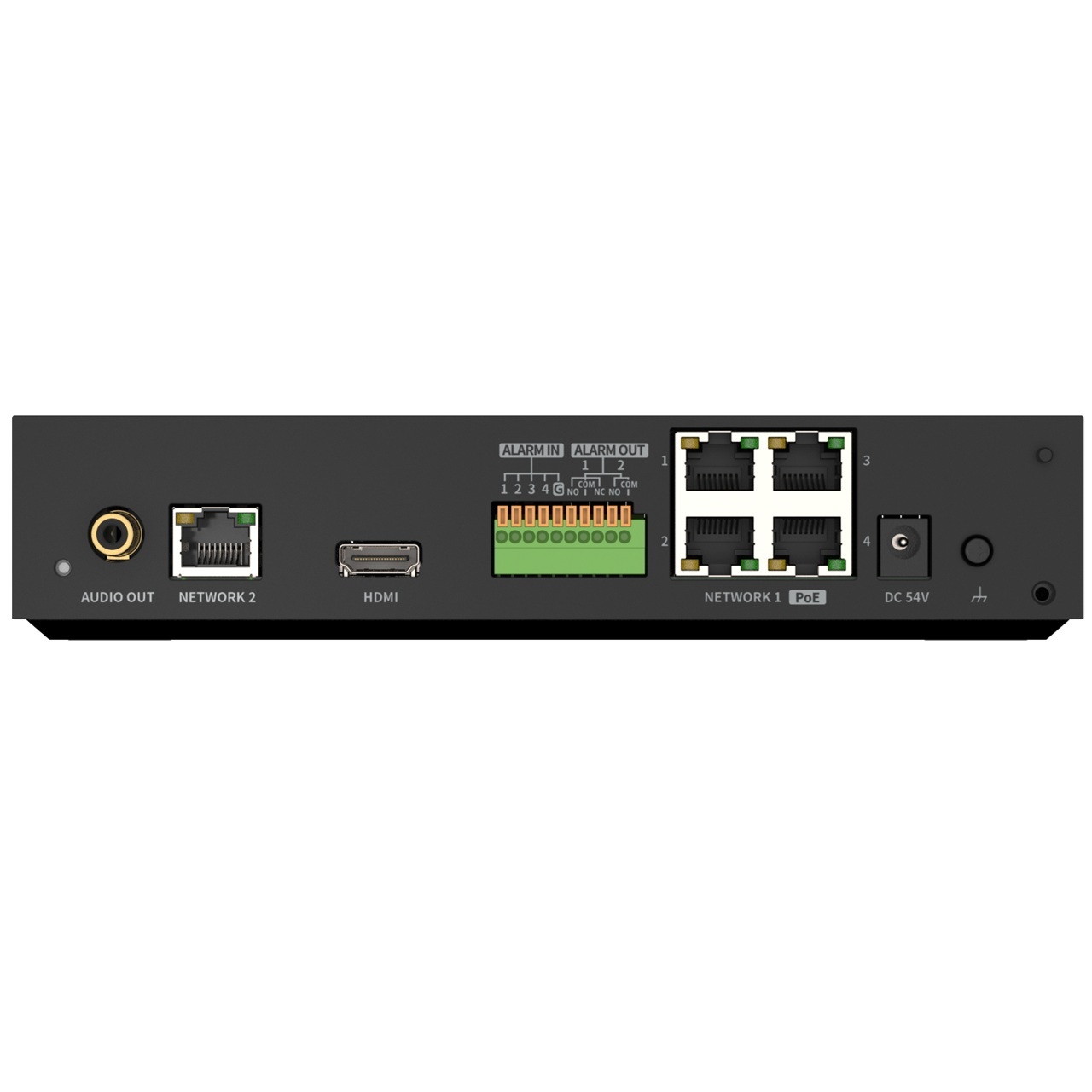

Interface

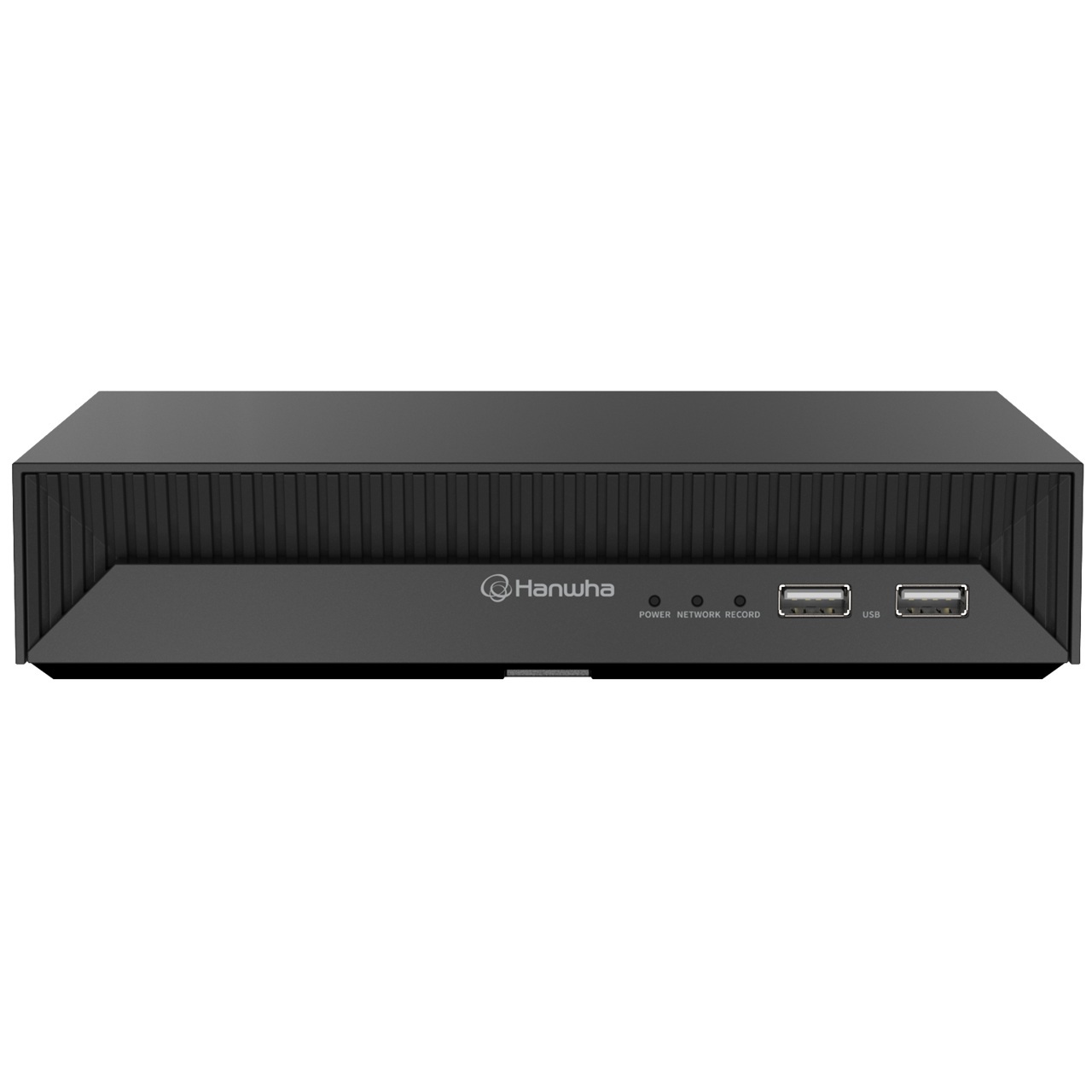

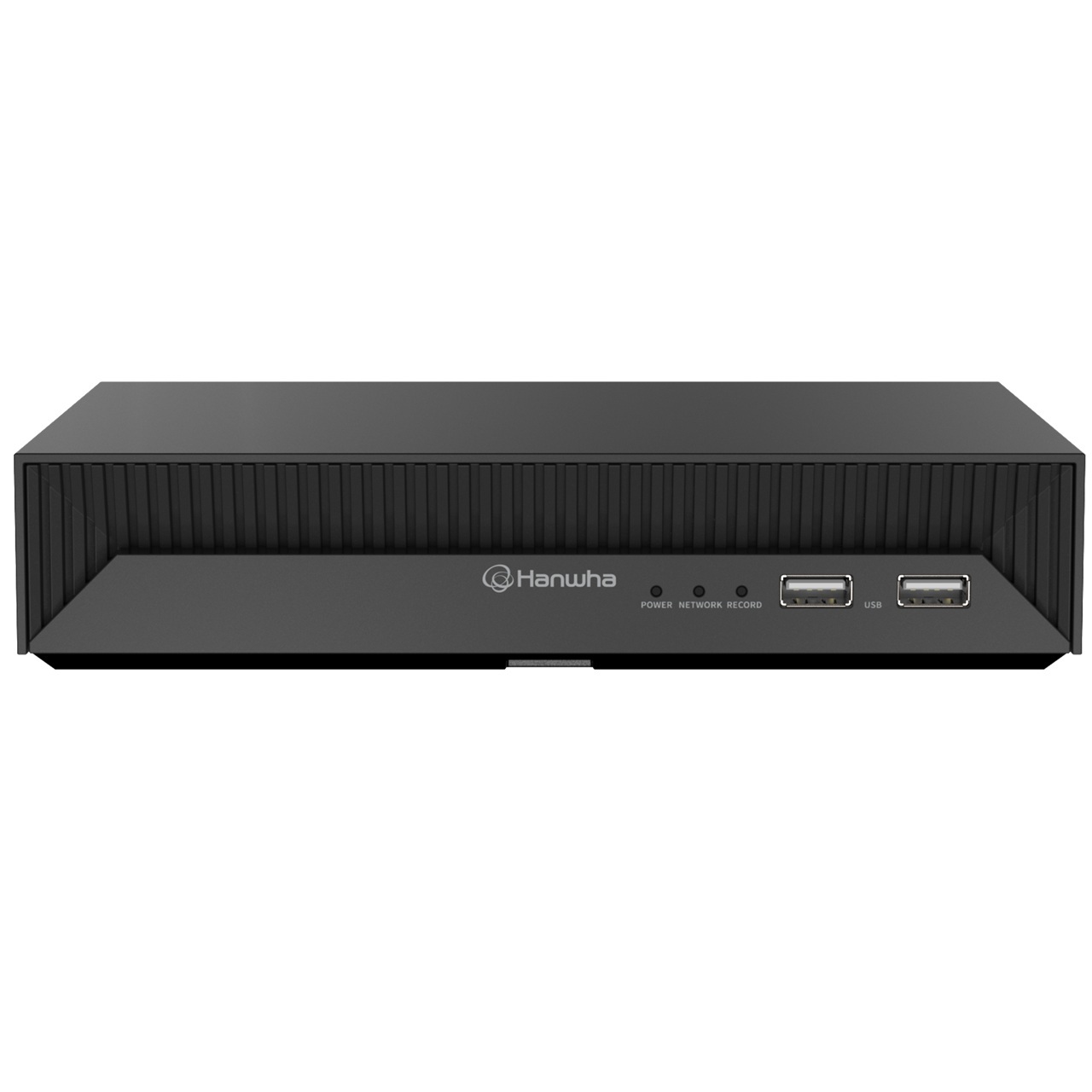

• Front Indicator - Power, Record, Network
• Reset - Switch(1EA, PW clear)
• HDMI - 1EA 3840x2160(30Hz)
• Audio - Out 1EA (RCA output)
• Ethernet - RJ-45(LAN, 10/100) 4ea (Support PoE/PoE+) ,RJ-45 1ea (WAN, 1Gbps)
• Alarm - In 4EA, Out 2EA
• USB - 2EA(Front 2 x USB 2.0), Support for Wi-Fi dongle for Install
• Power inlet - DC Adaptor

System

• Log Log List - Max. 100,000 (System Log, Event Log each)
• System Control - Mouse(include wireless), Keyboard(include wireless), Web
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

• Operating Temperature - 0™C to +40™C(32℉ to 104℉)
• Operating Humidity - 20% ~ 85% RH

Electrical

• Power Input - 54VDC/1.67A
• Power Consumption - Max 68W(PoE On)
• PoE Budget - 50W

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 200 x 140 x 42 mm (7.8 x 5.5 x 1.7 inch)
• Weight - 660g (1.45 lb)

Intelligent Analysis

AI Search

• Object Attribute - Compatible with Hanwha AI Camera
