WWT-P-7205ML Hanwha Vision WAVE Recording Server Ubuntu

Specifications

System

• Video Management Software - Wisenet Wave Client
• OS Drive Bays - 1 x 512GB M.2 SSD (Internally Mounted)
• Network Interface - 1x 2.5GbE RJ45
• Processor - 1x Intel Core Ultra 7
• Memory - 16GB
• Operating System - Windows 11 IoT Enterprise LTSC 2024 / Ubuntu 22.04 LTS
• Video Outputs - 1xDP, 2x HDMI

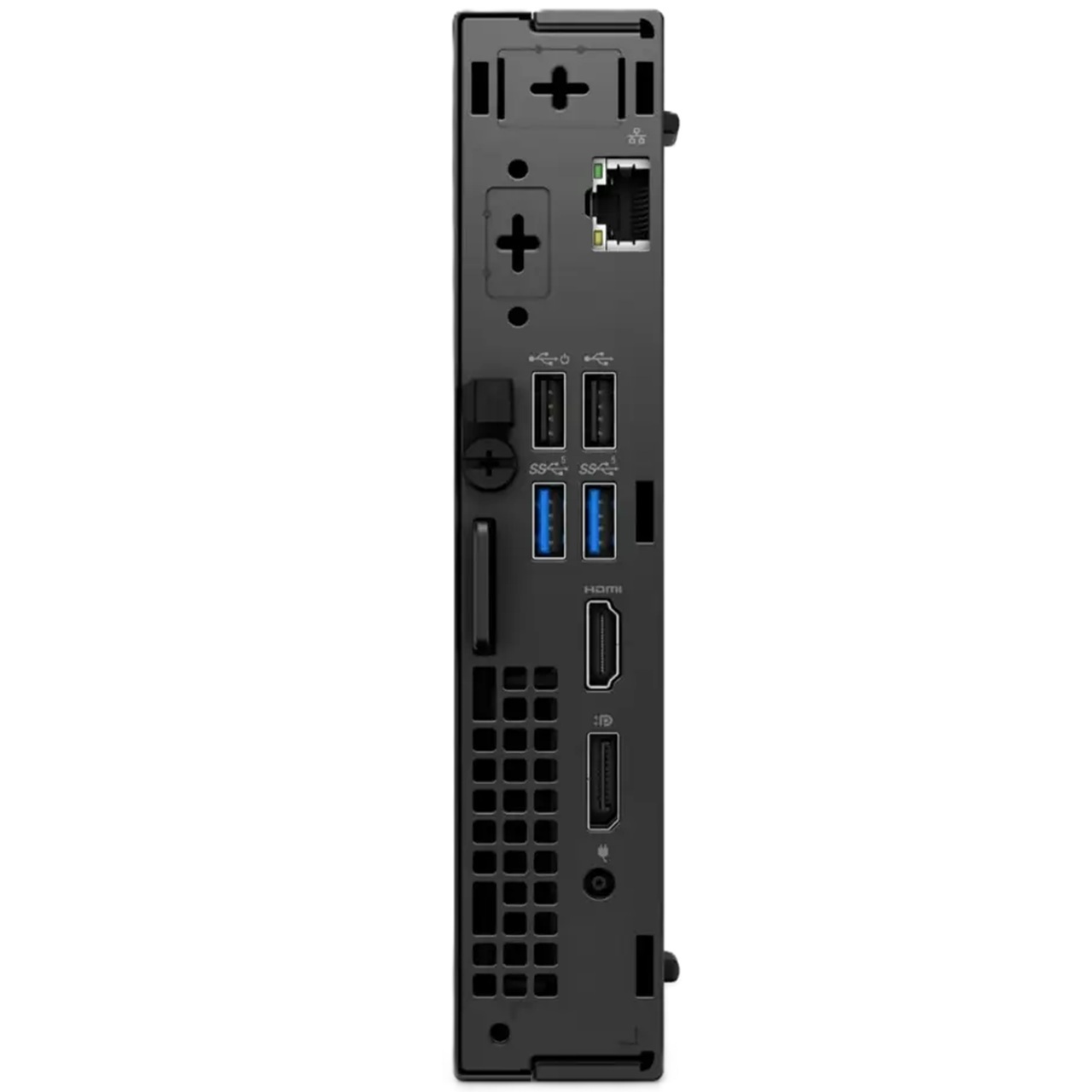

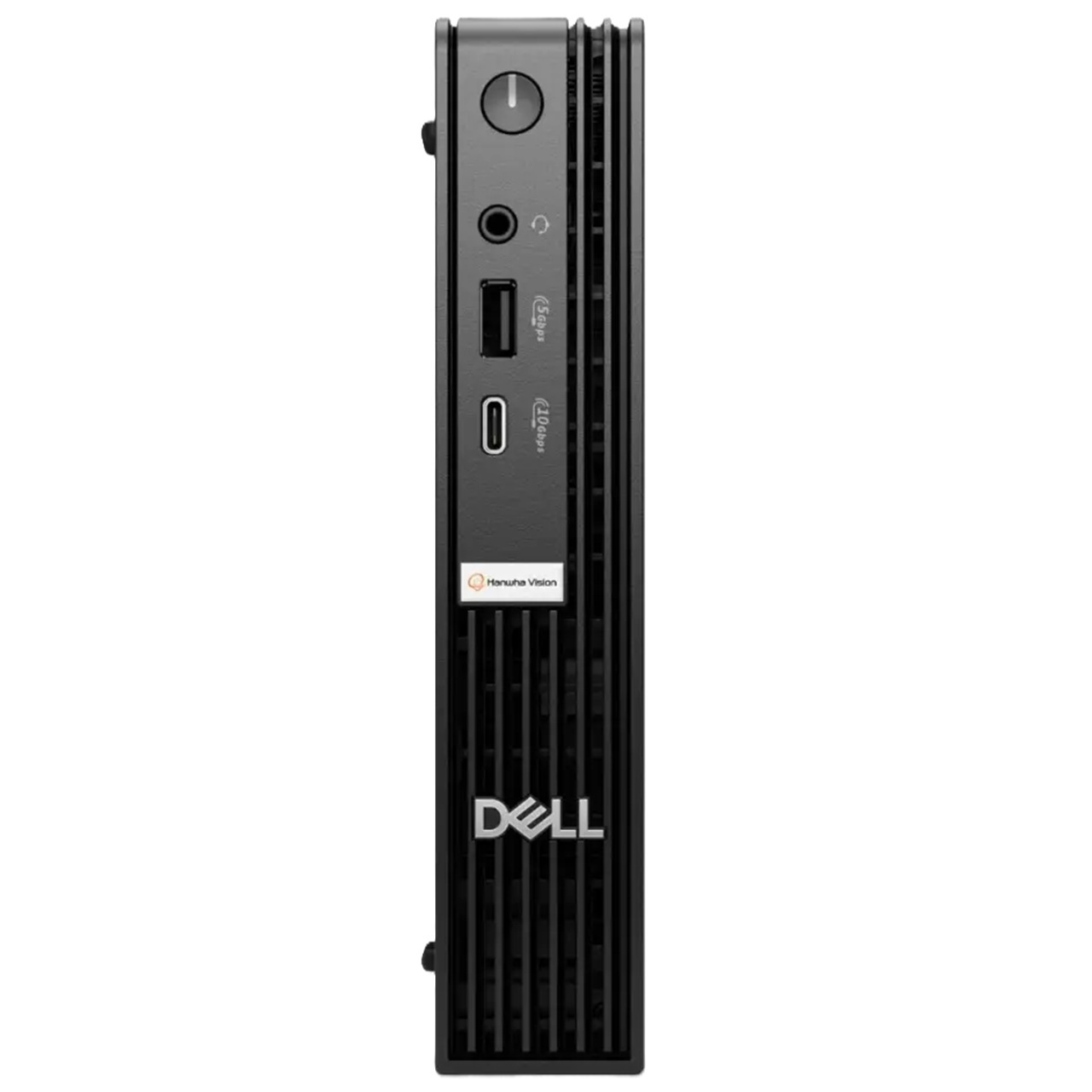

• USB Ports - Front: 1x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C Rear: 2x USB 2.0 + 2x USB 3.2 Gen1
• Other Ports - Front: 1x 3.5mm Universal Audio
• Keyboard & Mouse - Included

Mechanical

• Form Factor: - small form factor
• Color/Material - Black/Metal
• Dimensions (WxDxH): - 1.42"(36mm) x 7.01"(178mm) x 7.17"(182mm)
• Weight: - 3.09 lbs (1.40 kg) * Weight is on chassis without HDD's

Electrical

• Power Supply: - 90W adapter 4.5mm barrel
• Power Input - 100 - 240 VAC

Environmental

• Operating Temperature: - 50F - 95F (10C - 35C)
• Storage Temperature - -40F to 149F (-40C to 65C)
• Operating Humidity: - 20% to 80% (non-condensing)
• Certifications - UL, cUL,CB,FCC

General

• The WWT-P-7205Mx Series client workstation is a micro form factor, easy to deploy solution that can be used on-site or remotely to access your Wisenet WAVE video recorder. The workstation has a 512GB M.2 solid state drive for the Windows 11 IoT Enterprise LTSC 2024 or Ubuntu 22.04 LTS operating system to provide fast boot and load times.
• This micro workstation offers unrivaled deployment flexibility, allowing for its small chassis to be deployed in any small business environment. An optional VESA mount allows the server to be inconspicuously mounted behind a monitor.

WWT-P-7205ML Specifications PDF
