NV-4PS10-PVD NVT 4 Channel Power Supply Cable Integrator Hub

The NVT model NV-4PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 4 cameras, all over UTP wire. Designed for installation in the wiring / IDF telecom closet, or at the Control /MDF room, the NV-4PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts.
At the camera, Power, Video and Data connections are made using the NV-216A-PV (power-video only) NV-218A-PVD, or NV-226J-PV transceiver via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. Telemetry data, if required, passes through the NV-4PS10-PVD's data path and is connected to the controller via a second 4-pair RJ45 cable.

Specifications

• Camera Power-Video-Data Connections - Four front-panel RJ45 outputs support up to four fixed or P/T/Z telemetry cameras over 4-pair UTP
• Power Output - Each camera is powered by a fully isolated (floating) Class 2 SELV output, individually switchable 24VAC / OF F / 28VAC at up to 1 Amp. Each output is individually thermistor protected.
• Wire Distance - Supply voltage, wire resistance and minimum camera operating voltage determine the maximum camera distance.
• Front-Panel LEDs
  • Blue LED - System Power On
  • Per-channel LED indicates
    • Off - No load connected
    • Green - Load connected & working
    • Amber - Mis-wiring detected
    • Red - Overload shutdown condition
• Control Room Video - UTP video signals are passed through the unit and delivered to the control / MDF room via rear-panel RJ 45 connectors
• Control Room Data - RS-422 or RS-485 type P/T/Z telemetry / data signals are passed through the unit and delivered to the control room via a rear-panel RJ45 connector:

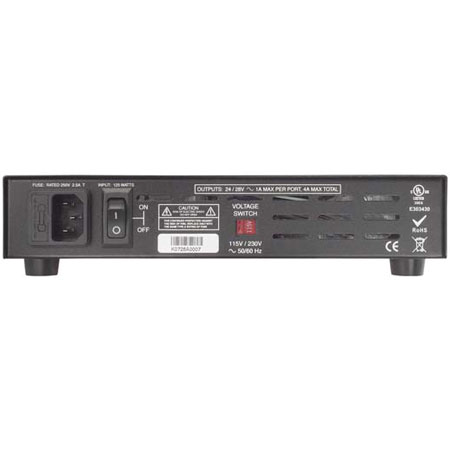

• Power Input
  • On-off switch - Rear panel
  • Voltage - 115 / 230 VAC
  • Current - 2.5 / 1.25 Amps
  • Frequency - 50 / 60 Hz
  • Protection - 5A slo-blo 8x20 mm fuse & thermal shutdown
  • Wattage - 100 Watts
  • Heat - 1000 BTU/hour
• Environmental
  • Ambient Temperature - 0 to +140°F (-20 to +50°C)
  • Minimum airflow - 4 ft3 / min (0.1 m3 / min)
  • Humidity (non-condensing) - 0 to 95%
  • Transient Immunity - per ANSI 587 C62.41
• Mechanical
  • Dimensions, including connectors
    • 9.25in wide, 1.75in high, 7.25 in deep
    • 235mm wide, 44.5 mm high, 184 mm deep
  • Weight - 7 lb (3.2 kg)
  • Mounting - Wall, or desk mount
