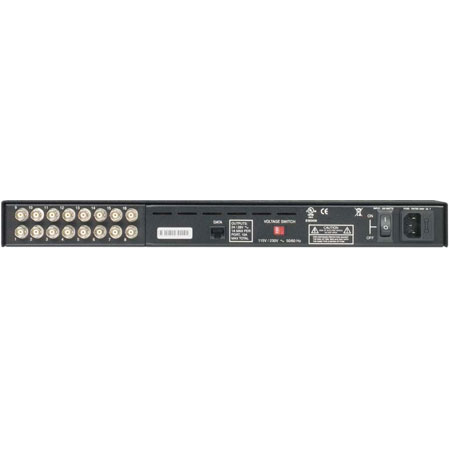

NV-16PS13-PVD NVT 16 Channels Power Supply Passive Receiver Hub

The 16-channel NV-16PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel (10 Amps aggregate). Use with NVT's NV-216A-PV or NV-218A-PVD for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load/no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs. All NVT products are UL and cUL listed, and compliant with CE, RoHS, WEEE and come with NVT's lifetime warranty.

Specifications:

• Model Number - NV-16PS13-PVD
• Frequency response - DC to 5 MHz
• Attenuation - 0.5 dB typ
• Common-mode / Differential-mode rejection 15 KHz to 5 MHz - 60 dB typ
• Impedance Coax/UTP - 75/100 ohm
• Network Wiring - One Unshielded Twisted Pair 24 - 16 AWG (0,5-1,31mm)
• Category Type - 2 or better
• Impedance - 100 ± 20 ohms
• DC Loop Resistance (24AWG) - 52 ohms per 1,000 ft (18 ohms per 100 m)
• Differential Capacitance - 19 pF/ft max (62 pF/m max)
• Power Supply - Fully isolated (floating) outputs for each camera. Individually switchable 24VAC / off / 28VAC. * Up to 1 Amp / camera, aggregate up to 10 Amps
• Voltage - 115 / 230 VAC
• Current - 2.5 / 1.25 Amps
• Wattage - 325 Watts
• Heat - 250 BTU/hour
• System Power - Blue LED
• Ambient Temperature - 0 to +140°F (-20 to +50°C)
• Minimum airflow - 20 ft3 / min (0.5 m3 / min)
• Humidity (non-condensing) - 0 to 95%
• Transient Immunity - per ANSI 587 C62.41
• Dimensions - 19 in wide, 1.73 in high, 12 in deep
• Weight - 24.9 lb (11.3 kg)
• Mounting - Rack mount "L" brackets for front, rear, or wall installations: rubber feet for desk installation
• Cables - Sixteen 2ft (60cm) coax jumpers

NV-16PS13-PVD Specifications PDF
