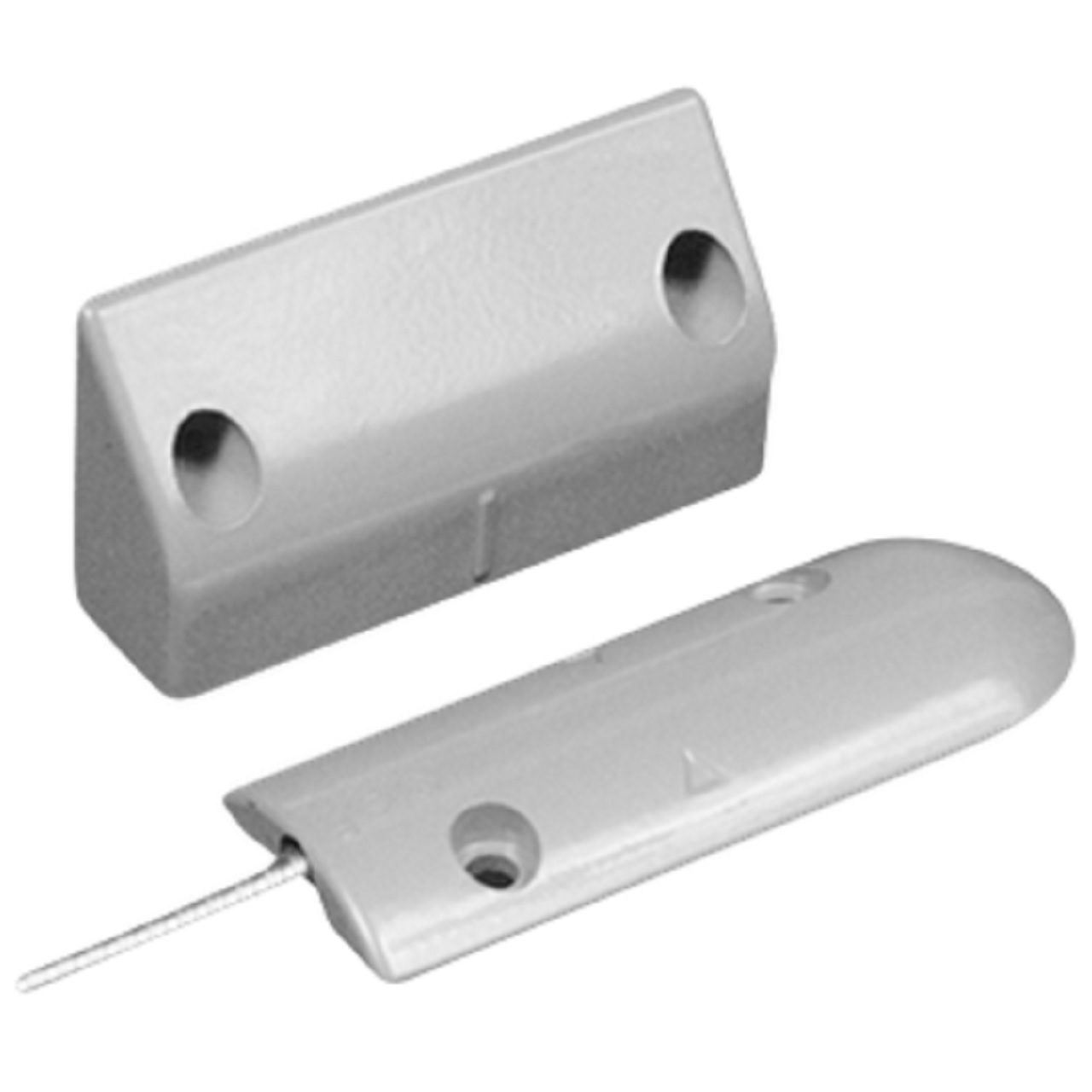

4410015 Potter ODC-56B 24" NO/NC Overhead Door Contact With Fixed Magnet 2" Gap

Features

• UL and ULC listed
• 2” operating gap
• 24” stainless steel armored cable
• Hermetically sealed reed switch

Application

The ODC-56 Series Overhead Door Contacts are exclusively designed for rugged high traffic installations. The reed switch is hermetically sealed with a PVC shock absorber enclosed within a solid aluminum housing. Installation wires are protected in a 24” stainless steel armored cable. The magnet is enclosed and protected in a heavy duty aluminum housing.

Specifications

• Model Number - ODC-56B
• Stock Number - 4410015
• Contact - 22AWG 24” Leads
• Contact Rating - 3VA
• Contact Type - Form C N.O./N.C.
• Max. Carry Current - .5 Amp
• Max. Switching Current - .2 Amp
• Breakdown Voltage - 150VDC
• Operating Gap - 2"
• Temperature Range - -40°F - 257°F (-40°C - 125°C)

4410015 Specifications PDF
