AT-IE048-480 Hanwha Vision 480W @48Vdc, Industrial AC/DC Power Supply, DIN Rail Mount

Specifications

Input Specifications

• Voltage - 90 to 264 VAC 1 Φ1 , or 88 to 350 VDC
• Current - @115VAC - 4.6A typ., @230VAC - 2.3A typ.
• Frequency - 50/60Hz (45 to 60Hz)
• Efficiency - @115VAC 92 typ., @230VAC 94 typ.
• Power factor - @115VAC 0.98 typ., @230VAC 0.93 typ.
• Inrush current - @115VAC 20A typ. 2, @230VAC 40A typ. 2
• Leakage Current 3 - @100VAC - ≤0.75mA, @240VAC - ≤1.50mA
• Line noise tolerance - 2kV, 50 to 1,000ms, ±0~360°

Output Specifications

• Voltage nominal - 48VDC
• Current - 10A
• Peak current - 15A
• Line regulation - ≤192mV 4
• Load regulation - ≤300mV 4
• Ripple - 0° to 70°C - ≤120mVp-p, -25° to 0°C - ≤240mVp-p, Io=0 - 30% - ≤750mVp-p
• Ripple noise - 0° to 70°C - ≤150mVp-p, -25° to 0°C - ≤300mVp-p, Io=0 - 30% - ≤750mVp-p
• Temperature regulation - 0° to 70°C - ≤480mV; -25° to 70°C - ≤600mV
• Voltage accuracy - 0° to 70°C - ≤486mV; -25° to 70°C - ≤606mV
• Drift - ≤192mV
• Start-up time 5 - ≤750ms
• Hold-up time - 20ms typ. 5
• Output voltage adjustment range - 45.0 to 55.2VDC
• Output voltage setting - 48.0VDC ±1%
• Protection Over current - 101% of peak current, auto recovery
• Protection Over voltage - 57.6 to 67.2VDC
• Protection Over temp - √

Isolation and other Specifications

• Isolation6 - Input-Output 3,000 VAC for 1 minute; cut off current:10mA; Input-P.E. 2,000 VAC for 1 minute; cut off current:10mA Output-P.E. 500 VAC for 1 minute; cut off current:100mA, Output-RC, DC_OK
• Remote ON/OFF (RC) - √
• DC_OK contact - ≤1A @30VDC; ≤0.5A @30VAC
• LED Alarm - √ (red)
• LED DC_OK - √ (green)

Environmental

• Operating temperature range7 - -25° to 70°C 8, 9
• Storage temperature range - -40° to 85°C
• Operating humidity range - 20% to 90% RH, non-condensing
• Storage humidity range - 20% to 90% RH, non-condensing
• Operating altitude - 5,000 m
• Cooling method - Air convection

Compliance

• Compliance Mark - CE, cULus, RCM, UL
• Environmental compliance - RoHS, China-RoHS, WEEE
• Safety - CAN/CSA C22.2 No. 62368-1, EN/IEC/UL 62368-1 UL 508
• Electromagnetic Immunity - EN 55035
• IEC 61000-3-2 Harmonic current emission - Class A/li>
• IEC 61000-3-3 Voltage fluctuation and flicker - n.a.
• IEC 61000-4-2 Electrostatic discharge (ESD) - Contact discharge: level 4
• IEC 61000-4-3 Radiated susceptibility (RS) - Level 3
• IEC 61000-4-4 Electrical fast transient (EFT) - level 4
• IEC 61000-4-5 Lighting/surge immunity (Surge) - Line-to-line: level 3 Line-to-earth: level 4
• IEC 61000-4-6 Conducted immunity (CS) - Level 3
• IEC 61000-4-8 Magnetic field immunity - Level 4
• IEC 61000-4-11 AC voltage dips and interrupt - 30% reduction for 500ms, 60% reduction for 200ms
• Electromagnetic Emissions - CISPR 32, class B, EN 55011, class B, EN 55032, class B, FCC 47 CFR Part 15, subpart B, class B VCCI, class B
• Shock - Non-operating: 20g, 11ms, half-sine (packaged)
• Vibration - Non-operating: 2g @10~55Hz (DIN rail)
• Hazardous location - ANSI/ISA12.12.01 class I, division 2, groups A, B, C and D

Physical Specifications

• WidthXDepthXHeight - 70 x 117 x 124 mm(2.76 x 4.61 x 4.88 in)
• Weight - 1.20 kg
• Enclouser - stainless steel

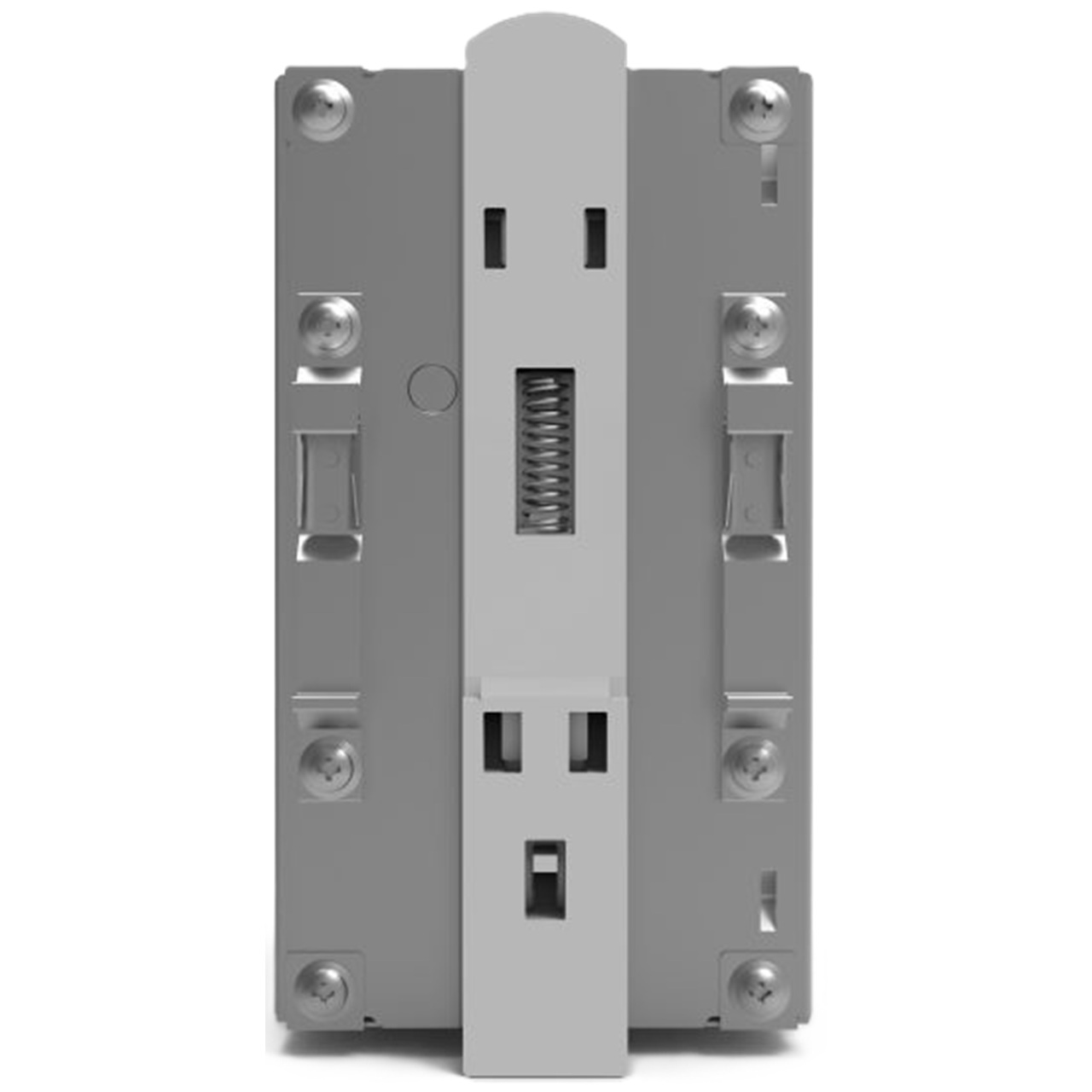

• Mounting - DIN rail, 10
• Protection Rate - IP20
