CSR-4DR-R2 Suprema CoreStation CS-40 4-Door Access Control Kit with 4 x BER2-OD BioEntry R2 125kHz and 13.56Mhz Dual RFID Fingerprint Slave Readers

Search available promotions and discounts for this Item

SKU: CSR-4DR-R2

Brand: Suprema

Centralized Biometric Access Control
- Centralized storage of biometric and access group data
- Complete controller functionalities with fingerprint matching
- Multi-port interface for fingerprint/RF readers
- Supports locks, sensors, RTE, and alarm devices
Enterprise-level Capacity
- Max 500,000 users (1 million fingerprint templates) - 500,000 RF cards/5,000,000 event logs
- High-speed fingerprint matching - Max 400,000 match/sec (genuine matching)
- UL 294 Compliant: Highest safety and reliability certified by world-renowned label
Improved Security
- No Ethernet connection to the door reader
- No data storage at the door reader
- Secured communication between server and CoreStation (TLS 1.2)
System Flexibility and Scalability
- Controls up to 132 access points with extension modules (DM-20)
- Elevator Control (OM-120)
- Supports OSDP (Open Supervised Device Protocol)

More details...

Search available promotions and discounts for this Item

MPN: CSR-4DR-R2
Ordering Notes: Service Professionals Only

MSRP Price: $3,434.00

Online Price: $3,434.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

CS-40 Specifications

Model Name - CS40
CPU - 1.4 GHz Octa Core
Memory - 8 GB Flash + 1 GB RAM
Max. User (1:1)* - 500,000
Max. User (1:N)* - 100,000
Max. Face User (1:1)* - 30,000
Max. Face User (1:N)* - 3,000
Max. Logs - 5,000,000 (text)
Serial Comm. Protocol - OSDP V2
Ethernet - 10/100Mbps, auto MDI/MDI-X
RS-485 - 5 ch
Wiegand - 4 ch input
Relay - 4 relays
TTL Input - 8 ch (Supervised input selectable)
TTL Output - 8 ch
AUX Input - 2 ch (AC Power Fail, Tamper)
Operating Temperature - 0°C–50°C
Dimensions (WxHxD) - 150 x 214 x 21 mm
Power - DC 12 V
Power Output (Reader) - 4 ch (DC 12 V)
Certification - CE, FCC, KC, RoHS, WEEE, REACH, UL 294

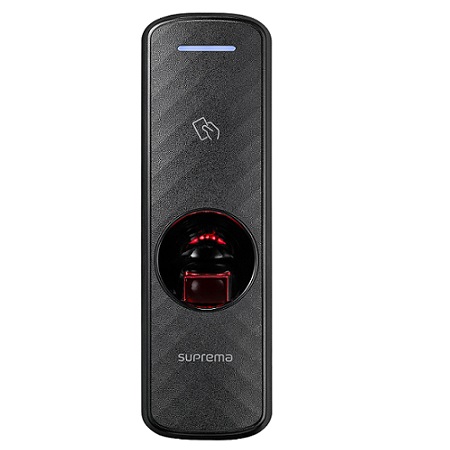

BER2-OD Specifications

Biometric - Fingerprint
Sensor Type - Optical Sensor (OP6)
Template - SUPREMA / ISO 19794-2 / ANSI 378
Extractor / Matcher - MINEX certified and compliant
RF Option - 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC
CPU - 1.0 GHz
Memory - 32MB Flash + 32MB RAM
LED - Multi-Color
Sound - Multi-tone Buzzer
RS-485 - 1ch Slave, OSDP V2.1.6
Tamper - Supported
Power - DC 12V
Operating Temperature - -20°C ~ 50°C
Operating Humidity - 0% ~ 80%, non-condensing
Dimensions (WxHxD, mm) - 50 x 164 x 37.5
Weight - 158g
Certificates - CE, FCC, KC, RoHS, REACH, WEEE

CSR-4DR-R2 Specifications PDF

Check out some additional items that you may need to purchase with this product:

Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. (

) indicates a required accessory.

BER2-OD Suprema BioEntry R2 125kHz and 13.56Mhz Dual RFID Fingerprint Slave Reader

MSRP Price: $600.00

ENCR-10 Suprema APB Plastic Enclosure for CoreStation with Power Supply

MSRP Price: $490.00
