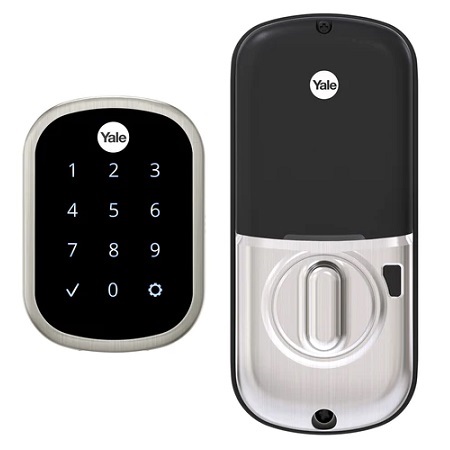

[DISCONTINUED] YRD256-NR-605 Yale Touchscreen No Radio Key Free Deadbolt - Bright Brass-PVD

The Assure Lock can be upgraded with a Yale Smart Module to seamlessly integrate into most home automation and alarm systems. Enjoy the convenience of being able to lock and unlock your home from anywhere, create pin codes, share access, view access history and receive notifications with systems like SmartThings, Ring, Alarm.com and many more! Select the Yale Smart Module that fits your needs; Connected by August Upgrade Kit, Z-Wave Plus or Zigbee.

Door Specifications

• Face Bore - 2 1/8"
• Edge Bore - 1"
• Backset - 2 3/8" or 2 3/4" (adjustable latch)
• Door Thickness - 1 3/4" to 2 1/4" **1 3/8" requires special order thin door kit
• Strike - 1 1/8" x 2 3/4"
• Strike Front - Round Corner
• Keyway - KW-1 5 Pin(keyed models come with 2 keys)
• Batteries - 4 AA Alkaline Batteries (Included)
• Handing - Self-handing
• Grade - Tested to: ANSI/BHMA Grade 2
• UL/cUL - Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 20 min. YRD216/226 require the optional part AYRD-FKIT- to be installed to meet this standard

Temperature Range

• Outside Temperature Range-30°C to 60°C = -22°F to 140°F
• Inside Temperature Range-15°C to 70°C = 5°F to 158°F
• Battery Temperature Range-10°C to 55°C = 14°F to 131°F
• Storage Temperature Range-40°C to 85°C = -40°F to 185°F

In the Box

• Yale Assure Lock
• Deadbolt and Strike Plate
• Mounting Hardware
• 4 AA Batteries
• Door Template
• Installation Manual
• Optional: Yale Smart Module or Connected by August Kit

Warranty

• for the original owner, one year warranty for electronics and lifetime limited warranty for finish and mechanical operation

Product Measurements

• YRD256 - Exterior: 11/16" L x 2 9/16" W x 3 9/16" H, Interior: 2 1/8" L x 3" W x 6 7/8" H

YRD256-NR-605 Specifications PDF
