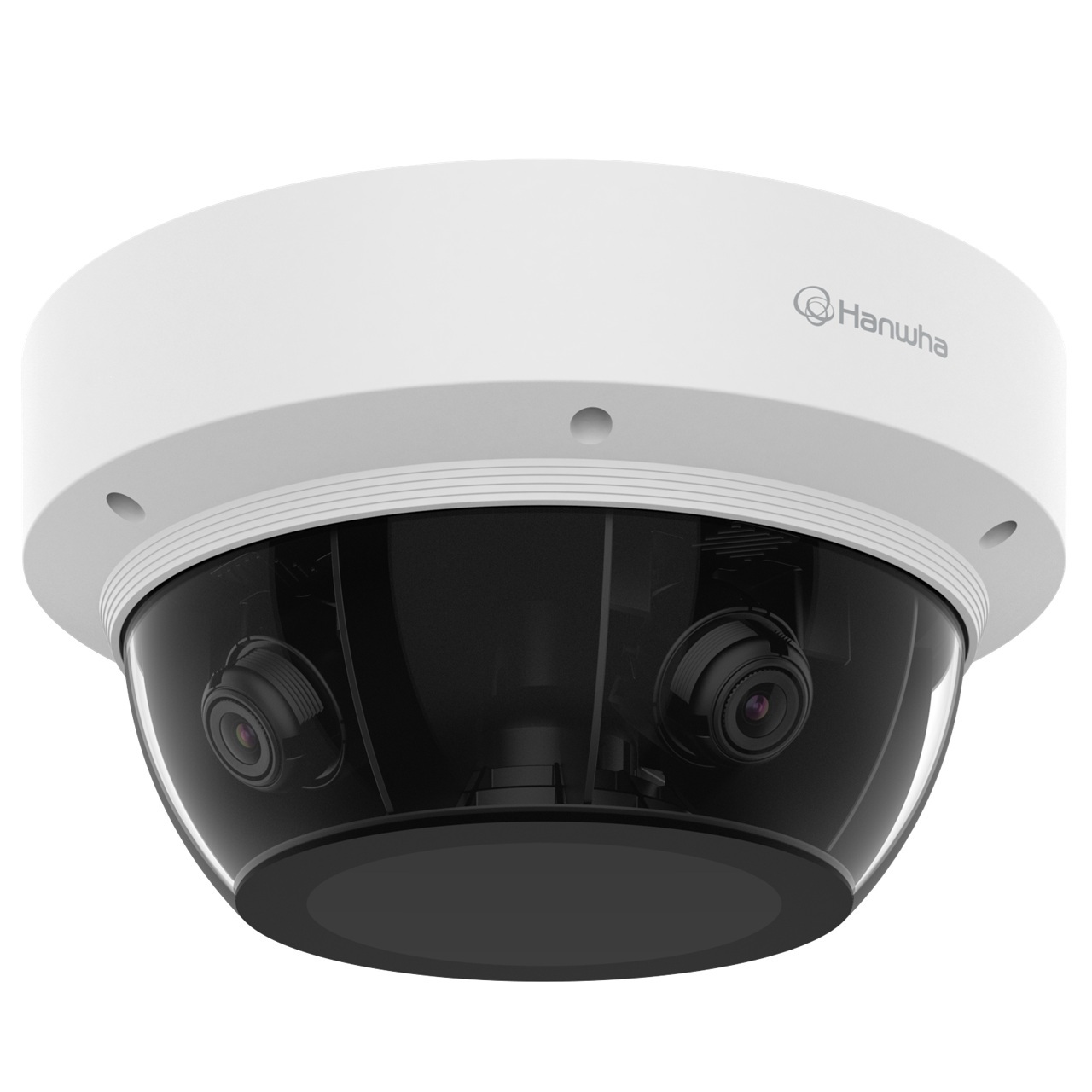

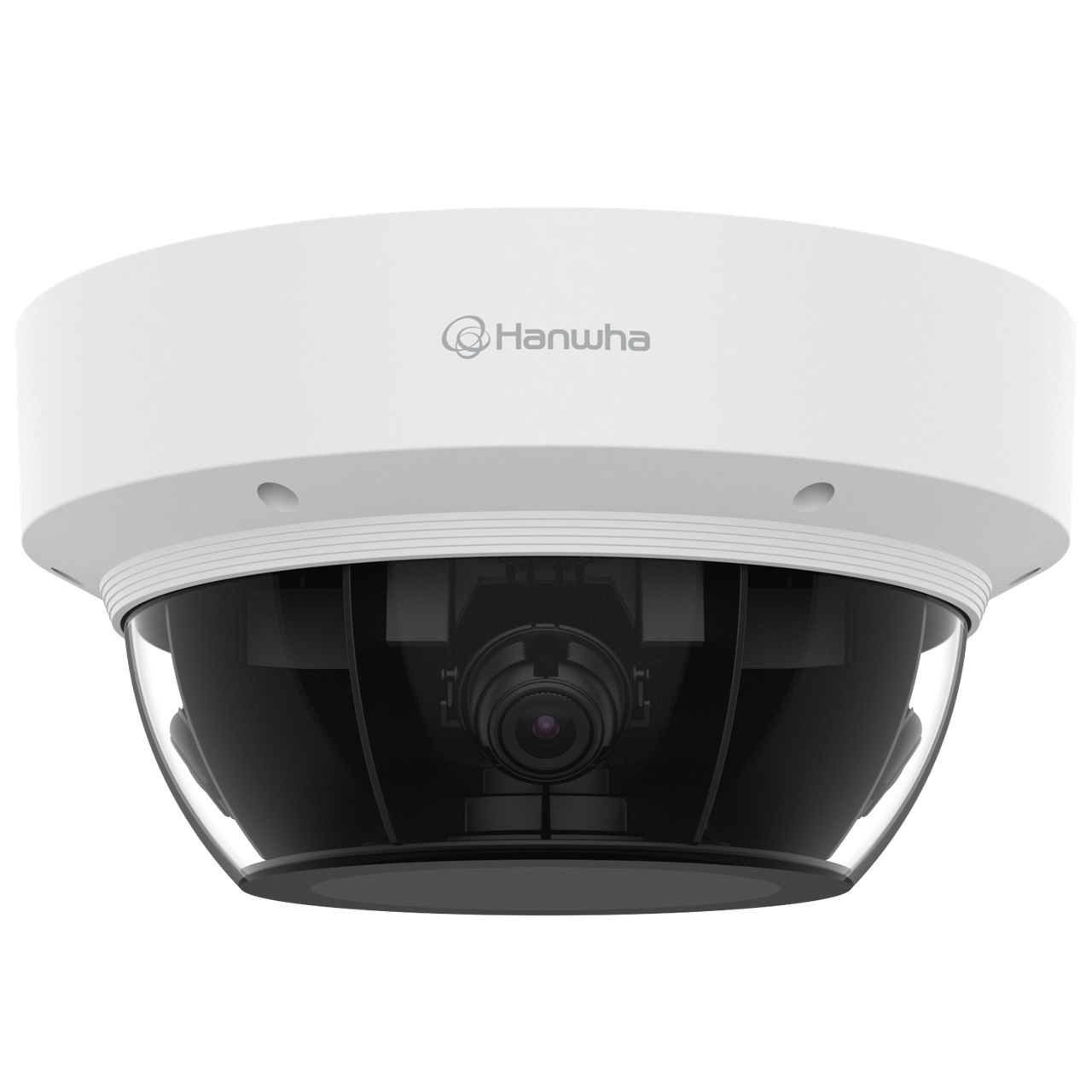

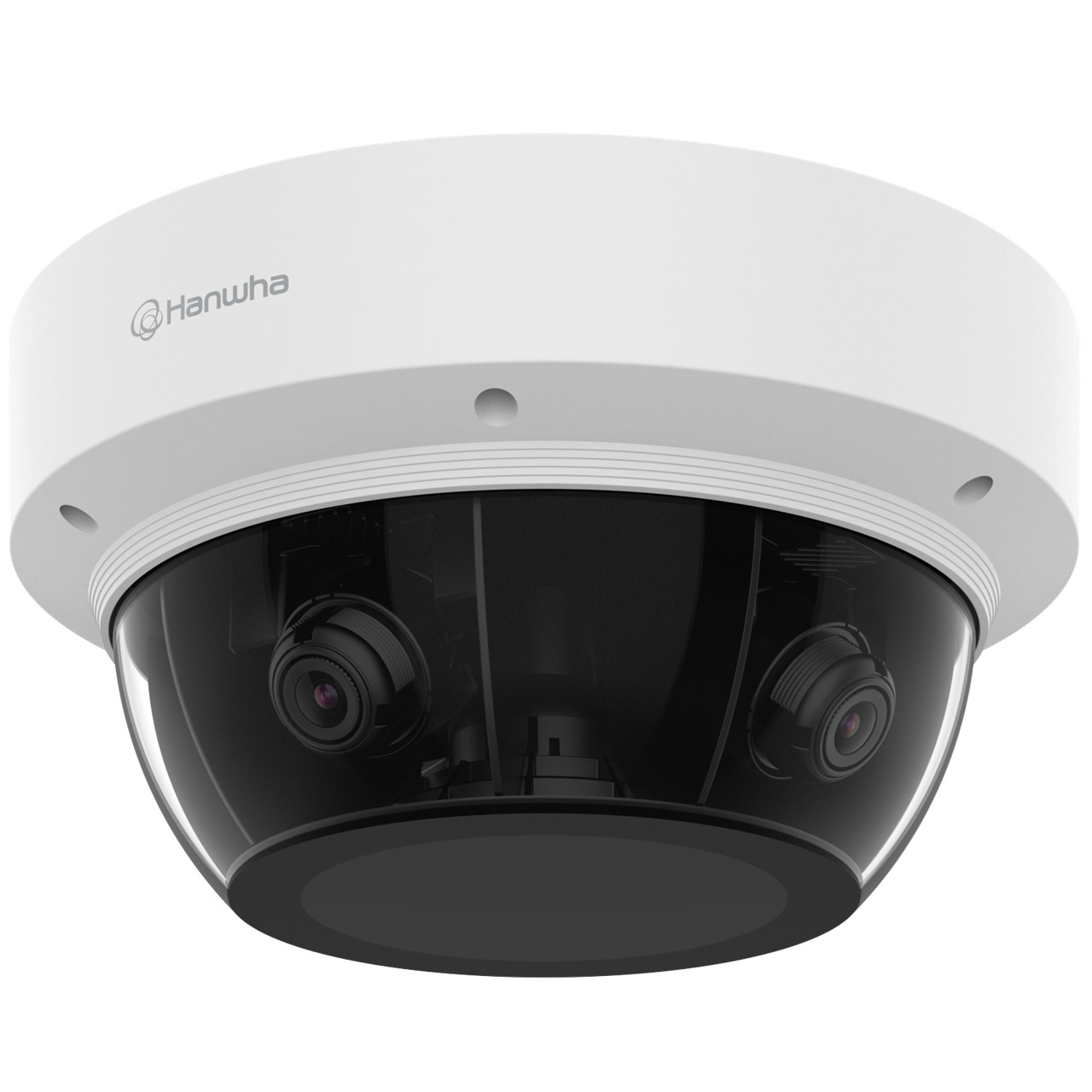

PNM-9002VQ Hanwha Vision P Series Multi-sensor Outdoor Day/Night WDR Dome IP Security Camera PoE - No Lens

Specifications

Video

• Resolution - [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation

Lens

• Optional Lens - SLA-2M2400Q(2MP 2.4mm) SLA-2M2800Q(2MP 2.8mm) SLA-2M3600Q(2MP 3.6mm) SLA-2M6000Q(2MP 6.0mm) SLA-5M3700Q(5MP 3.7mm) SLA-5M4600Q(5MP 4.6mm) SLA-5M7000Q(5MP 7.0mm)

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - 150dB
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
• Alarm Triggers - Analytics, Network disconnection
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API)

Security

• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP)
• Secure Communication - HTTPS
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
• Memory - 3GB RAM, 768MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification - IP66, IK10
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - Max 25.5W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø253mmx130mm, 3000g
• Conduit hole - 3/4"
• Hanging mount(Dome) - SBP-276HMW

Certifications & Standards

• Environment - IEC 60529 IP66, IEC 62262 IK10

PNM-9002VQ Specifications PDF
