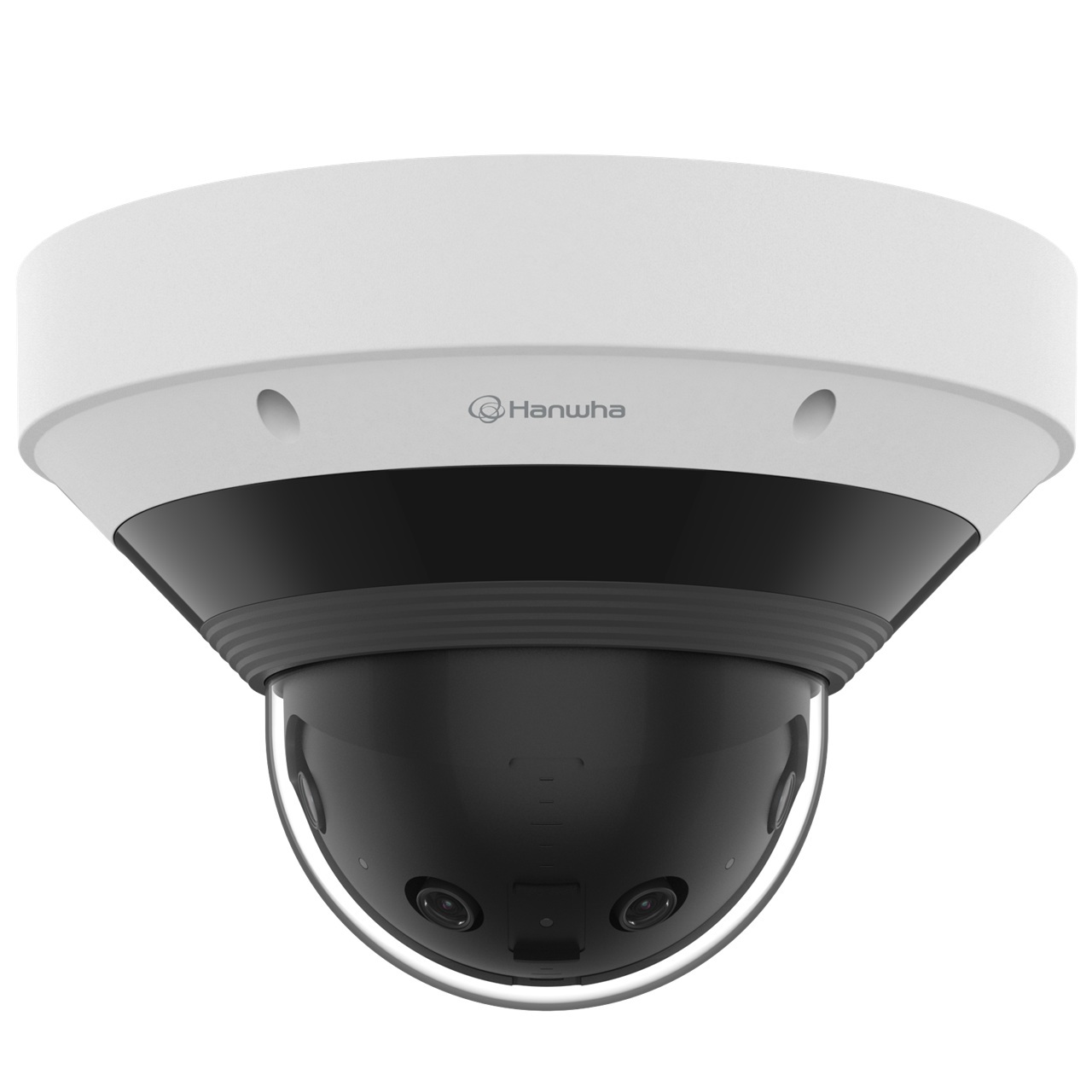

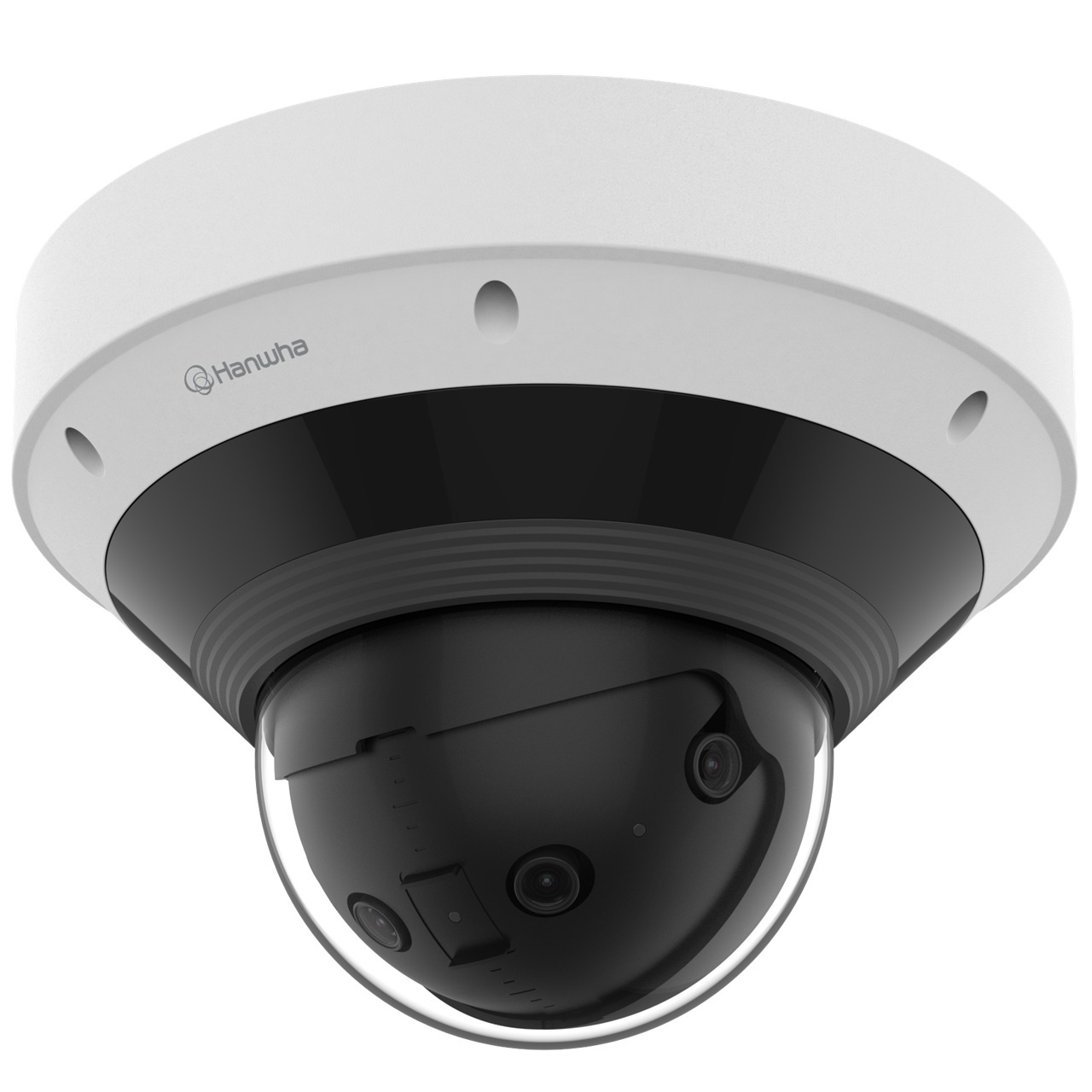

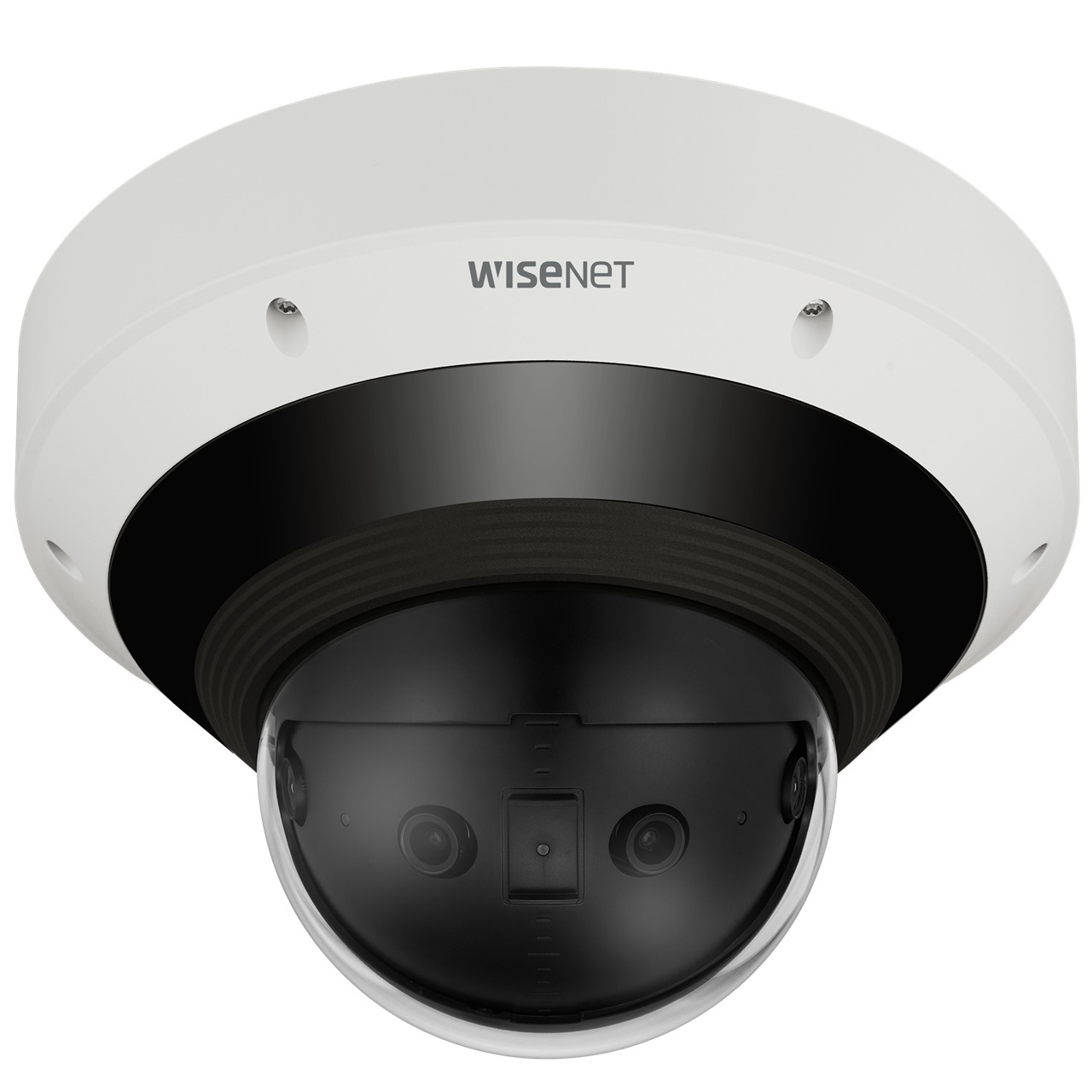

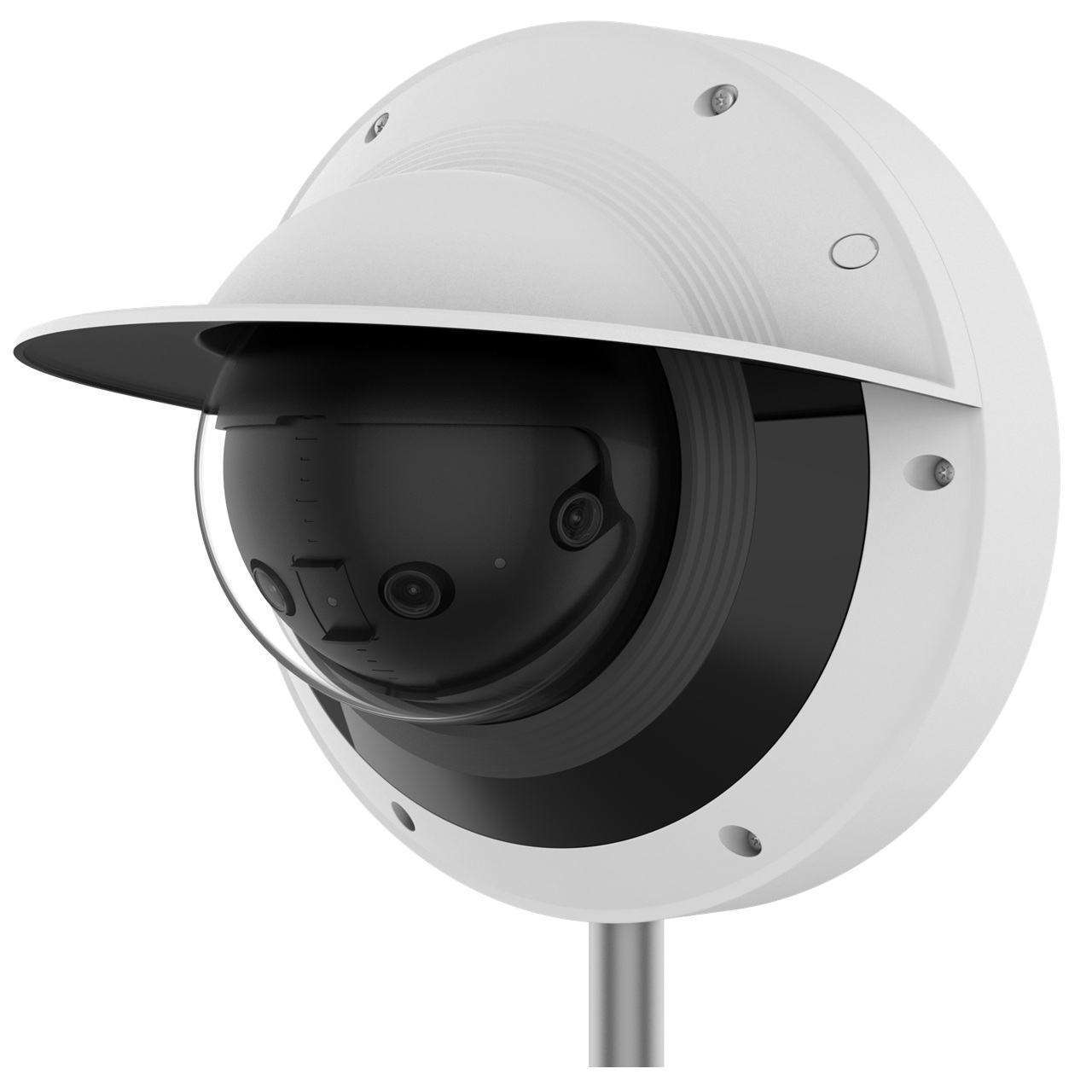

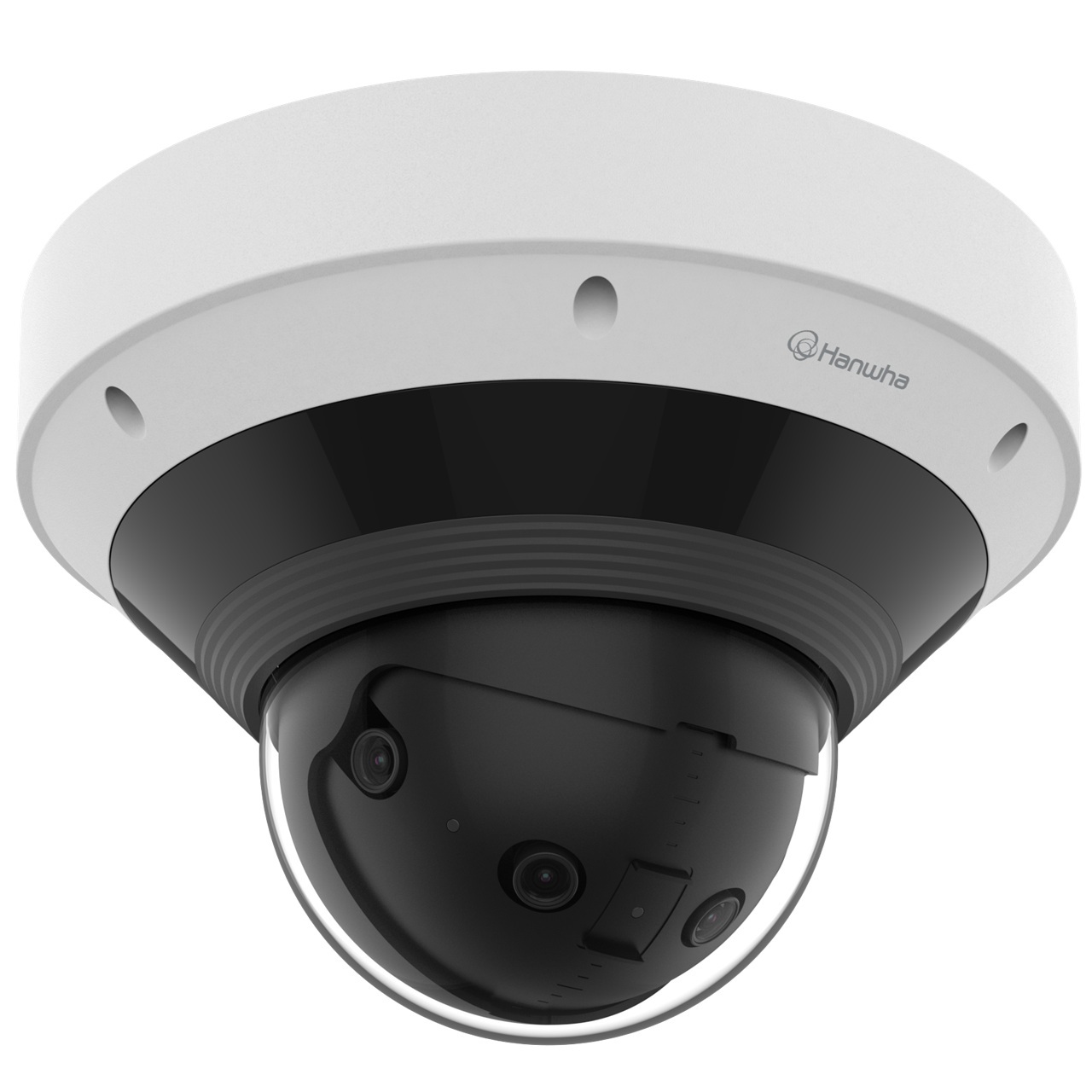

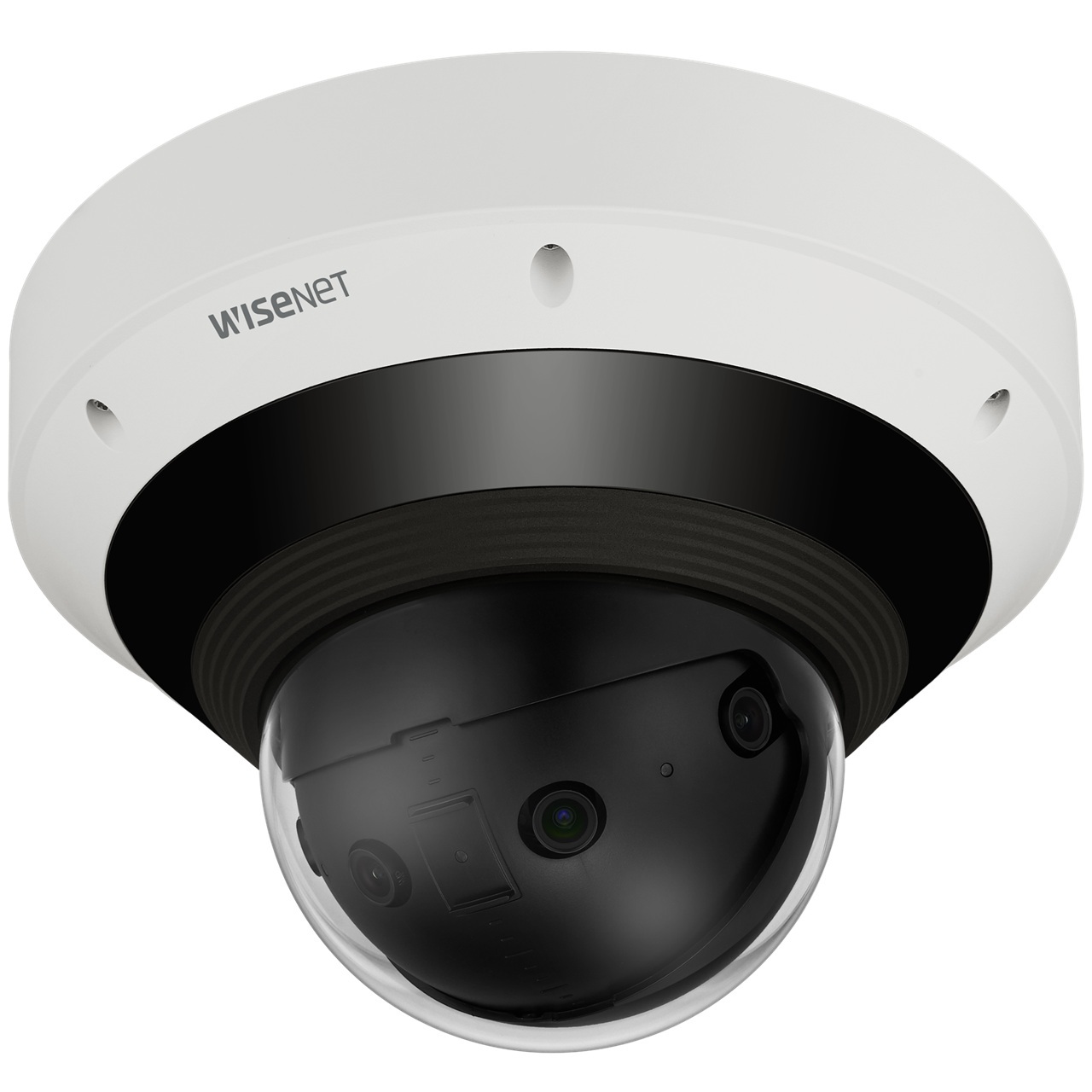

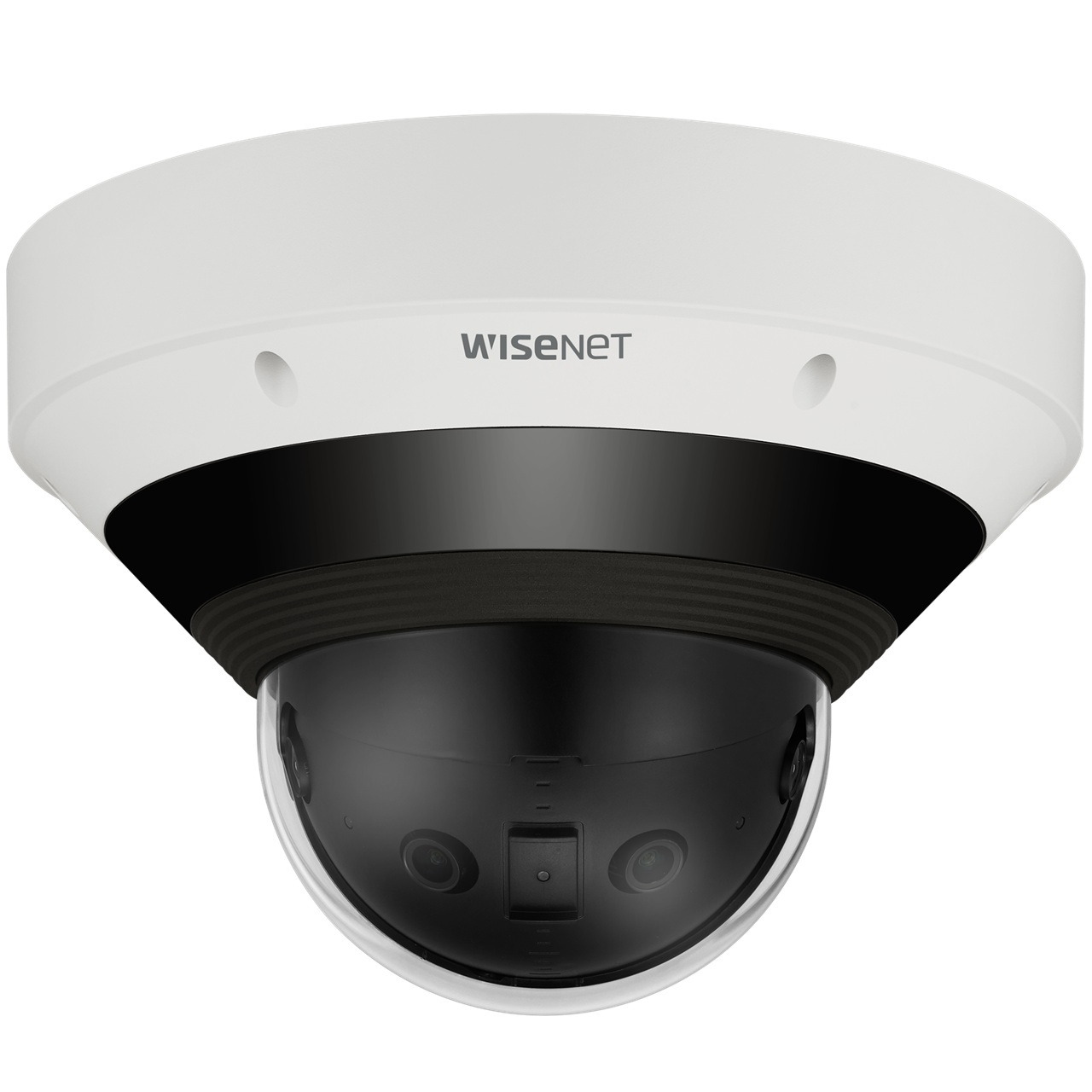

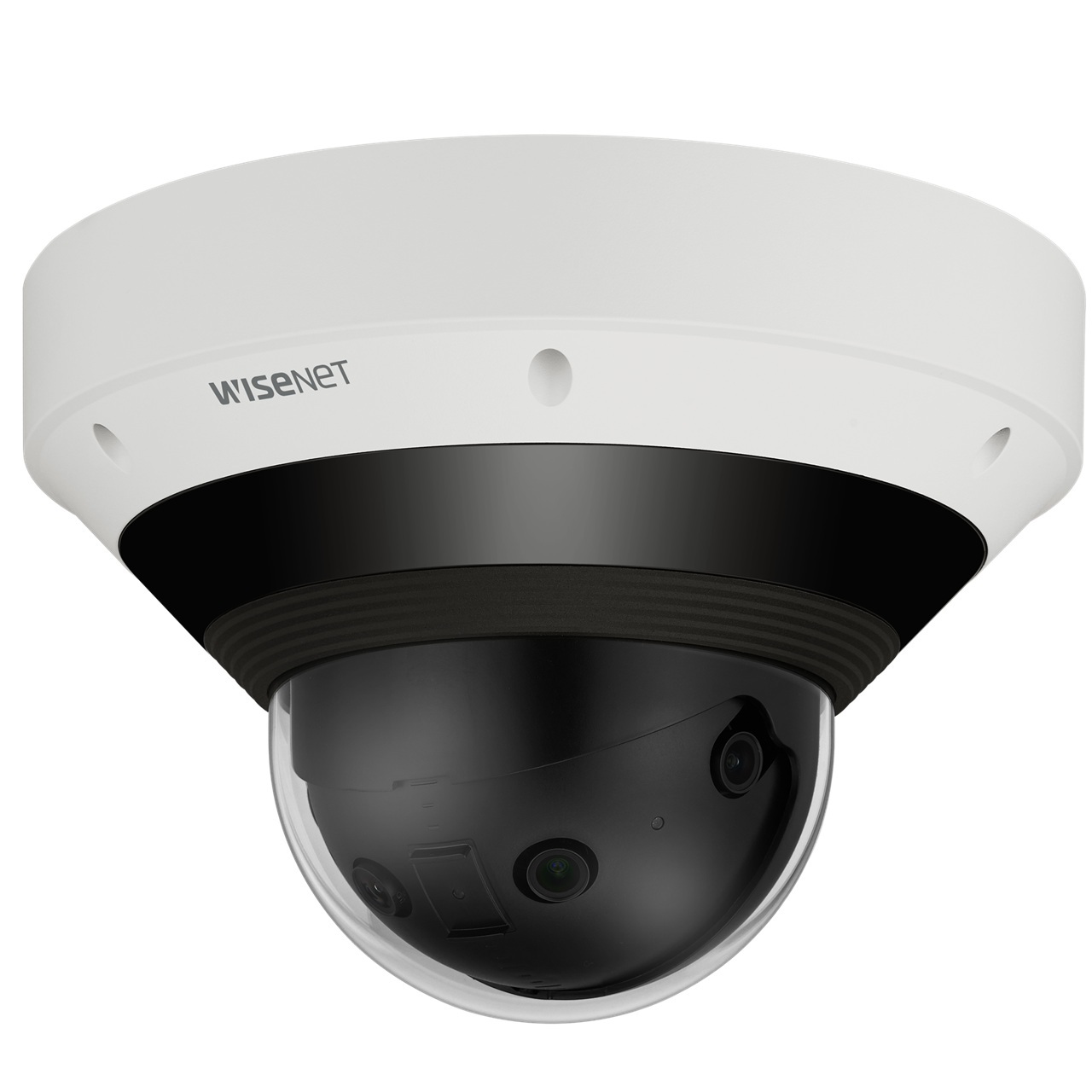

PNM-9031RV Hanwha Vision 4.3mm 20FPS @ 15MP Outdoor Day/Night WDR Multi-Sensor IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 5MP CMOS (x4)
• Resolution - 6720x2240, 5952x1984, 4992x1664, 3840x1280, 3072x1024, 1920x640, 1152x384
• Max. Framerate - H.265/H.264: Max. 20fps/20fps(60Hz/50Hz)@15MP MJPEG: Max. 15fps(60Hz/50Hz)
• Min. Illumination - Color: 0.1Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec), 0Lux(IR LED on)
• Video Out - USB : Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 4.3mm Fixed
• Max. Aperture Ratio - F1.6
• Angular Field of View - Min (Distance 5m) H: 195.3° x V: 63.6° / Max (Distance 100m) H: 197.0° x 63.6°
• Min. Object Distance - 5m(16.4ft)
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0~360° / 0~60° / -

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 6ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
• Business Intelligence - Heatmap
• Alarm I/O - Selectable 2 port
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - 20m(65.5ft), Wise IR 4 individual zones with Automatic and Manual level adjustment

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(15 users) / Multicast Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM 2.0 (FIPS 140-2 level 2)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slots 512GB (256GBx2) SD card encription
• Memory - 8GB RAM, 4GB Flash

Environmental & Electrical

• Operating Temperature / Humidity - - Normal : -40°C~+55°(-40°F ~ +131°F) / - Intermittent : -40°C~+60°C(-40°F ~ +140°F), 8Hrs - Less than 95% RH(Non-condensing) * Startup should be above -30℃ “
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE+ (IEEE802.3at, Class4), 12VDC
• Power Consumption - PoE+: Max 23.5W, Typical 18.0W 12VDC: Max 20.5W, Typical 16.0W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø253x170mm / 2.9Kg
