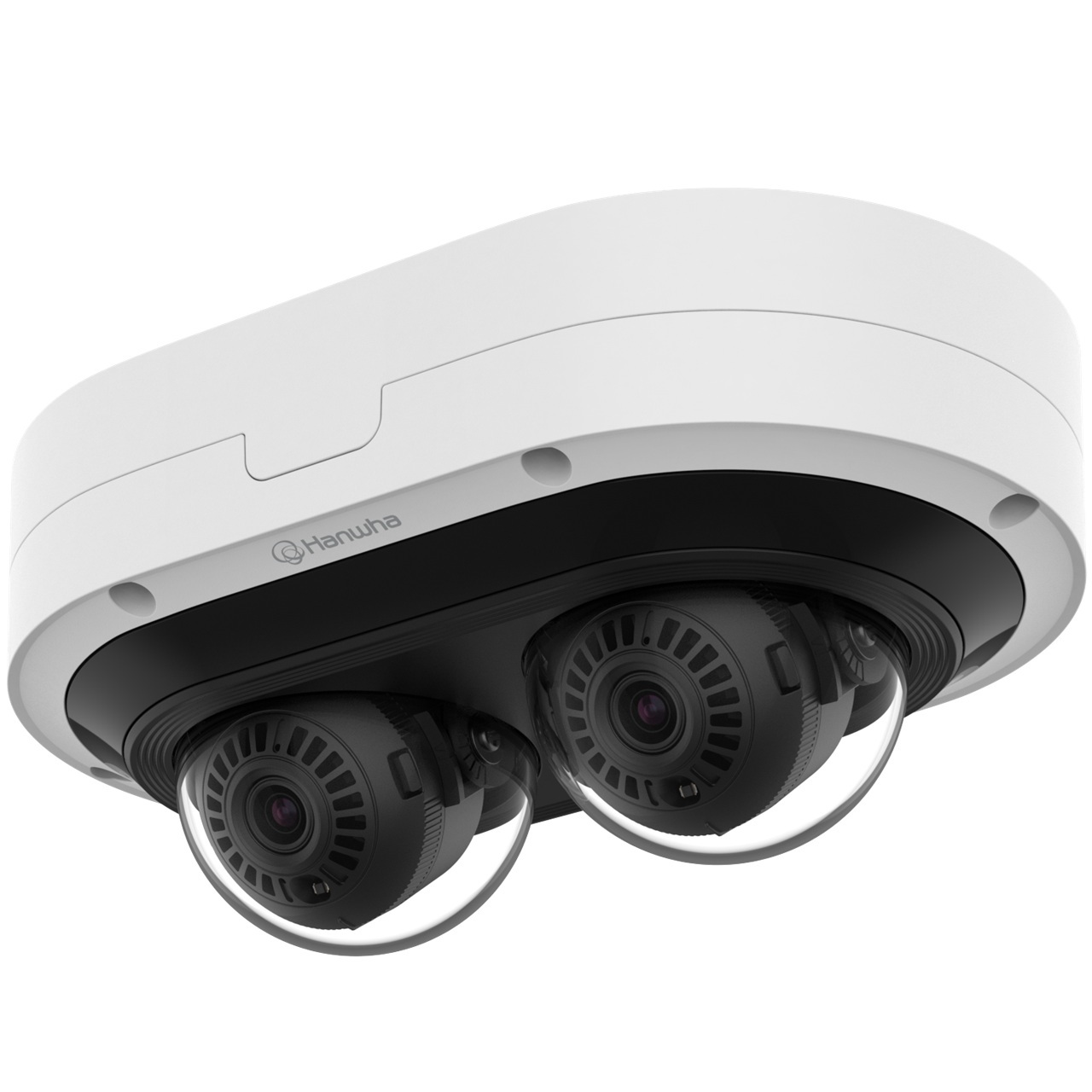

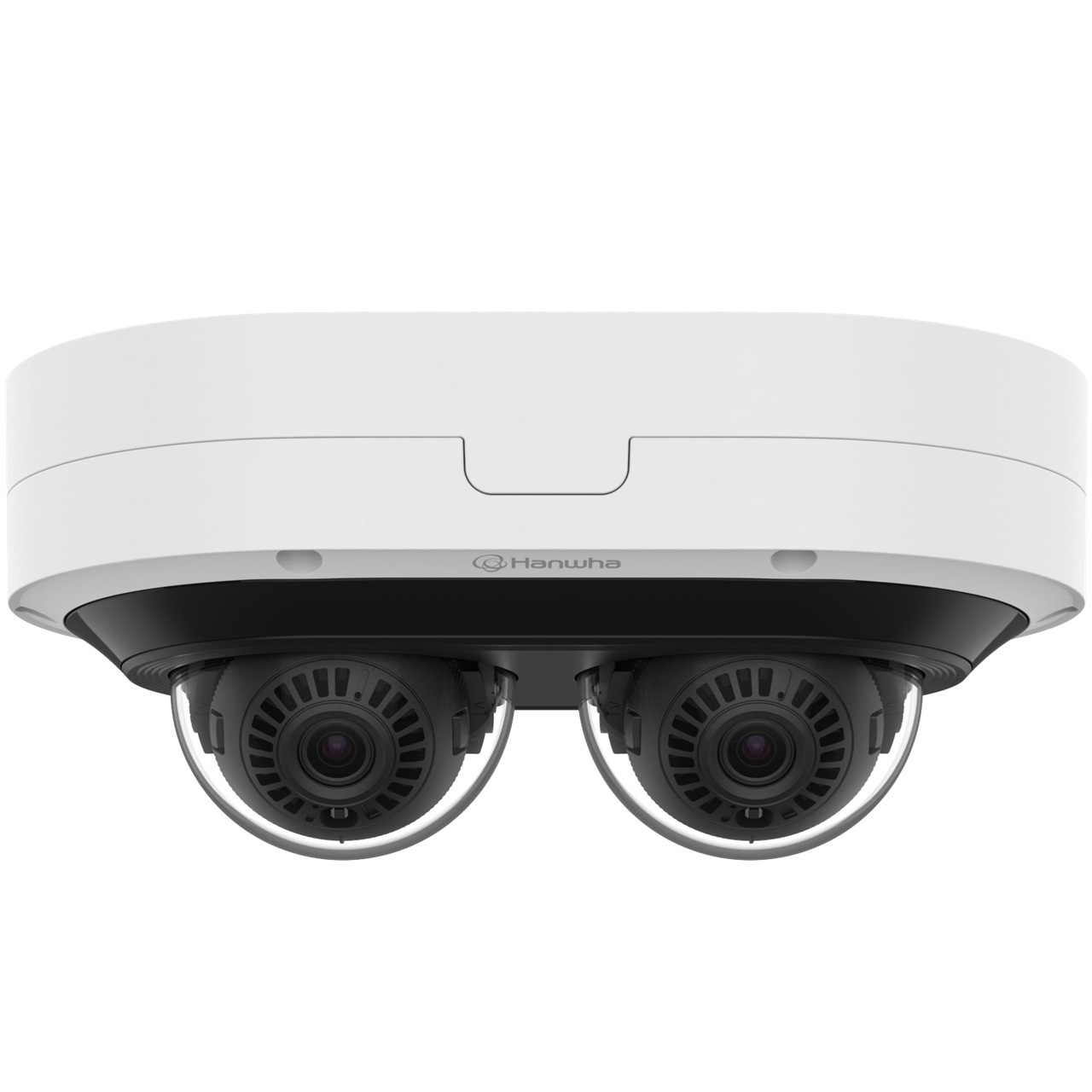

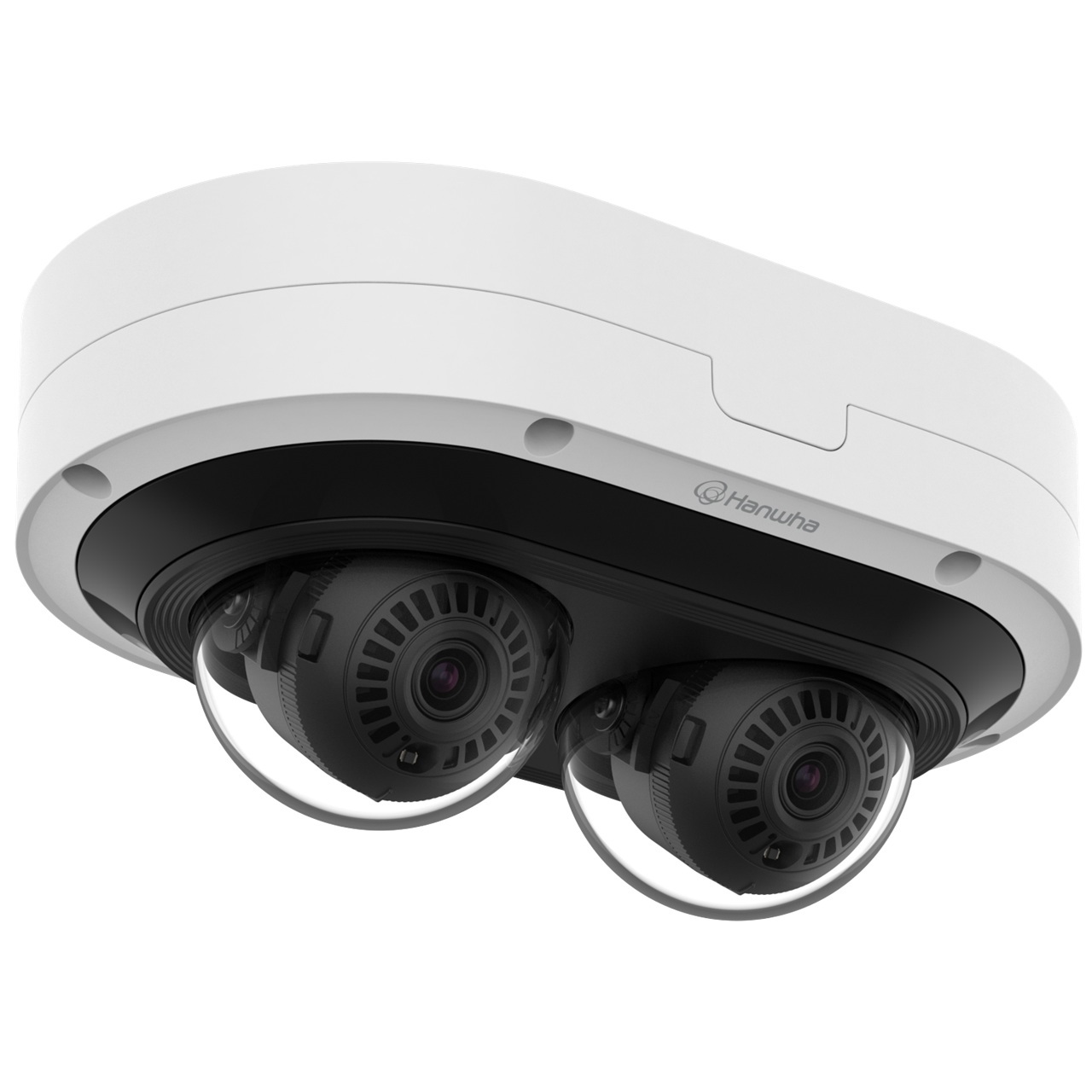

PNM-7082RVD Hanwha Vision P Series 3~6mm Motorized 30FPS @ 4MP Outdoor IR Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: 30fps/25fps(60Hz/50Hz) MJPEG: 30fps
• Min. Illumination - Color:(1/30sec, 30IRE) 0.035 BW: (1/30sec, 30IRE),0.0035
• Video Out - USB: micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 3~6mm(2x) motorized varifocal
• Max Aperture Ratio - F2.2(Wide)~F3.1(Tele)
• Angular Field of View - H: 107Ëš(Wide)~56Ëš(Tele) V: 57Ëš(Wide)~31Ëš(Tele) D: 126Ëš(Wide)~64Ëš(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus, Manual
• Lens Type - Fixed IRIS

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0~355°/0~78°/0~180°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - WiseNR, SSNRâ…¤
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color : Gray, Green, Red, Black, White, Mosaic
• Gain Control - Off, Max gain, Manual
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm I/O - Support Alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover PTZ preset, Send message by HTTP/HTTPS/TCP
• Audio In - Support via optional I/O box
• Audio Out - Support via optional I/O box
• Light Type - IR LED
• IR Light Viewable Length - 15m(49ft), 25m(82ft) based on scene
• IR Wavelength - 850nm

Analytics

• Analytics - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification Virtual areaLotering, Intrusion, Enter/Exit, (Appear/Disappear) Virtual Line (Crossing, Direction)

Network

• Ethernet - Metal shielded RJ-45 (10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• - Unicast(20 users) / Multicast Up to 10 profiles
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API) Hanwha Vision Open platform
• Direct Cloud Connection - Optional (needs gateway)

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
• Security Certificate - TPM 2.0 with FIPS 140-2 level2

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 512GB
• Memory - 4GB RAM, 512MB Flash
• Edge Storage(OnCloud) - Micro SD/SDHC/SDXC Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH(Non-condensing) Start up should be done at above -35°C
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / 0~95% RH(Non-condensing)
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - PoE+: Max 17W, typical 12.5W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions - 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67")
• Weight - 1330g (2.93lb)
• Compatible Conduit hole - 12.7mm(1/2") (M20)
• Compatible Gangbox - single, double, 4" octagon, 4" square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 28.4m(93.22ft) / Tele: 72.2m(236.94ft)
• Observe (63PPM/ 19PPF) - Wide: 11.4m(37.29ft) / Tele: 28.9m(94.78ft)
• Recognize (125PPM/ 38PPF) - Wide: 5.7m(18.64ft) / Tele: 14.4m(47.39ft)
• Identify (250PPM/ 76PPF) - Wide: 2.8m(9.32ft) / Tele: 7.2m(23.69ft)
