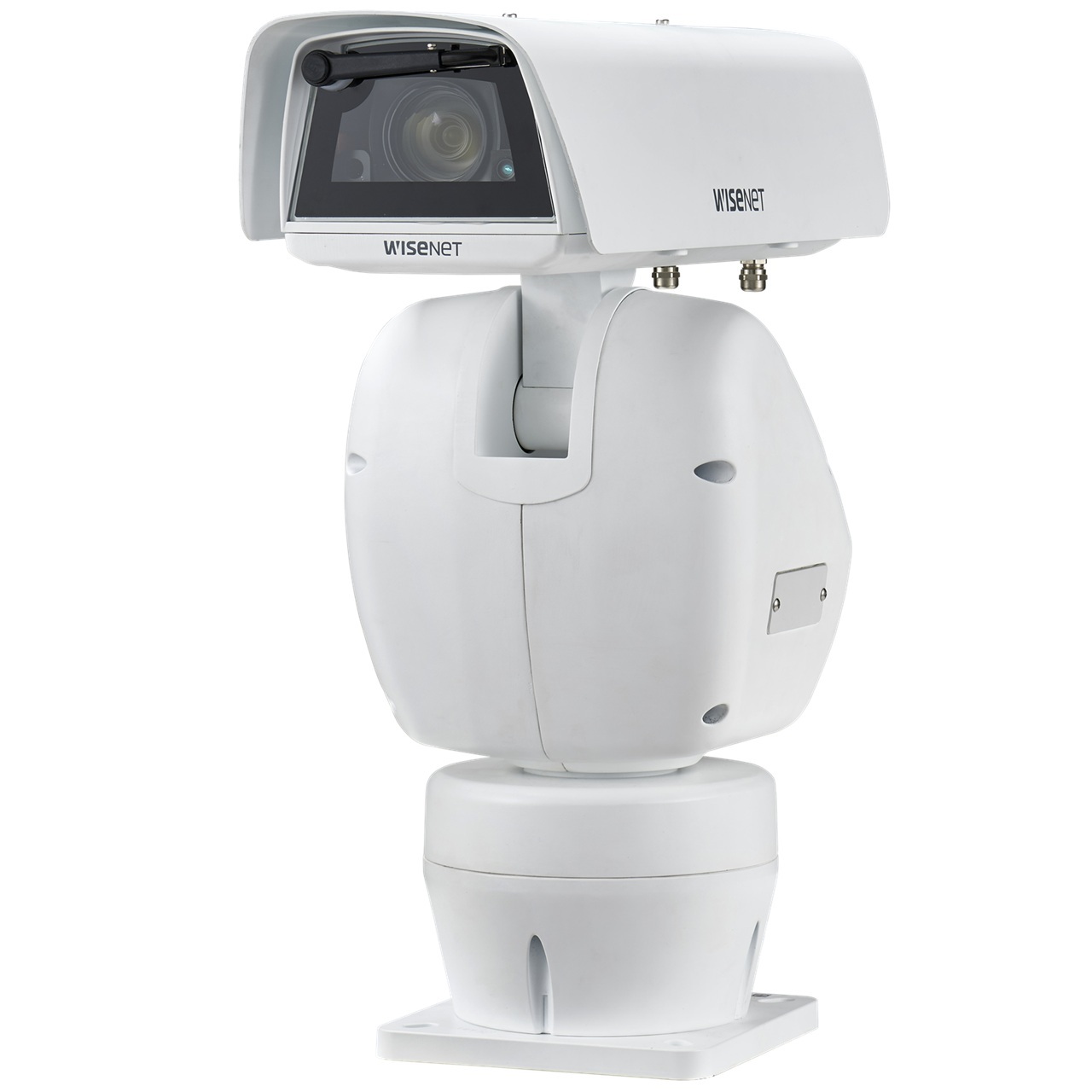

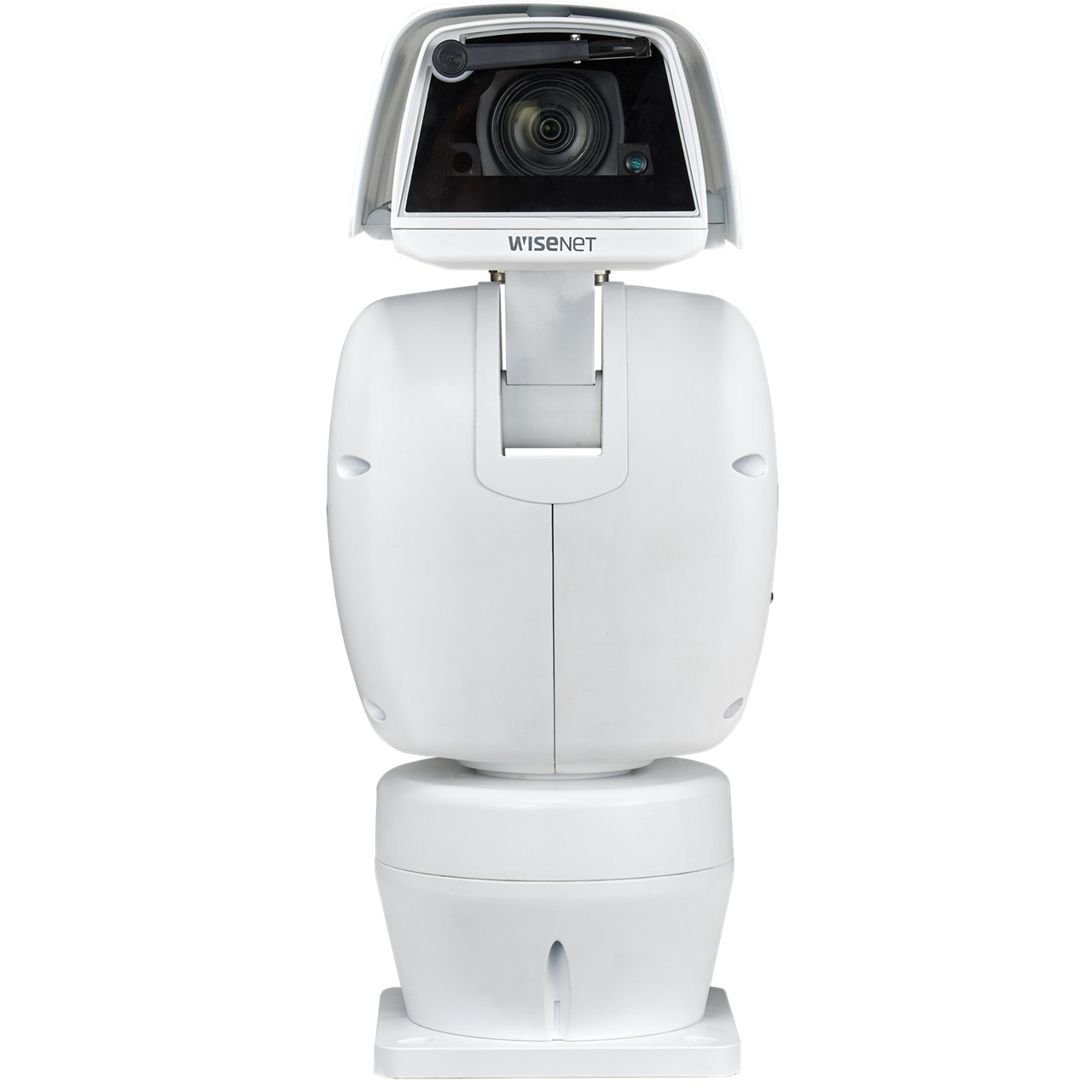

TNU-6321 Hanwha Vision T Series 4.44 - 142.6mm Varifocal 60FPS @ 2MP Outdoor IR Day/Night WDR Positioning IP Security Camera 24VAC

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) B/W: 0.005 Lux(F1.6, 1/30sec)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation

Lens

• Focal Length (Zoom Ratio) - 4.44~142.6mm(32x) zoom
• Max. Aperture Ratio - F1.6(Wide)~F4.4(Tele)
• Angular Field of View - H: 61.8Ëš(Wide)~2.19Ëš(Tele) / V: 36.2Ëš(Wide)~1.24Ëš(Tele)
• Min. Object Distance - Wide: 1.5m(4.92ft)
• Focus Control - Auto, One shot AF
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - 0.036°~120°/sec
• Tilt Range - -90Ëš~40Ëš
• Tilt Speed - 0.012°~ 40°/sec
• Sequence - Preset(255ea), Swing, Group(6ea), Tour(1ea), Auto Run, Schedule
• Preset Accuracy - ±0.3°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - AIuto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum, Maximum, Anti flicker (1~1/12,000sec)
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
• Audio In - Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

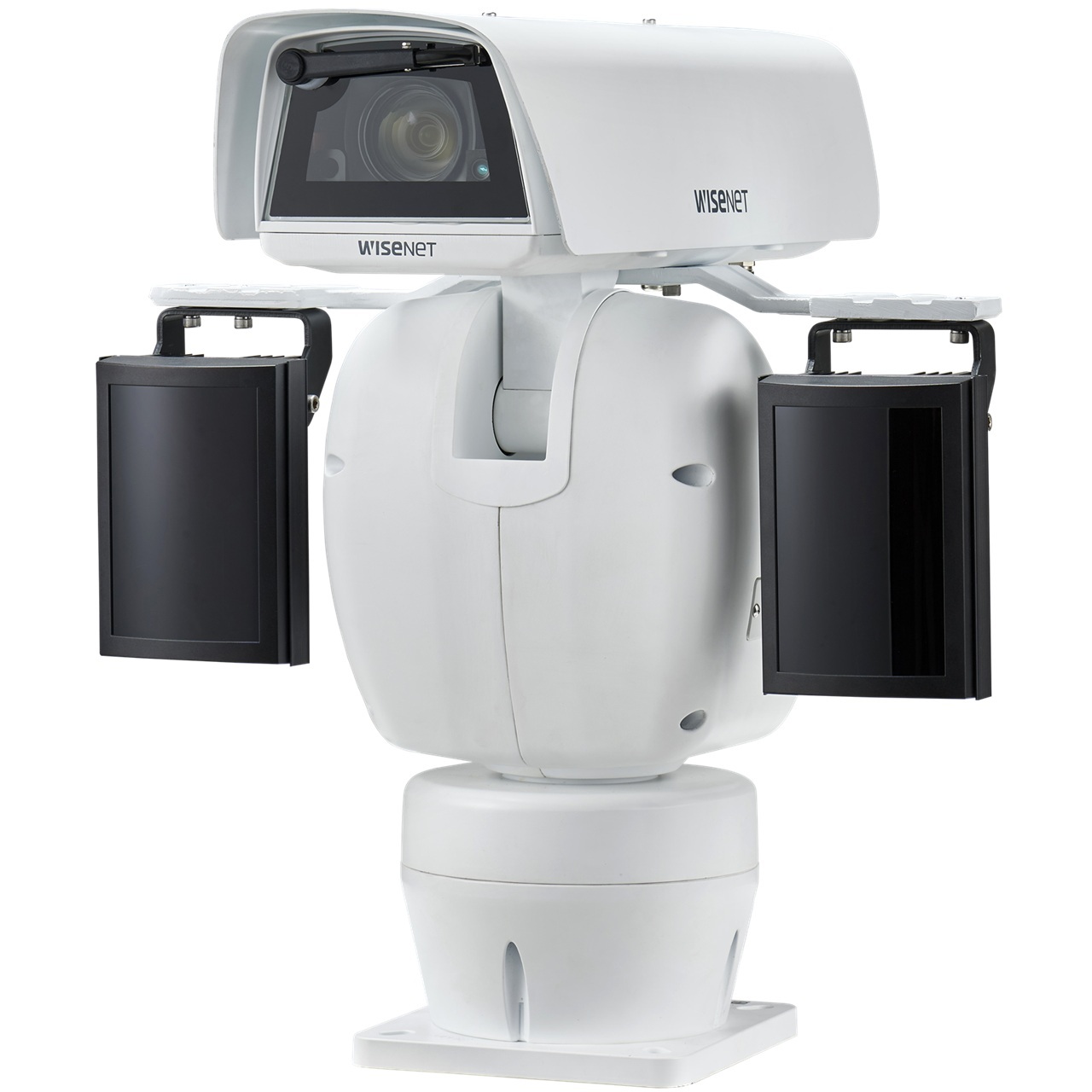

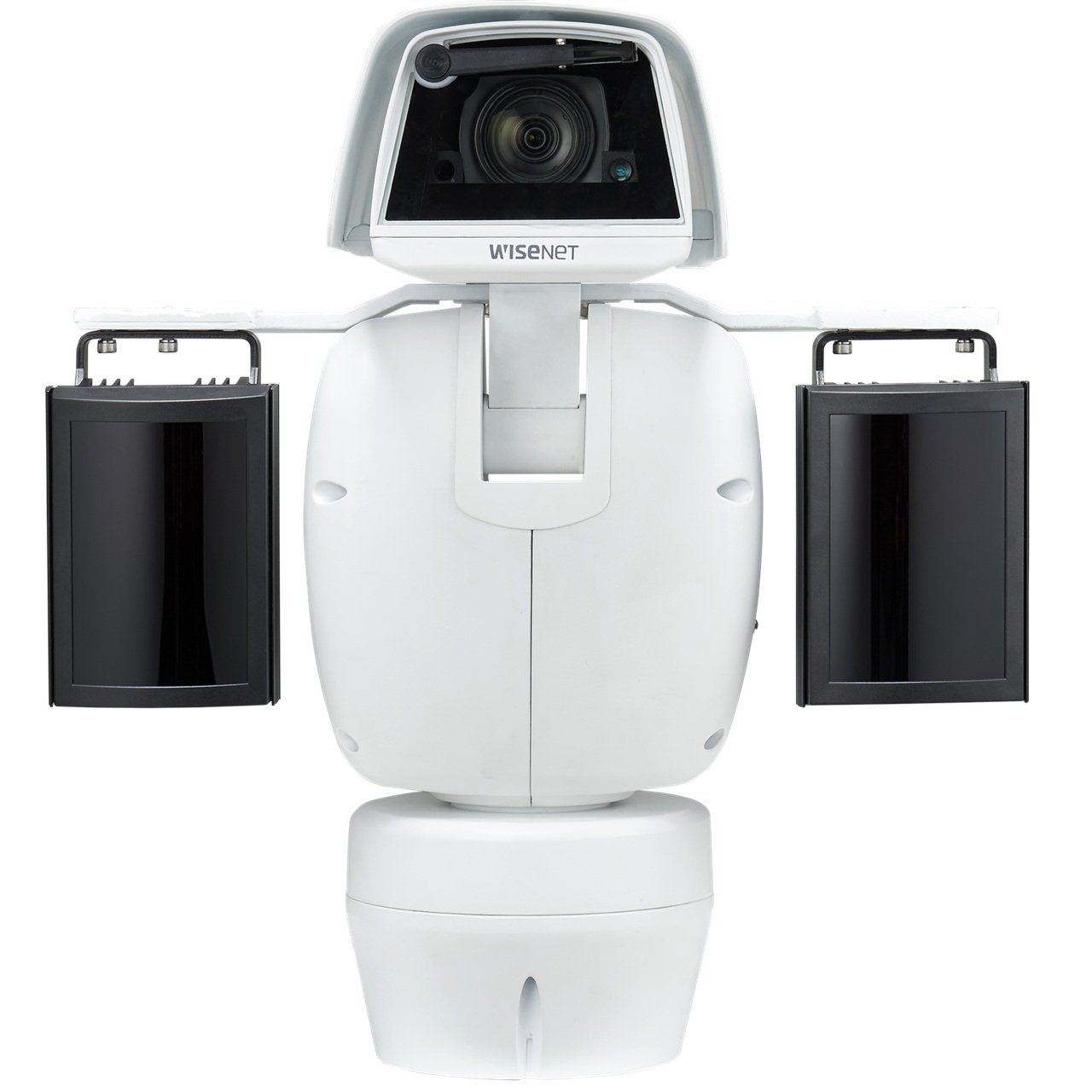

• IR Illuminator (Optional) - Support (Auto/Manual)
• Water Removal - Support (with Wiper)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law, G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users), Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
• Memory - 1024MB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -40°C~+60°C(-40°F ~ +140°F) / Less than 90% RH
• Certification - IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC)
• Input Voltage - 24VAC
• Power Consumption - Max 100W(Heater On), typical 25W(Heater Off)

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - 219(W)×528.2(H)×460(D)mm (8.62x20.79x18.11"), 14Kg (30.86 lb)

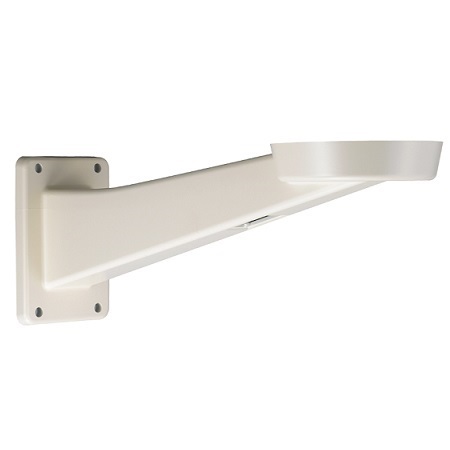

• Wall Mount - Support

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 64.2m(210.50ft) / Tele: 2,009.0m(6,591.31ft)
• Observe (63PPM/ 19PPF) - Wide: 25.7m(84.20ft) / Tele: 803.6m(2,636.53ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.8m(42.10ft) / Tele: 401.8m(1,318.26t)
• Identify (250PPM/ 76PPF) - Wide: 6.4m(21.05ft) / Tele: 200.9m(659.13ft)
