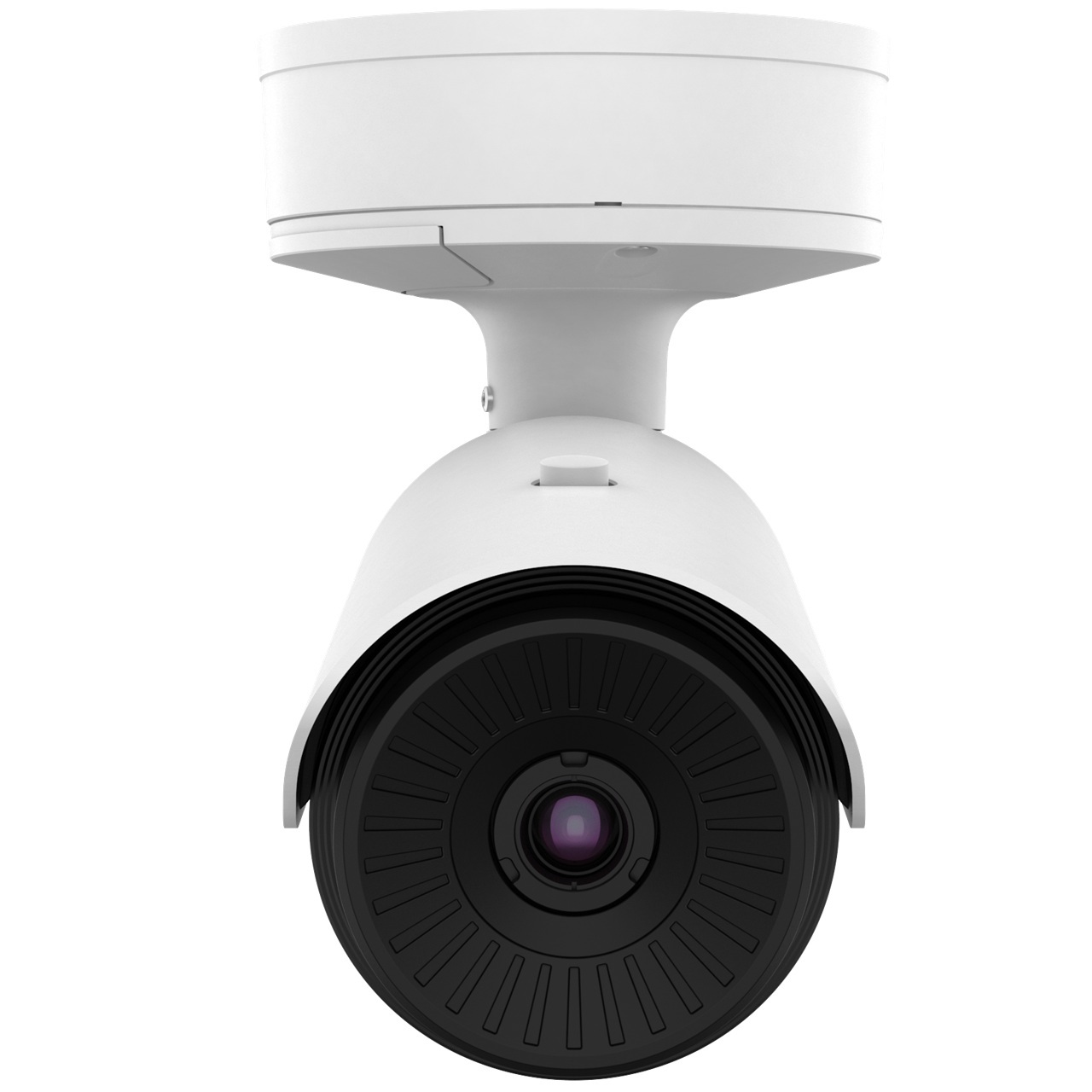

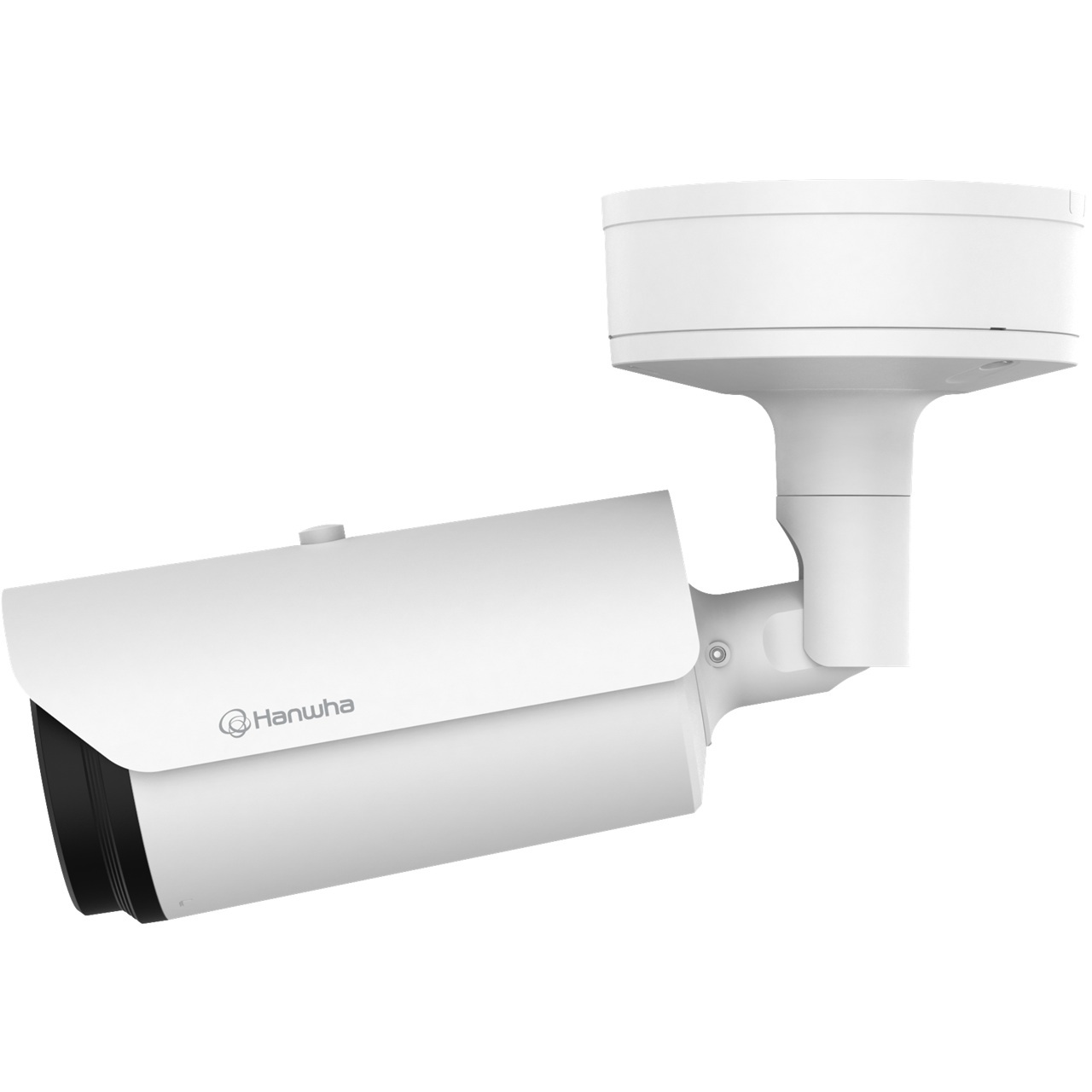

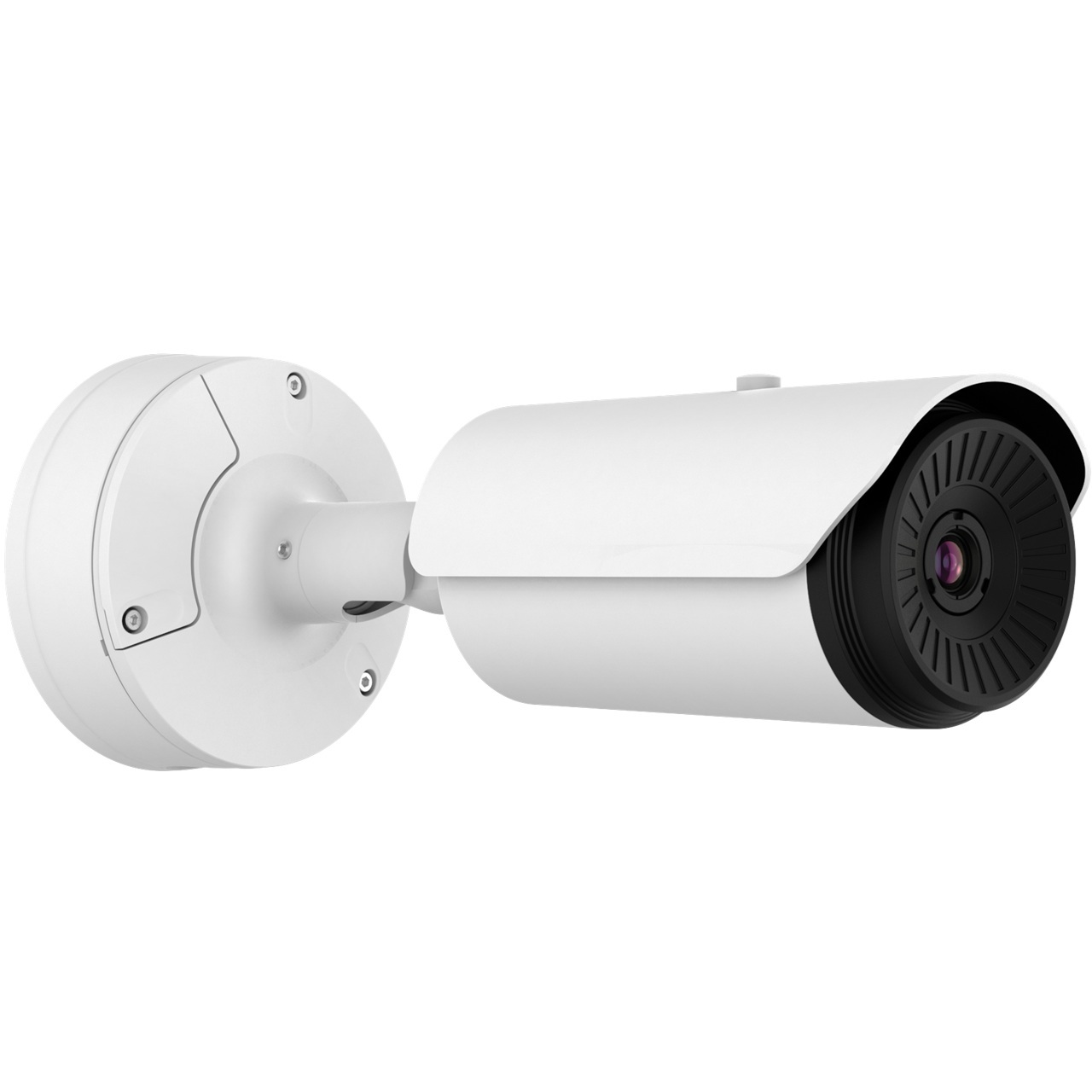

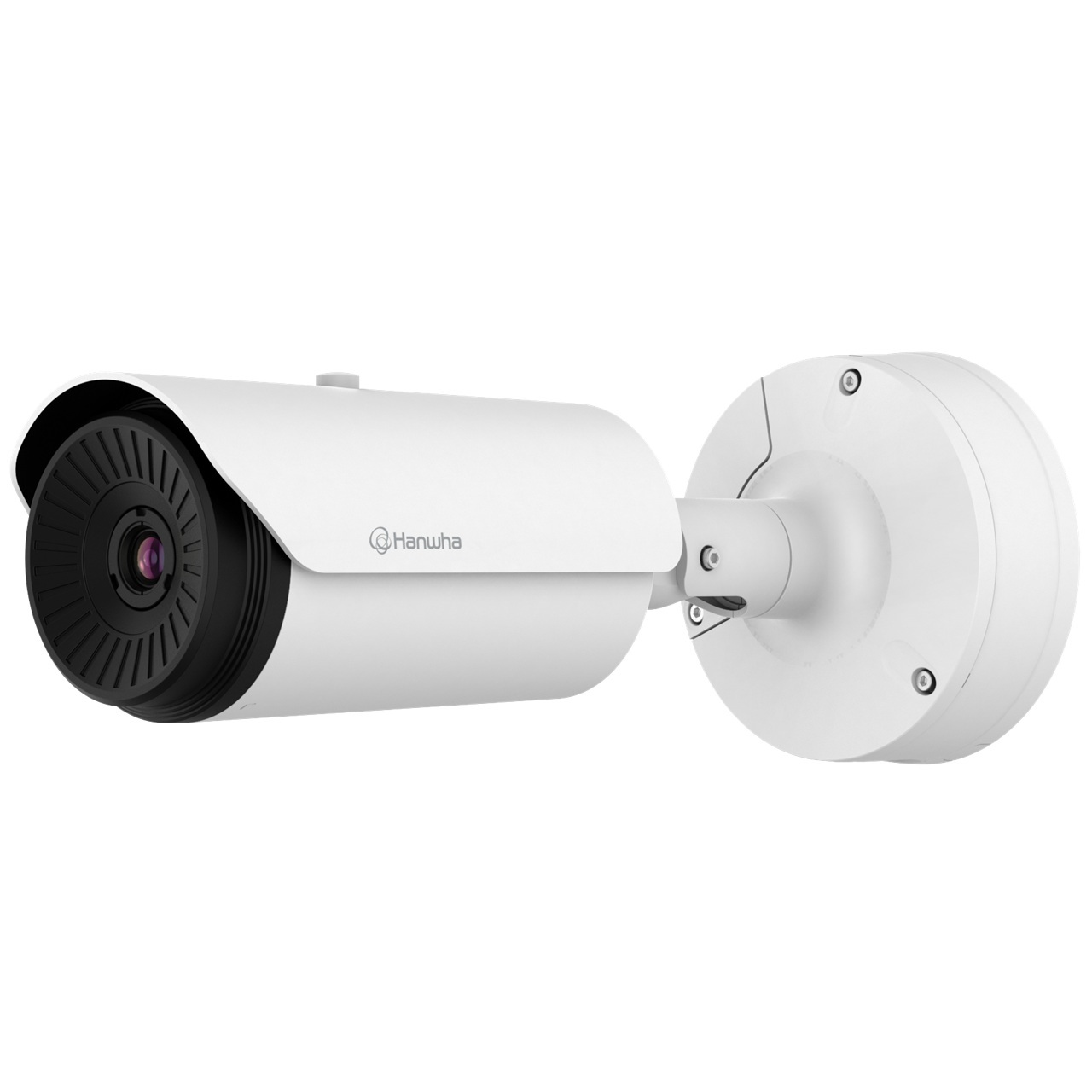

TNO-L3030T Hanwha Vision T Series 13.7mm 8FPS @ 320 x 240 Outdoor Bullet IP Thermal Security Camera 12VDC/24VAC/POE

SKU: TNO-L3030T

QVGA Thermal Camera

Features:

  • Maximum 320 x 240 resolution support
  • Built-in 13.7mm fixed lens
  • H.265, H.264, MJPEG codec
  • Maximum 8fps@all resolutions (H.265, H.264, MJPEG)
  • Motion detection, Handover, Tampering, Loitering
  • Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection
  • Micro SD / SDHC / SDXC memory slot (Max. 256GB)
  • Hallway View, WiseStreamII support
  • PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
NDAA
More details...
MPN: TNO-L3030T
EAN: 8801089214096
Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Introduction

Detect abnormalities. Prevent accidents.

Radiometric thermal cameras can instantly detect abnormal temperatures in industrial and manufacturing settings through temperature detection analytics and visualization.

Specifications

Video

  • Imaging Device - Uncooled micro bolometer
  • Resolution - 320x240
  • Max. Framerate - H.265/H.264: Max. 8fps
  • NETD - <60mK
  • Pixel Size - 12㎛
  • Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

  • Focal Length (Zoom Ratio) - 13.7mm fixed focal
  • Max. Aperture Ratio - F1.0
  • Angular Field of View - H:16.0Ëš, V:12.0Ëš, D:20.0Ëš
  • Min. Object Distance - 8m(26.25ft)
  • Focus Control - Fixed

Operational

  • Camera Title - Displayed up to 85 characters
  • Digital Image Stabilization - Support(built-in gyro sensor)
  • Motion Detection - 8ea, 8point polygonal zones
  • Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  • Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
  • Analytics - Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
  • Alarm Interface In/Out - Input 1ea, Output 2ea
  • Alarm Triggers - Analytics, Network disconnect Alarm input
  • Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
  • Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out - Line out, Max.output level: 1Vrms
  • Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Network

  • Ethernet - RJ-45(10/100BASE-T)
  • Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
  • Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  • Smart Codec - Manual(5ea area), WiseStreamâ…¡
  • Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
  • Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

  • Webpage Language - English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
  • Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity - -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
  • Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Certification - IP66, IK10, NEMA4X
  • Input Voltage - PoE(IEEE802.3af, Class3), 24VAC, 12VDC
  • Power Consumption - PoE: Max. 8.7W, typical 7.5W 12VDC: Max. 7.8W, typical 6.7W 24VAC: Max. 9.2W, typical 8.0W

Mechanical

  • Color / Material - White / Aluminum
  • RAL Code - RAL9003
  • Product Dimensions / Weight - Φ147.51x375.3mm(58.07x147.76") / 2512g(5.538lb)

TNO-L3030T Specifications PDF
