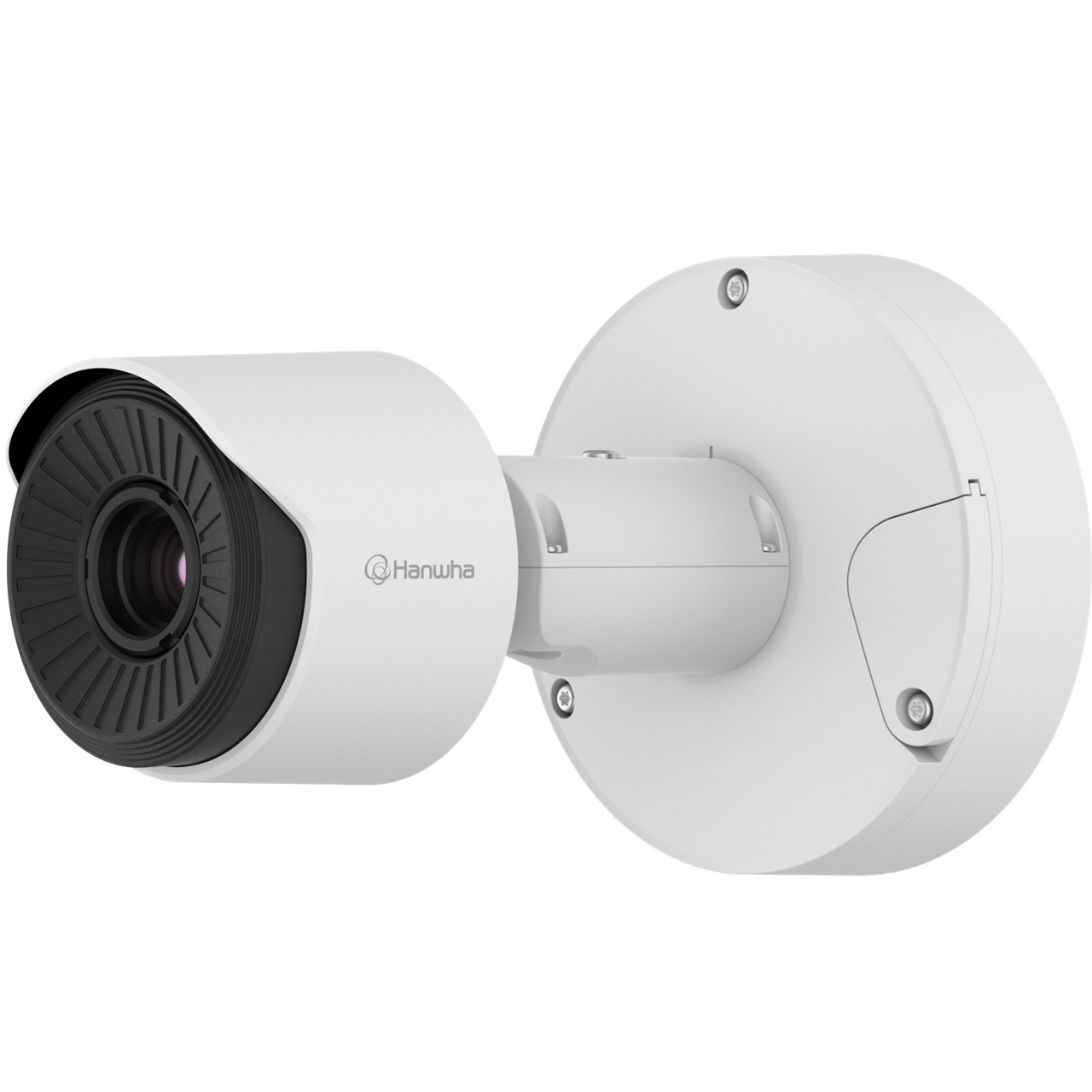

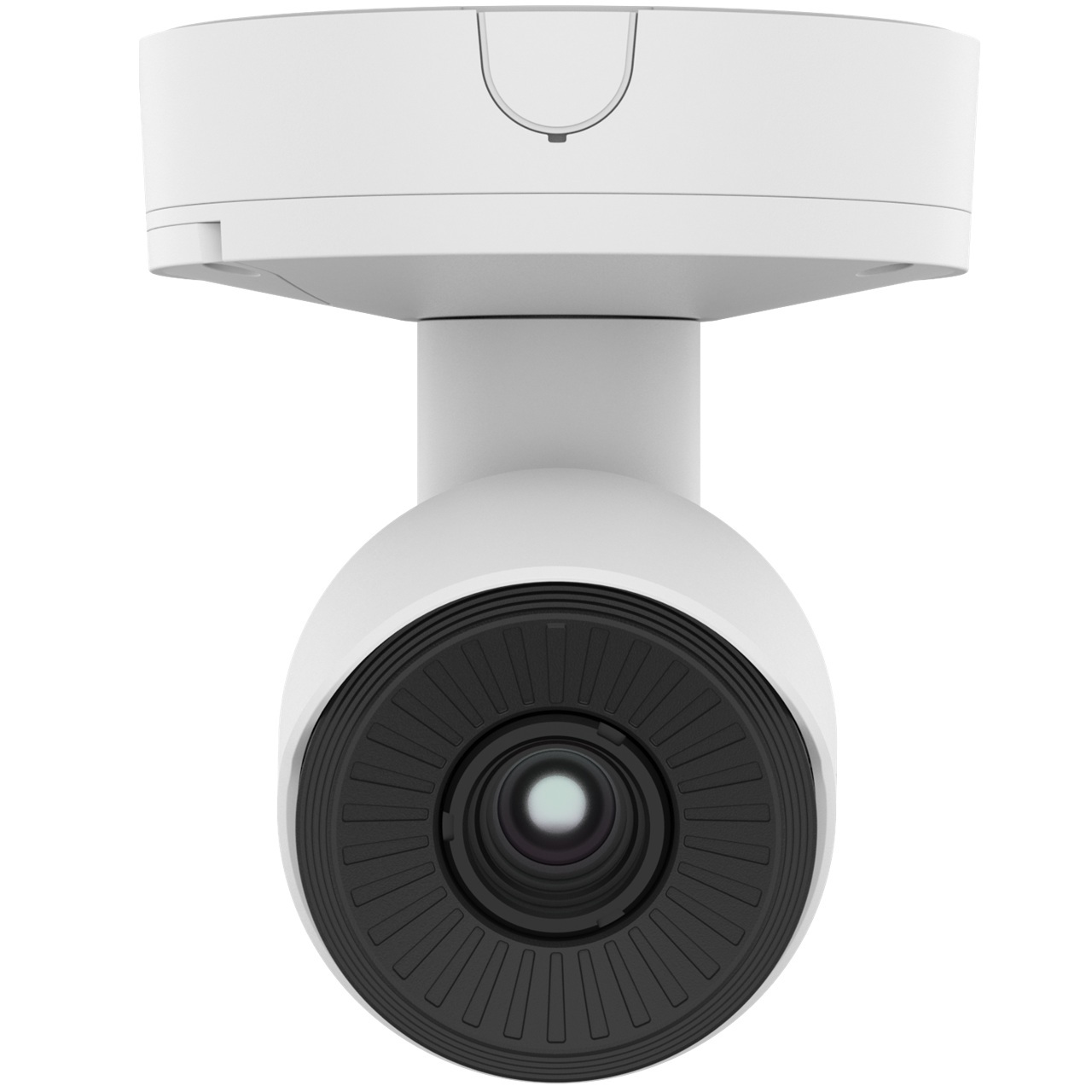

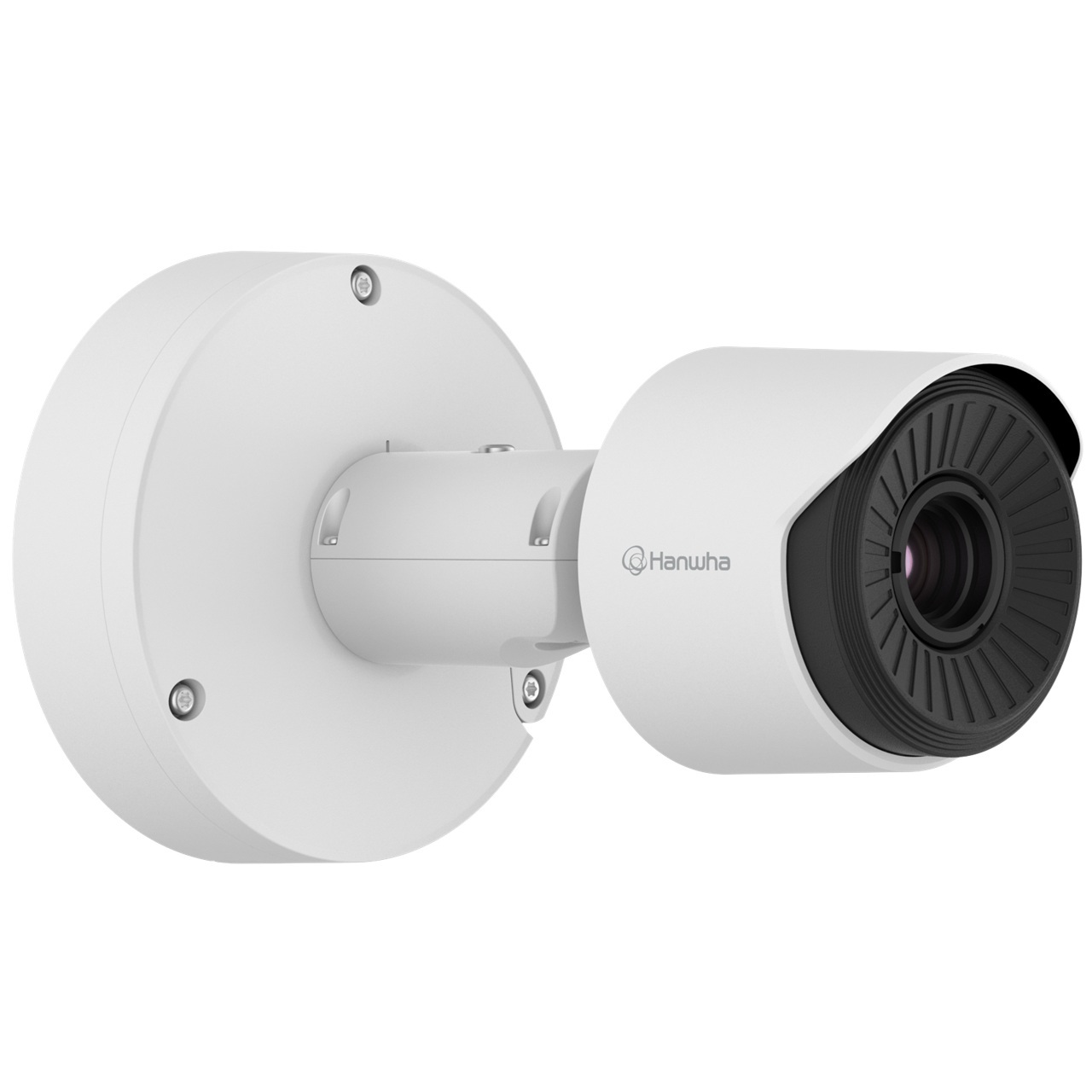

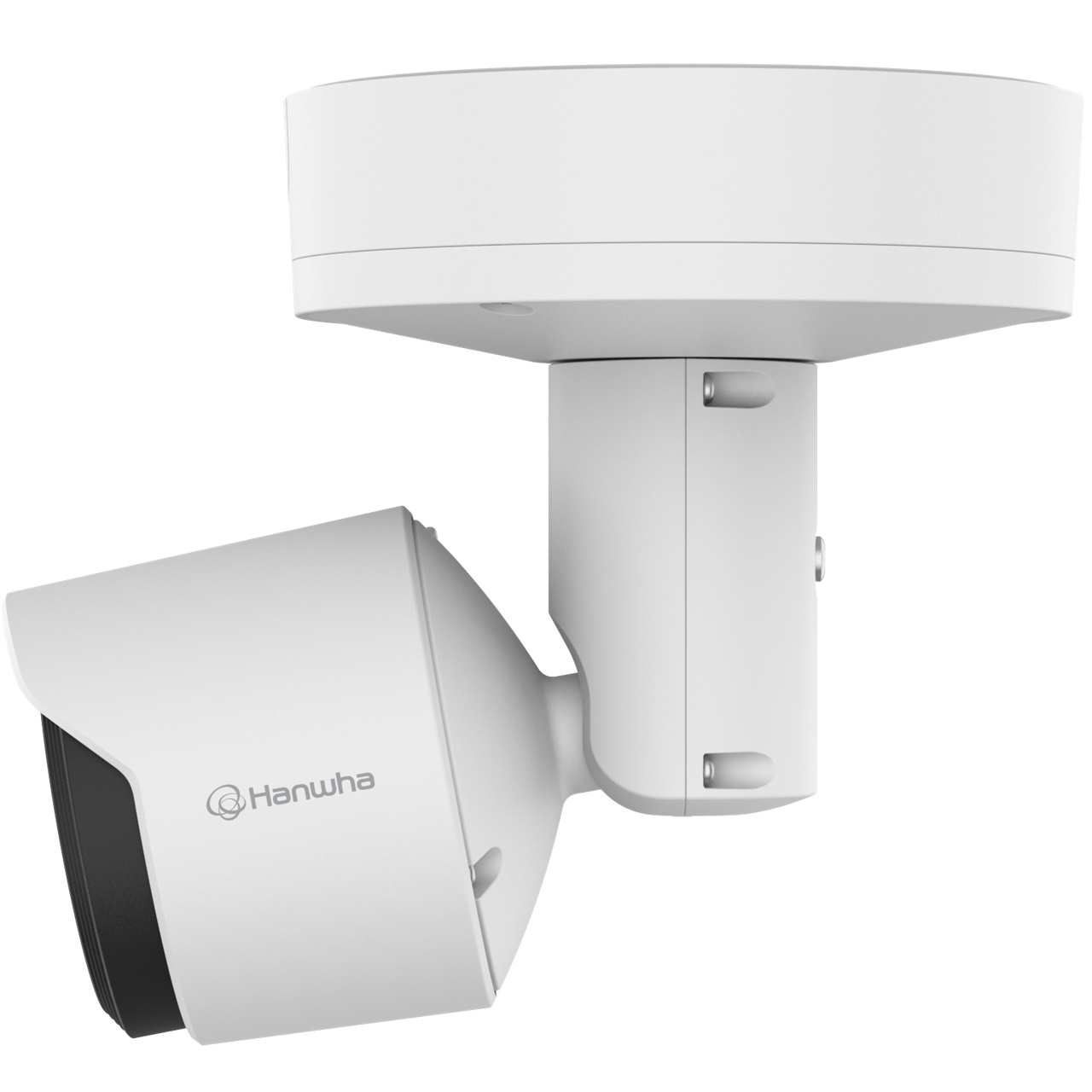

TNO-C3052T Hanwha Vision T Series 19mm 8FPS @ 384 x 288 Outdoor Bullet Uncooled Thermal IP Radiometric Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - Uncooled micro bolometer (384x288)
• Resolution - 768x576, 384x288(original)
• Max. Framerate - H.265/H.264/MJPEG: Max. 8fps
• Spectral Range - 8~14㎛
• NETD - ≤20mK@25°C, F1.0
• Pixel Size - 17㎛
• Video Out - USB: Micro USB Type B, 768x576 for installation

Lens

• Focal Length (Zoom Ratio) - 19mm fixed focal
• Max. Aperture Ratio - F1.0
• Angular Field of View - H: 19.3° / V: 14.6 ° / D: 23.9°
• iFoV: - 0.895 mRad
• Min. Object Distance - 10.6m(34.8ft)
• Focus Control - Fixed
• Lens Type - Athermalized

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~90° / 0°~350°

Operational

• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 6ea, Rectangle zones - color : Gray, Black, White
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Serial Interface - RS-485
• Alarm I/O - 2 configurable I/O ports Support extra alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP File upload(Video clip): FTP/SFTP- Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Analytics

• Classified Object Type - Person, Vehicle
• Thumbnail - BestShot
• Analytics Events - Based on AI engine - Object detection, Virtual line (Crossing/Direction),Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

Radiometry

• Hybrid palettes - Support
• ROI condition monitoring: - None, Increase, Decrease

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡, WiseStreamâ…¢
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, Syslog
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision open platform

Security

• OS / Firmware Protect - Encrypted firmware, Secure boot, Signed firmware
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - IP-address Access control
• Data Protect - Encryption credentials, Encrypt compress for live recording file export
• Audit - Access/System/Event Log management
• Device ID - Device Certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256), Secure element
• Security Certificate - Secure element(FIPS 140-3 level3, CC EAL6+)

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 1TB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.8W, typical 9W 12VDC: Max 9.4W, typical 7.7W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - ø93.8x233.5mm(ø3.69x9.19"), 1730g(3.81lb)
• Compatible Conduit Hole - Support conduit compatibility via optional adaptor
• Compatible Gang Box - Single, Double, 4" Octagon, Square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart BClass A, CE/UKCA-EN55032ClassA,EN50130-4,EN61000-3-2,EN61000-3-3,VCCICISPR32ClassA,RCMAS-NZSCISPR2classA,KSC9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• Environment - IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 678m(2,222.22ft)
• Recognize (125PPM/ 38PPF) - Wide: 169m(555.56ft)
• Identify (250PPM/ 76PPF) - Wide: 85m(277.78ft)
