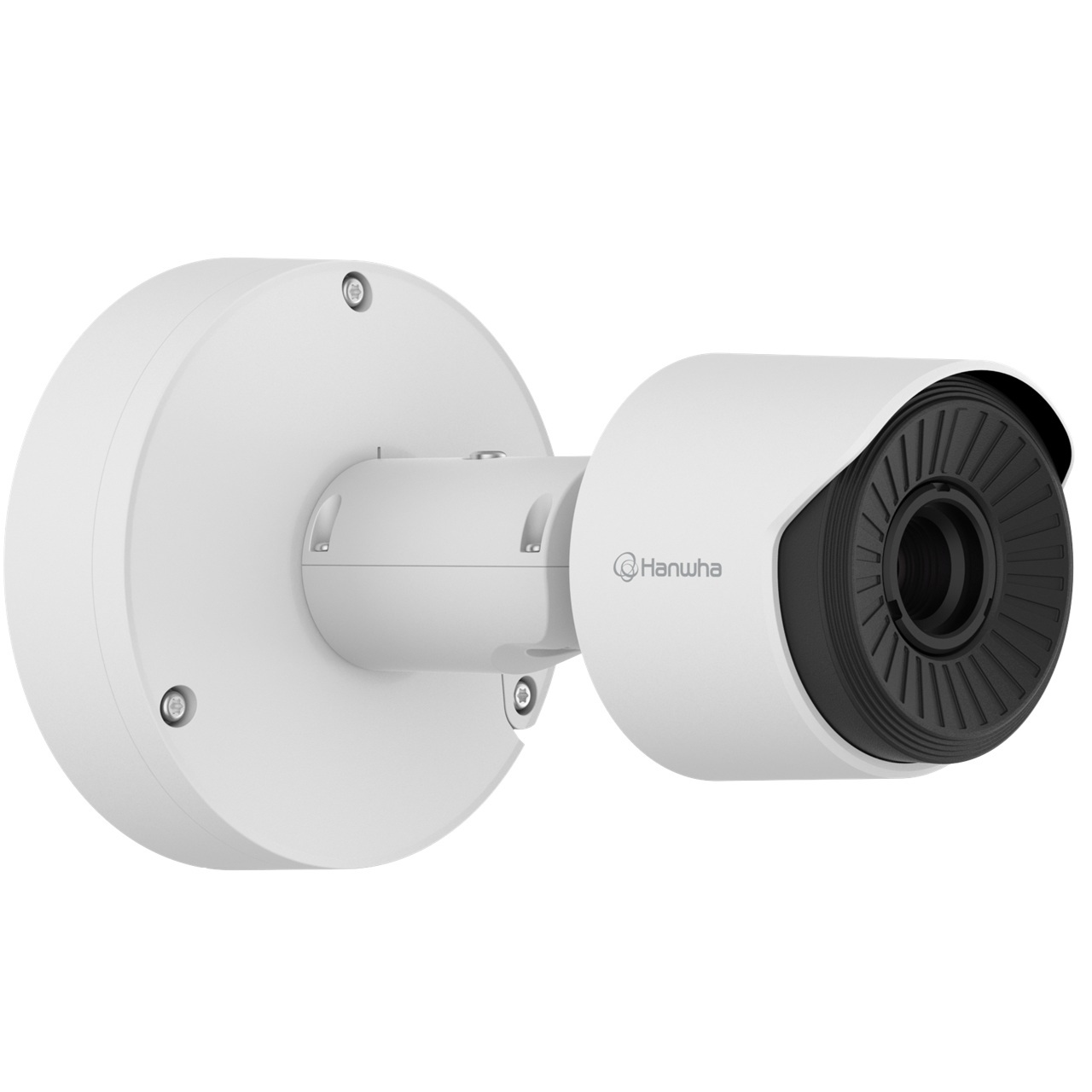

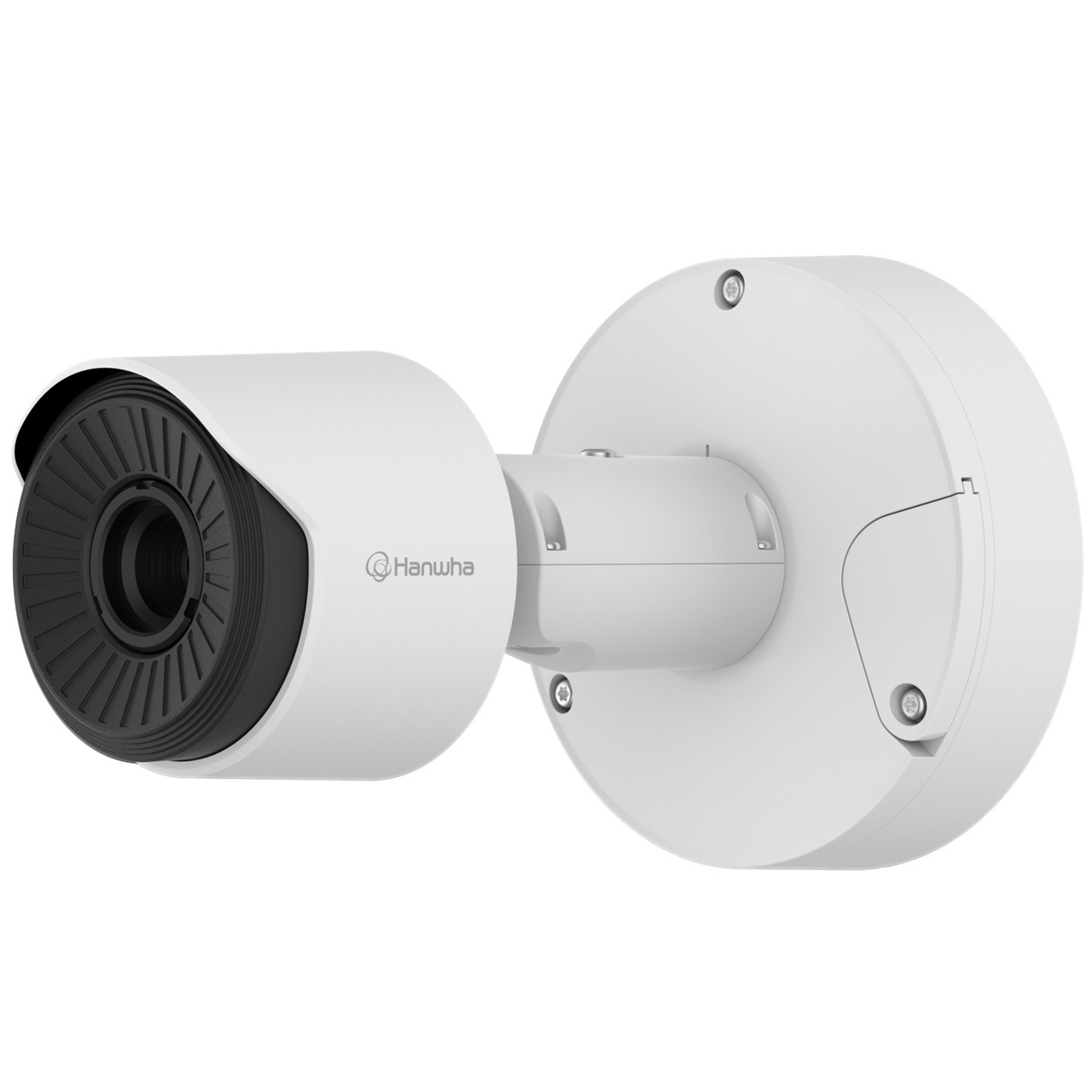

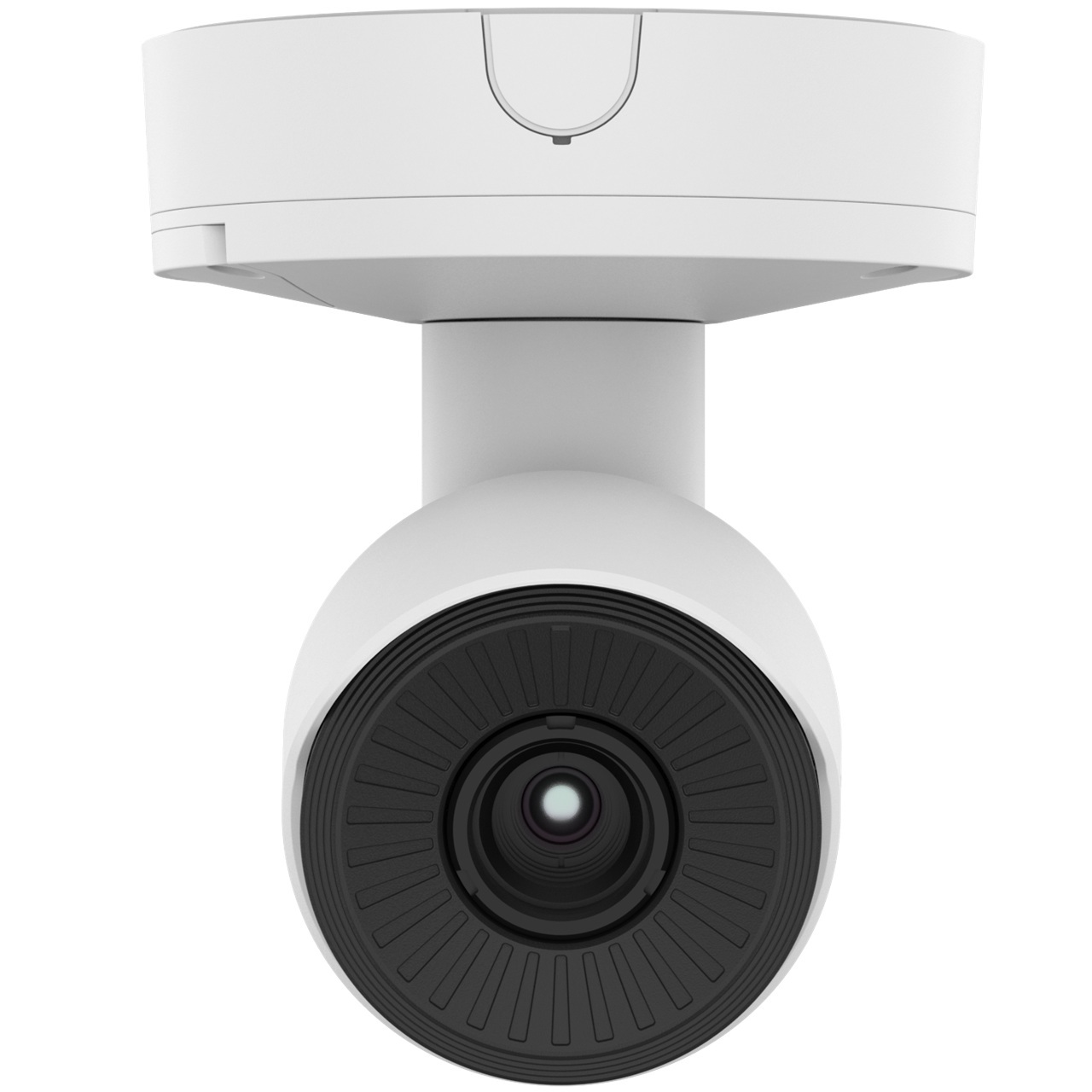

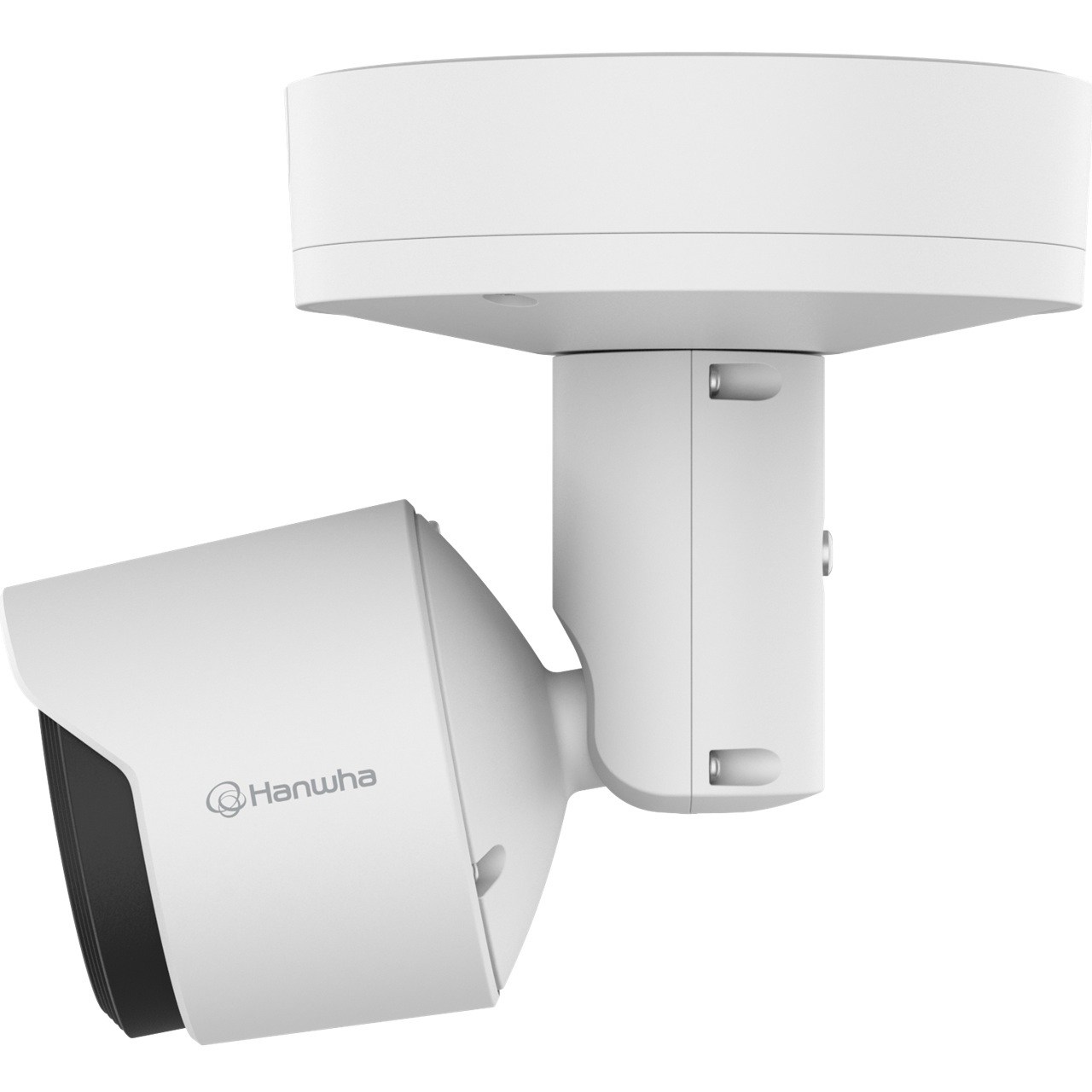

TNO-C3042T Hanwha Vision T Series 13mm 8FPS @ 384 x 288 Outdoor Bullet Uncooled Thermal IP Radiometric Security Camera 12VDC/POE

Introduction

Long-range protection. Thermal detection.

The new line of QVGA AI Telephoto Lens Thermal Cameras from Hanwha Vision enables you to accurately detect and classify people and vehicles at long range, even in challenging weather and lighting conditions. Available in 13mm, 19mm, 35mm and 60mm focal length options to best fit your needs.

Specifications

Video

• Imaging Device - Uncooled micro bolometer (384x288)
• Resolution - 768x576, 384x288(original)
• Max. Framerate - H.265/H.264/MJPEG: Max. 8fps
• Spectral Range - 8~14㎛
• NETD - ≤20mK@25°C, F1.0
• Pixel Size - 17㎛
• Video Out - USB: Micro USB Type B, 768x576 for installation

Lens

• Focal Length (Zoom Ratio) - 13mm fixed focal
• Max. Aperture Ratio - F1.0
• Angular Field of View - H: 28.5° / V: 21.4 ° / D: 35.5°
• iFoV: - 1.308 mRad
• Min. Object Distance - 5m(16.4ft)
• Focus Control - Fixed
• Lens Type - Athermalized

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~90° / 0°~350°

Operational

• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 6ea, Rectangle zones - color : Gray, Black, White
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Serial Interface - RS-485
• Alarm I/O - 2 configurable I/O ports Support extra alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP File upload(Video clip): FTP/SFTP- Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Analytics

• Classified Object Type - Person, Vehicle
• Thumbnail - BestShot
• Analytics Events - Based on AI engine - Object detection, Virtual line (Crossing/Direction),Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

Radiometry

• Hybrid palettes - Support
• ROI condition monitoring: - None, Increase, Decrease

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡, WiseStreamâ…¢
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, Syslog
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision open platform

Security

• OS / Firmware Protect - Encrypted firmware, Secure boot, Signed firmware
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - IP-address Access control
• Data Protect - Encryption credentials, Encrypt compress for live recording file export
• Audit - Access/System/Event Log management
• Device ID - Device Certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256), Secure element
• Security Certificate - Secure element(FIPS 140-3 level3, CC EAL6+)

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 1TB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.8W, typical 9W 12VDC: Max 9.4W, typical 7.7W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - ø93.8x233.5mm(ø3.69x9.19"), 1730g(3.81lb)
• Compatible Conduit Hole - Support conduit compatibility via optional adaptor
• Compatible Gang Box - Single, Double, 4" Octagon, Square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart BClass A, CE/UKCA-EN55032ClassA,EN50130-4,EN61000-3-2,EN61000-3-3,VCCI CISPR 32ClassA,RCM AS-NZS CISPR2 classA,KS C9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• Environment - IEC/EN 63000, IEC 60529 IP66 , IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 454m(1,487.81ft)
• Recognize (125PPM/ 38PPF) - Wide: 113m(371.95ft)
• Identify (250PPM/ 76PPF) - Wide: 57m(185.98ft)

TNO-C3042T Specifications PDF
