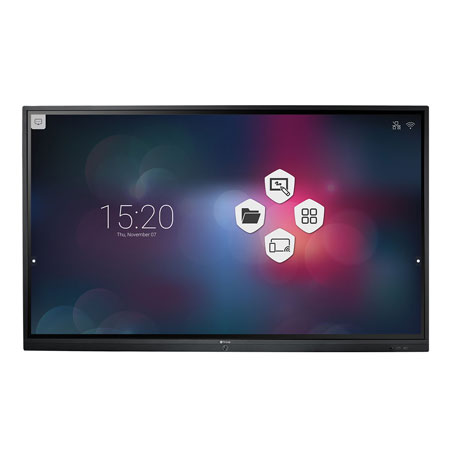

IFP-7502 AG Neovo 75" 4K 2160p LED Meetboard Interactive Touchscreen Monitor w/ Speakers VGA/HDMI

Specifications

Panel

• Panel Type - LED-Backlit TFT LCD (IPS Technology)
• Panel Size - 74.5"
• Max. Resolution - UHD 3840 x 2160
• Pixel Pitch - 0.430 mm
• Brightness - 350 cd/m²
• Contrast Ratio - 1100:1
• Viewing Angle (H/V) - 178°/178°
• Display Colour - 1.07B
• Response Time - 5 ms
• Surface Treatments - Anti-Glare Treatment (Haze 25%), 3H Hard Coating

Frequency (H/V)

• H - 30 kHz - 80 kHz
• V - 50 Hz - 76 Hz

Signal Input

• HDMI - HDMI 2.0 x 3
• Digital - 15-Pin D-Sub x 1

Signal Output

• HDMI - HDMI 2.0 x 1

External Control

• RS232 In - 9-Pin D-Sub
• LAN - RJ45 x 1

Embedded Player

• OS - Android 8.0
• CPU - Dual core A73 + Dual core A53
• Memory - 3 GB
• Storage - 16 GB

Other Connectivity

• USB - 2.0 x 3 / 3.0 x 3

Audio

• Audio In - Stereo Audio Jack (3.5mm)
• Audio Out - Stereo Audio Jack (3.5mm), S/PDIF
• Internal Speakers - 16W x 2

Touch Screen

• Panel Interface - USB 2.0 x 2 (Type-B)
• Technology - Infrared Touch Frame
• Positional Accuracy - ±1.5mm
• Single Touch Plug & Play - Windows 2000/XP/Vista/CE 6.0 macOS
• Multi-touch Plug & Play - Windows 7/8/10 Android/Linux (kernel version 3.5+) Chrome OS (39 or above)
• Multi-touch Support by Driver - macOS (supported by UPDD driver)

Power

• Power Supply - Internal
• Power Requirements - AC 100-240V, 50/60Hz
• On Mode - 165W
• Stand-by Mode - < 0.5W
• Off Mode - 0.5W

Glass

• Thickness - 4.0 mm (0.16")
• Reflection Rate - < 10%
• Transmission Rate - ≥ 88%
• Hardness - ≥ 8H

Operating Conditions

• Temperature - 32°F-104°F
• Humidity - 10%-90% (non-condensing)

Storage Conditions

• Temperature - -4°F-140°F
• Humidity - 10% ~ 90% (non-condensing)

Mounting

• VESA FPMPMI - Yes (800 x 400 mm)

Dimensions

• Product (W x H x D) - 67.3" x 40.2" x 3.4"
• Packaging(W x H x D) - 73.2" x 44.9" x 11.0"

Weight

• Product Weight - 111.6 lbs
• Packaged Product Weight - 160.7 lbs

Regulation Approval

• Certifications & Compliance - CE, LVD, FCC, WEEE, REACH, RoHS, BSMI

Accessories

• Supplied - Power Cord, HDMI Cable, USB Cable, Remote Control, Batteries, Quick Start Guide, Touch Pen, Wall Mount, Wi-Fi / Bluetooth Module
• Optional Accessories - Floor Mount (Landscape only): FMC-03+LMK-04, FMC-04+LMK-04, Ceiling Mount (Landscape only): CMP-01+LMK-01, Wall Mount (Landscape only): LMK-01, LMK-03 Stand STD-08

IFP-7502 Specifications PDF
