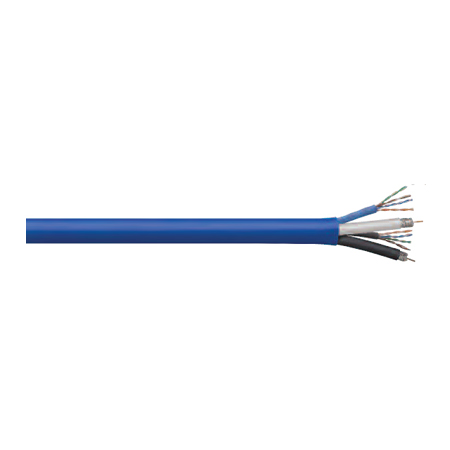

RMMJ5AE3501564L1O Remee Siamese 2 x 24 AWG 4 Pair Unshielded Twisted Pairs Solid Bare Copper Cat5e Plus 2 x 18 AWG 2 Quad Shielded Solid Bare Copper RG6 CMR Non-Plenum Multimedia Cable - 500' Reel - Blue

Home and office automation are no longer thought of as luxury items in our society. More and more, residential properties require structured cables as a standard requirement for most homes and buildings. Remee offers a large selection of media wiring solutions for multimedia cable and home automation cables.

Specifications

RG-6/U Electrical Characteristics

• Nominal Capacitance - 16.2 pF/ft
• Nominal Characteristic Impedance - 75Ω
• Nominal Velocity of Propagation - 84%
• Nominal Attenuation (dB per 100 ft.) - 1.46 dB @ 50 MHz, 2.05 dB @ 100 MHz, 2.83 dB @ 200 MHz, 6.88 dB @ 1000 MHz, 7.50 dB @ 1200 MHz, 8.50 dB @ 1800 MHz, 9.50 dB @ 2200 MHz, 12.0 dB @ 3000 MHz

Cat5e Electrical Details

• Nominal Mutual Capacitance - 14 pF/ft
• Nominal Velocity of Propagation - 70%
• Maximum Capacitance Unbalance - 330 pF/ft
• Maximum Conductor D.C.R - 28.6Ω/1000 ft
• Maximum D.C.R. Unbalance - 5%
• Maximum Delay Skew - 45.0ns/100m
• Nominal Characteristic Impedance - from 0.772 MHz - 100 MHz 100 ± 15%, from 100 MHz - 350 MHz 100 ± 22%

Standards

• NEC Article 800
• UL 444, Type CMR FT4
• ANSI/TIA/EIA 568C.2 Category 5e

Codes & Listings

• C(ETL)US CMR
• CSA FT4

RMMJ5AE3501564L1O Specifications PDF
