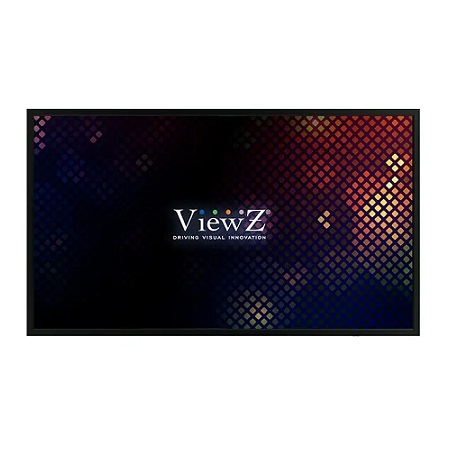

VZ-98IBX-T ViewZ 97.5" 4k LED Ultra HD Monitor

VZ-IBX-T series can unleash new and exciting possibilities at the touch of a finger. These large size 4k monitors are touch screen, making them perfect for school and presentation digital whiteboards while also catering to digital signage and security application. The future is now with IBX series touch screen monitors.

Specifications

Video

• Screen Size - 97.52"
• Max. Resolution - 3840 x 2160 @60Hz
• Pixel Pitch - 0.5622 mm x 0.5622 mm
• Brightness - 460cd/m² (Typical)
• Contrast Ratio - 1200:1
• Aspect Ratio - 16 : 9 (1.78 : 1)
• Viewing Angle (H/V) - 178° / 178°
• Display Color - 1.07G
• Response Time - < 8 ms

Interface

• HDMI (2.0) In / Out - 3 / 1
• DP In - 1
• YPbPr In - 1
• CVBS (Composite) In / Out - 1 / 1
• VGA In (15Pin D-Sub) - 1
• SPDIF (Optical) Out - 1
• RS232 In - 1
• USB In (Android) - 2
• USB In (OPS/Android) - 2
• USB In (Touch) - 2
• RJ45 (10/100M) In - 2
• Audio Out - 1
• PC Audio In - 1

Android Board Spec

• Android OS - Ver. 8.0
• CPU - Quad Core, ARM A73+A53, 1.5GHz
• RAM - 3GB DDR4
• Storage - 16GB (Nand-Flash)
• GPU - MaliG51 (Nand-Flash)

Special Features

• Image Retention - Yes
• Touch
  • Sensor Type - Infrared Touch Frame
  • Surface Protection - 4mm Toughened Glass
  • Response Time - < 11ms
  • Touch Accuracy - 90% ± 1mm
  • Output Mode - HID Standard
  • Theory Clicks - Unlimited
  • Minimum Touch Object - ≥ 1.6 mm (Single touch) | ≥ 3 mm (Multi touch)
  • Infrared Touch - 20 Points
• USB Media Player
  • Video Codec - MPEG1/2, MPEG4, DivX 3.11/4.12/5.x/5, XviD, H.263, H.264, MVC, AVS, WMV3, VC1, Motion JPEG, VP8/9, RV30/40
  • Video Format - MPEG, AVI, MOV, MP4, MKV, RM, 3GP, FLV, WebM, ASP
  • Image Format - JPEG, PNG, BMP
  • Music Format - mp3, mp4, wma

Refresh Rate

• HDMI (2.0) In - 3840 x 2160 @ 60Hz
• Display Port In - 3840 x 2160 @ 60Hz
• VGA In (15Pin D-Sub) - 1920 x 1080 @ 60 Hz

Audio

• Built in speaker - 15W x 2

Dimensions & Weight

• Outline Dimension (W x H x D) - 88.38" x 52.77" x 4.25" (2244.9 mm x 1340.4 mm x 108.2 mm)
• Net Weight / Gross Weight - 304.29 lbs (138 kg) / 421.08 lbs (191 kg)

Mount

• Universal Wall Mount - 800 x 600 mm ( 4 x M8 )

General

• Transmitter - IR Remote Control - Yes
• Housing - Sheet Black Aluminium / Metal
• Power Electrical Ratings - AC100 ~ 240V (50/60Hz)
• Power Consumption - ≤ 500 W / ≤ 0.5 W (Standby)
• Regulations - FCC (A), RoHS
• Operating Temperature - 32 - 104°F / 0°C ~ 40°C
• Storage Temperature - 14 ~ 140°F / -10 ~ 60°C
• Operating Humidity - 20 ~ 80% RH
• Storage Humidity - 10 ~ 80% RH
• Language (OSD) - English
• Accessories - Manual (1pc), Power Cable (1pc), USB A-B Cable (1pc), Remote Controller (1pc), Wall Mount (1set), Touch Pen (2pc), HDMI Cable (1pc), Mobile Stand (Option)

VZ-98IBX-T Specifications PDF
