057-476/S/OR Vertical Cable 057-476 Series 24 AWG 4 Shielded Twisted Pair Solid Bare Copper CMR Non-Plenum Cat5e Cable - 1000' Pull Box - Orange

Specifications

• Part Number - 057-476/S/OR

Technical Data

• Rated Temperature - 75º C
• Voltage Rating - 60 V
• Product Standard Certification - CMR
• Application - Horizontal Wiring in LAN
• Reference Standard - ANSI/TIA-568.2-D & ISO/IEC 11801
• NVP - 69%

Conductor

• Conductor - Solid Bare Copper
• Size - 24 AWG

Insulation

• Insulation - PE
• Average Thickness - 0.0089 in (0.228 mm)
• Min. Point Thickness - 0.008 in (0.205 mm)
• Insulation Diameter - 0.038 in (0.97 mm ±0.005)
• Twisted Pair Diameter - 0.076 in (1.94 mm ±0.01)
• Bond - PE-Tape
• Shield - AL Foil
• Drain Wire Dia. - 0.016 in (0.40 mm ±0.003) (Solid Tinned Copper)
• Assembly Diameter - 0.19 in (4.95 mm)

Jacket

• Jacket - PVC
• Average Thickness - 0.024 in (0.60 mm)
• Min. Point Thickness - 0.021 in (0.55 mm)
• Outer Diameter - 0.24 in (6.15 mm ±0.10)
• Rip Cord - Yes

Color of Pairs

• Pair 1 - Blue,White-Blue
• Pair 2 - Orange,White-Orange
• Pair 3 - Green,White-Green
• Pair 4 - Brown,White-Brown

Marking on Jacket

• VERTICAL 4001453 cETLus VERIFIED CMR FT4 F/UTP 4PR 24AWG CAT5E 350MHz ANSI/TIA-568.2-D RoHS V139P10864 1000FT

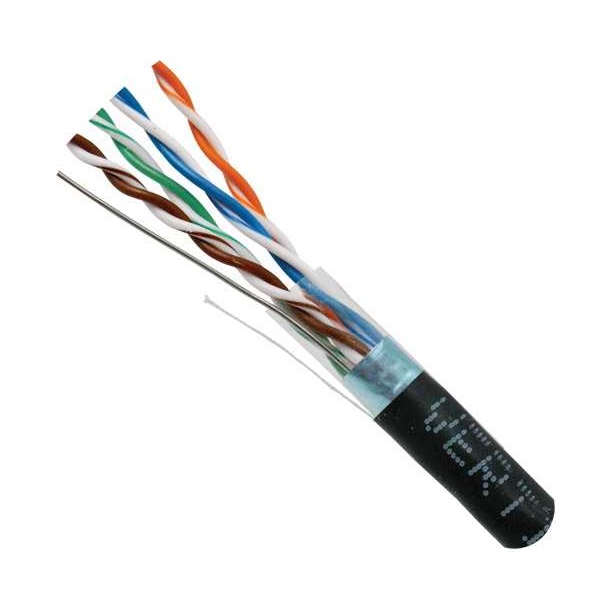

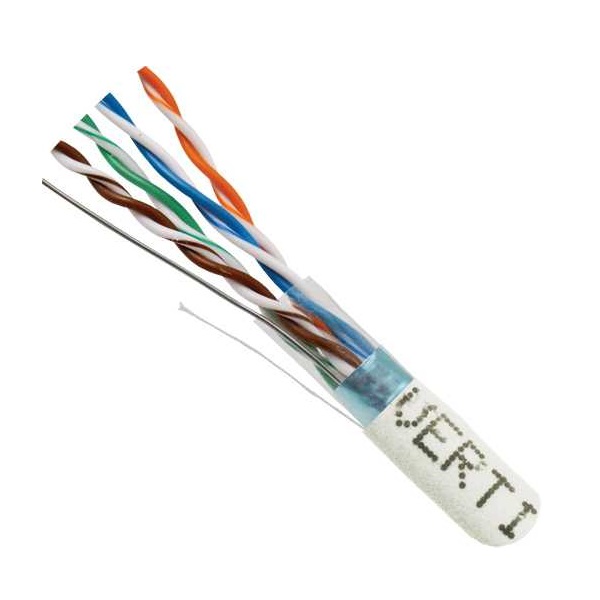

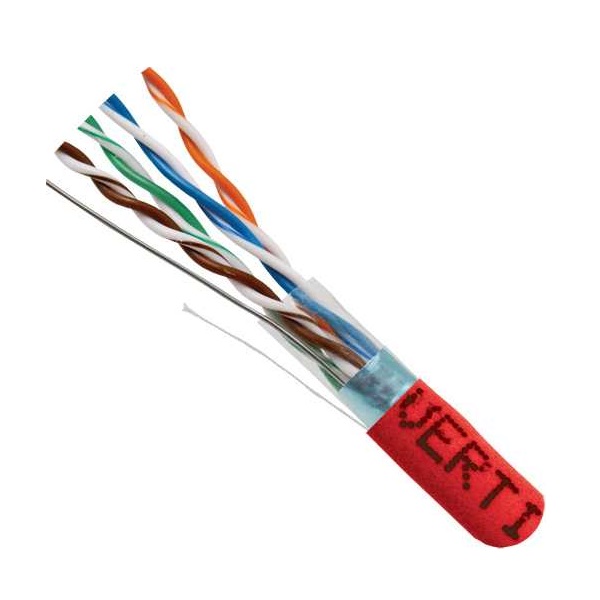

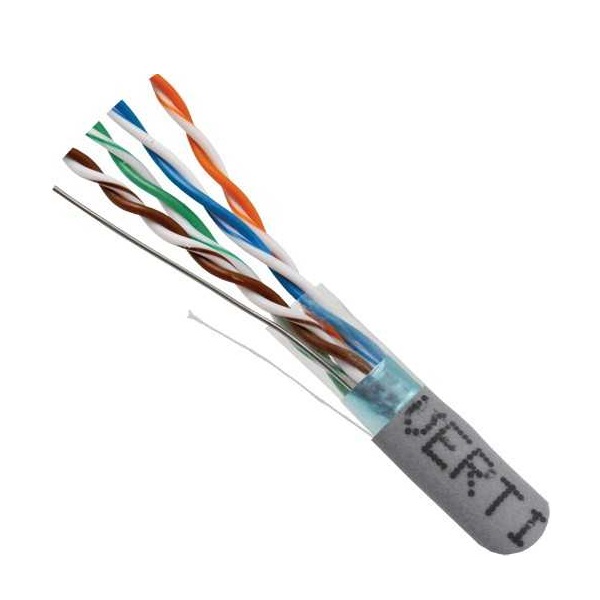

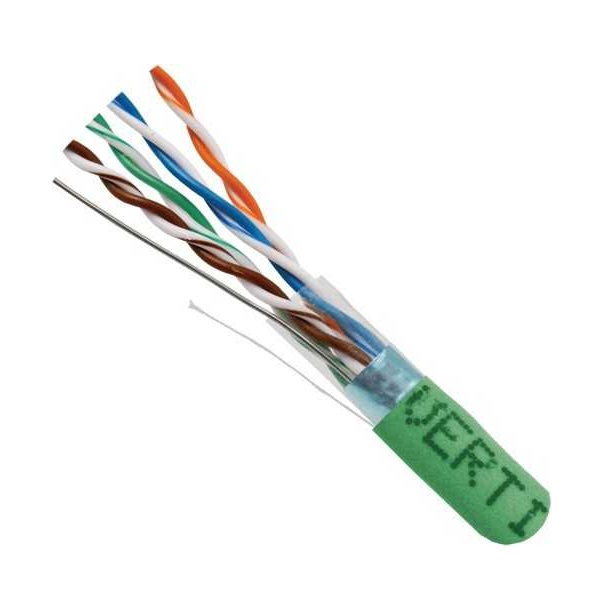

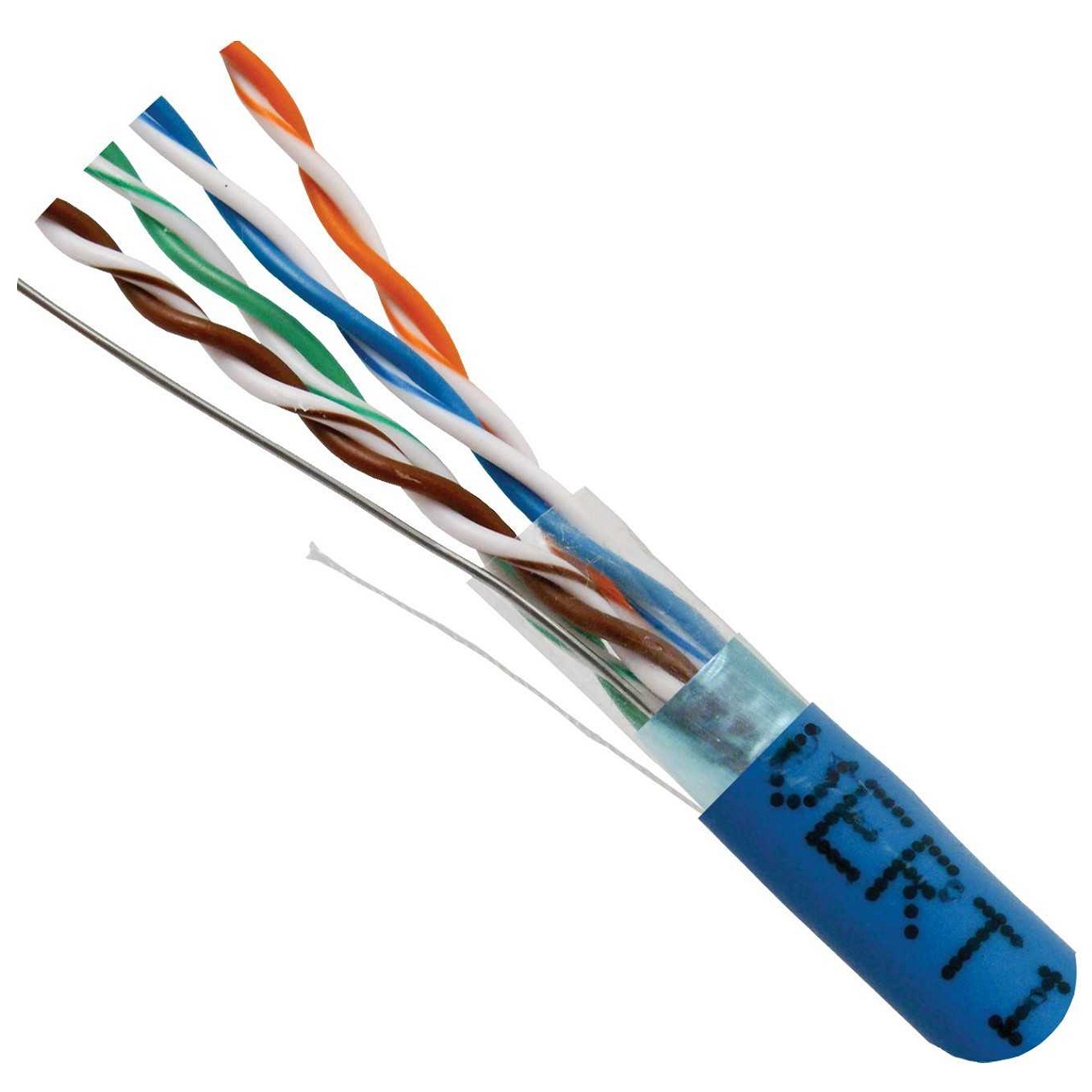

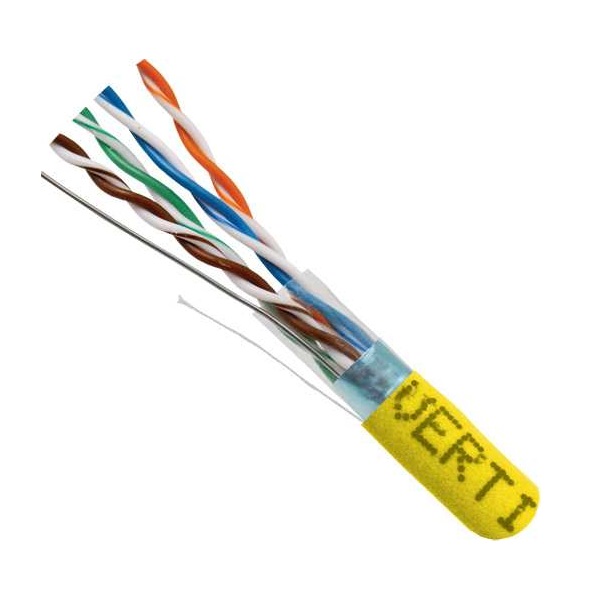

• Jacket color available in Blue, Black, White, Green, Gray, Red, Yellow, Check availability

Electrical Characteristics:

• 1.0-100MHz Impendance (Ω) - 100±15
• 100-200MHz Impendance (Ω) - 100±25
• 200-350MHz Impendance (Ω) - 100±35
• 1.0-350.0MHz Delay Skew (ns/100m) - ≤45
• Pair-to-Ground Capacitance Unbalance (pF/100m) - ≤330
• Max. Conductor DC Resistance 20°C (Ω/km) - 93.8
• Resistance Unbalance (%) - ≤5
• Insulation Resistance (MΩJKm, DC500V Charge 1 Min) - ≥5000
• Voltage Endurance (DC V/min) - 1000 without breakdown
