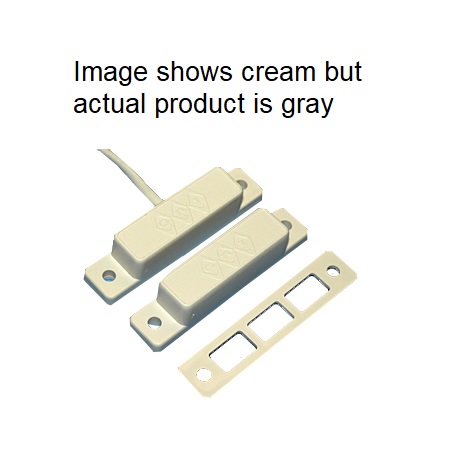

29PD-G GRI DPDT Surface Mount Magnetic Contact 1" Gap - Gray - MIN QTY 10

There are currently no active sales or promotions related to this item.

SKU: 29PD-G

Brand: GRI

Lifetime warranty against workmanship, material and factory defects
UL and ULC approved
Concealed terminals on 28 Series
24" jacketed cable on PA Series
Longer leads upon request on PA series
Side mounted screw terminals on 29 series
Standard gap up to 1", 5/8" on steel
Wide gap up to 1 1/2", 3/4" on steel
Extra wide gap up to 2", 1" on steel
Spacers, covers and screws Included
Private labeling on request
Built-in E.O.L. resistors and diodes available on request
Switches or magnet only are available separately
Supervisory loop or dummy terminals available

More details...

There are currently no active sales or promotions related to this item.

MPN: 29PD-G
UPC: 697625032433

MSRP Price: $40.00

Price: $23.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The "P" style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.

Specifications

Part Number - 29PD
Loop Type -
Electrical Configuration - DPDT
Reed Form - CX2
Maximum Initial Contact Resistance (Ω) - .140
Maximum Contact Rating (W) - 5
Maximum Switching Voltage (VDC) - 175VDC
Maximum Switching Current (A) - .250
