XR-3600-GR-0 AWID XR-3600 UHF Card Reader - Mullion

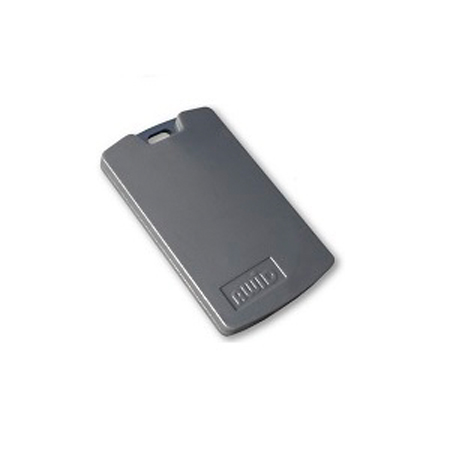

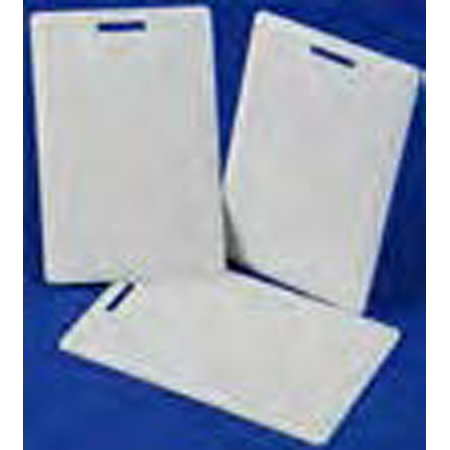

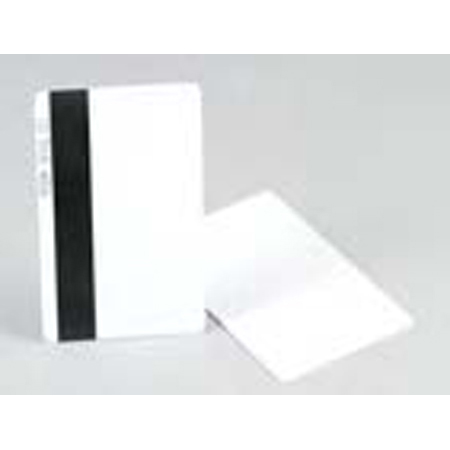

AWID's XR3600 UHF MullionMounting Reader is the link between card access by people at doors in buildings, and vehicle access at gates for parking. The XR3600 reads the same UHF handheld cards and tags that drivers use for vehicle identification and gate control at a parking facility. These cards and tagsare compatible with AWID's LR2000, LR2200 and LR3000 longrangereaders and their "HiLo" sets. The enclosure is a striking, deep black design.

Specifications

OPERATING CHARACTERISTICS

• Reading Distance: On wall or metal – up to 6 inches
• Frequency Band: 902 to 928 MHz Frequencyhopping technology
• Power Supply: +5 to +12 volts DC supply; rated 1.0 ampere or more; linear type; regulated DC output (Panel's power terminals are OK.)
• Communications Protocol: Wiegand and RS232, simultaneous
• Code Formats: Programmed in AWID's UHF credentials Reads 26bit to 50bit codes
• Cable (for Wiegand Interface): 22 gauge, 4wires, stranded, colorcoded Overall shielded for bothpower and data Up to 500 feet long for Wiegand interface

PHYSICAL CHARACTERISTICS

• Dimensions: 1.9 x 4.8 X 0.7 inch (4.8 x 12.2 x 1.8 cm)
• Weight: 4 ounces (113grams)
• Material (Color): ABS 1part sealed enclosure (black)
• Cable (Integrated with Reader): 10 conductors, 18 inches long Overall shielded, gray plastic jacket
• Mounting (Supplied by Installer): On mullion,wall or other surface

ENVIRONMENT

• Operating Temperature: 31°Fto+150°F (35°C to+65°C)
• Operating Humidity: 0% to 95% noncondensing

CERTIFICATION

• FCC Part 15; IC; RoHS compliant
