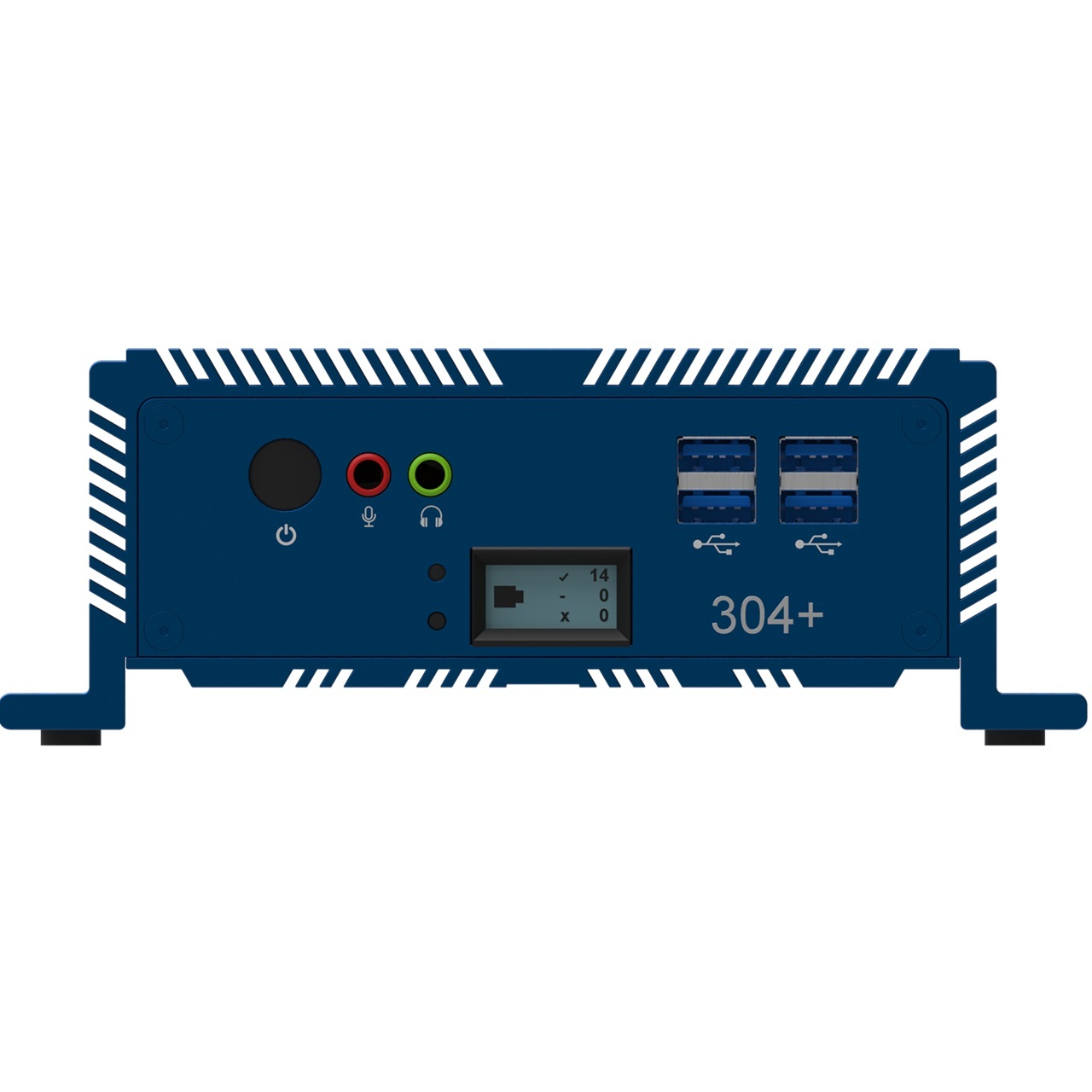

SKY-SU304p-0 Hanwha Vision Wisenet SKY Location Setup Fee Bridge 304+

SKU: SKY-SU304p-0

Wisenet SKY Bridge

Features:

  • Wisenet SKY Bridge 301 (Rack Form Factor)
  • The Wisenet SKY Bridge acts as a gateway from your premises to the Cloud Data Center where your video is stored and managed.
  • The bridge provides video buffering, a secure connection, bandwidth management, and monitoring of cameras
  • This small form factor bridge is suitable for applications up to 20 cameras at 4 MP when a server rack is not available
  • They can be wall or shelf-mounted.
  • This family of bridges are equipped with ruggedized, all-aluminum enclosures designed to operate in a broad ambient temperature range.
  • These bridges include a display screen providing operational status at a glance.
NDAA
More details...
MPN: SKY-SU304p-0
EAN: 849688018972
MSRP Price: $940.00
Web Price$940.00
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.


Product Details

Specifications

System

  • Maximum Cameras @ 1MP - 25 / 44
  • Maximum Cameras @ 4MP - 20 / 35
  • Maximum Cloud Analytics - 5 / 15
  • Hard Disk Drive Network ports - 1TB, 800Gb usable for video storage, Solid State Drive

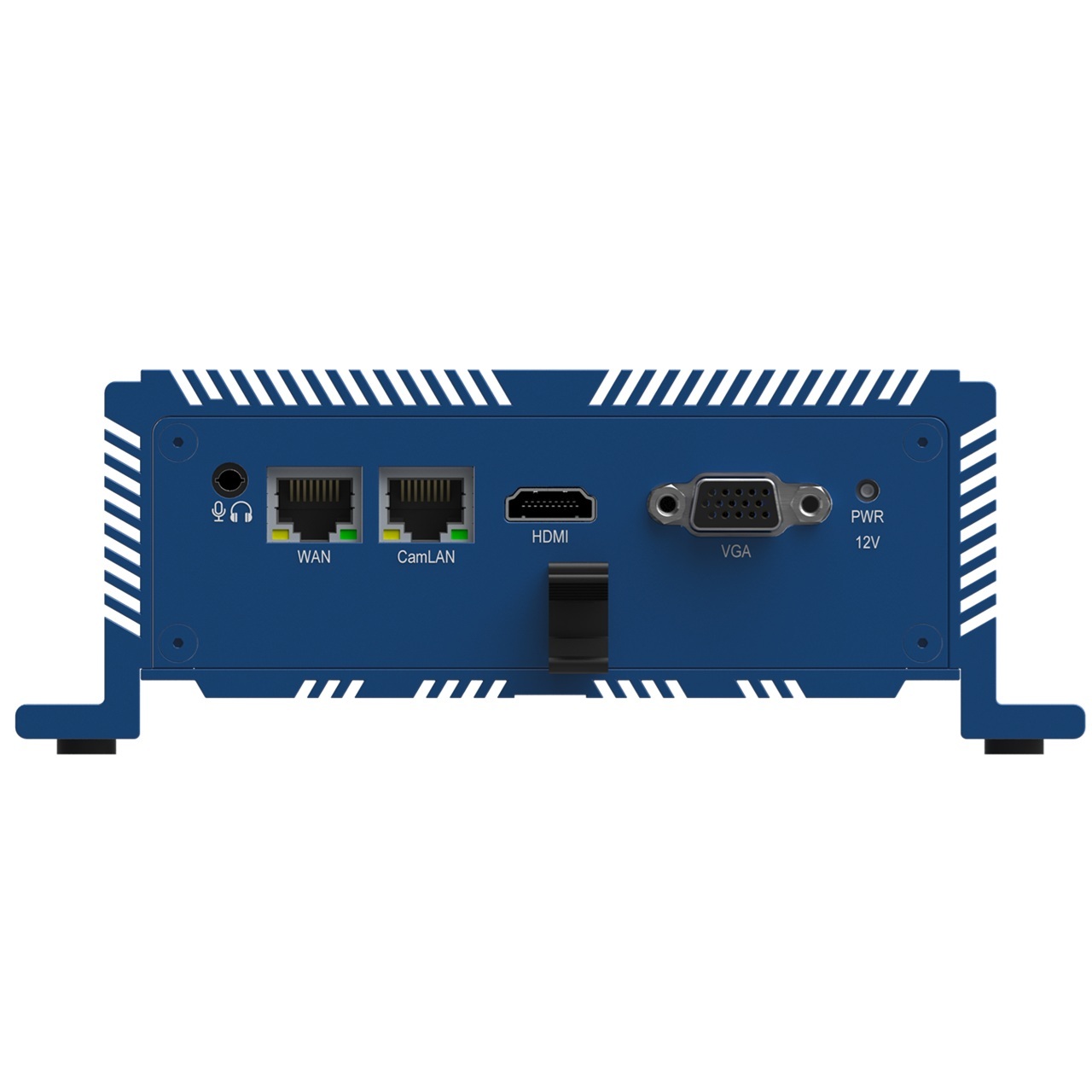

  • Network ports - Dual gigabit ethernet RJ-45
  • Indicator - Power, Disk activity, Temperature, IP Address & Speed, Serial number, Attach ID
  • Video output - 1x HDMI, 1x VGA
  • USB ports - 4x USB 3.0 / 4x USB 3.0, 2x USB 2.0
  • Operating System - Embedded Linux
  • Included accessories - Wall mount, power supply
  • Rack Mount Brackets - N/A
  • Ordering SKU - EN-SU304P-0 / EN-SU404P-0

Mechanical

  • Form Factor: - Compact wall or shelf mount
  • Color/Material - Blue, Aluminum
  • Dimensions - 180 x 127 x 64 mm 7.08 x 5.00 x 2.50 in
  • Weight: - 2.25Lb (1.2kg) / 2.72Lb (1.23kg)

Electrical

  • Power Supply: - Included, 20 W / 30 W
  • Power Input - 100 - 240 VAC

Environmental

  • Operating Temperature: - 14°F to 122°F (-10°C to 50°C)
  • Operating Humidity: - 0% to 70% RH, non-condensing
  • Certifications - FCC, UL, CE, UKCA, PSE, NOM, ACM, RoHS, CTick, WEEE, NDAA

SKY-SU304p-0 Specifications PDF
