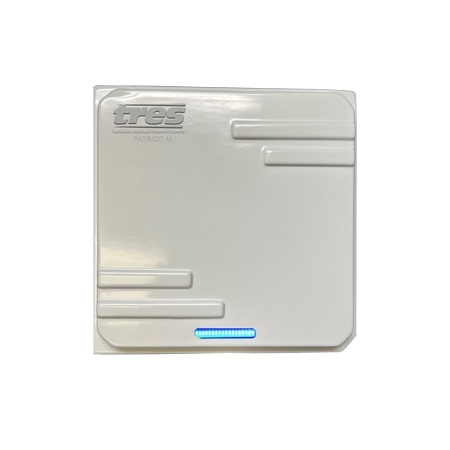

PATRIOT-M Keri Systems Basic Model Long Range 900MHz UHF EPC Wiegand Gen2 Reader 16'-20' Range

Specifications

• Operating Frequency - 902.75MHz - 927.25MHz
• RF Protocol - ISO1800-6B, EPC Class 1, EPC Class 1 GEN 2
• Operating Method - Frequency Hopping Spread Spectrum
• Antenna - 10 dBi Gain, Vertical Polarization
• Max RF Power - 30 dBm (1 Watt)
• Tag ID Modes - Timed Mode or Trigger Mode
• Wiegand Timing Parameters - Pulse Width 80μS, Pulse Period 1600μS (adjustable)
• Wiegand Formats Supported - 26, 30,33, 34, 35, and 37-bit
• Identify Tag Time - <8ms - Identify single tag
• Reading Tag Time - Reads every 8 bytes in less than 5ms
• Reading Tag Distance - 16' - 20' (distance varies on location)
• Communication Interface - Multiple Wiegand Formats
• Input - One-way trigger input
• Power Supply (suggested) - 12vDC to 48vDC, 5vDC @2Amp
• Power Consumption (peak) - 1.82 A max. @5vDC at 30dBm in time mode. 470mA @5vDC in trigger mode
• Dimensions - 9.45x9.45x3.125" 240x240x79mm
• Work/Storage Temperature - -4 to 158°F (-20°C to +70°C) / -40°F to 185°F (-40°C to +85°C)
• Operating Humidity - 5% to 95% realtive humidity non-condensing
• Certifications - FCC Part 15 Subpart C and Canada RSS-210, FCC ID: Y3D-REDS
• Working Status Indication - Audible Beeper, Built in LED
• Extra Features / Options - RS232 Special Order (Contact Sales)
