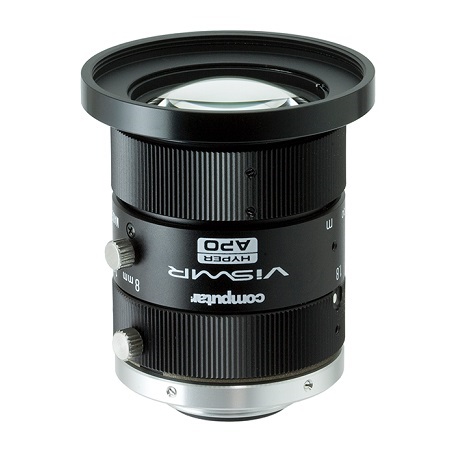

M0818-APVSW Computar 2/3" C-Mount 8mm F/1.8 Manual Iris Visible + SWIR Broadband Lens

The ViSWIR Fixed Focal Length Lens Series was created for the latest Visible + SWIR Imaging Sensors. ViSWIR Lite achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light. The application of a multilayer coating on the metal lens parts makes it possible to minimize the negative lighting effects.

Specifications

• Model No - M0818-APVSW
• Focal Length - 8mm
• Max. Aperture Ratio - 1:1.8
• Wavelength Range - 400nm - 1700nm
• Max. Image Format - 8.8mm x 6.6mm(φ11mm)
• Operation Range
  • Iris - F1.8 ‐ F16.0
  • Focus - 0.1m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Operating Temperature - -10°C ‐ +50°C
• Angle of View
  • D - IMX990 (SXGA) - 53.2°
  • H - 6.40mm x 5.12mm - 42.7°
  • V - (φ8.20mm) - 34.7°
  • IMX991 (VGA) - 28.1°
  • 3.20mm x 2.56mm - 22.1°
  • (φ4.10mm) - 17.7°
  • 2/3 type - 67.3°
  • 8.80mm x 6.60mm - 56.4°
  • (φ11mm) - 43.9°
• Effective Lens Aperture
  • Front - φ28.4mm
  • Rear - φ15.5mm
• Distortion(inf)
  • 2/3 type - 0.4%
  • 1/2type - -0.4%
• Back Focal Length - 11.5mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M46 P=0.75mm
• Dimensions - φ49mmx54.7mm
• Weight - 163g

M0818-APVSW Specification PDF
