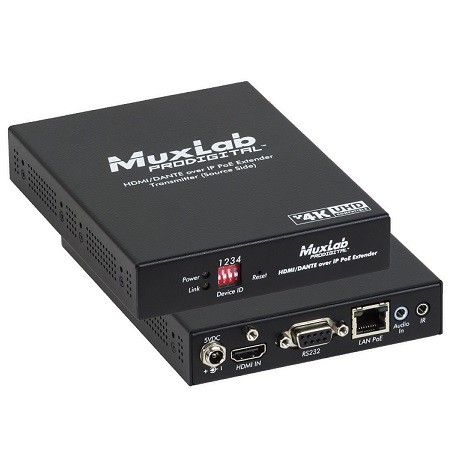

500759-TX-Dante Muxlab HDMI/Dante Over IP PoE Transmitter UHD-4K

The HDMI/Dante over IP PoE Transmitter, UHD-4K allows HDMI video equipment supporting up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0), plus Dante audio equipment to be connected and extended to create an independently distributed audio and video network. 100's of Single Displays and Video Wall Displays of user configurable size (X by Y) may be supported, depending on network bandwidth. Audio can be independently distributed to 100's of Dante supported audio devices. Supports HDR at up to 4K @ 30Hz (4:2:2)

Specifications

• Environment - HDMI 2.0b and 2CH Dante Audio
• Devices - Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI, and Dante supported audio gear
• Bandwidth - 300MHz
• Signals - HDMI 2.0b, HDCP 2.2, and 2CH Dante
• Connectors Note: Cables not included
  • One (1) HDMI receptacle
  • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
  • One (1) 3.5mm jack for Directional IR emitter
  • One (1) 3.5mm jack for 2CH audio insert
  • One (1) DB9 for the RS232
  • Four (4) DIP Switches for device ID addressing
• Maximum Distance Based on a maximum length of 6.6ft (2m) of HDMI cable per end - Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0). Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used
• Latency - Typical one (1) Frame (16ms), maximum 2 frames (33ms)
• Compression - JPG2000
• Bandwidth - Up to 500Mbps
• Network Requirement - 1 Gig Ethernet with IGMP, Jumbo Frames and PoE
• IR Frequency - 38 to 56KHz (IR Emitter and IR Sensor sold separately)
• RJ45 Pin Configuration
  • RJ45 Link
  • Pin 1 (R) Pin 2 (T)
  • Pin 3 (R) Pin 6 (T)
  • Pin 4 (R) Pin 5 (T)
  • Pin 7 (R) Pin 8 (T)
• Cable - One (1) Cat 5e/6 or better twisted pair cables required
• Power Source - This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately
• PoE - IEEE 802.3af
• Power Consumption - 6 W
• Temperature Operating - 0° to 40°C
• Storage - -20° to 85°C
• Humidity - Up to 95% non-condensing
• Dimensions - 4.40" x 5.67" x 1.00" (112mm x 144mm x 25mm)
• Weight - 1.7lbs (0.77kg)
• Compliance - Regulatory: FCC, CE, RoHS
• Flammability - 94V0
• Warranty - 3 years
• Order Information - 500759-TX-Dante Video Wall 4K over IP PoE Extender TX (UPC: 627699917596)
