Compact Tower, Big Time Power

The Minuteman Entrust-LG Series UPS grants users access to features commonly found in more expensive UPS offerings. This includes automatic voltage regulation, as well as spike, surge protection, and battery backup capabilities, ensuring the safeguarding of valuable equipment. This Entrust-LG employs line-interactive technology to ensure seamless power continuity, with stable and reliable power to connected devices.

The Entrust-LG's compact footprint makes it an ideal solution for cramped spaces including network and security closets, AV cabinets, tight desks, and more. With sizes ranging from 550VA to 2000VA, the Entrust-LG series can support a wide range of equipment, including personal computers, small to midsize security DVRs, network devices, small telephone systems, and more.

Entrust-LG Key Features

Protects Against Spikes, Surges, Brownouts, and Blackouts

• Automatic Voltage Regulation (AVR)
• 6-foot power cord with right-angle NEMA 5-15P (550VA/850VA/1000VA/1350VA models)
• Input circuit breaker protection

Feature-rich Design

• Compact mini-tower case design
• LCD Front Panel Display
• USB Charging Ports (1-Type A/1-Type C) on 1000/1350/1500/2000VA models)
• USB communications
• Coax Surge protection-port
• RJ45 Ethernet surge protection port (1Gbit)
• Hot-swappable batteries
• Front panel battery access
• Tool-less battery replacement design
• 3-year warranty (electronics) 2-year warranty (batteries)
• RoHS 2 compliant
• Energy Star 2.0 certified
• Department of Energy 10CFR Part 430 compliant (550/850/1000/1350/1500VA models)
• Transformer-friendly receptacles
• DC Startup capability
• Built-in self-diagnostics testing
• Audio & Visual alarms
• Alarm silencer button
• Scroll Button for LCD Display and UPS Status

Tour the product

Front Panel Display and Controls:

The front panel controls will have the following indicators and function buttons:

1. Realtime Display (Input / Output)
2. AC Mode Icon
3. On Battery Icon
4. "Error" Icon
5. Replace Battery Icon
6. Site Wiring Fault (SWF) Icon
7. Load Shedding Status
8. Load Status
9. Battery Capacity
10. "POWER" - On/Off/Test Button
11. "SELECT" - Menu Scroll Button
12. "MUTE" - Alarm Silencer Button

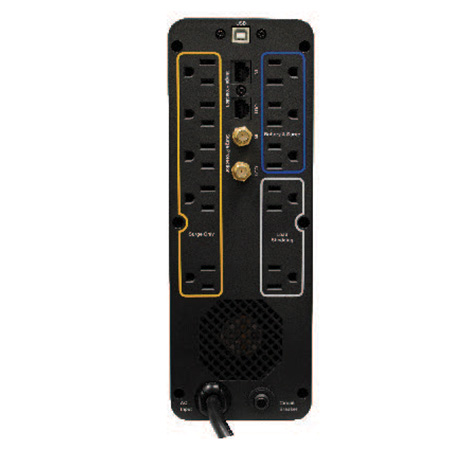

UPS Back Panel Connections:

1. Battery & Surge Outlets: Connect critical equipment such a PCs, Gaming Consoles, and Routers to the "Battery & Surge" outlets on the UPS to maintain power during power outages.
2. Load Shedding Outlets: Can be shut off via front panel or through SentryHD
3. Surge Only Outlets: For all other non-critical devices use the "Surge-Only" outlets.
4. USB Communications Port: The Entrust-LG Series is compatible with Minuteman's SentryHD monitoring and management software. Use the included USB communications cable to connect the UPS to your computer and follow the installation instructions included with the SentryHD download.
5. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS.
6. Surge Protection Ports: Optional surge protection for Ethernet network connections (RJ45) or broadband connections (Coax) are available but not required for the operation of the UPS.
7. Resettable Input Circuit Breaker: Allows the UPS to be reset in the event of an overload. (First remove one or more connected devices from the UPS to reduce the load before pressing the circuit breaker).
8. Input Power Cord: Utilizes a NEMA 5-15P for connecting to utility source. (NOTE: The ETR2000LG uses a NEMA 5-20P input plug).

Other Features

• Efficient Automatic Voltage Regulation (AVR) Hardware - Regulates output voltage for protection against spikes, surges, brownouts, and blackouts
• Compact form factor ideal for tight installs
• Protect all of your devices - 8-10 power battery backup and surge-only outlets ensure space for all pieces of the system
• Tool-less Battery Access - Setup and maintenance made easy with tool-less battery panel
• Efficient, Responsible Power - Energy Star 2.0, DoE 10CFR Part 430, and RoHS 2 Compliant
• Total Control of Your Power - Free download of Minuteman SentryHD management software connects via USB and provides total monitoring and management capability
• Independent Battery Bypass - Provides voltage regulation with surge and spike protection, even when batteries are weak or dead
• Unmatched Peace of Mind - 3-year limited warranty (electronics), 2-year warranty (batteries), and Minuteman Platinum Protection Plan

Applications

• Gaming Consoles and Computers
• Desktop Workstations
• Network Equipment
• VoIP Communications
• Telephone Systems
• External Computer Accessories
• Security Cameras and DVRs

Specifications

UPS Model Number - ETR850LG Minuteman Entrust-LG Series 850VA / 510W Simulated Sine Wave AVR Line-Interactive UPS - Mini Tower

General Features

• Topology - Line-Interactive
• VA Rating - 1440
• Load Capacity - 900
• Installation Format(s) - Mini Tower
• USB Charging Ports - (1) Type A & (1) Type C

Input

• Voltage Range - 90VAC to 140VAC
• Frequency Range - 60Hz ±6Hz
• Input Plug (6-ft. Cord) - NEMA 5-15R
• Input Protection - Circuit Breaker
• Max. Input Current - 14 Amps
• Surge Joule Rating - >1200 joules

Output

• Voltage Range (AC Mode) - 104VAC to 140VAC
• Voltage Range (Battery Mode) - 120VAC ±5% until low battery warning
• Wave Form (Battery Mode) - Simulated Sine Wave (Stepped)

Output Receptacles

• Surge Only - (5) 5-15P
• Battery & Surge - (5) 5-15P

Batteries

• Replacement Module - BM0066
• Tool-less Battery Replacement - Yes
• Est. Runtime (Full/Half Load) - 3.5 / 12.6
• Independent Battery Bypass - Yes
• DC Startup - Yes
• Hot Swappable - Yes

Display & Communications

• Front Panel Display - LCD
• Battery Function Alarms - Yes
• Alarm Silencer - Yes
• Shutdown Software - SentryHD (via download)
• Communication Port - USB (HID compliant)
• Communication Cable Included - Yes

Environmental

• Operating Temp. Range - +32°F to +104°F (0°C to +40°C)
• Operating Humidity Range - 0% to 95% (Non-condensing)
• Operating Elevation - 0 to +10,000 ft. (0 to +3,000m)

Physical

• Unit Dimensions (LxWxH) Inches / (mm) - 16.1” x 3.9” x 11.0” (410 * 99 * 280)
• Shipping Dimensions (LxWxH) Inches / (mm) - 19.7” x 7.4” x 11.0” (500 * 187 * 387)
• Unit Weight lbs. / (Kgs.) - 26.4 / (12.0)
• Shipping Weight lbs. / (Kgs.) - 29.8 / 13.5)

Warranty & Certifications

• Standard Warranty - 3 Years Electronics / 2 Years Batteries
• Connected Equipment Guarantee - $75,000
• Safety Agency Approvals - cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3:2014/R:2017-10) 3rd Edition, FCC 47 CFR Part 15, Subpart B: 2020, CE certified, Energy Star2.0
• Green Compliance - RoHS2, Energy Star 2.0, DoE 10 CFR Part 430 Subpart B Compliant

ETR1500LGU Specifications PDF
