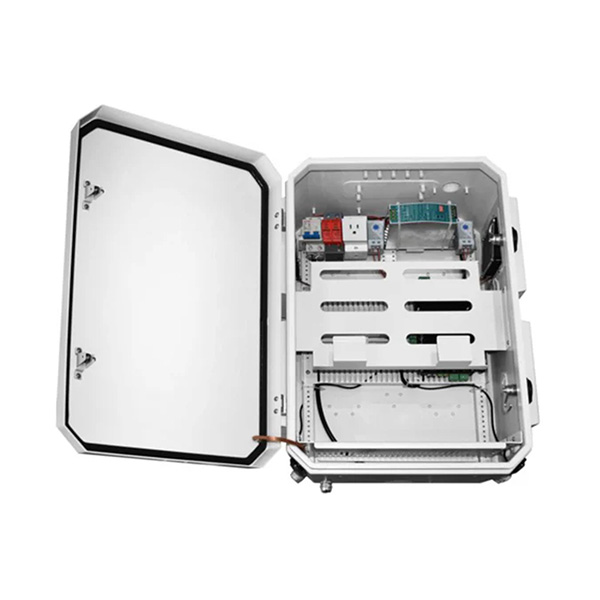

INVID-DDPB Invid Defender Box NEMA Weatherproof 15.4" W x 22.4" H x 9.5" D Enclosure Kit w/ 120W Power Control Module

INVID-DDPB Invid Defender Box NEMA Weatherproof 15.4" W x 22.4" H x 9.5" D Enclosure Kit w/ 120W Power Control Module	INVID-DDPB Invid Defender Box NEMA Weatherproof 15.4" W x 22.4" H x 9.5" D Enclosure Kit w/ 120W Power Control Module
(Click to see larger image and other views)

INVID-DDPB Invid Defender Box NEMA Weatherproof 15.4" W x 22.4" H x 9.5" D Enclosure Kit w/ 120W Power Control Module	INVID-DDPB Invid Defender Box NEMA Weatherproof 15.4" W x 22.4" H x 9.5" D Enclosure Kit w/ 120W Power Control Module
(Click to see larger image and other views)

SKU: INVID-DDPB

The Defender Box is a rugged, AI-powered enclosure designed for power, protection, and seamless security integration.

Weatherproof & durable - Built for any environment
Cloud-ready & AI-powered - Remote monitoring & smart alerts
Supports multiple accessories - Cameras, PTZs, strobes & more
120W PCM and MeanWell UL DC24V/5A Din Rail Power Supply
Air Breaker/Surge Protector/USA Din Rail Power Plug/2 Temp Controllers
70CM AC Wire with IP68 Water-Proof Stainless Connector, and AC Wire
Water-Proof UL Male & Female Connector
NPT 3/4" Knockout with Cap
Includes: Antenna Fix Board, Horn Speaker Installation and Cable-In Design, UL DC12V 2PCs Fans and Stainless Hand-Carrier, Pole & Wall Mount, PTZ Mount
Your choice of security cameras sold separately

MPN: INVID-DDPB

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

120W Power Control Module

Power Inputs - DC24V/5A and DC12V/10A Dual Inputs
Power Outputs - DC48 V/1A, DC24V/1A, DC12VI3A 9CH, and 7/8/9 DC12V Channels Controlled by Alarm Inputs 1/2/3 Channels.
Alarm In & Out - Input 3CH, Output 3CH

Enclosure Information

Materials - Aluminum+Steel(Powder Coated)
Weight - 30.9 lbs (14KG)
Dimension (W x H x D) - 15.4" x 22.4" x 9.5" (39 x 57 x 24.2cm) (5cm Depth Mount Not Included)
Power Input - 110V Line In
