069-559/CMX Vertical Cable 069-559 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper LLDPE Jacket CMX Non-Plenum Cat6 Cable - 1000' Wooden Spool - Black

SKU: 069-559/CMX
Brand: Vertical Cable

069-559/CMX

This high-performance Category-6 data cable features a 550MHz bandwidth, supporting fast Ethernet and PoE++ (Type 4) with 71.3W. It includes easily identifiable color-striped pairs and 23AWG solid copper conductors, exceeding industry standards like ANSI/TIA- 568.2-D, ISO/IEC 11801, making it ideal for various data applications.

Features

  • High-Speed Performance - Supports up to 550MHz bandwidth for smooth data transfer.
  • Designed for 10/100/1000Base-T networks and Fast Ethernet applications
  • Handles Power over Ethernet (PoE++) Type 4 (up to 71.3W) for powering devices like security cameras and access points
  • Durable Outdoor Protection - UV-resistant jacket safeguards against sun exposure, moisture, and extreme weather
  • Direct burial-rated for underground installations without requiring additional conduit
  • Quality Construction - 23AWG solid copper conductors ensure strong signal integrity and low interference
  • Meets and exceeds ANSI/TIA-568.2-D, ISO/IEC 11801, and CAN/CSA-C22.2 No. 214 standards
  • Easy Installation - Color-striped pairs make wiring simple and efficient
  • Packaged on a 1000ft wooden spool for easy handling and storage
More details...
MPN: 069-559/CMX
Ordering Notes: Service Professionals Only
MSRP Price: $326.00
Online Price: $326.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • Part Number - 069-559/CMX

TRANSMISSION PERFORMANCE

  • Meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications

Construction

  • Pairs: - 4
  • Conductors: - 8
  • Rip Cord: - Nylon
  • Separator Material: - Polyvinyl Chloride (PVC)
  • Screen - Unscreened (UTP)

Conductors

  • Material: - Solid Bare Annealed Copper
  • Size: - 23 AWG

Insulation

  • Diameter: - 0.0397 in. (1.01 mm)
  • Average thickness: - 0.0118 in. (0.30 mm)
  • Color coding: Pair 1 - White-Blue/Blue
  • Pair 2: - White-Orange/Orange
  • Pair 3: - White-Green/Green
  • Pair 4: - White-Brown/Brown

Jacket

  • Material: - Linear Low Density Polyethylene (LLDPE)
  • Outdoor rating: - UV-resistant
  • Outer diameter: - 0.24 in. (6.10 mm)
  • Average thickness: - 0.0236 in. (0.60 mm)
  • Min. point thickness: - 0.0212 in. (0.54 mm)
  • Marking: - VERTICAL 4001453 cETLus VERIFIED UTP 4PR 23AWG OUTDOOR DIRECT BURIAL UV LLDPE CAT6 550MHz CMX 75C ANSI/TIA-568.2-D RoHS XXXXFT

Electrical

  • Voltage rating: - 60 VRMS

Mechanical

  • Before Tensile Strength (Mpa): - ≥13.8 MPa
  • Elongation After Aging (%): - ≥100
  • Aging Conditions (º C × h): - 100x168
  • Tensile Strength After Aging (Mpa): - ≥85% of unaged
  • Elongation After Aging (%): - ≥50% of unaged
  • Cold Bend (-40±2º Cx4hrs): - No Crack

Safety

  • FPA 70 (NEC) fire rating: - CMX

Environmental

  • Operating temperature: - -40 °F–167 °F (-40 °C–75 °C)

Weight

  • 29.1 lb (13.2 kg)

Electrical Characteristics

  • Characteristics Impedance - 1~600 MHz 100±15 Ohms
  • Conductor Resistance - 93.8 Ohm/Km/20°C Max
  • Mutual Capacitance - 56 pF/M Max
  • Dielectric Strenght - AC 1.5 KV/Min
  • Spark Test - 2.5 KV
  • DC Resistance Unbalance - 5% Max
  • Delay Skew - 1~600 MHz 25nS/100m Max

069-559/CMX Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

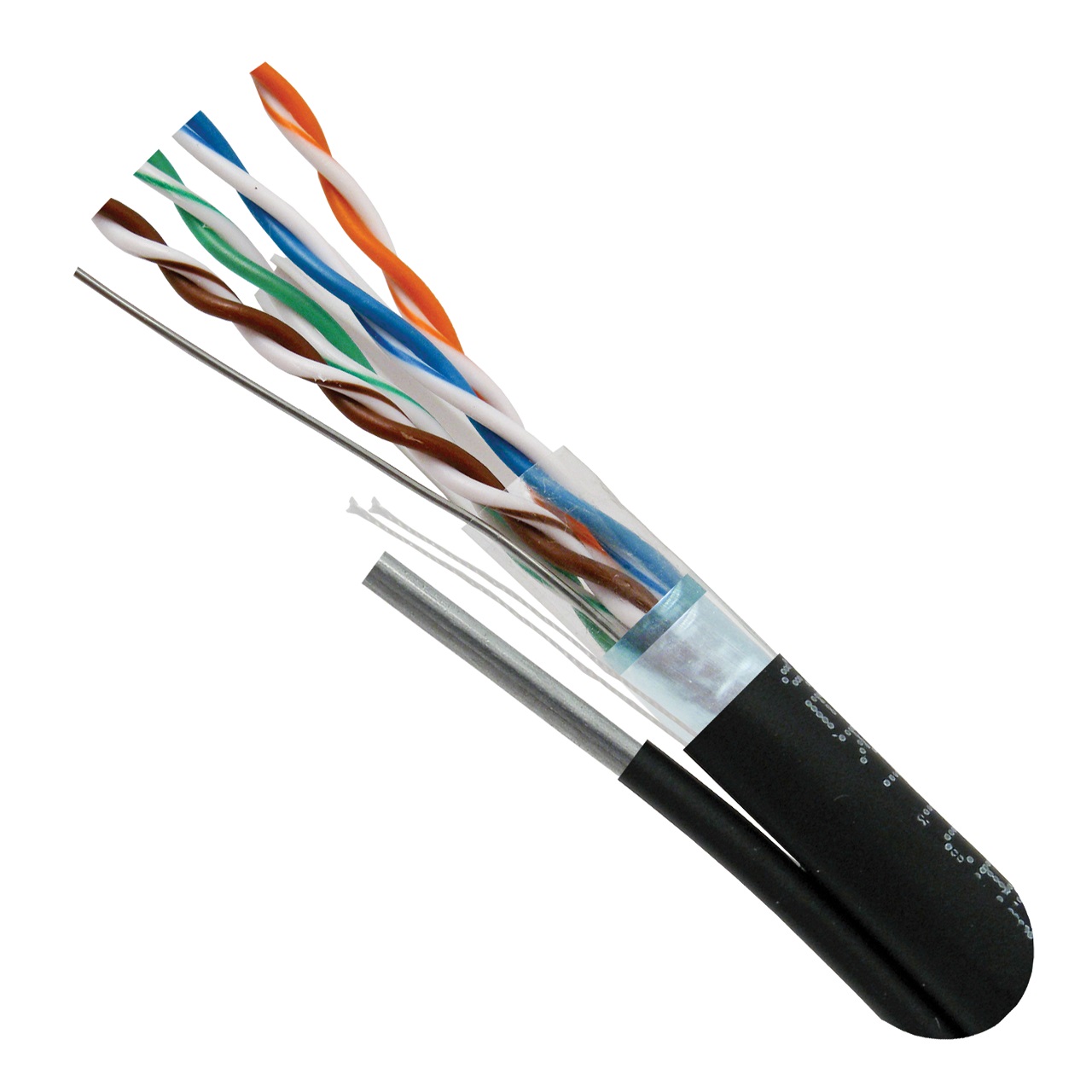

069-563/S/MESG Vertical Cable 069-563 Series 23 AWG 8 Unshielded Twisted Pair Solid Bare Copper LLDPE Jacket CMX Non-Plenum Cat6 Galvanized Steel Messenger Direct Burial / Aerial Cable - 1000' Wooden Spool - Black

069-563/S/MESG Vertical Cable 069-563 Series 23 AWG 8 Unshielded Twisted Pair Solid Bare Copper LLDPE Jacket CMX Non-Plenum Cat6 Galvanized Steel Messenger Direct Burial / Aerial Cable - 1000' Wooden Spool - Black

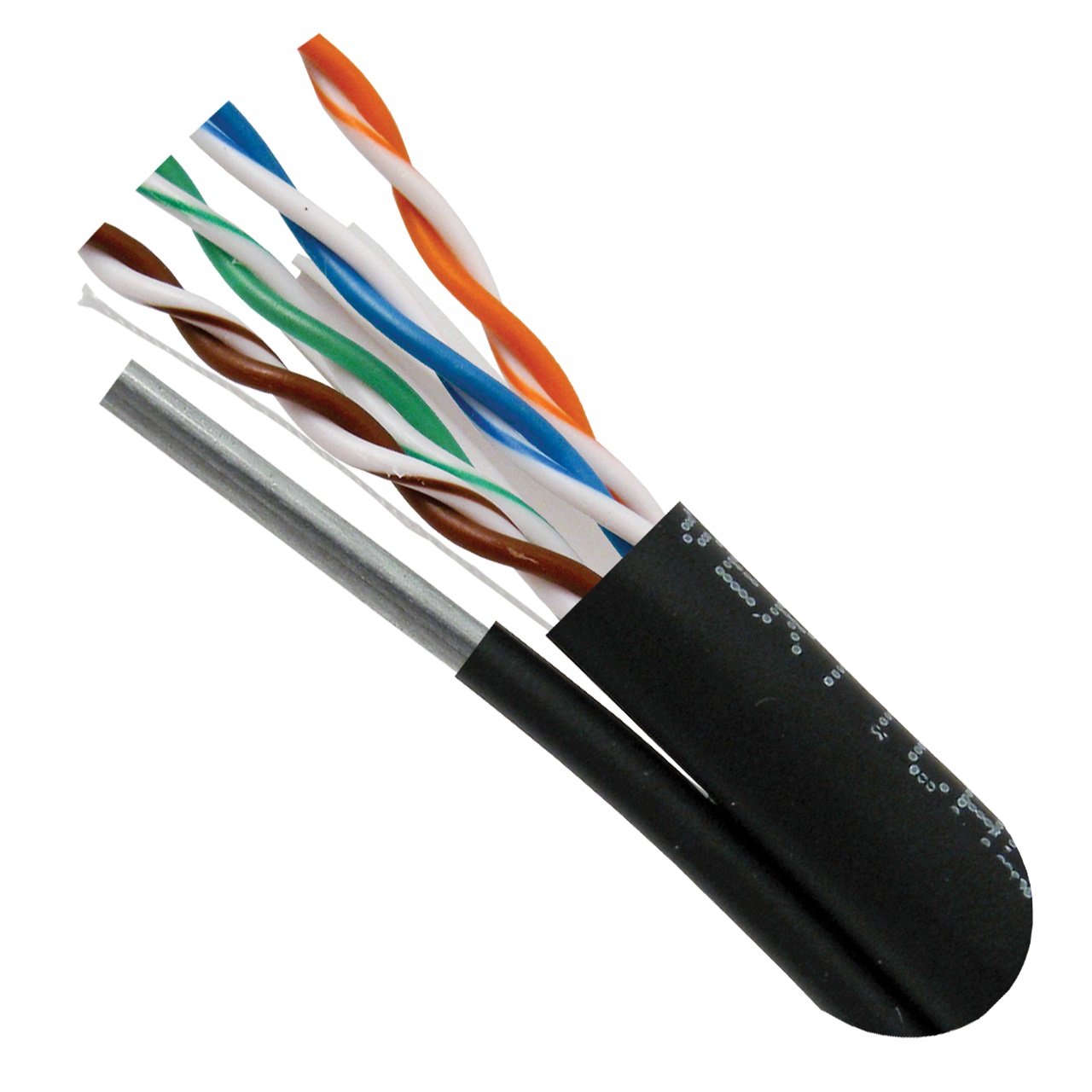

069-562/MESG Vertical Cable 069-562 Series 23 AWG 8 Unshielded Twisted Pair Solid Bare Copper LLDPE Jacket CMX Non-Plenum Cat6 Galvanized Steel Messenger Direct Burial / Aerial Cable - 1000' Wooden Spool - Black
