353-V2817/C6AAIV Vertical cable 353 Series CAT6A V-Max Keystone Jacks - Ivory

SKU: 353-V2817/C6AAIV
Brand: Vertical Cable

CAT6A V-Max Keystone Jacks – 353 Series

CAT6A V-Max Keystone Jacks – 353 Series offer high-speed connectivity, PoE++ support, and easy installation. Available in 10 colors and 25-pack options.

Features

  • Color-coded for T568A and T568B standards
  • Meets and exceeds ANSI/TIA-568.2-D, ANSI/TIA 1096-A standards
  • Supports PoE++ (Type 4) IEEE 802.3bt (71.3W) for high-power applications*
  • Fits most standard keystone wall plates and patch panels
  • Narrow connector design allows for high port density in tight spaces
  • Compatible with standard 110 punch-down tools
  • Use with the V-Max I-Punch Tool for faster, more efficient termination
  • UL Listed, RoHS Compliant, and TAA Compliant for safety and regulatory standards
  • Available in a convenient 25-pack
  • Color : Ivory, Almond, Black, Blue, Green, Gray, Orange, Purple, Red, White, Yellow
  • Pack Size: 1, & 25
More details...
MPN: 353-V2817/C6AAIV
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • Part Number - 353-V2817/C6AAIV
  • Height - 0.78 in
  • Width - 0.67 in
  • Depth - 1.22 in.
  • Weight (Single Jack) - 0.04 LB

RJ45 JACK

  • Housing Material: - ABS+PC UL 94V-0
  • Contact Bracket: - PBT+Glass Fiber, UL 94V-0

RJ45 JACK CONTACT

  • Material - Phospor Bronze with Nickel plating
  • Finish - 50 μ” Gold plating on Plug Contact area

IDC

  • Housing: - PC UL 94V-0 with Black color
  • Terminal - Phosper Bronze with Tin plating
  • Cap: - ABS+PC UL 94V-0
  • PCB: - FR4, UL 94V-0

PERFORMANCE

  • Color Code: - T568A & T568B wiring
  • Insertion Force - 20N max. (IEC 606037-4)
  • Retention Force: - 17 lb (7.7 kg) between jack and plug
  • Operating Temp.: - -10° C to 60° C max (ISO/IEC 11801, ANSI/TIA 568 C.2)

OPERATING LIFE (MATING CYCLES)

  • Jack: - Min. 750 cycles (ISO/IEC 11801, IEC 60603-7-4)
  • IDC: - Suitable for 23 and 24 AWG solid wire

COLORS AVAILABLE

  • Black, Blue, Bright White, Green, Grey, Ivory, Orange, Purple, Red, White, Yellow

353-V2817/C6AAIV Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

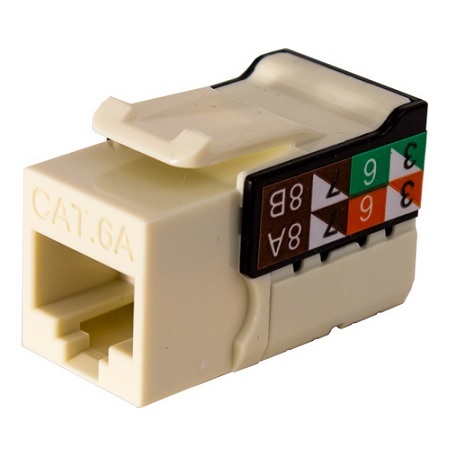

353-V2812/C6AAL Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Almond

353-V2812/C6AAL Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Almond

MSRP Price: $10.00

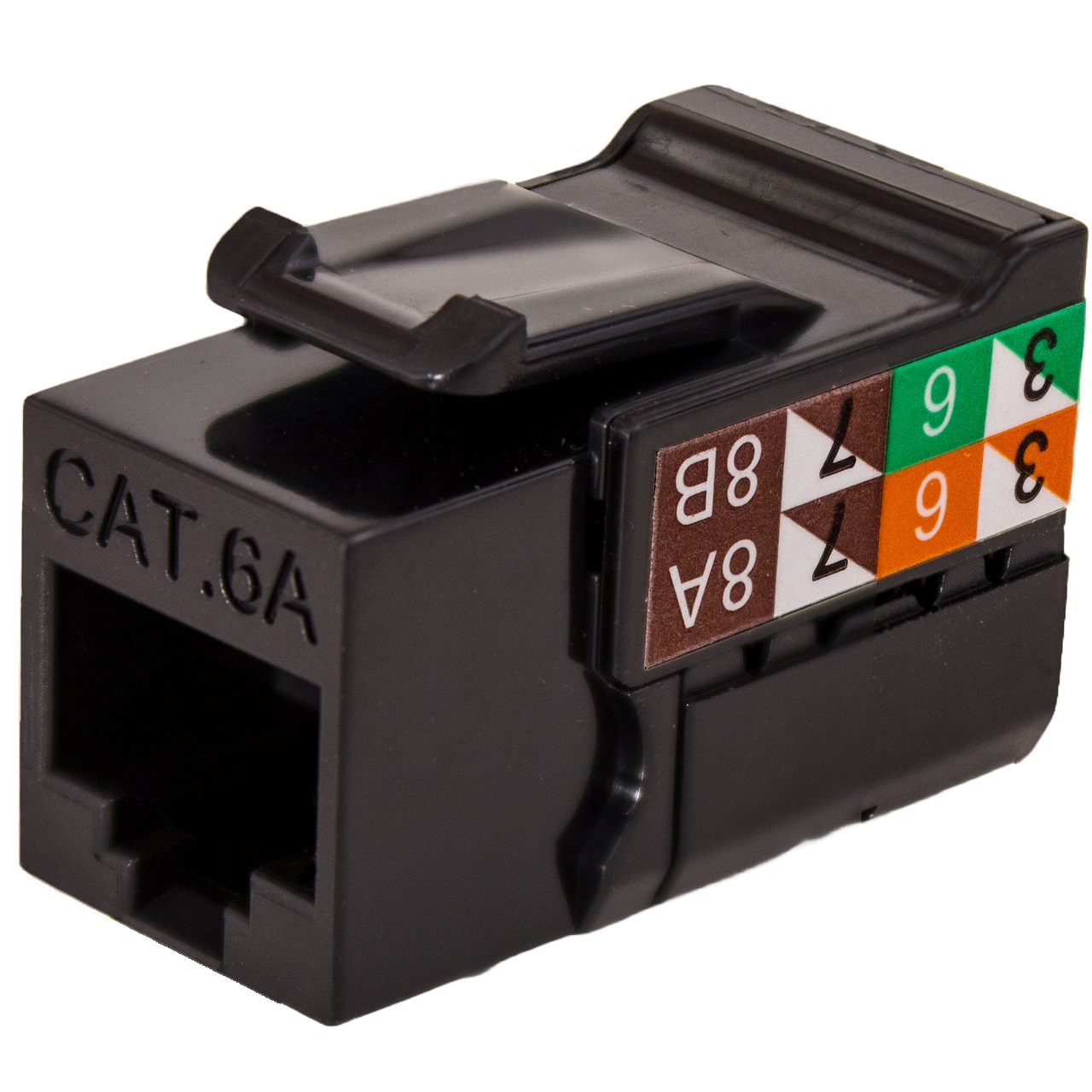

353-V2813/C6ABK Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Black

353-V2813/C6ABK Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Black

MSRP Price: $10.00

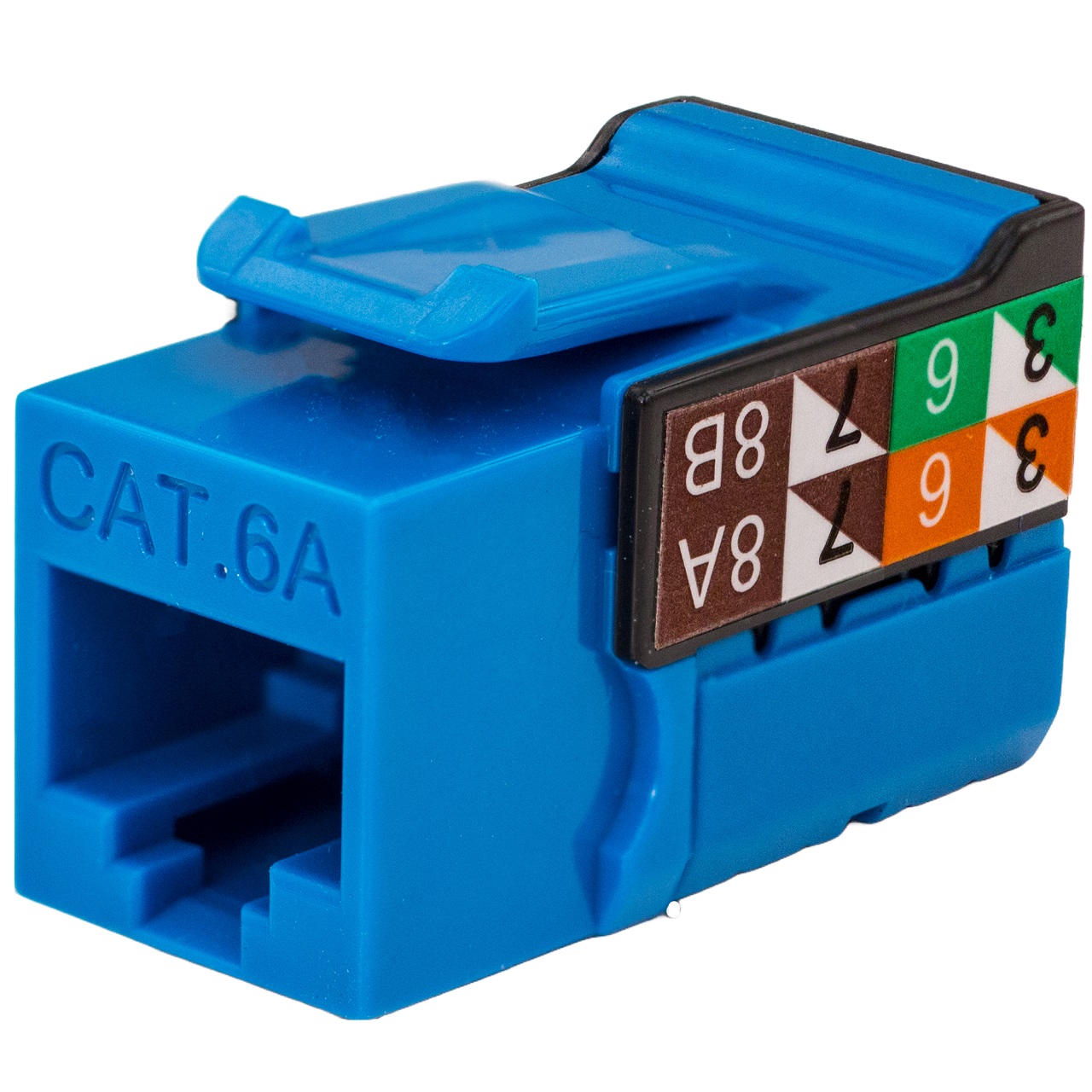

353-V2814/C6ABL Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Blue

353-V2814/C6ABL Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Blue

MSRP Price: $10.00

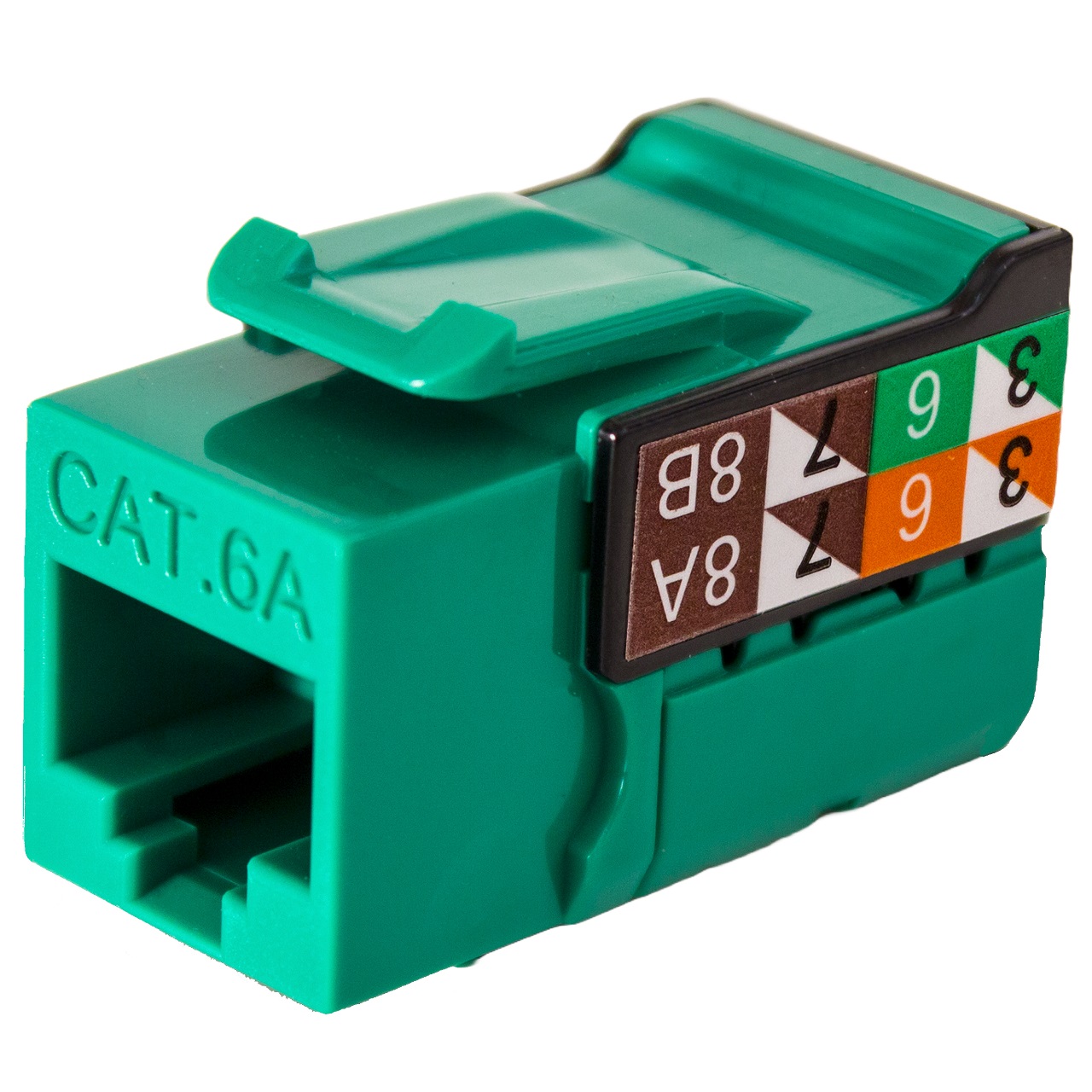

353-V2815/C6AGR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Green

353-V2815/C6AGR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Green

MSRP Price: $10.00

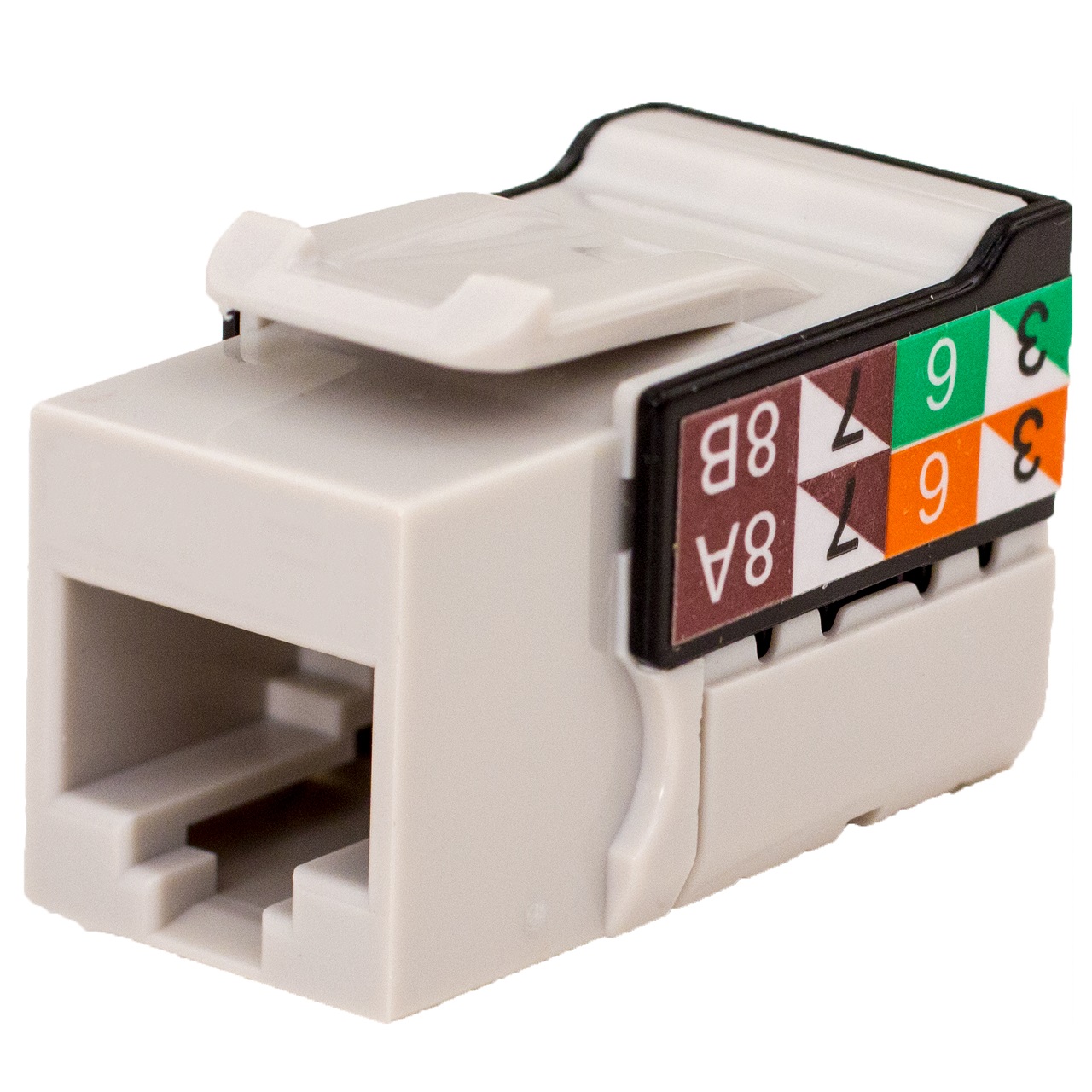

353-V2816/C6AGY Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Gray

353-V2816/C6AGY Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Gray

MSRP Price: $10.00

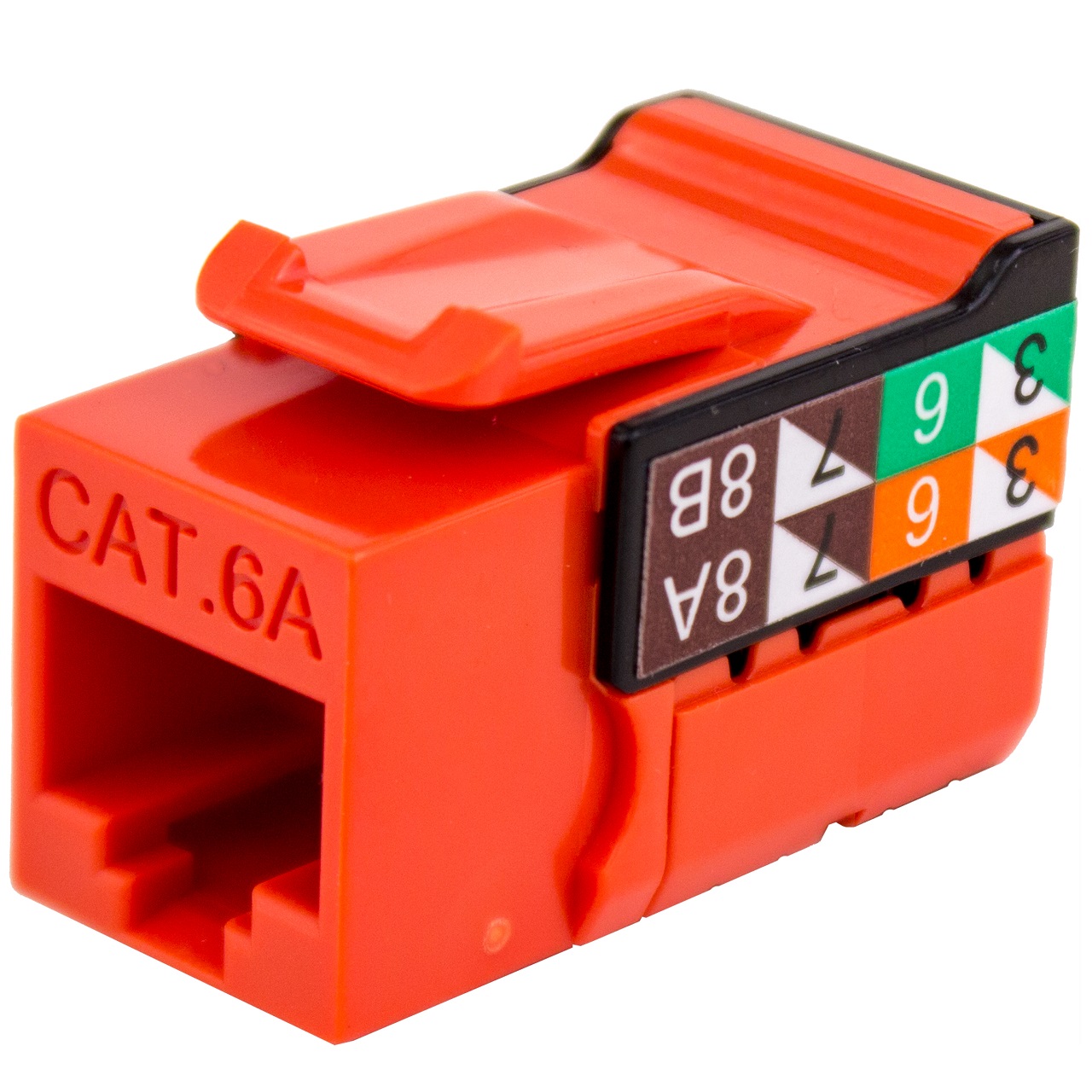

353-V2818/C6AOR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Orange

353-V2818/C6AOR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Orange

MSRP Price: $10.00

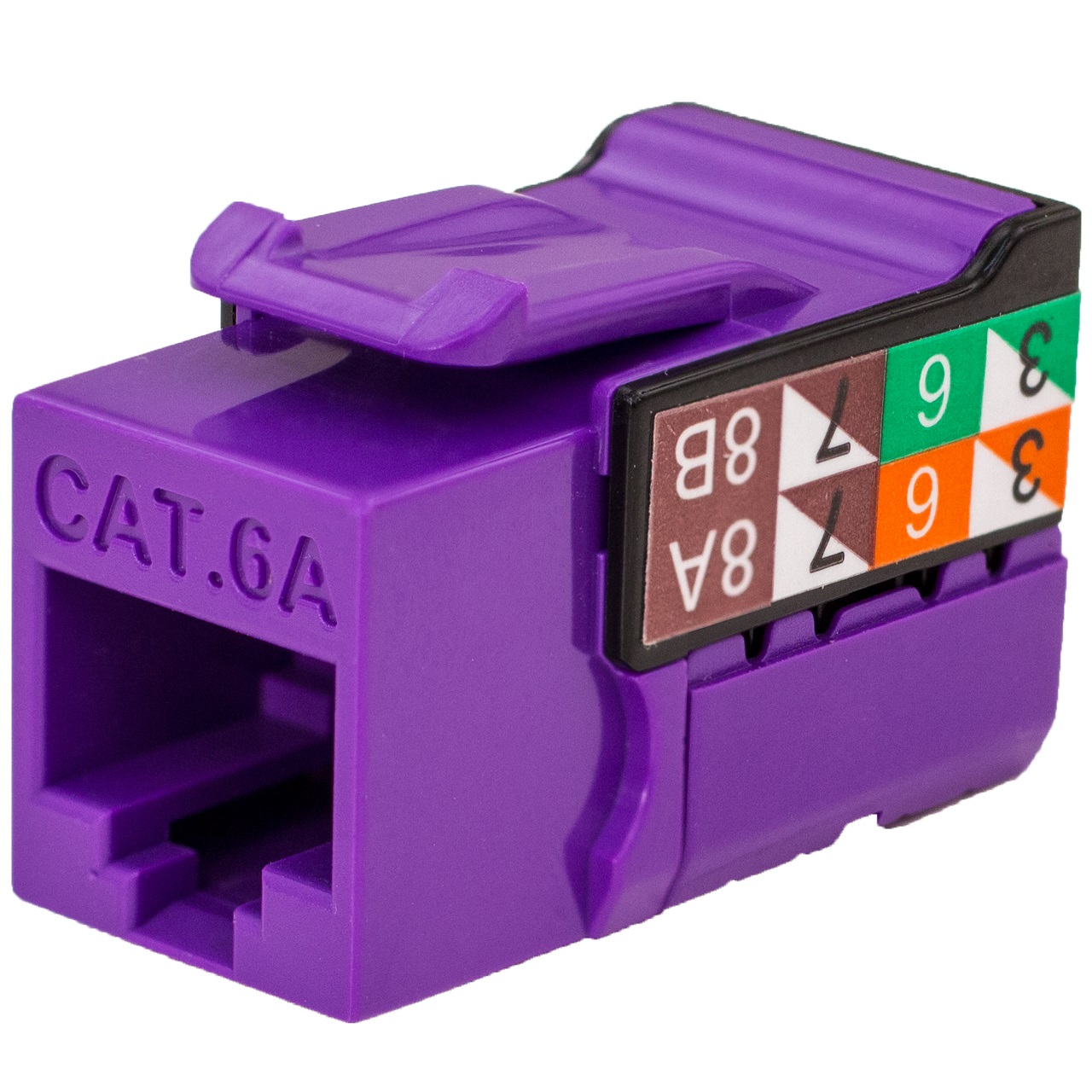

353-V2819/C6APR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Purple

353-V2819/C6APR Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Purple

MSRP Price: $10.00

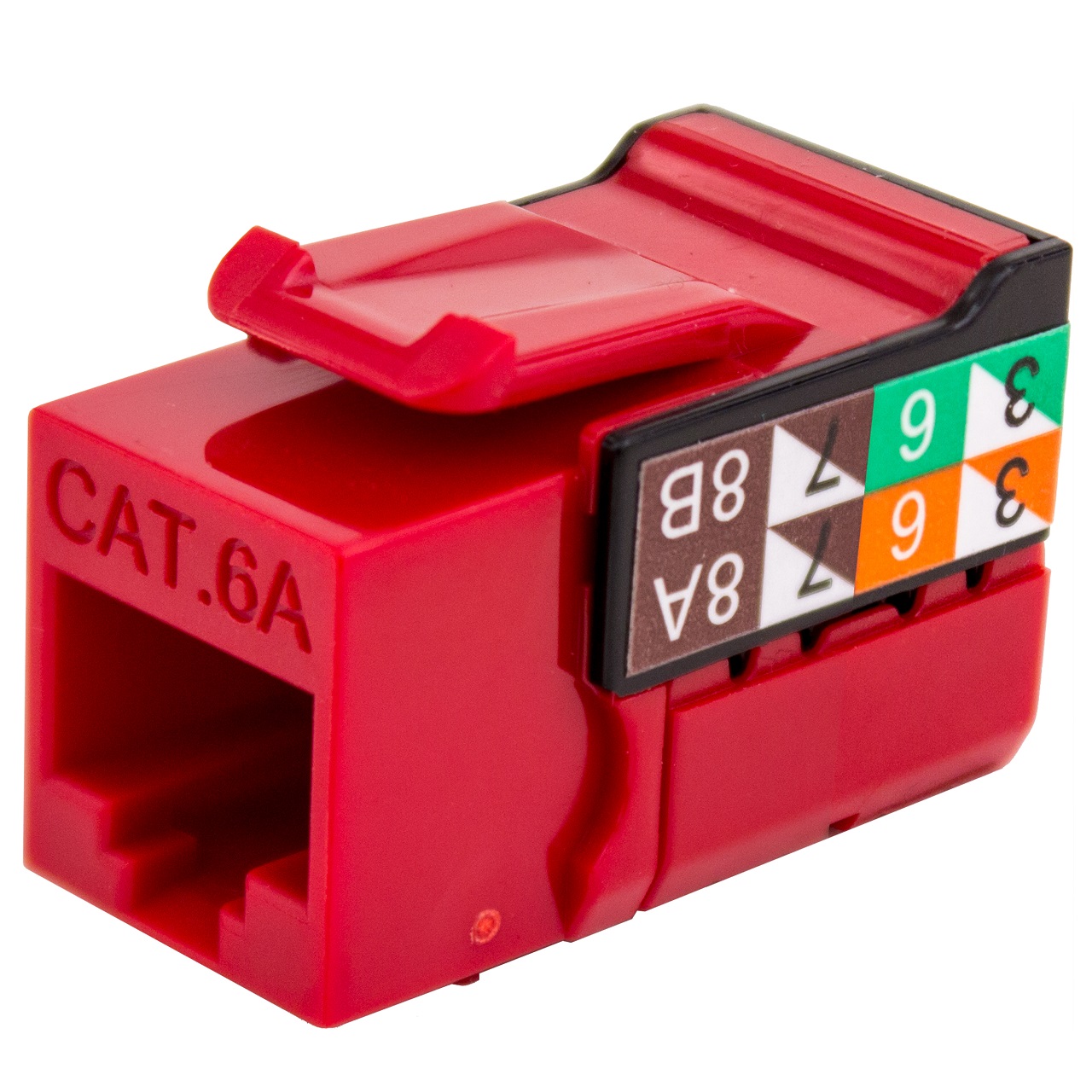

353-V2820/C6ARD Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Red

353-V2820/C6ARD Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Red

MSRP Price: $10.00

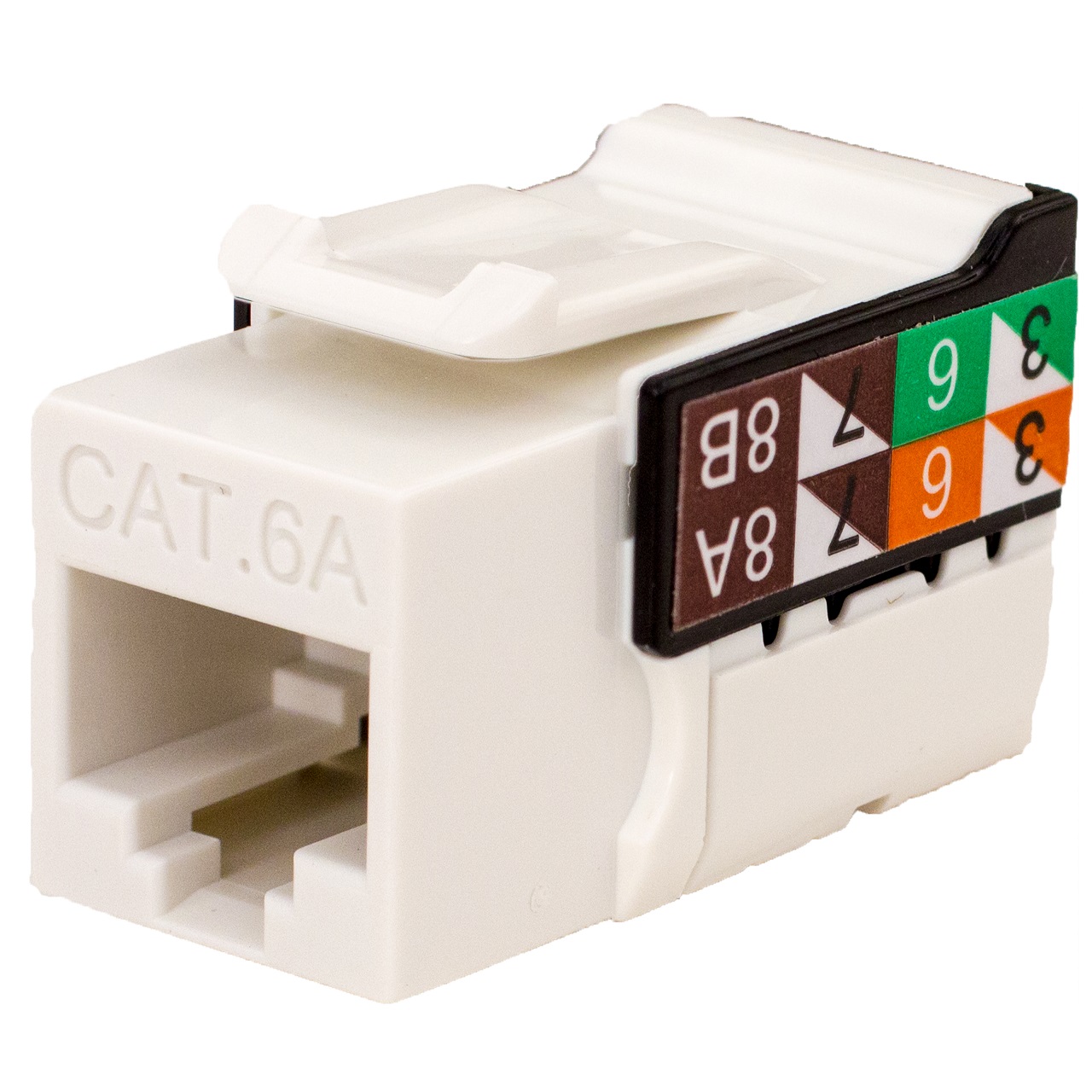

353-V2821/C6AWH Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - White

353-V2821/C6AWH Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - White

MSRP Price: $10.00

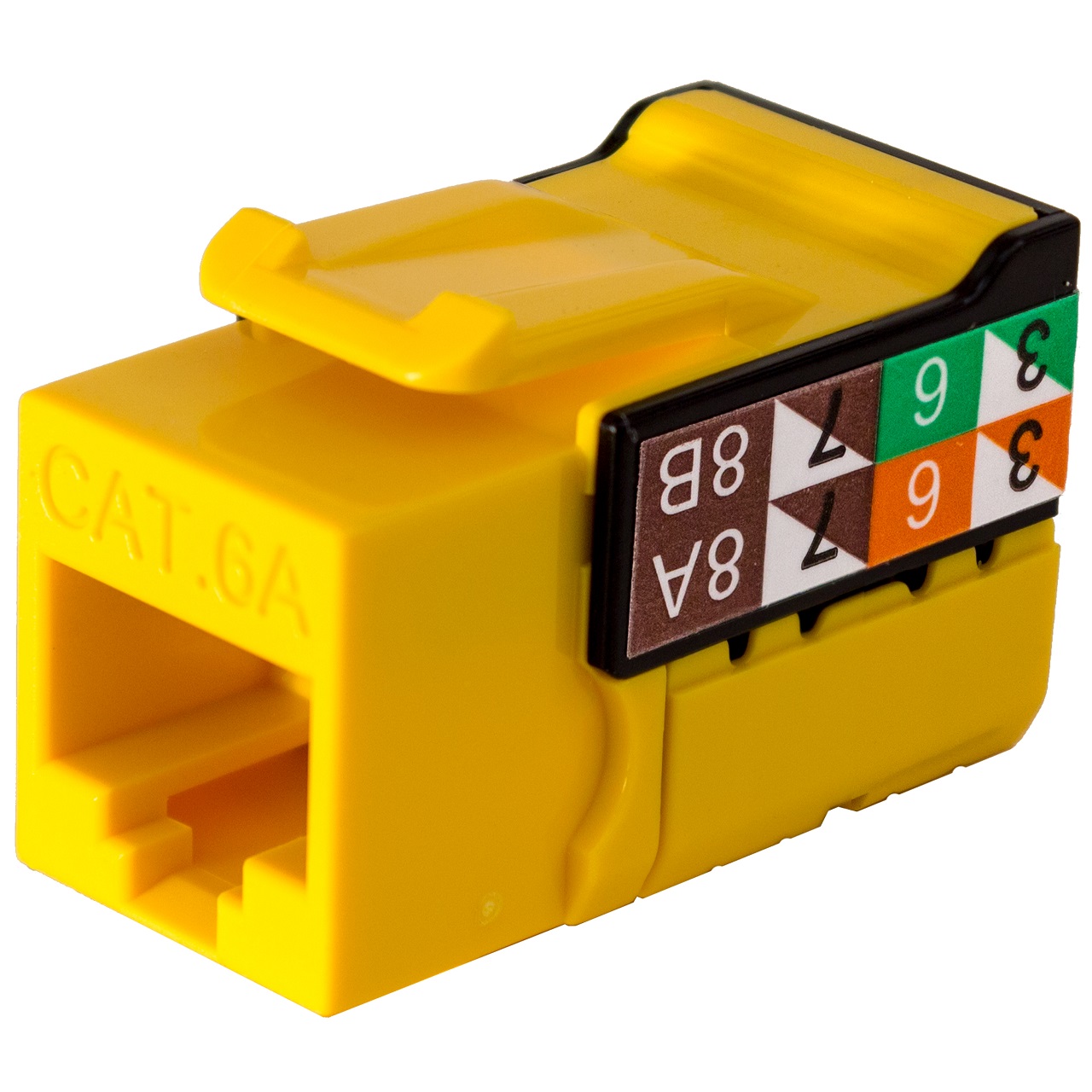

353-V2822/C6AYL Vertical Cable CAT6A Data Grade Keystone U-Jack 90° 8x8 Conductors - Yellow
