352-V2723/BW Vertical Cable 353 Series CAT6 V-Max Keystone Jacks - Bright White

SKU: 352-V2723/BW

CAT6 V-Max Keystone Jacks – 352 Series

The CAT6 V-Max Keystone Jacks – 352 Series are TAA Compliant, meeting U.S. manufacturing standards for government projects. They enhance networking reliability and efficiency, making them an excellent investment for improving connectivity in your network. Choose these jacks for optimal performance in your setups.

Features

  • Color Coded for T568A and T568B standards
  • Meets and Exceeds ANSI/TIA-568-C.2, ANSI/TIA 1096-A
  • Supports PoE 802.3af, 802.3at, 802.3bt
  • Meets and Exceeds ANSI/TIA-568-C.2
  • Fits most standard keystone wall plates and patch panels
  • Narrow connector allows high port density in small areas
  • Compatible with standard 110 punch down tool
  • Use the V-Max I-Punch Tool for faster termination
  • Available in various colors for easy Identification
  • UL Listed, RoHS Compliant, TAA Compliant
  • Available in x25 Packs (Check for Availabilty)

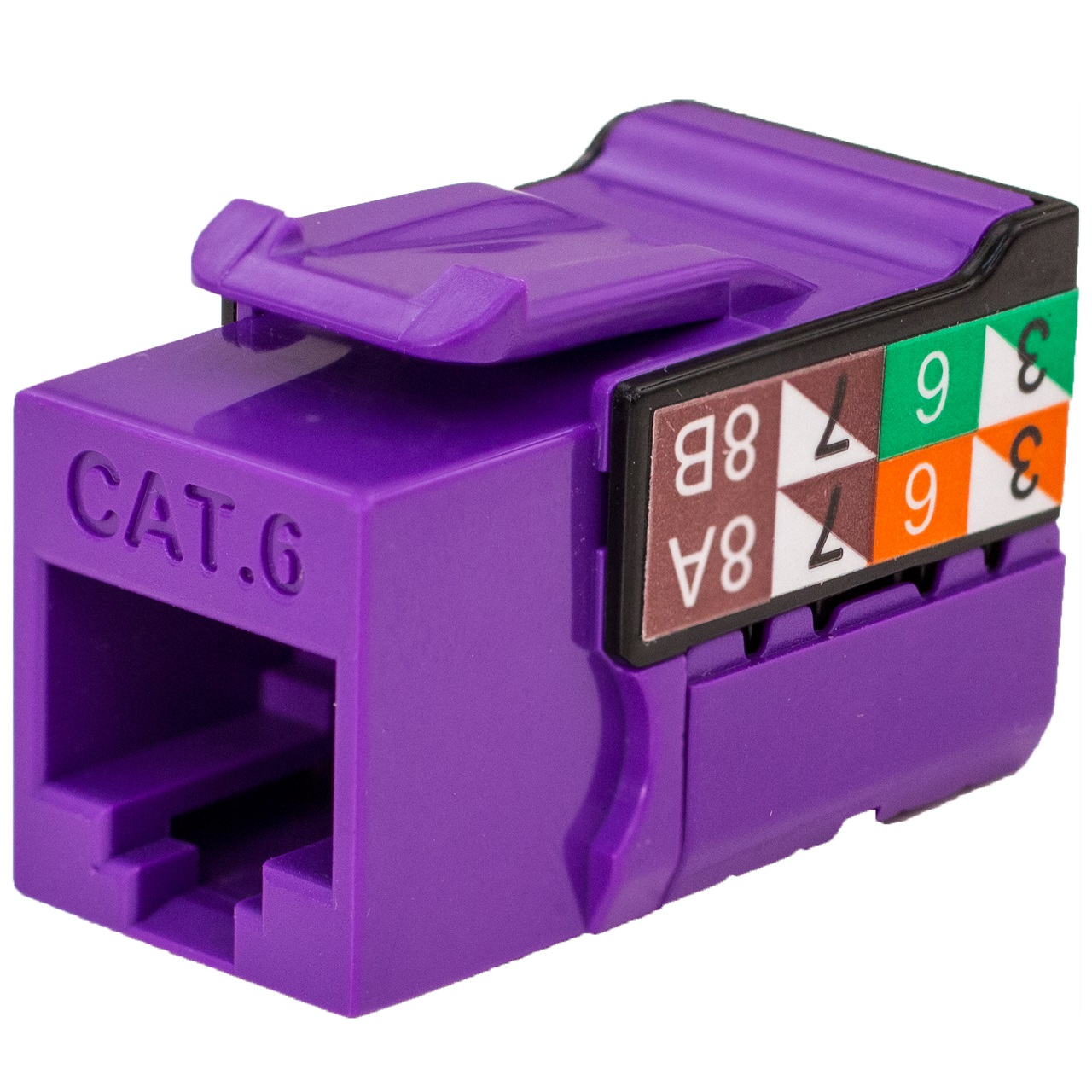

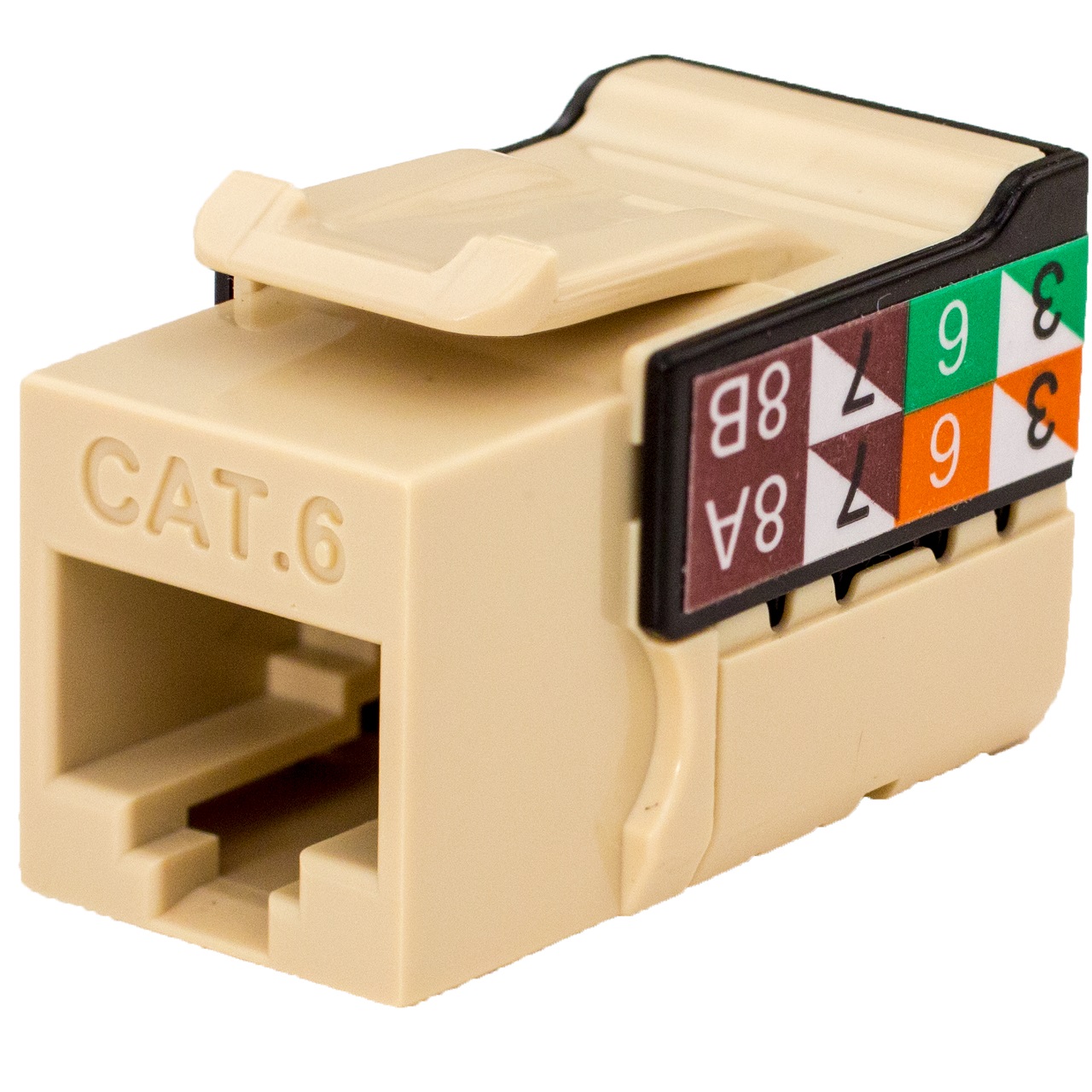

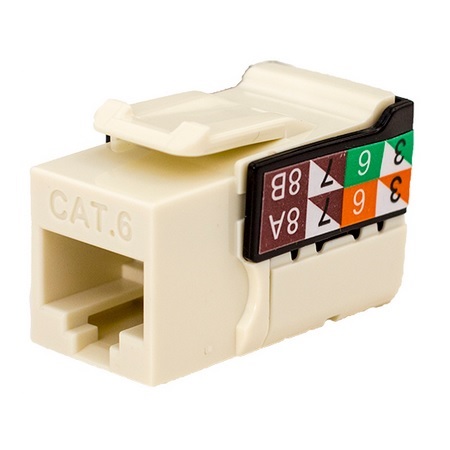

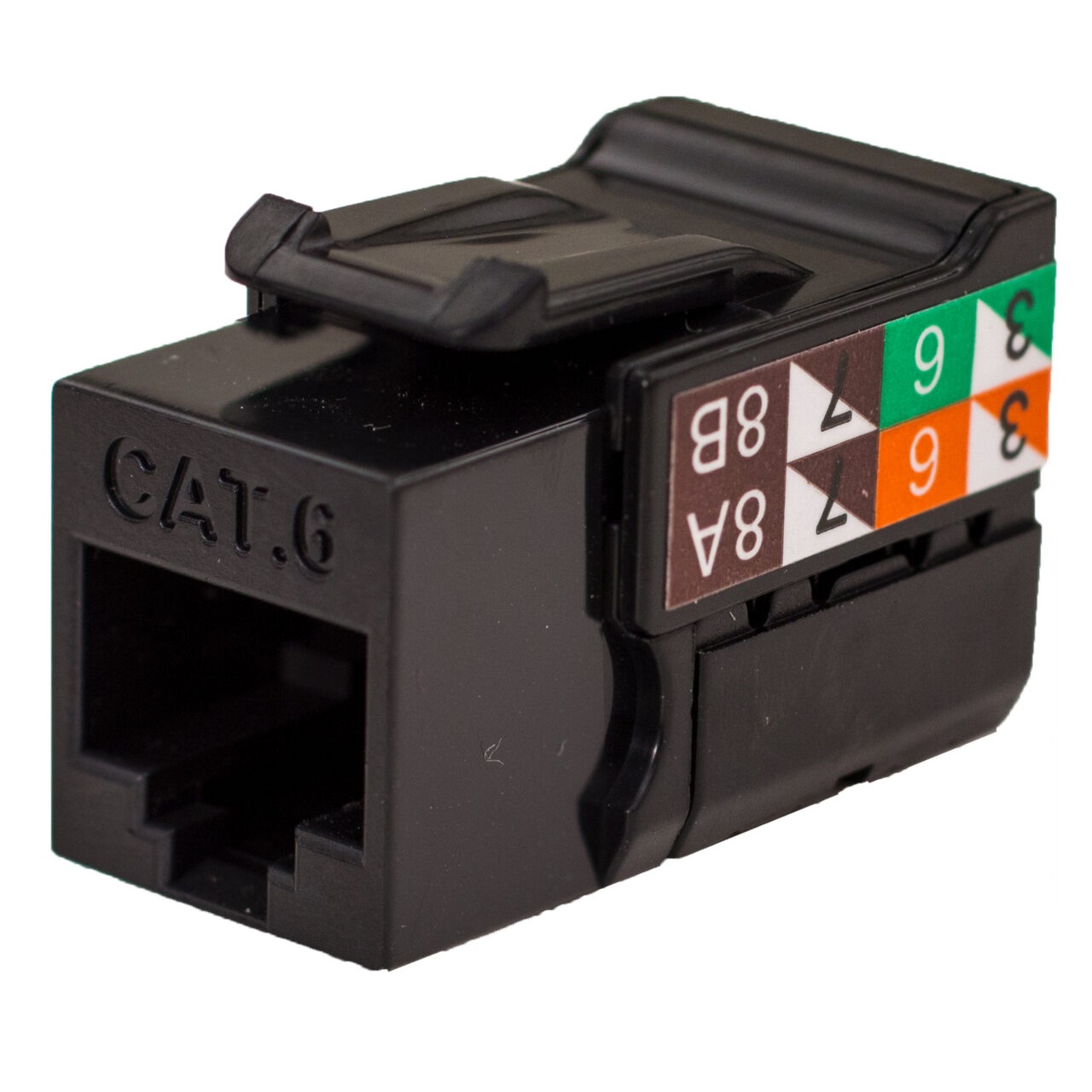

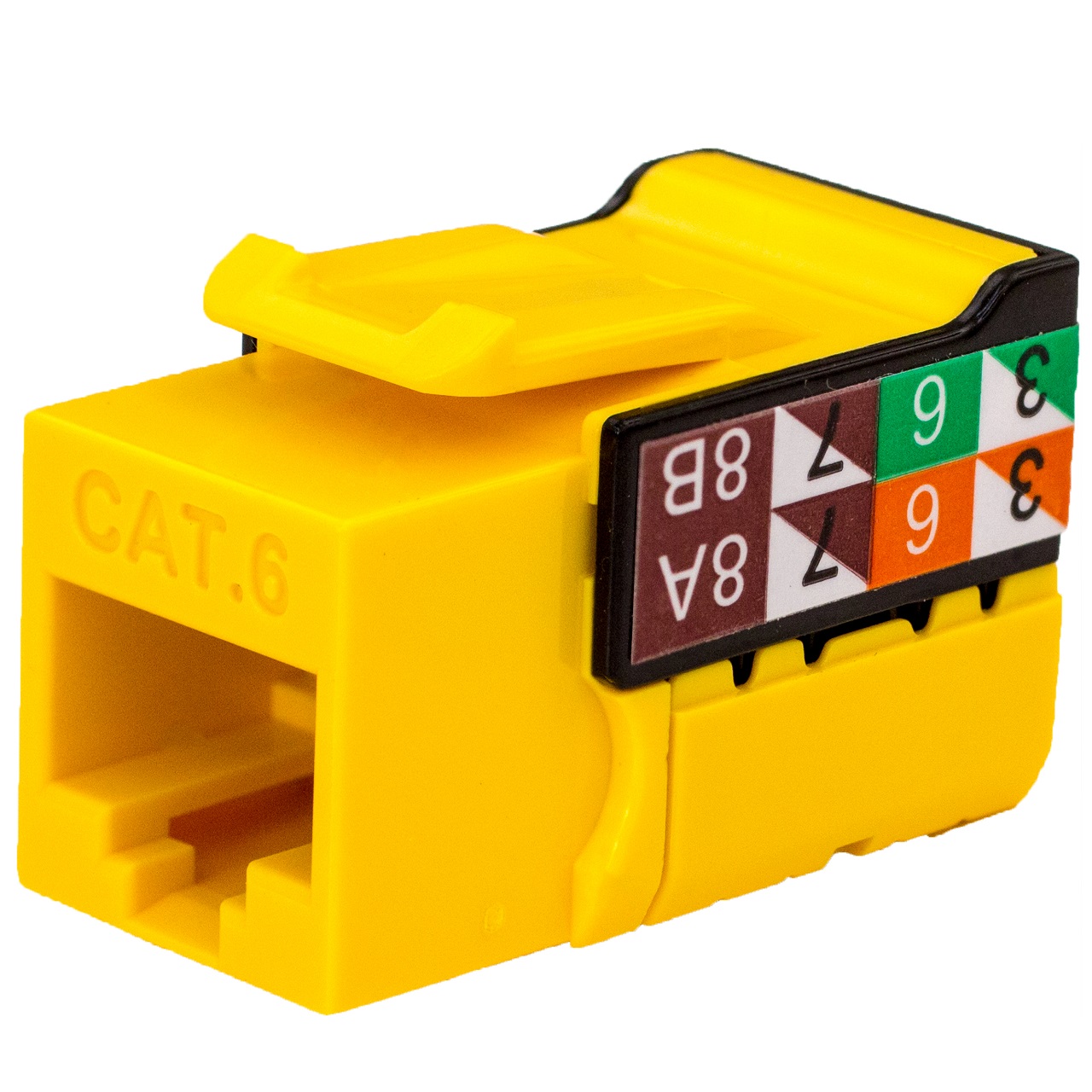

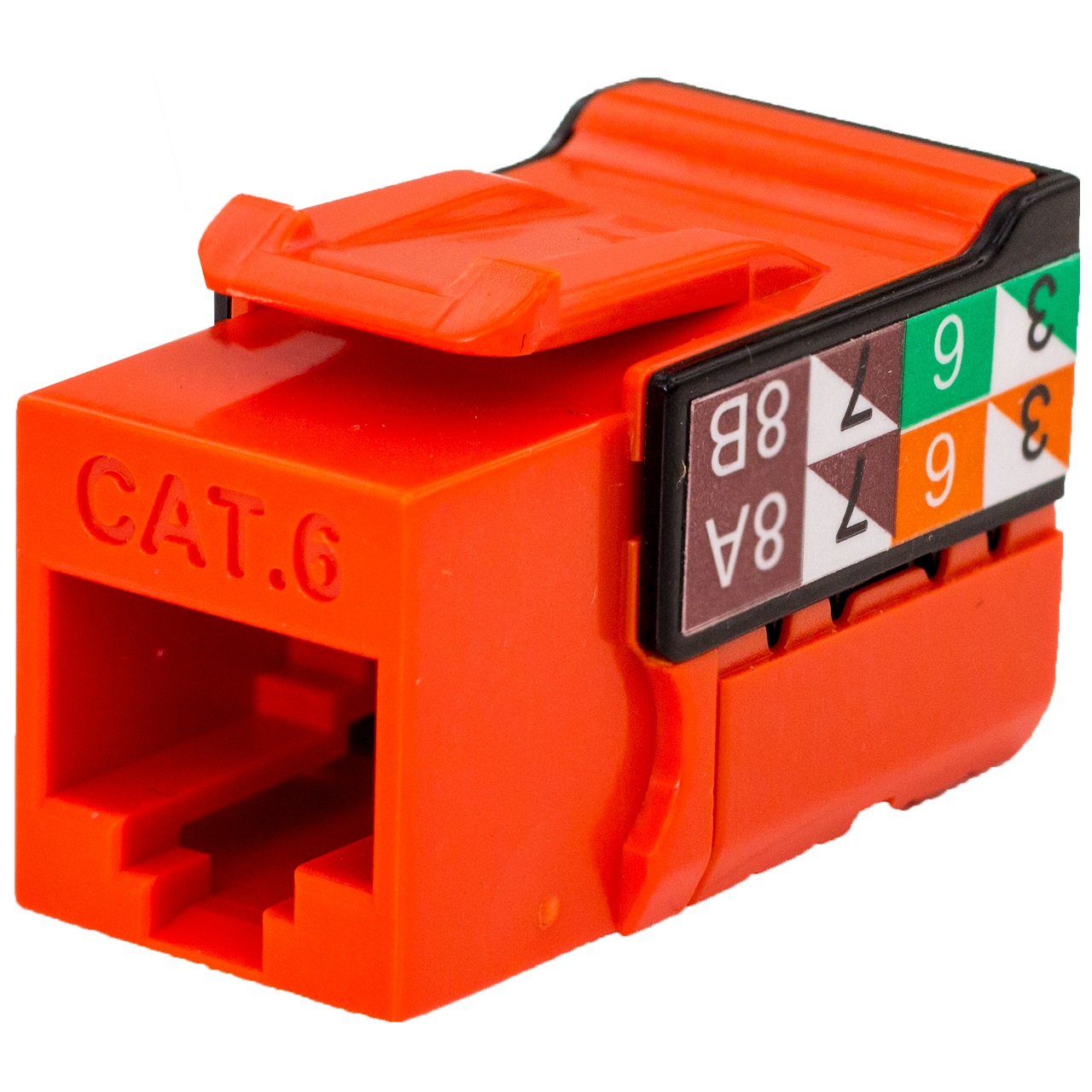

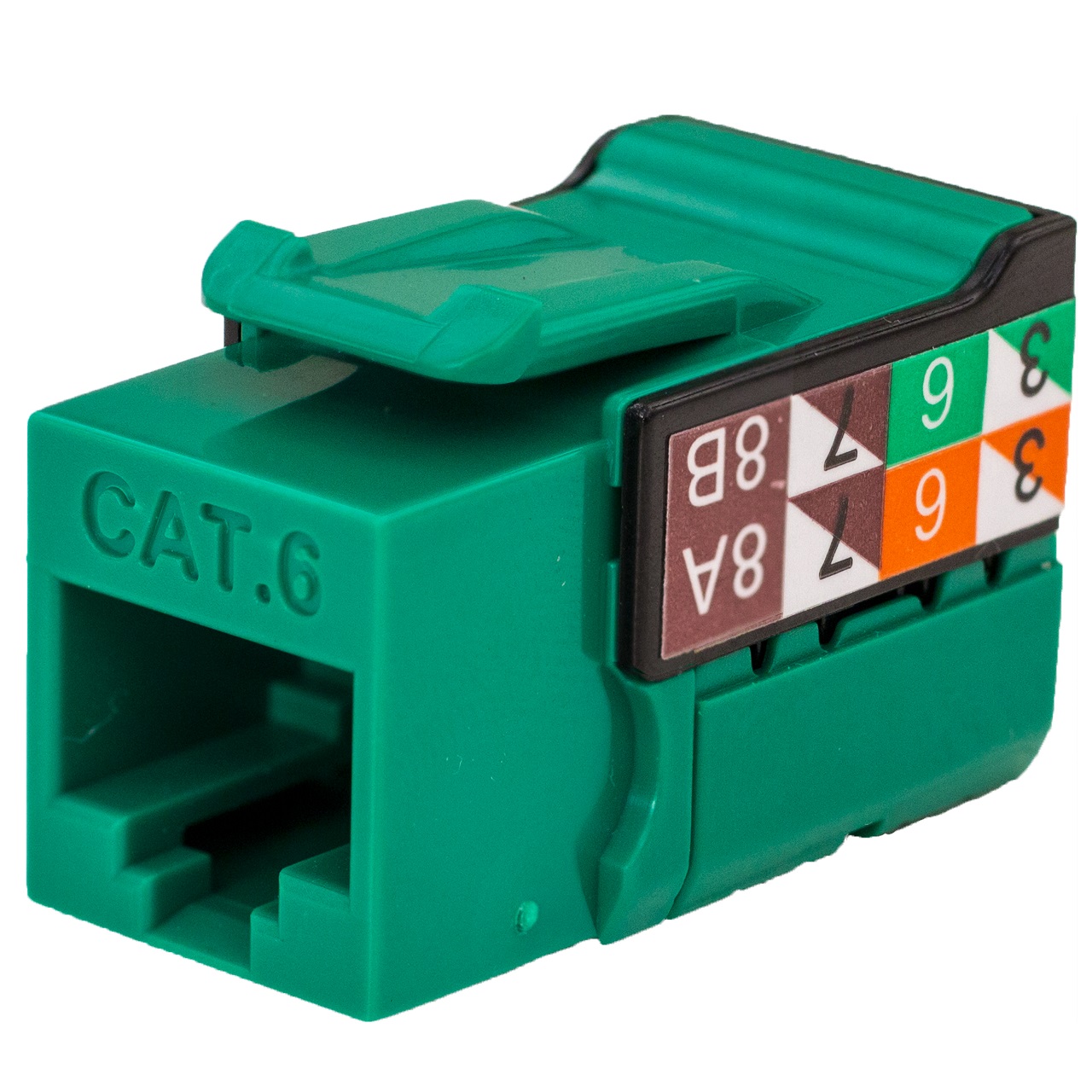

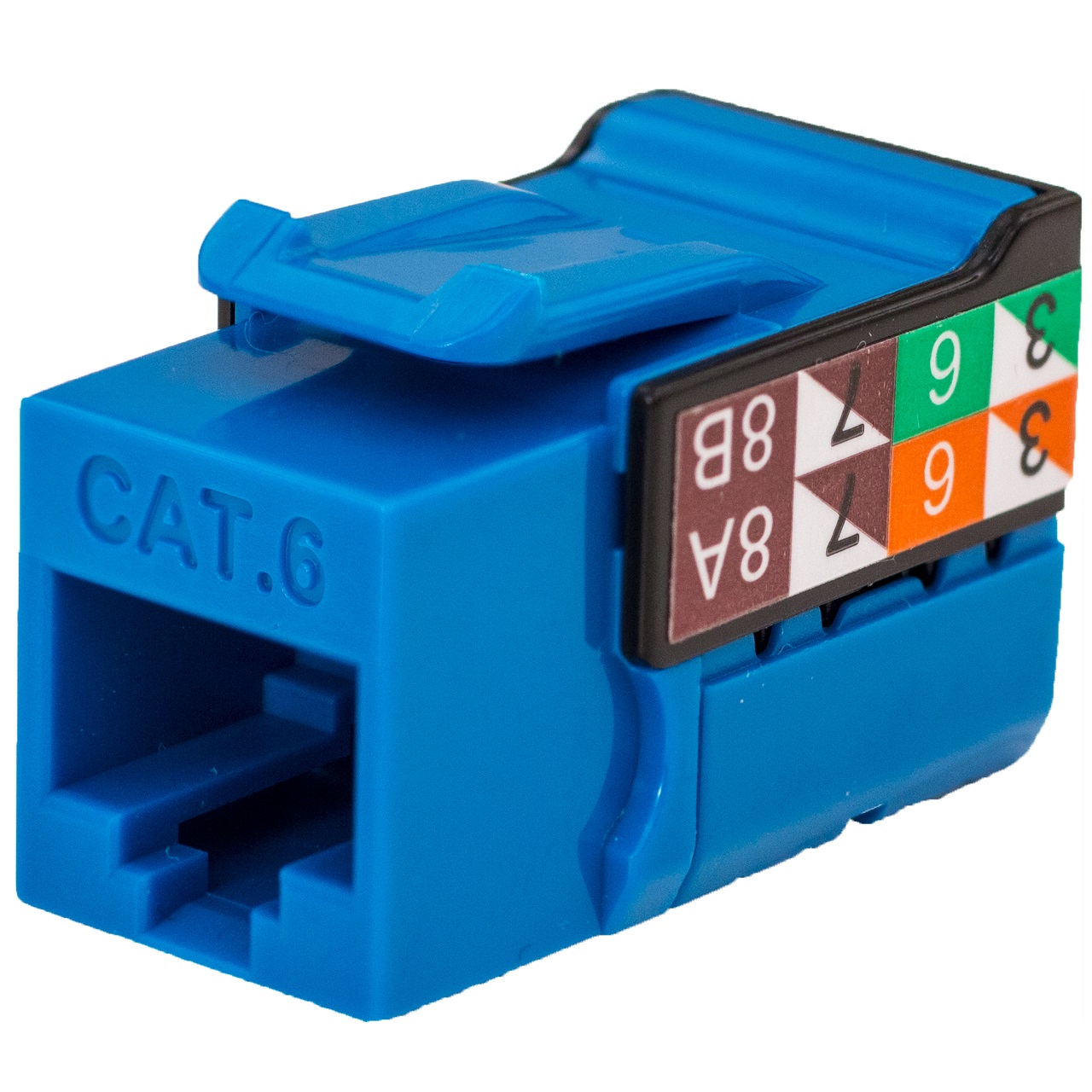

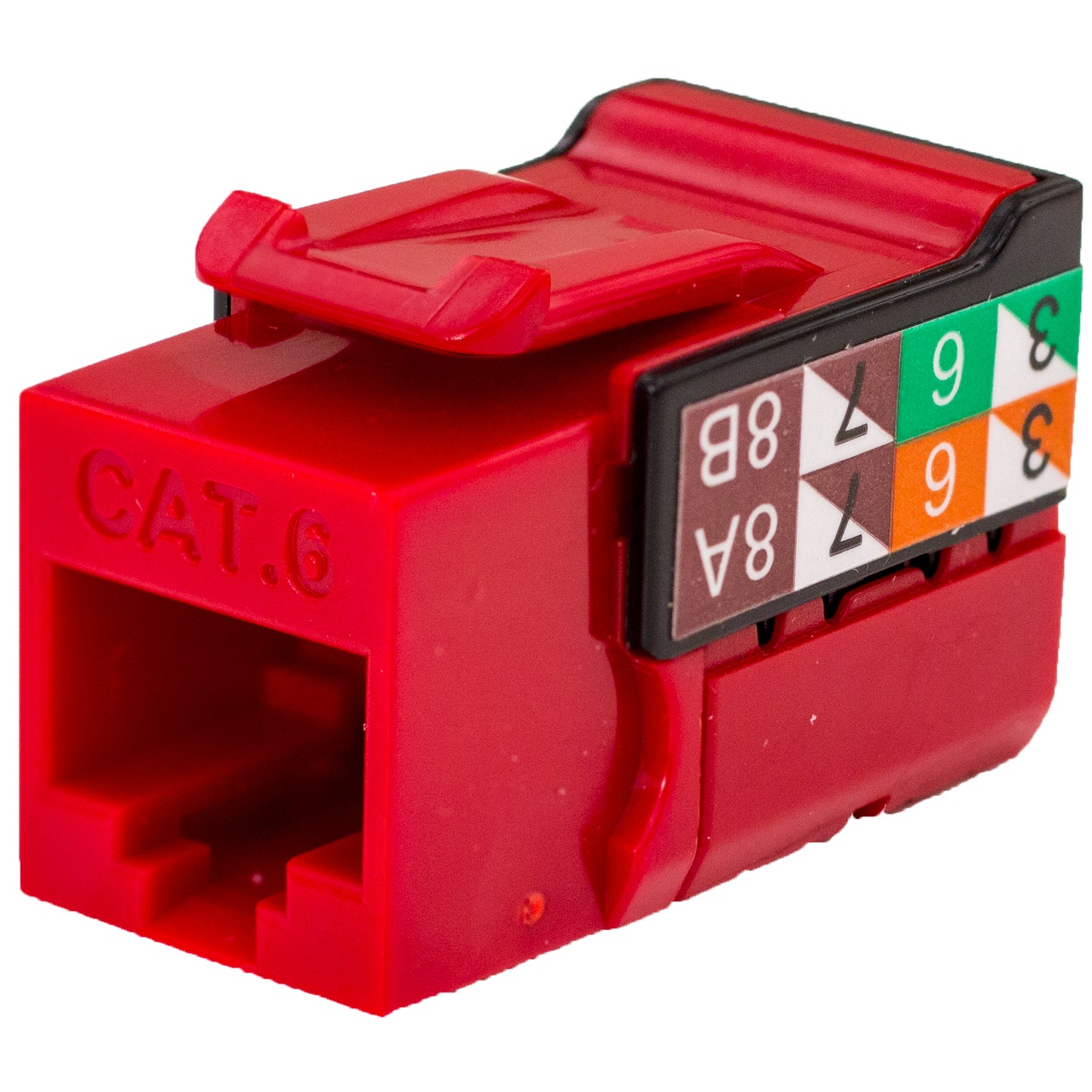

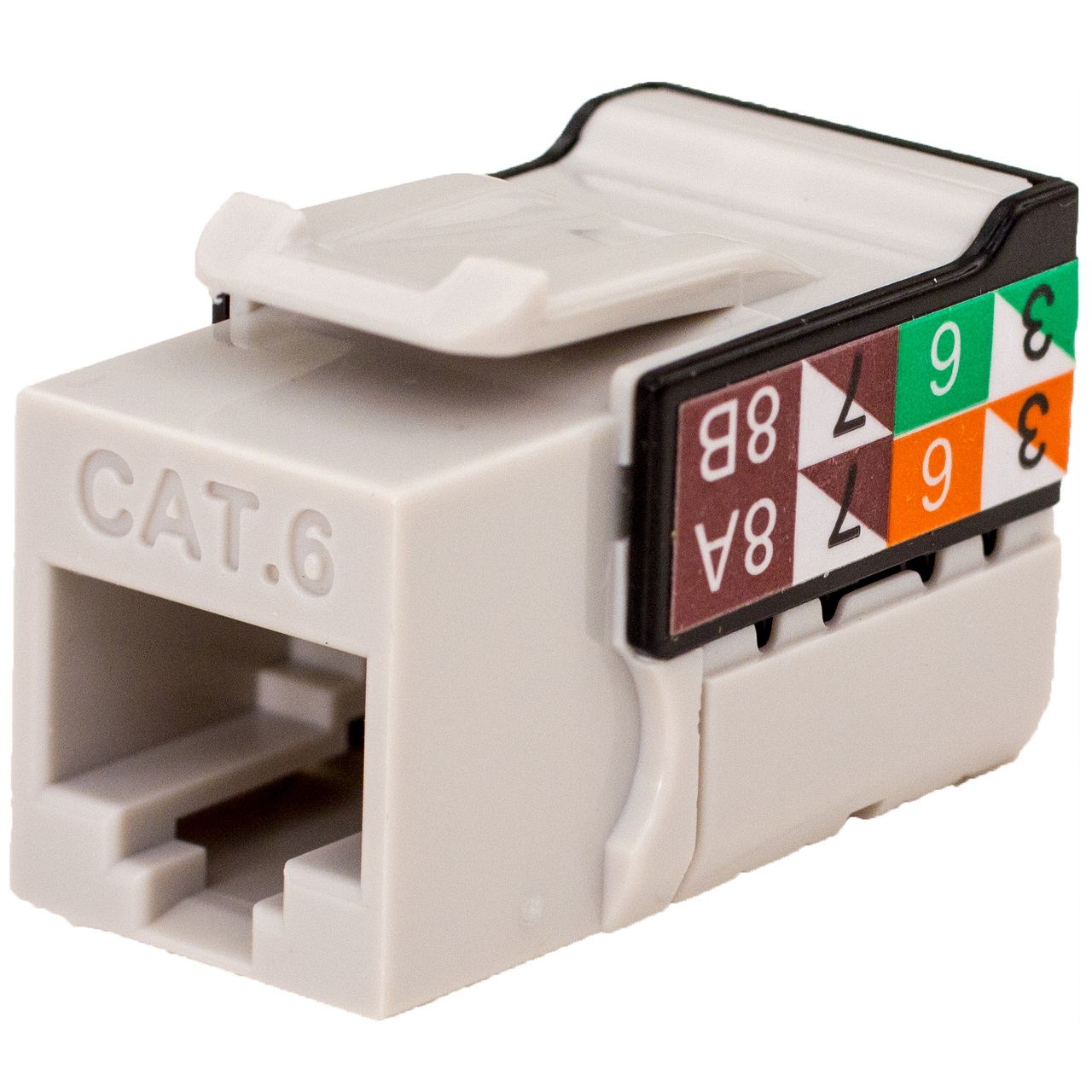

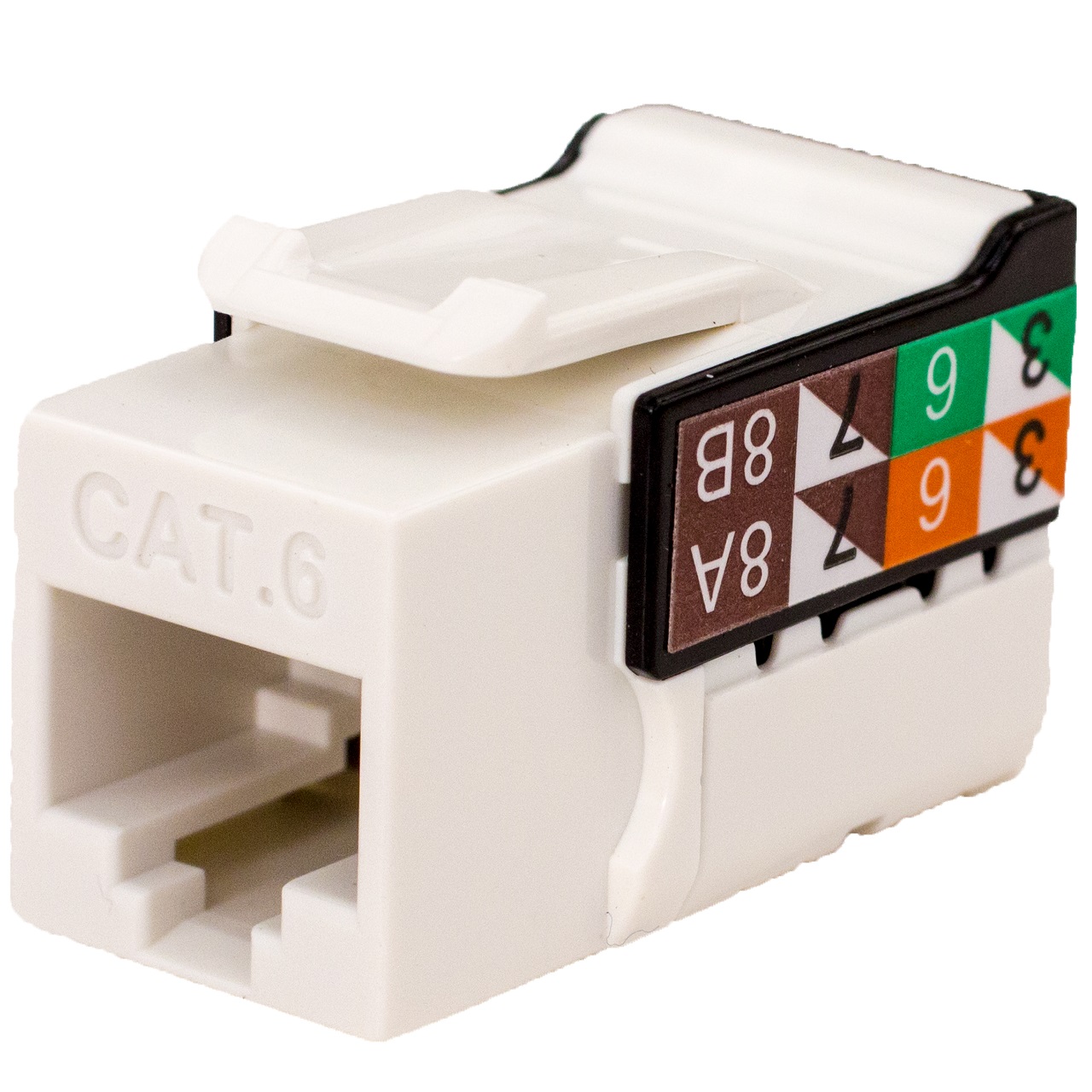

  • Color : Bright White, Ivory, Almond, Black, Blue, Green, Gray, Orange, Purple, Red, White, Yellow
  • Pack Size: 1, & 25
More details...
MPN: 352-V2723/BW
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.



Product Details

Specifications

  • Part Number - 352-V2723/BW
  • Height - 0.78 in
  • Width - 0.67 in
  • Depth - 1.22 in.
  • Weight (Single Jack) - 0.04 LB

RJ45 JACK

  • Housing Material: - ABS+PC UL 94V-0
  • Contact Bracket: - PBT+Glass Fiber, UL 94V-0

RJ45 JACK CONTACT

  • Material - Phospor Bronze with Nickel plating
  • Finish - 50 μ” Gold plating on Plug Contact area

IDC

  • Housing: - PC UL 94V-0 with Black color
  • Terminal - Phosper Bronze with Tin plating
  • Cap: - ABS+PC UL 94V-0
  • PCB: - FR4, UL 94V-0

PERFORMANCE

  • Color Code: - T568A & T568B wiring
  • Insertion Force - 20N max. (IEC 606037-4)
  • Retention Force: - 17 lb (7.7 kg) between jack and plug
  • Operating Temp.: - -10° C to 60° C max (ISO/IEC 11801, ANSI/TIA 568 C.2)

OPERATING LIFE (MATING CYCLES)

  • Jack: - Min. 750 cycles (ISO/IEC 11801, IEC 60603-7-4)
  • IDC: - Suitable for 23 and 24 AWG solid wire

COLORS AVAILABLE

  • Black, Blue, Bright White, Green, Grey, Ivory, Orange, Purple, Red, White, Yellow

352-V2723/BW Specifications PDF
