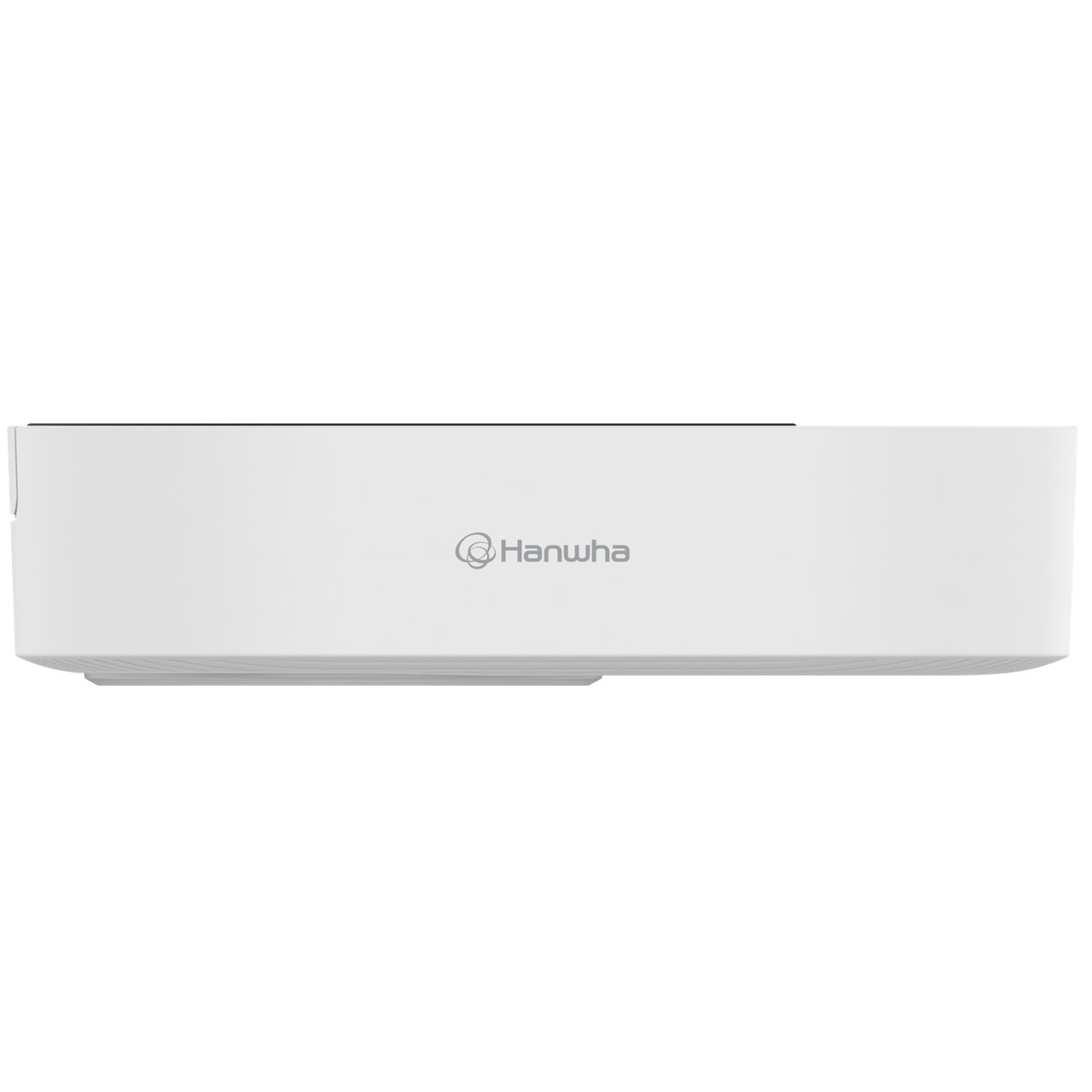

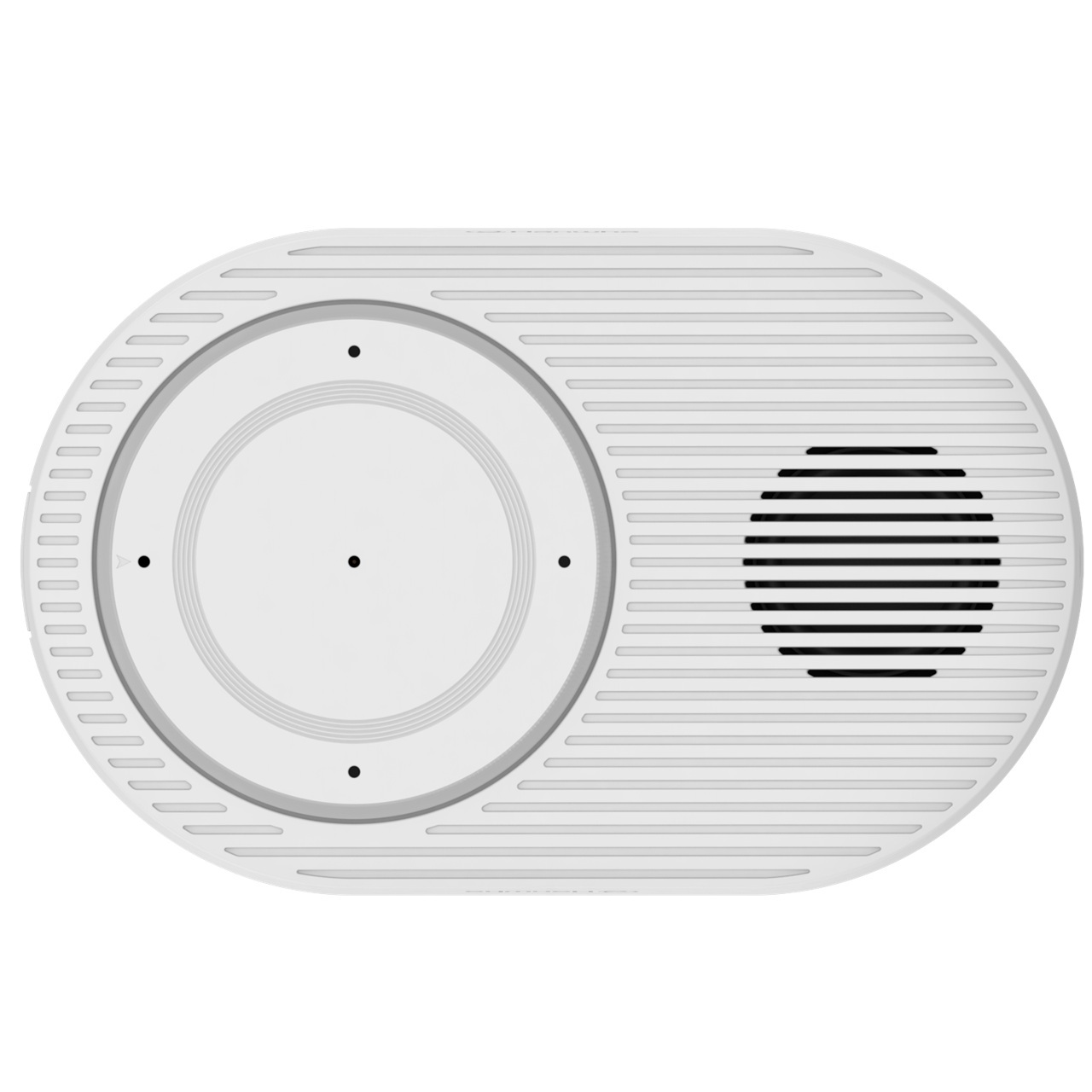

SPS-A100M Hanwha Vision Audio Beacon / IP Speaker / Microphone / LED Combo

SKU: SPS-A100M

Audio Beacon / IP Speaker / Microphone / LED Combo

Features:

  • Audio Beacon - Speaker with Max. Sound Pressure Level 90dB at 1m (3.28ft)
  • Frequency Range: 144Hz ~ 20kHz
  • 5 Digital Microphones with Two-Way/One-Way selectable
  • Full Duplex communication with Echo Cancellation and Noise Reduction
  • Sound Classification: Glass Break, Scream, Extreme Decibel Event
  • Event Metadata: Sound Direction, Confidence, Audio Clip, dB level
  • LED Ring (Green, Blue, Red, Pink, Sky blue, Purple)
  • Initial and Post-duration action setting
  • USB-C for installation app
  • 2 configurable digital I/O
  • PoE+
  • ONVIF Profile S
  • SUNAPI (HTTP API)
  • Wisenet open platform
  • AI Sound Classification pack included
  • Secure Element with FIPS 140-3 level 3
  • Indoor Rated
  • Operating Temperature / Humidity: -20°C ~ +55°C (-4°F ~ +122°F) / Less than 90% RH
  • Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
More details...
MPN: SPS-A100M
EAN: 8801089234506
Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Introduction

Hear the unseen

Hanwha Vision’s Audio Beacon features five built-in microphones, 90dB speaker and an LED ring, for stellar 2-way communication. Improve real-time situational awareness with AI-powered sound classification technology to attribute sound type, noise direction and volume.

Specifications

Video

  • Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
  • Max. Framerate - Static image video H.265/H.264: Max. 10fps MJPEG: Max. 5fps
  • Video Out - USB: Micro USB Type C, setting true north point using Wisenet installation

Operational

  • Analytics - AI Sound Classification - Classified sound type: Crashing glass, Screaming, Vehicle horn, Tire screech - Event metadata: Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB) - Sound direction(Celling mounting: ±15 degrees)
  • Alarm I/O - 2 configurable I/O ports
  • Alarm Triggers - Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription, Case tampering
  • Audio Streaming - Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction
  • Alarm Events - When alarm trigger occurred - File upload(audio): e-mail/FTP - Notification: e-mail - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback(6MB, WAV) - MQTT: publication - LED - Speaker
  • Audio In - Five built-in MEMS MICs
  • Audio Out - Built-in speaker - Max. Sound Pressure Level 90dB at 1m(3.28ft) - Frequency Range: 144Hz~20kHz

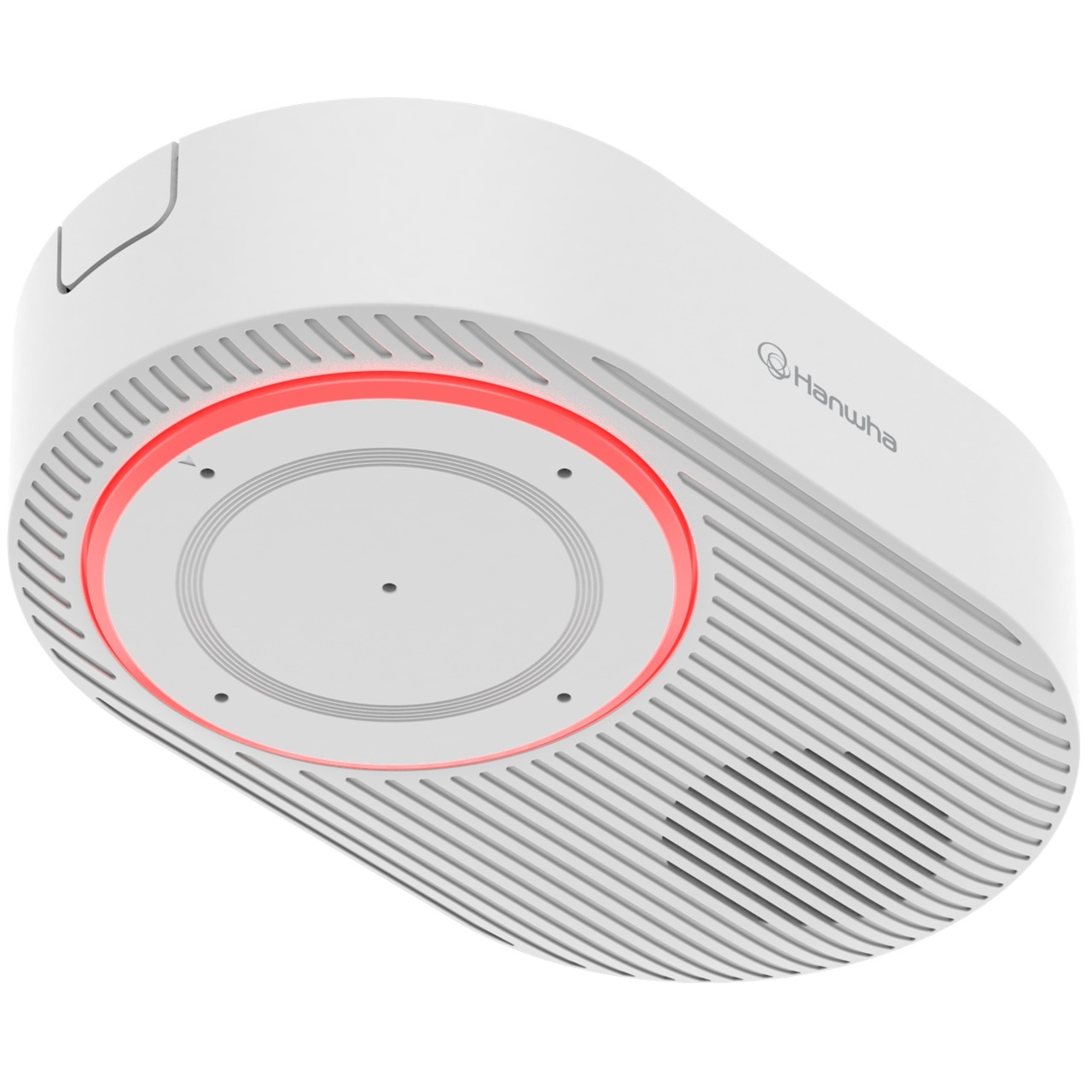

  • Light Type - LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action

Network

  • Ethernet - RJ-45(10/100 BASE-T)
  • Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  • Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT SIP 2.0(RFC 3261 and companion RFCs)
  • Application Programming Interface - ONVIF Profile S SUNAPI(HTTP API) Wisenet open platform - AI Sound Classfication pack included

Security

  • OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
  • User authentication - Digest Authentication, Prevent brute-force attack
  • Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
  • Secure Communication - SRTP, HTTPS, WSS(WebSocket Secure)
  • Access Control - IP-based access control
  • Data Protect - Encryption Credentials, Encrypt compress for live recording file export
  • Audit - Access / System / Event Log management
  • Device ID - Device certificate (Hanwha Vision Root CA)
  • Secure Storage - Secure element
  • Security Certificate - ETSI EN 303 645, Secure element(FIPS 140-3 level3, CC EAL6+)

General

  • Webpage Language - English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek.
  • Memory - 4096MB RAM, 512MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity - -20°C ~ +55°C (-4°F ~ +122°F) / Less than 90% RH
  • Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
  • Input Voltage - PoE+(IEEE802.3at, Class4)
  • Power Consumption - PoE+: Max 18.5W, typical 8.2W

Mechanical

  • Color / Material - White / Plastic, Aluminum
  • RAL Code - RAL9003
  • Product Dimensions / Weight - 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08") / 973g(2.15 lb)
  • Compatible Conduit hole / Gangbox - None / single, double, 4" octagon, 4" square Sold separately conduit hole accessory: SBP-060BA

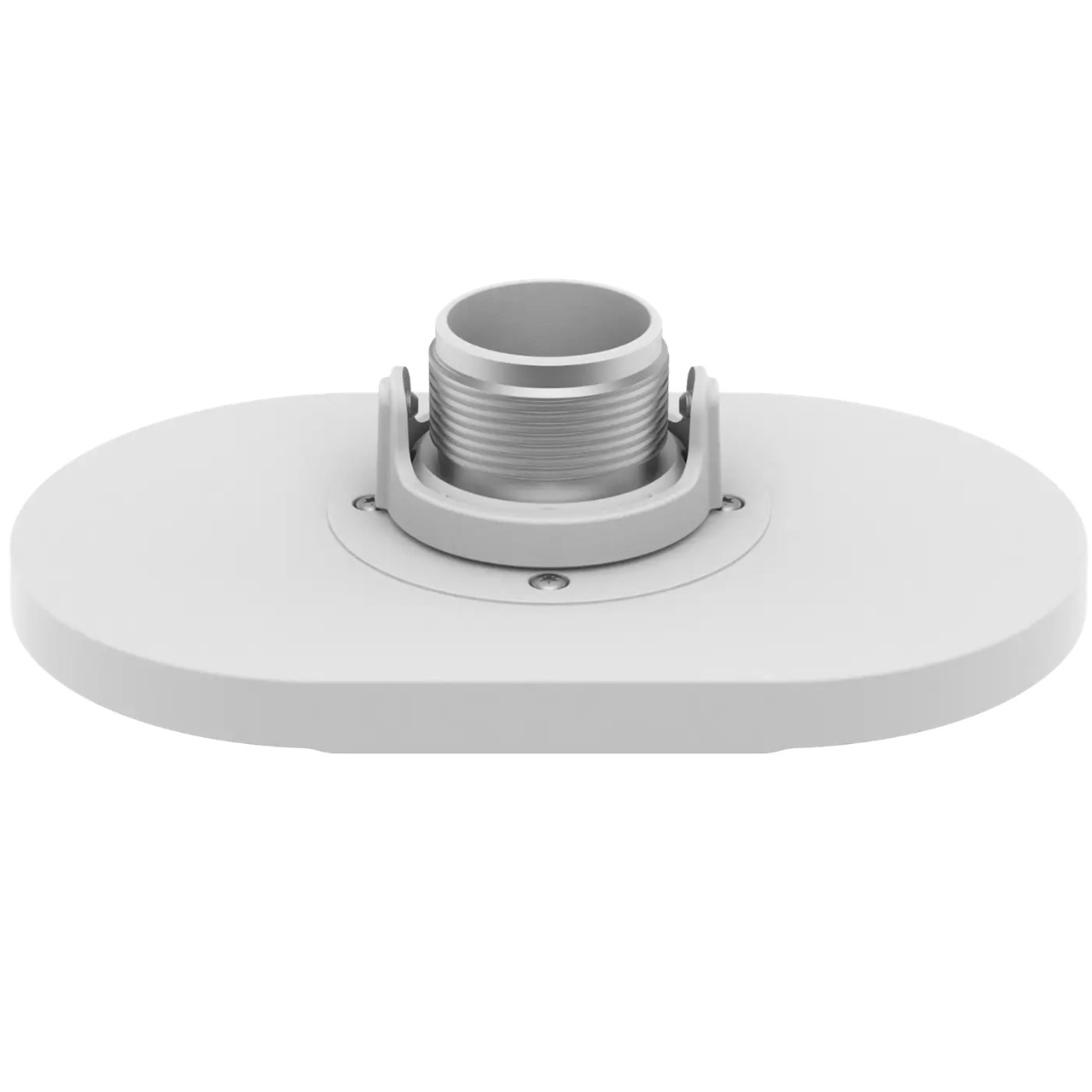

  • Hanging Mount (Dome) - SBP-215HMWB
  • Conduit Adaptor - SBP-060BA

Certifications & Standards

  • EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
  • Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
  • Environment - IEC/EN 63000

SPS-A100M Specifications PDF
