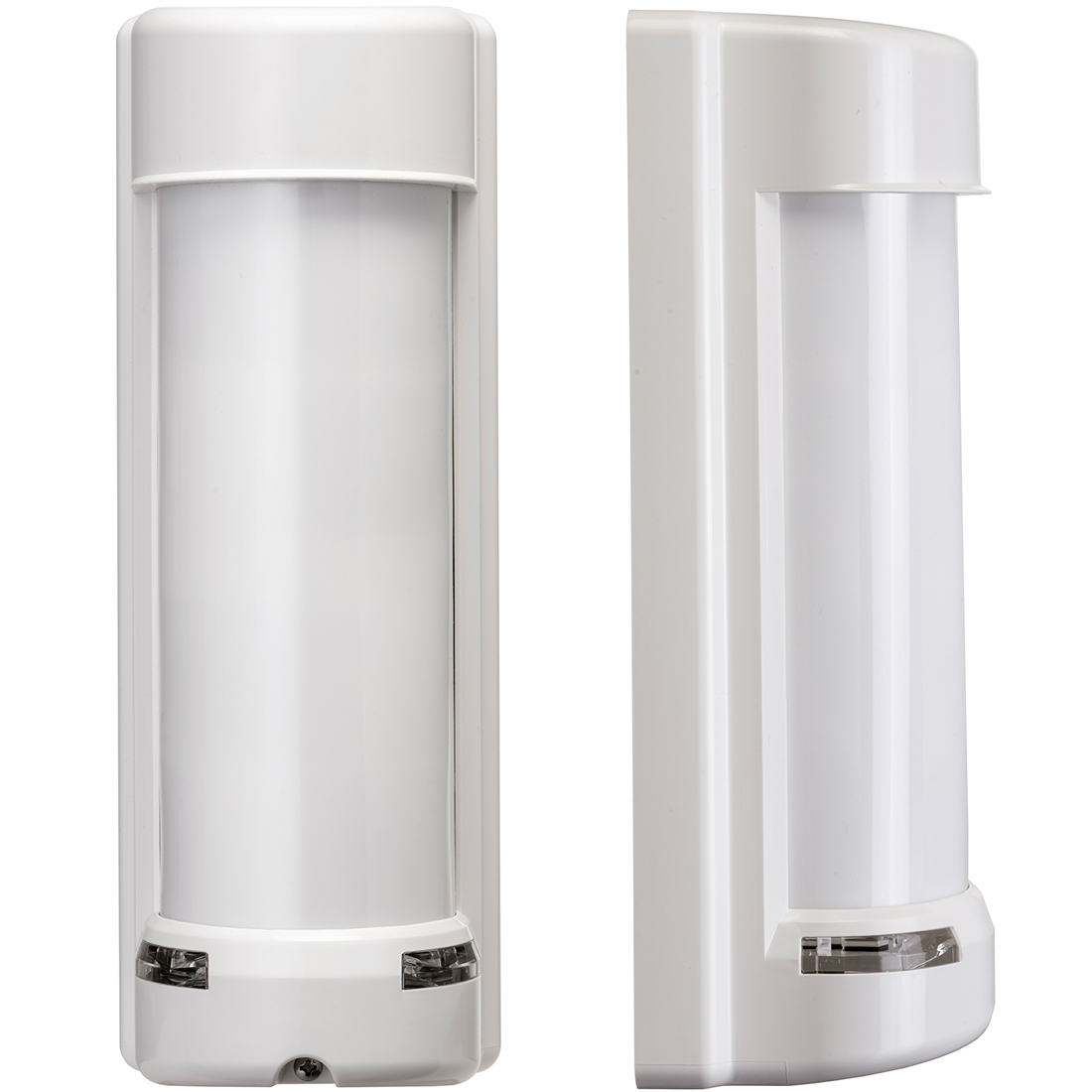

MX-12FAM TAKEX Dual Zone 40' x 180 Degree Outdoor PIR with Anti-Masking

DUAL ZONE OUTDOOR PIR

Dual Zone detection system reduces false alarms for reliable outdoor protection

DUAL ZONE DETECTION SYSTEM

Horizontal and downward zones require simultaneous detection preventing nuisance alarms from small animals and passing vehicles

180 DEGREE WIDE ANGLE COVERAGE

Up to 180° of complete coverage, with independent 2m 12m adjustable protection distance for left and right sides for maximum installation versatility.

DUAL ALARM SIGNAL OUTPUTS

Choose between:
individual alarm outputs per 90 degree left and right side
or
a combined 180 degree output + external output for triggering CCTV or ancillary< devices.

ANTI-MASKING

Protected by sophisticated Anti-Masking technology with near-lens awareness, designed to initiate an alarm if the device is compromised.

BACK TAMPER

Equipped with both front and back tampers to detect interference or attempted theft of the sensor any time of the day or night.

IMPROVED AREA MASKS

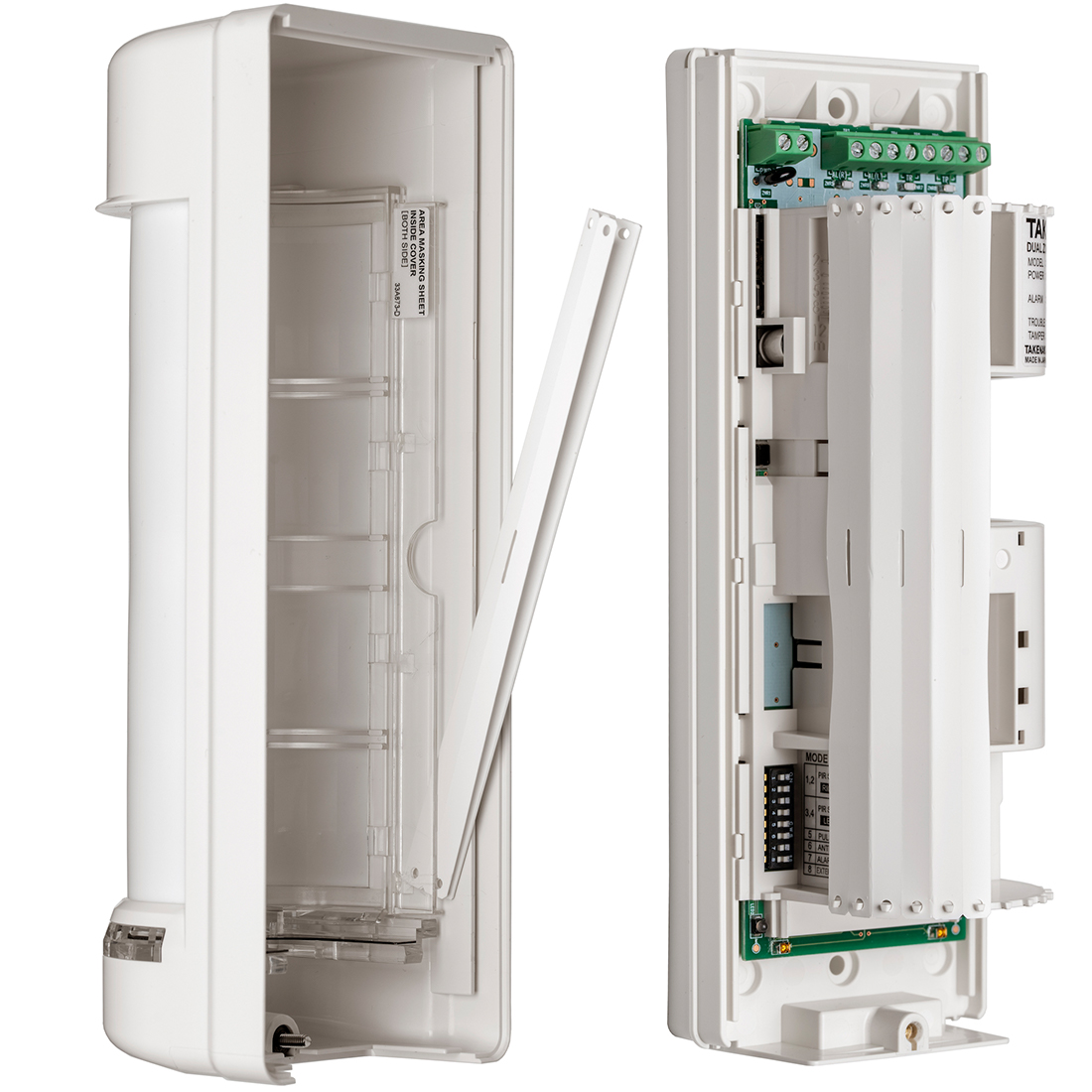

Durable area masks stored within the device allow the coverage pattern to be customised to specific site requirements.

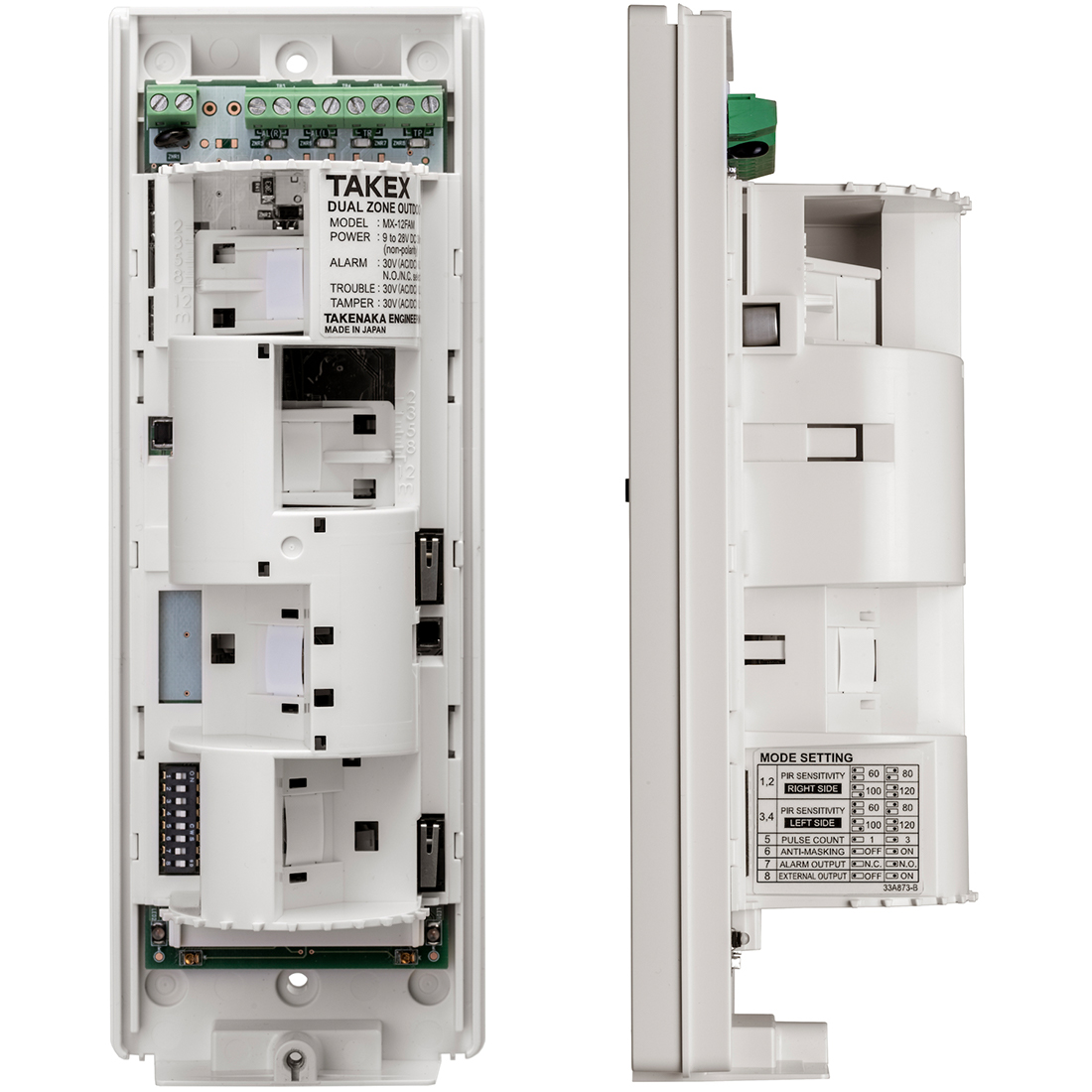

PULSE COUNT & SENSITIVITY ADJUSTMENT

The pulse count can be changed between 1 & 3, and the sensitivity adjusted between 60 & 120% to maintain operational stability in difficult conditions.

Specifications

• Detection system - Passive infrared
• Microwave frequency - N/A
• Coverage - Horizontal detection
  Angle: 180°
  Detection distance: 12m (40')
• Sensitive zone - Horizontal zone: 14 zones
  Downward zone: 14 zones
• Mounting height - 0.8 - 1.2m
• Area adjustment - Detection distance: 2 to 12m (10' to 40') [10 ranges] (by adjusting vertical angle of downward curtain) Possible left and right individual adjustment
• Supply voltage - 9 to 28V DC (non-polarity)
• Battery Life - N/A
• Low Battery - N/A
• Current consumption - 30mA Max.
• Alarm output - [ALARM RIGHT+LEFT/ALARM RIGHT]
  Dry contact relay output N.O./N.C. selectable
  ・Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  ・Contact operation: Detection time (+2sec.)
• Alarm output (2) - [ALARM LEFT]
  Dry contact relay output N.O./N.C. selectable
  ・Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  ・Contact operation: Detection time (+2sec.)
  [EXTERNAL OUTPUT]
  Dry contact relay output N.O.
  ・Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  ・Contact operation: Detection time (+30sec. latch time)
• Trouble output - Dry contact relay output N.C.
  · Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  (Masking detection / Low supply voltage / Self diagonosys error)
• Tamper output - Dry contact relay output N.C.
  · Contact capacity: 30V (AC/DC) 0.1A Max. (Resistive load)
  (Cover tamper / Back tamper (when enabled)
• LED indicator - Red LED:
  ・Warm-up (Blinking)
  ・Alarm detection (Lights approx. 2sec only for Walk test)
  ・Low supply voltage (Blinking slowly)
  ・Masking detection (Blinking rapidly)
  ・Self diagonosis error (Lights continuously)
• Functions - Anti-masking, Back tamper, Trouble alarm, Low voltage monitoring
• Pulse count - 60% / 80% / 100% / 120%
  (selectable with DIP switch, Possible left and right set individually)
• Anti-Masking - OFF / ON (selectable with mode setting)
• Mounting position - Indoor / Outdoor IP55 (Wall mount)
• Wiring - Terminals
• Weight - 350g (12.4oz)
• Appearance - Body: resin (white) / Lens: resin (white)
• Ambient temperature - -25°C to + 60°C (-13°F to + 140°F)
• IP Rating - IP55
