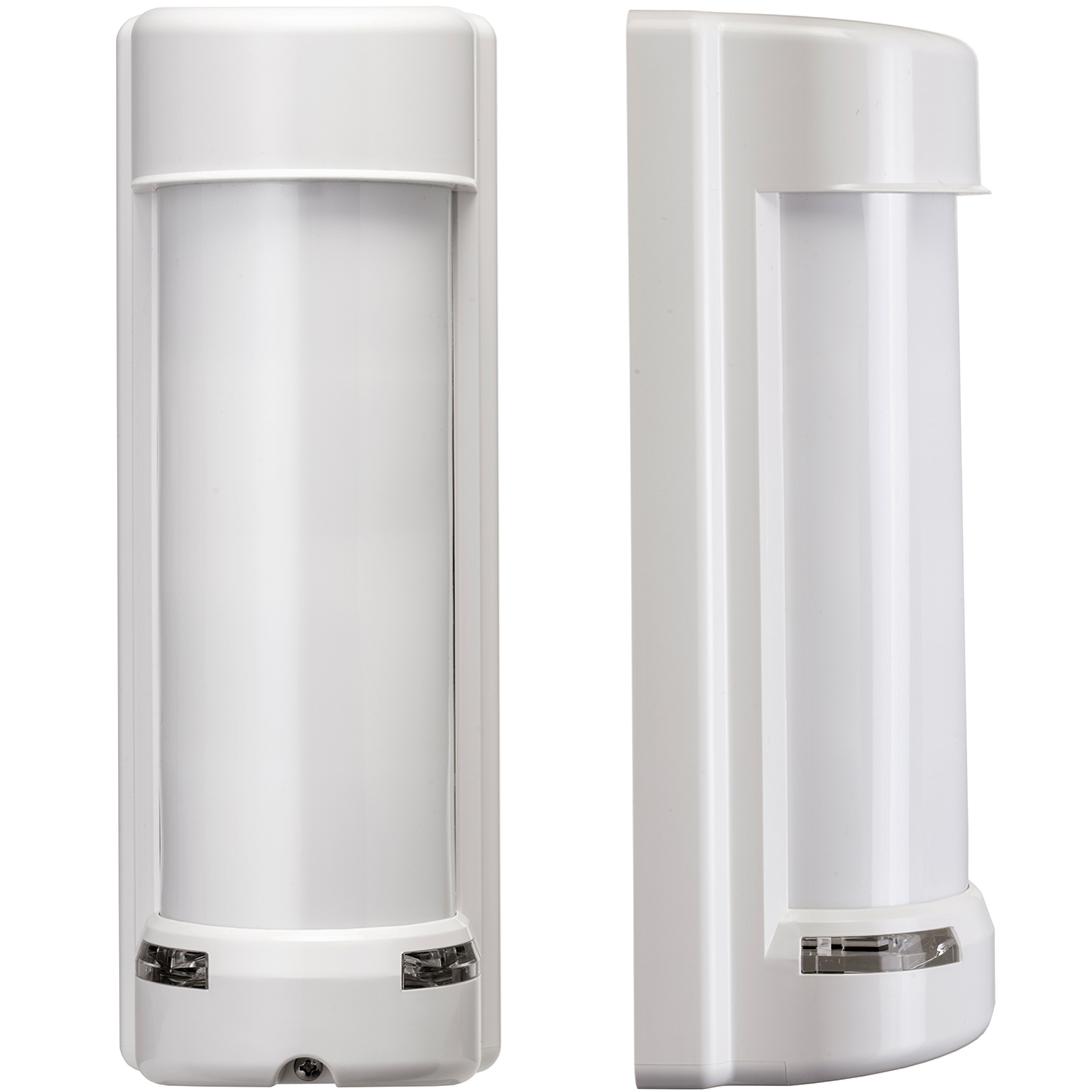

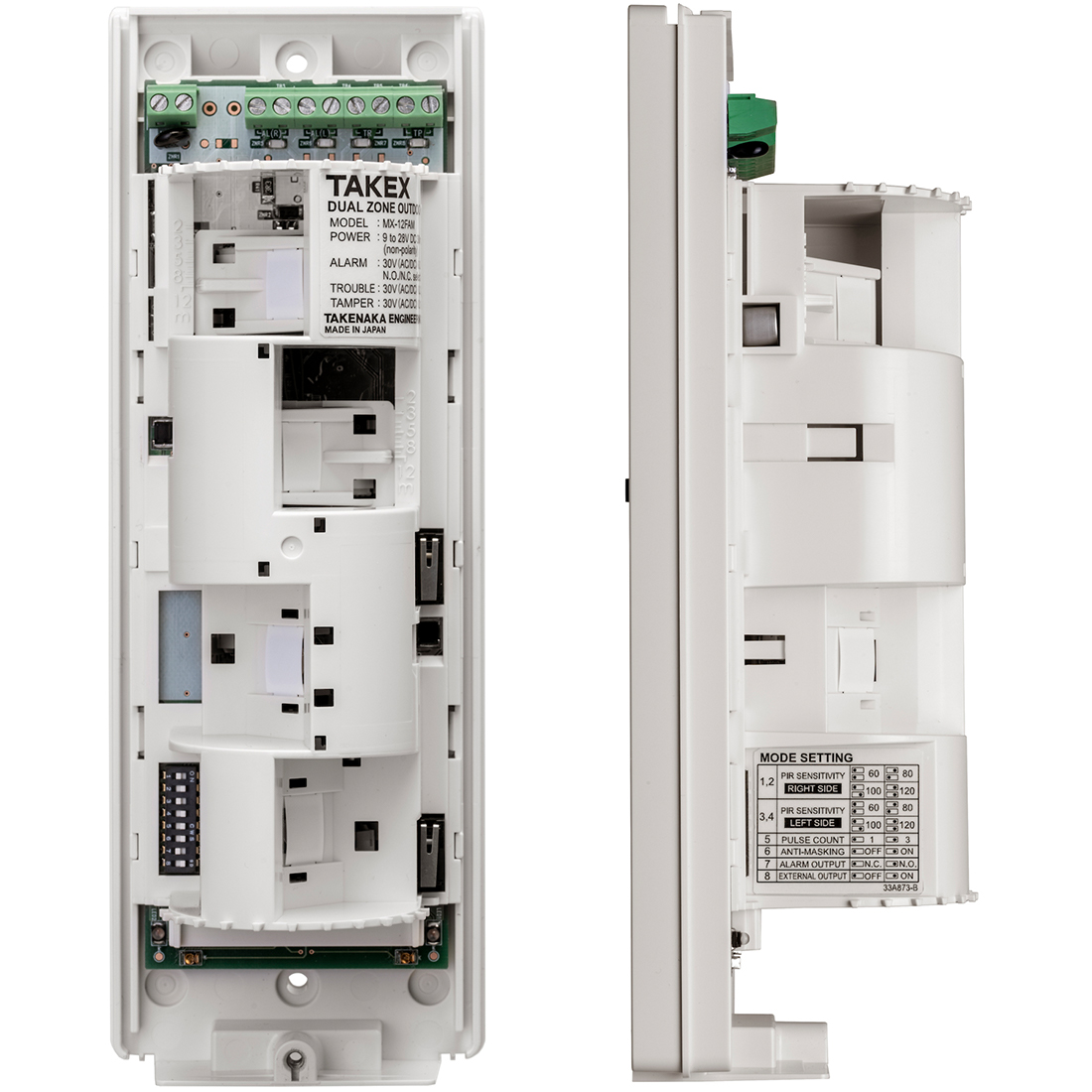

MX-12FAMD TAKEX Dual Tech PIR & Microwave Dual Zone 40' x 180 Degree Outdoor PIR with Anti-Masking

Dual-zone detection system with Microwave reduces false alarms significantly for reliable outdoor protection

TRIPLE DETECTION SYSTEM (2×PIR ZONE ＋MICROWAVE)

Horizontal/downward zones and MW require simultaneous detection preventing nuisance alarms caused by small animals and passing vehicles.

180 DEGREE WIDE ANGLE COVERAGE

Up to 180° of complete coverage, with independent 2m - 12m adjustable protection distance for left and right sides for maximum installation versatility.

DUAL ALARM SIGNAL OUTPUTS

Choose between:
• individual alarm outputs per 90 degree left and right side
• Or a combined 180 degree output + external output for triggering CCTV or ancillary devic

ANTI-MASKING

Protected by sophisticated Anti-Masking technology with near-lens awareness, designed to initiate an alarm if the device is compromised.

BACK TAMPER

Equipped with both front and back tampers to detect interference or attempted theft of the sensor any time of the day or night.

IMPROVED AREA MASKS

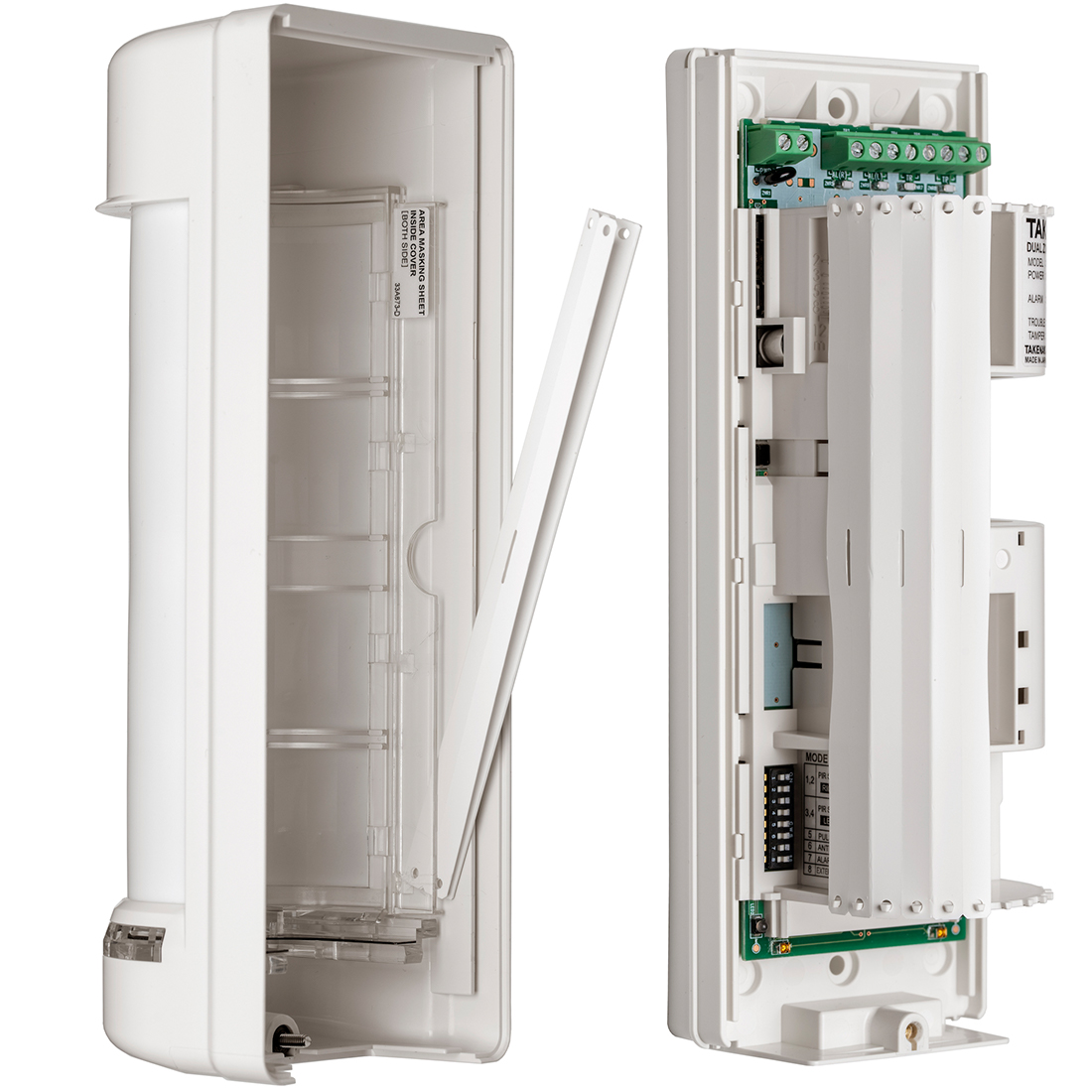

Durable area masks stored within the device allow the coverage pattern to be customised to specific site requirements

STABILITY IN VARIOUS ENVIRONMENTS

By combining multiple settings of the microwave sensor, pulse count and sensitivity adjustment, stable detection performance is achieved against various environments.

Specifications

• Detection system - Passive infrared and Microwave
• Microwave frequency - 24.150 to 24.250GHz 12.7dBm e.i.r.p.
• Coverage - Horizontal detection
  Angle: 180°
  Detection distance: 12m (40')
• Sensitive zone - Horizontal zone: 14 zones
  Downward zone: 14 zones
• Mounting height - 0.8 - 1.2m
• Area adjustment - Detection distance: 2 to 12m (10' to 40') [10 ranges] (by adjusting vertical angle of downward curtain) Possible left and right individual adjustment
  Microwave range adjustment: Short / Long (selectable with DIP switch, left and right sensors individually)
• Supply voltage - 9 to 28V DC (non-polarity)
• Battery Life - N/A
• Low Battery - N/A
• Current consumption - 40mA Max.
• Alarm output - [ALARM RIGHT+LEFT/ALARM RIGHT]
  Dry contact relay output N.O./N.C. selectable
  ・Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  ・Contact operation: Detection time (+2sec.)
• Alarm output (2) - [ALARM LEFT]
  Dry contact relay output N.O./N.C. selectable
  ・Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  ・Contact operation: Detection time (+2sec.)
  [EXTERNAL OUTPUT]
  Dry contact

• Trouble output - Dry contact relay output N.C.
  · Contact capacity: 30V (AC/DC) 0.2A Max. (Resistive load)
  (Masking detection / Low supply voltage / Self diagonosys error)
• Tamper output - Dry contact relay output N.C.
  · Contact capacity: 30V (AC/DC) 0.1A Max. (Resistive load)
  (Cover tamper / Back tamper (when enabled)
• LED indicator - Red LED:
  ・Warm-up (Blinking)
  ・Alarm detection (Lights approx. 2sec only for Walk test)
  ・Low supply voltage (Blinking slowly)
  ・Masking detection (Blinking rapidly)
  ・Self diagonosis error (Lights continuously)
  ・Microwave alarm detection (Lights max.2sec only for Walk test)
• Functions - Anti-masking, Microwave environment, Back tamper, Trouble alarm Low voltage monitoring, Anti-masking Environmental level
• Pulse count
  - 1 / 3 times (selectable with DIP switch)


• Sensitivity adjustment - 60% / 80% / 100% / 120%

• Anti-Masking - OFF / LV.0 / LV.1 / LV.2 (selectable with mode setting)
• Mounting position - Indoor / Outdoor
• Wiring - Terminals
• Weight - 400g (14.2oz)
• Appearance - Body: resin (white) / Lens: resin (white)
• Ambient temperature - -25°C to + 60°C (-13°F to + 140°F)
• IP Rating - IP55
