MS-12FE TAKEX 2 Sets MS-12TE, ±90° Horizontal Adjustment Each Head . AND/OR OperationRelay, Output - Selectable N/O N/C, 12 to 30VDC

DUAL ZONE system reduces false alarms, making outdoor use more reliable !

DUAL ZONE system

This sensor is equipped with a DUAL ZONE system which initiates an alarm only when detection occurs in both horizontal and downward zones simultaneously. No alarm signal is given if only one zone is activated by small animals, vehicles etc.

180 degree wide angle coverage (Only applicable to MS-12FE)

180 degree coverage detection is possible by using both upper and lower sensors in "OR" detection mode.

Rain Proof Housing

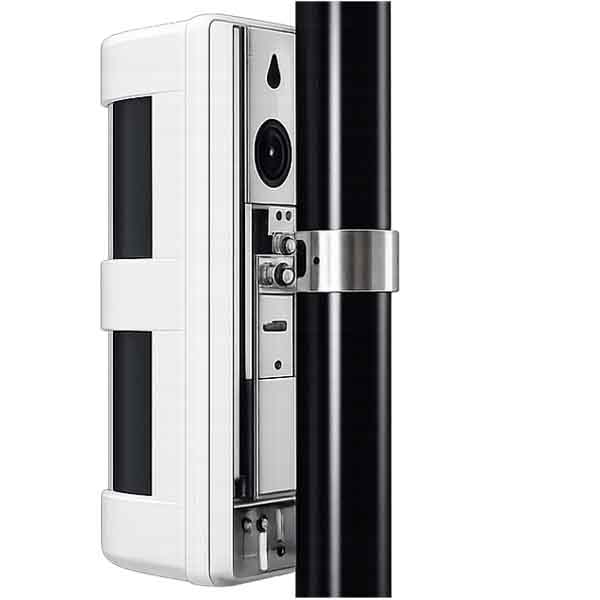

Rain-proof structure facilitates outdoor installation. Various mounting position such as wall and pole can be chosen.

Various detection patterns

Perimeter, window or wall detection can be made by adjusting detection zone with area masking sheet. MS-12FE equipped with two sensors can cover two perimeters or windows by itself.

Sensitivity adjustment

Sensitivity can be adjusted between 30% and 170%.

Specifications

• Detection system - Passive infrared
• Coverage - Horizontal: +/-90°
  Detection distance: 6.6' to 40' (2 to 12m)
  (By adjusting vertical angle of downward zone)
  x2
• Sensitive zone - Horizontal zone: 7 zones
  Downward zone: 7 zones
  x2
• Mounting height - 0.8 - 1.2m
• Area adjustment - Horizontal: +/-90°
  Detection distance: 6.6' to 40' (2 to 12m)
  (By adjusting vertical angle of downward zone)
• Supply voltage - 12 to 30V DC (non-polarity)
• Current consumption - 40mA MAX.
• Alarm output - Dry contact relay output N.C./N.O. selectable
  Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load)
  Contact operation: Detection time + off delay
• Tamper output - Dry contact relay output N/C
  Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load)
• LED indicator - Red LED:
  Blinking at warming up (LED disabled)
  Lighting at alarm (LED disabled)
• Pulse count - Once / three times (with a switch)
• Sensitivity adjustment - Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
• Detection mode - AND / OR selectable
• Mounting position - Indoor / Outdoor
• Wiring - Terminals
• Weight - 16.5oz (470g)
• Appearance - Body: AES resin
  Lens: PE resin
• Accessory - Tapping screw: 2
  Area masking sheet: 2
• Ambient temperature - -4°F to +122°F (-20°C to +50°C)
