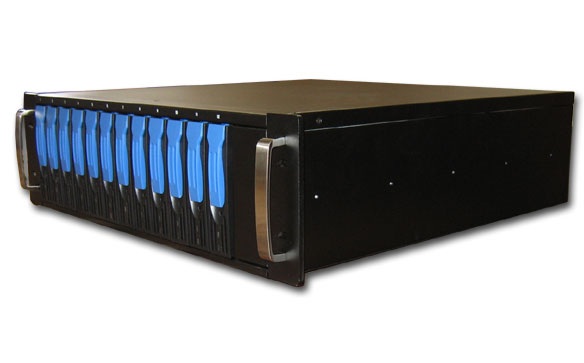

3U Rackmount SATA 12 HDD Bay Storage Subsystem

3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem
3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem
(Click to see larger image and other views)

3U Rackmount SATA 12 HDD Bay Storage Subsystem

3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem
3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem	3U Rackmount SATA 12 HDD Bay Storage Subsystem
(Click to see larger image and other views)

SKU: 12BAYCASE

3U rack height.
Very cost effective near-line storage library.

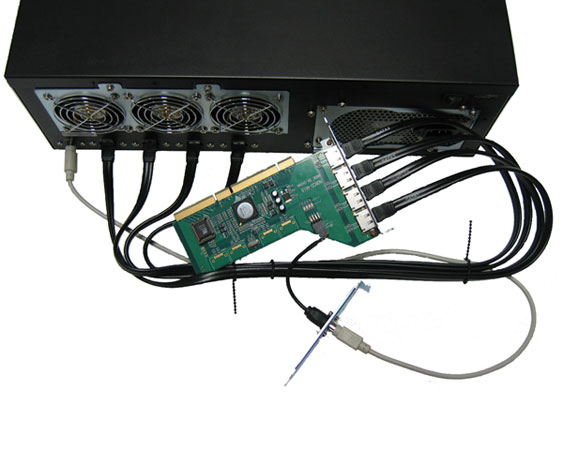

4 port eSATA host interface (Silicon Image SiI3124 + SiI3726 Multipliers).
1.5 Gb/s SATA Gen 1 and 3 Gb/s SATA Gen 2 host and drive support.
Supports up to twelve 3.5" SATA-I or SATA-II disk drives
Excellent cooling system ensures the drives reliability
Hot-swappable disk drive tray with special designed power-off and lock mechanism
Monitor and alarm annunciator for temperature and fans

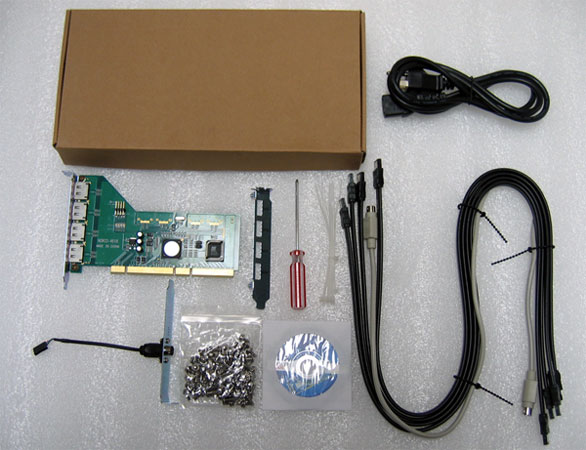

PCI-X/PCI card, eSATA cables, power supply, HDD mobile rack, backplane, all mounting screws for HDDs included
Support RAID 0, 1, 5, 0+1, JBOD
Operating system independent, supports Windows, Linux, MAC

More details...

MPN: 12BAYCASE

MSRP Price: $2,634.00

Price: $2,634.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specification

Construction - Heavy duty 1.2mm steel, meets FCC/CE Class

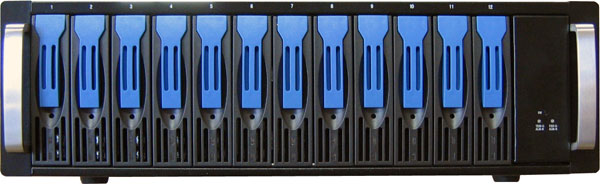

Drive Bay - 12 x hot-swappable SATA slim drivebay
Interface - 4 port eSATA host interface

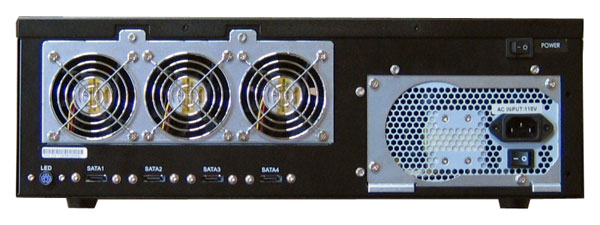

Cooling Fan - Three 70mm fans
Switch - Power ON/OFF x 1, alarm ON/OFF
Indicator - HDD Power x 12, HDD Data Access x 12, temperature monitor, fan monitor
Maximum Storage Capacity - 9 TB +
Data speed - 3 Gb/s
RAID - Support Support RAID 0, 1, 5, 0+1, JBOD
O/S Supported - MAC OS, Linux, Windows NT, Windows 2000, Windows XP, Windows 2003
Dimensions (W x D x H) - 19" x 18.5" x 6.89" (483mm x 470mm x 175mm)
Weight - 33 lb / 15 kg (without hard drive)
Temperature Range - Operating 41°F to 104°F (5°C to 40°C) Shipping -31°F to 167°F (-35°C to 75°C)
