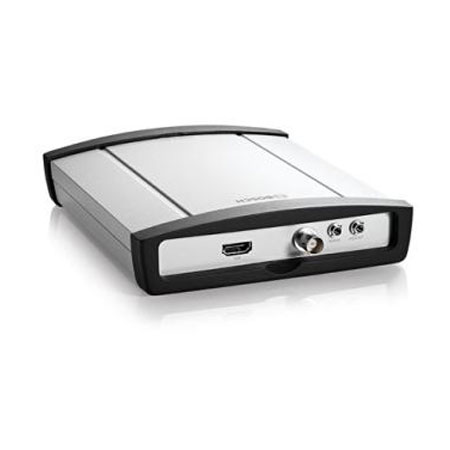

VJD-300 Bosch Single Channel Decoder 1080p

Input/output

Digital video

standard

video Modes

connector

cable length

composite video

connector

impedance

signal

Analog composite, 1 Vpp,NTSC or PAL

cable length

30 m (98.43 ft) max

Audio

1 x bidirectional

signal line in

9 kohm typical, 5.5 Vpp max

signal line out

3.0 Vpp at 10 kohm / 1.7 Vpp at 16 ohm typical

Alarm

4 x input

connector

Clamp (non-isolated closing contact)

activation resistance

10 ohm max

COM port

Clamp, RS‑232/422/485, bidirectional

Video

Standards

H.264 High Profile, H.264 Main Profile, H.264 Baseline Profile (ISO/IEC 14496-10)M-JPEG, JPEG

Data rates

9.6 kbps to 10 Mbps per channel

Total delay

300 ms max

Frame rate

1 to 25/30 (PAL/NTSC)1 to 50/60 (HDMI)

Audio

G.711



Frequency range

300 Hz to 3.4 kHz

Data rate

80 kbps at 8 kHz sampling rate

L16 (reception only)



Frequency range

300 Hz to 6.4 kHz

Data rate

640 kbps at 16 kHz sampling rate

Signal-to-noise ratio

> 50 dB

Network

Ethernet

10/100 Base-T, auto-sensing, half/full duplex, RJ45

Protocols

IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, digest authentication

Encryption

TLS 1.0, SSL, DES, 3DES, AES

Control

Software update

Flash ROM, remote programmable

Configuration

Configuration Manager or Web browser

Electrical

Input current

0.75 A

Power consumption

Approx. 9 W

Power supply

Via external unit

Input voltage

12 VDC

Mechanical

Dimensions (H x W x D)

38 x 146 x 183 mm (1.5 x 5.7 x 7.2 in)

Weight

Approx. 0.6 kg (1.3 lb)

Environmental

Operating temperature

Decoder

0 °C to +50 °C (+32 °F to +122 °F) ambient temperature

Power supply

20 to 80% atmospheric humidity, non-condensing

Thermal value

31 BTU/h max
