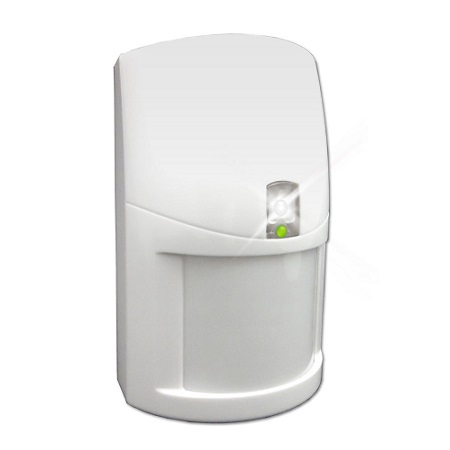

ELK-6030 ELK Wireless PIR Motion Sensor with Security/Convenience Light

The ELK-6030 Wireless PIR Motion Sensor is designed for use with control/transceivers that accept Elk's two-way technology; such as the ELK-M1XRFTWM. It is intended for use in residential and light commercial installations and incorporates many features designed to ensure its reliable performance.

Specifications

• Dimensions - 2.8"W x 4.4"H x 1.9"D
• Mounting Height - 6 1/2 to 7 1/2 ft
• Sensor - Dual element pyroelectric
• Coverage
  • Hi Range = 49 ft x 49 ft (15m x 15m) @ 88.2°
  • Lo Range = 39 ft x 39 ft (12m x 12m) @ 88.2°
  • 20 dual element zones (2 Long, 10 intermediate, 4 mid, 4 short) plus look down (creep zone)
• Pulse Count - 1-2 or 3-4, selectable
• Sleep Time - Selectable 30 sec. or 120 sec.
• RF Signal Acknowledge Indication - Bi-Color LED
• Security/Convenience Light - White LED
• Warm Up Period - 10 seconds
• Operating Voltage - 3.0 Volts DC
• Battery Type & Size - 2 x Lithium CR123A
• Quiescent Current - < 10 μA
• Operating Temp - 32° to +120° degrees F
• Humidity - 95% RH (max.), non-condensing
• Frequency - 902 - 928 Mhz channel hopping
