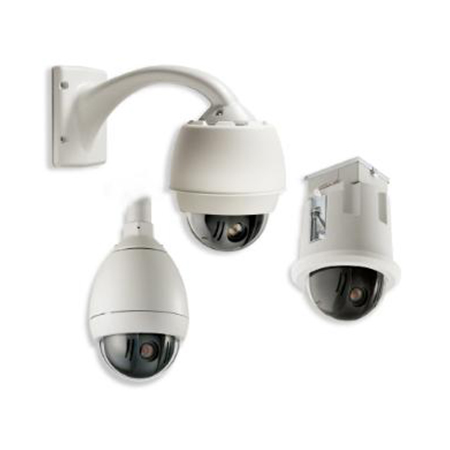

VG5-623-PCS Bosch 3.4–122.4mm 36x Zoom 550TVL Indoor/Outdoor IR Day/Night WDR Dome PTZ Security Camera

Specifications

Camera 36x Day/Night

• Imager - 1/4 in.-type Exview HAD CCD (progressive scan)

• Effective Picture Elements

• PAL: Approx. 440,000; 752(H) x 582(V)

• NTSC: Approx. 380,000; 768 (H) x 494 (V)

• Lens - 36x Zoom (3.4–122.4 mm) F1.6 to F4.5

• Zoom Movement Speed

• Optical WIDE /Optical TELE –Focus Tracking ON

• NTSC 4.0 sec. PAL 4.0 sec.

• Optical WIDE / Optical TELE – Focus Tracking OFF

• NTSC 2.7 sec. PAL 2.7 sec.

• Optical WIDE /Digital TELE

• NTSC 6.0 sec. PAL 6.2 sec.

• Digital WIDE / Digital TELE

• NTSC 2.1 sec. PAL 2.3 sec.

• Focus - Automatic with manual override

• Iris - Automatic with manual override

• Field of View - 1.7° to 57.8°

• Video Output - 1.0 Vp-p, 75 Ohm

• Gain Control - Auto/Manual/Max. (–3 dB to 28 dB, 2 dB steps)

• Aperture Correction - Horizontal and vertical

• Digital Zoom - 12x

• Horizontal Resolution - 550 TVL (NTSC, PAL) typical

• Synchronization - Line-Lock (–120° to 120° vertical phase adjust) or internal crystal

• Sensitivity (typical) - 30 IRE 50 IRE

• Day Mode

• SensUp Off 0.66 lux 1.4 lux

• SensUp On - (NTSC: 1/4s, 15X; PAL 1/3s, 16.7X) 0.04 lux 0.1 lux

• Night Mode

• SensUp Off - 0.104 lux 0.209 lux

• SensUp On - (NTSC: 1/4s, 15X; PAL1/3s, 16.7X) 0.0052 lux 0.0103 lux

• Electronic Shutter Speed - 1/1 to 1/10,000 sec., 22 steps

• Wide Dynamic Range(WDR) - 92 dB (50 dB with WDR Off)

• Signal-to-Noise Ratio (SNR) - >50 dB

• White Balance - 2000 K to 10,000 K

Camera 28x Day/Night

• Imager - 1/4 in.-type Exview HAD CCD (progressive scan)

• Effective Picture Elements - NTSC: 380,000 PAL: 440,000

• Lens - 28x Zoom (3.5–98.0 mm) F1.35 to F3.7

• Zoom Movement Speed

• Optical WIDE / Optical TELE – Focus Tracking ON

• NTSC 2.5 sec. PAL 2.5 sec

• Optical WIDE / Optical TELE – Focus Tracking OFF

• NTSC 1.7 sec. PAL 1.7 sec.

• Optical WIDE / Digital TELE – Focus Tracking ON

• NTSC 4.5 sec. PAL 4.9 sec.

• Optical WIDE / Digital TELE – Focus Tracking OFF

• NTSC 1.7 sec. PAL 1.7 sec.

• Digital WIDE / Digital TELE

• NTSC 2.0 sec. PAL 2.5 sec.

• Focus - Automatic with manual override

• Iris - Automatic with manual override

• Field of View - 2.1° to 55.8°

• Video Output - 1.0 Vp-p, 75 Ohm

• Gain Control - Auto/Manual/Max. (–3 dB to 28 dB, 2 dB steps)

• Aperture Correction - Horizontal and vertical

• Digital Zoom - 12x

• Horizontal Resolution - 550 TVL

• Synchronization - Line-Lock (–120° to 120° vertical phase adjust) or internal crystal

• Sensitivity (typical) 30 IRE 50 IRE

• Day Mode

• SensUp Off 0.33 lux 0.66 lux

• SensUp On (NTSC: 1/4s, 15X; PAL 1/3s, 16.7X) 0.02 lux 0.04 lux

• Night Mode

• SensUp Off 0.066 lux 0.166 lux

• SensUp On (NTSC: 1/4s, 15X; PAL 1/3s, 16.7X) 0.0026 lux 0.0082 lux

• Electronic Shutter Speed - 1/1 to 1/10,000 sec., 22 steps

• Wide Dynamic Range (WDR) - 92 dB (50 dB with WDR Off)

• Signal-to-Noise Ratio (SNR) - >50 dB

• White Balance - 2000 K to 10,000 K

Mechanical (In-Ceiling, Indoor Pendant, Outdoor Pendant)

• Pan Range 360° cont. 360° cont. 360° cont.

• Tilt Angle 1° above horizon 18° above horizon 18° above horizon

• Variable Speed 0.1°/s-120°/s 0.1°/s-120°/s 0.1°/s-120°/s

• Pre-position Speed Pan: 360°/s Tilt: 100°/s Pan: 360°/s Tilt: 100°/s Pan: 360°/s Tilt: 100°/s

• Preset Accuracy ± 0.1° typ. ± 0.1° typ. ± 0.1° typ.

Electrical (In-Ceiling, Indoor Pendant, Outdoor Pendant)

• Input Voltage - 21-30 VAC 50/60Hz, 21-30 VAC 50/60Hz, 21-30 VAC 50/60Hz,

• PowerConsumption (typical) - 15 W / 27 VA 15 W / 27 VA 51 W / 55 VA

Surge Suppression

• Protection on Video - Peak current 10 kA (Gas Tube Arrester)

• Protection on Biphase - Peak current 10 A, peak power 300 W (8/20 μs)

• Protection on RS-232/485 - ESD protection ±15 KV human body model

• Protection on Alarm Inputs - Peak current 17 A, peak power 300 W (8/20 μs)

• Protection on Alarm Outputs - Peak current 2 A, peak power 300 W (8/20 μs)

• Protection on Relay Outputs - Peak current 7.3 A, peak power 600 W(10/1000 μs)

• Protection on Power Input (Dome) Peak current 7.3 A, peak power 600 W (10/1000 μs)

• Protection on Power Output (Arm Power Supply) Peak current 21.4 A, peak power 1500 W (10/1000 μs)

Fiber Optic Kits

• VGA-FIBER-AN

• Description - Multimode Fiber Optic Module

• Compatible Receiver - LTC 4629 Series

• Optical Fiber Compatibility - 50/125 μm, 62.5/125 μm, low loss multimode glass fiber, rated for a minimum system bandwidth of 20 MHz

• Max. Distance - 4.0 km (2.5 miles)

• Optical Budget - 14 dB

• Connector One - ST connector

• Wavelength (video/data) - 850 nm / 1310 nm

Miscellaneous

• Sectors/Titling - 16 independent sectors with 20-character titles/sector

• Masking - 24 individually configurable privacy masks

• Pre-positions - 99, each with 20-character titles

• Camera Setup/ Control - Biphase, RS-232, RS-485, Bilinx (coax)

• Communications Protocols - Biphase, Bilinx, Pelco P, and Pelco D

• Guard Tours - Two (2) types of tours:

• Recorded tours – two (2), total duration 15 minutes

• Preset tour – one (1), consisting of up to 99 scenes, consecutively and (1) customized up to 99 scenes

• Supported Languages - English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian and Spanish

Cable Compensation

• Max Distance - With Pre-comp OFF With Pre-comp ON

• RG-59/U - 1000 ft (300 m) 2000 ft (600 m)

• RG-6/U - 1500 ft (450 m) 3000 ft (900 m)

• RG-11/U - 2000 ft (600 m) 4000 ft (1200 m)

• Cat 5/UTP (Passive receiver) - 750 ft (225 m) 1500 ft (450 m)

User Connections

• Power, Camera - 21-30 VAC, 50/60 Hz

• Power, Heater - 21-30 VAC, 50/60 Hz

• Control Data - Biphase ± RS-232 RX/TX or RS-485 ± - optional control data (dip switch selectable)

• Video - BNC/UTP

• Audio Line In - 9 K Ohm typ, 5.5 Vp-p max
• EOLR Alarm Inputs - Programmable for "normally open", "normally closed", "normally open-supervised", "normally closed-supervised"

• Alarm Inputs - Programmable for "normally open" or "normally closed"

• Relay Out - Dry contact output rating: 2 A @ 30 VAC

• Open Collector Outputs - 32 VDC@150 ma max.

Environmental (In-Ceiling, Indoor Pendant, Outdoor Pendant)

• Design Rating - IP54,4 Plenum rated IP665 IP665

• Operating Temp. - –10°C to 40°C (14°F to 104°F), –10°C to 40°C (14°F to 104°F), –40°C to
• 50°C (–40°F to 122°F) with XT kit –60°C to 50°C (–76°F to 122°F)

• Storage Temp. –40°C to 60°C (–40°F to 140°F), –40°C to 60°C(–40°F to140°F), –40°C to
• 60°C(–40°F to 140°F)

• Humidity - 0% to 90% relative, noncondensing, 0% to 90% relative, noncondensing, 0% to 100% relative, condensing

Construction

• Dimensions -See dimensional drawings

• Weight

• In-ceiling - 2.66 kg (5.86 lb)

• Indoor Pendant - 2.88 kg (6.3 lb)

• OutdoorPendant - 3.32 kg (7.3 lb)

• Bubble Size - 153.1 mm diameter (6.03 in.)

• Construction Material

• Housing Cast aluminum

• Bubble Pendant: Acrylic (high-resolution)In-ceiling: Polycarbonate (rugged)

• Color - White (RAL 9003)

• Standard Finish - Powder coated, sand finish

VG5-623-PCS Specifications PDF
