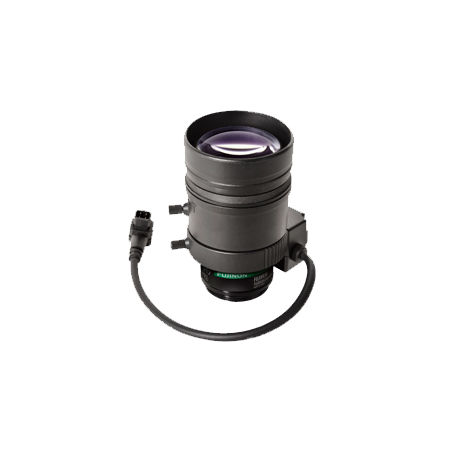

YV3.3x15SR4A-SA2L Fujinon 3MP 1/3" 15-50mm Varifocal F1.5-T360 CS Mount DC Auto Iris Lens - Long Cable

High image-quality monitoring with optical performance supporting 3 megapixels. Advanced design engineering and special optic glass adopted, best suited for color, Black & White, and Day and Night cameras. f15-50mm, 3.3x zooming application compatible lens. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.

Specifications

• Mount - CS
• Focal length - 15 mm - 50mm
• Focus - Manual
• Iris Range - F1.3 - T360
• Iris - Manual
• Zoom - Manual
• Back Focal Distance (In Air) - 8.33 mm
• Exit Pupil Position (From Image Plane) - 116 mm
• Object Dimensions at M.O.D. 4 : 3 Aspect Ratio
• 1/2.7"
• Wide - 1398 mm x 731 mm
• Tele - 299 mm x 218 mm
• 1/3"
• Wide - 1080 mm x 625 mm
• Tele - 269 mm x 197 mm
• 1/4"
• Wide - 625 mm x 417 mm
• Tele - 197 mm x 146 mm
• Object Dimensions at M.O.D. 16 : 9 Aspect Ratio
• 1/2.7"
• Wide - 1896 mm x 532 mm
• Tele - 329 mm x 176 mm
• 1/3"
• Wide - 1358 mm x 466 mm
• Tele - 296 mm x 159 mm
• 1/4"
• Wide - 718 mm x 327 mm
• Tele - 216 mm x 119 mm
• Angular Field of View  4 : 3 Aspect Ratio
• 1/2.7"
• Wide - 132°51′ x 100°22′
• Tele - 50°26′ x 37°56′
• 1/3"
• Wide - 121°04′ x 91°20′
• Tele - 45°51′ x 34°28′
• 1/4"
• Wide - 91°20′ x 68°43′
• Tele - 34°28′ x 25°53′
• Angular Field of View
• 1/2.7"
• Wide - 144°17′ x 82°13′
• Tele - 54°53′ x 31°01′
• 1/3"
• Wide - 131°34′ x 74°46′
• Tele - 49°55′ x 28°11′
• 1/4"
• Wide - 99°19′ x 56°19′
• Tele - 37°31′ x 21°12′
• Focusing Range (From Front of the Lens) - ∞ - 0.3 m
• Filter Thread - N/A
• Mass - 75 g
