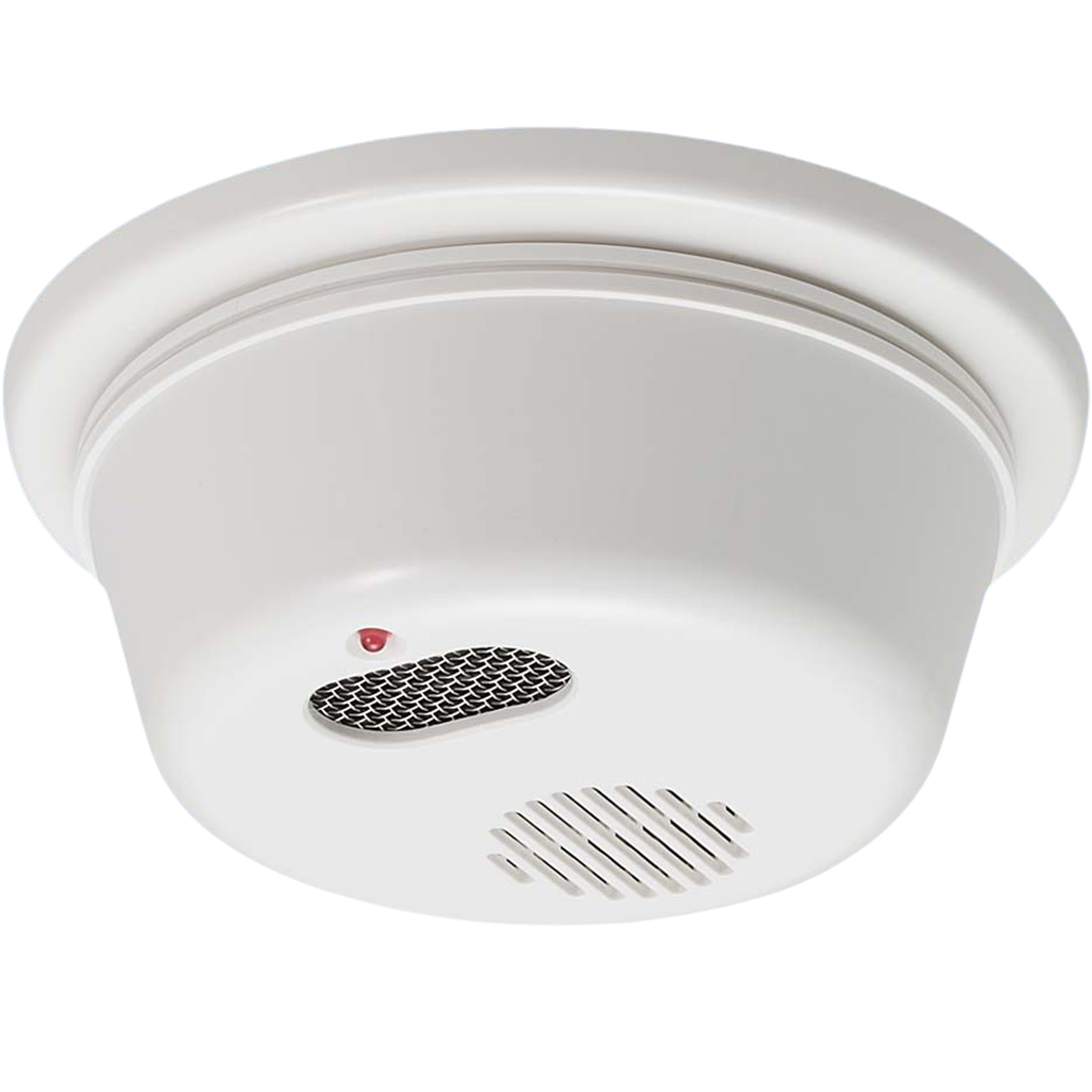

FS-3500E TAKEX 33' Ultraviolet Sensor, Ceiling mount, "Snap in Base", Battery 3V or External Power 10 - 30VDC

FIRE PROHIBITION/NON-SMOKING MESSAGE AVAILABLE IN FIVE LANGUAGES

FS-3500E detects ultraviolet rays in the flame and outputs the recorded warnings.

FIRE PROHIBITION AND NON-SMOKING MESSAGE IN 5 LANGUAGES

Japanese/English/Chinese/Korean/Spanish messages available. Fire profibition or No-smoking messages in each language can be chosen. The buzzer (sound) can be also selectable.

OUTPUT MESSAGE CAN BE CHOSEN

Warnings can be selected from 5 languages and 2 kinds of message according to the requirement.

REPEATED MESSAGE

Message can be announced just once or twice.

DETECTION SENSITIVITY AND DETECTION TIMER ADJUSTMENT

In order to cope with external environment, 2 levels of sensitivity and 4 steps of timer can be selected.

2 WAYS POWER SUPPLY SELECTABLE

* Type-AA alkaline battery
* External wiring DC10-30V

ALARM OUTPUT

Signal output (N.O./N.C. selectable) and tamper output (N.C.) available

CUSTOMIZED MESSAGE POSSIBLE

Recorded message can be customized upon request.

Specifications

• Detection system - Ultraviolet Rays detection (18~260nm)
• Coverage - Distance:
  33ft.(10m) [2.75" (7cm) lighter flame, in front)
  Angle:
  Approx. 120° conically
• Supply voltage - Type-AA alkaline battery (LR6) 2pcs / DC3V
  External wiring DC10 ～ 30V (Polarized)
• Current consumption - Stand-by: 40mA or less
  Alarm: 300mA or less
• Battery Life - Type-AA alkaline battery Approx. 2 years (Stand-by)
  (Note above figure is just a reference and not guaranteed)
• Alarm output - Relay contact output N.O./N.C. selectable
  Detection time plus 2 sec.
  Output DC30V 0.1A
• Tamper output - Relay contact output N.C. is issued when
  the sensor unit is detached from the base unit
  Output AC/DC30V 0.1A
• LED indicator - Indication: RED
  Alarm: Flash during message output
  Low battery: Flash 0.1sec every 5sec
• Buzzer - Buzzer sound
  â‘  PiPiPiPi
  • Long/short message selectable
  • Message repeat : Once/twice selectable
  • Volume : Mute - Max. 80dB (1m from the sensor)
• Functions - Tamper signal
  Low battery indication
• Sensitivity adjustment - Detection sensitivity: 2 levels (H [100%], L [50%])
  Detection timer: 4 setps (1s, 3s, 6s, 15s)
• Mounting position - Indoor
• Wiring - Terminals
• Weight - 230g (Including 50g battery)
• Appearance - ABS Resin (White)
• Ambient temperature - -10°C (+14°F) ～ +60°C (+140°F) Without condensation
  Battery performance may decrease under
  0°C (+32°F) or beyond +40°C (+104°F)
