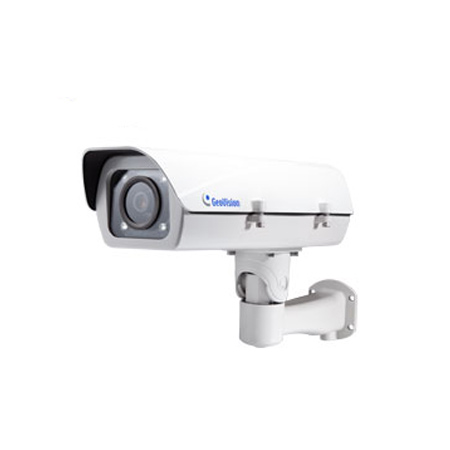

[DISCONTINUED] GV-BX5310-E Geovision 4.5~9mm Motorized Varifocal 10FPS @ 2560x1536 Outdoor IR Day/Night WDR Arctic Box IP Security Camera 24VAC/48VDC/POE

Camera

• Image Sensor - 1/3.2" progressive scan CMOS
• Picture Elements - 2560 (H) x 1920 (V)
• Minimum Illumination
  • Color - 0.15 Lux
  • B/W - 0.10 Lux
  • IR ON - 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 45 dB
• WDR - Yes
• BLC - Yes

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR-cut filter)
• Lens Type - Motorized Varifocal
• Focal Length - 4.5 ~ 9 mm
• Maximum Aperture - F/1.2
• Mount - ø 14 mm
• Image Format - 1/2.7"
• Operation
  • Focus - Auto focus
  • Zoom - 2X optical zoom
  • Iris - P‐Iris
• IR Quantity - 4
• IR Distance - 164 ft

Operation

• Video Compression - H.264, MJPEG

• Video Streaming - Dual streams from H.264 and MJPEG
• Frame Rate - 10 fps at 2560 x 1920
  * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Denoise, Metering
• Audio Compression - G.711, AAC (optional)
• Two-Way Audio - Yes

Video Resolution

• Main Stream
  • 4:3 - 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
  • 16:9 - 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
  • 5:4 - 1280 x 1024, 640 x 512, 320 x 256
• Sub Stream
  • 4:3 - 640 x 480, 320 x 240
  • 16:9 - 640 x 360, 448 x 252
  • 5:4 - 640 x 512, 320 x 256

Network

• Interface - 10/100 Ethernet
• Ethernet Protocol - HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) Mechanical
Camera Angle Adjustment
• Pan - 0 ° ~ 270°
• Tilt - 0° ~ 90°
• Temperature Detector - Yes
• Connectors
  • Power - PoE
  • Ethernet - Ethernet (10/100 Base-T), RJ-45 cable
  • Audio - 1 In (externally connecting a microphone)
    1 In (Stereo phone jack, 3.5 mm / 0.14")    1 Out (Stereo phone jack, 3.5 mm / 0.14")
  • Digital I/O - I/O wires
• LED Indicator - 2 LEDs: Status, Power

General

• Operating Temperature - -30°C ~ 50°C (-22°F ~ 122°F) -40°C ~ 50°C (-40°F ~ 122°F)
• Humidity - 10% to 90% (no condensation)
• Power Source - AC 24V, DC 48V, PoE++ (50W)
• Max. Power Consumption - 50 W
• Dimensions (L X W X H) - 16" x 5.7" x 4.3"
• Weight - 7.32 lb
• Heater On - -40°C ~ 8°C (-40°F ~ 46.4°F)
• Fan - Constantly On
• Regulatory - CE, FCC, C-Tick, RoHS compliant
• Vandal Resistance - IK10 for metal casing
• Ingress Protection - IP66

Power over Ethernet

• PoE Standard - PoE++ (High Power over Ethernet)
• PoE Power Supply Type - End-Span
• PoE Power Output - Per Port DC 48V, 2.5A (120 W Max.)

Web Interface

• Installation Management - Web‐based configuration

• Maintenance - Firmware upgrade through Web Browser or Utility

• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ

• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server

• Smart Device Access - GV‐Eye for iOS and Android

• Live Viewing - IE, mobile phone

• CMS Server support - GV‐Center V2, GV‐Control Center, GV‐Vital Sign Monitor
