CLFE1EOC Comnet 1 Port Ethernet-Over-Coax Extender

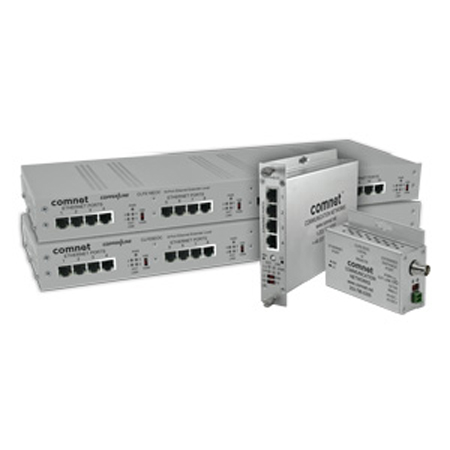

The ComNet CopperLine Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

Specifications

Ethernet

• Data Interface - 10/100BaseT(X) Ethernet
• Data Rate - DIP-switch selectable 10/100Mbps Full data rate / full duplex up to the maximum rated distance
• RFC - 2544 TCP/IP Packet Transmission
• Standards - IEEE 802.3af PoE, RFC: 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet.
• Transmission Distances - See chart below

Connectors

• Ethernet - RJ-45
• Extended Distance
  • Coaxial (C) - female BNC
  • Ethernet (U) - RJ-45
• Operating Power - Powered by PoE or 2-pin screw terminal for local power

Power

• Pass-Through Mode - Operates on PoE power or optional 9 to 36 VDC or 24 VAC, 1.5 W
• Current Protection - Automatic Resettable Solid-State Current Limiters

Mechanical

• LED Indicators
  • Operating Power
  • Ethernet Link/Activity
  • Extended Link/Activity
• Circuit Board - Meets IPC Standard
• Size (LxWxH) - 3.3 x 2.5 x 1.1 in (8.4 x 6.4 x 2.8 cm)
• Number of Rack Slots - 1 (4CH Version Only)
• Shipping Weight - <1 lbs./0.5 kg

Environmental

• MTBF - >100,000 hours
• Operating Temp - – 40˚ C to +75˚ C UL Safety certifications conducted at maximum ambient temperatures (Tma) of 65°C.
• Storage Temp - – 40˚ C to +80˚ C
• Relative Humidity - 0% to 95% (non-condensing)
