VAR-i16-1-C Raytec 940nm IR Illuminator Adjustable FOV Up to 505 ft. @ 10 Degrees 24VAC

The VARIO i16 series of Infra-Red illuminators is designed to provide ultra-long range illumination from a single panel illuminator. With maximum distances up to 310m (1010ft), VARIO i16 provides Raytec customers with more flexibility to meet the most challenging applications.

Its unique VARIO beam pattern system is the latest development in interchangeable holographic optics and allows users to easily alter the output angle of illumination to precisely match the required field of view and instantly respond to changes on site.

Specifications

Illuminator

• Max Distance - 310m (1010ft)
• Angle
  • Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25° elliptical lenses.

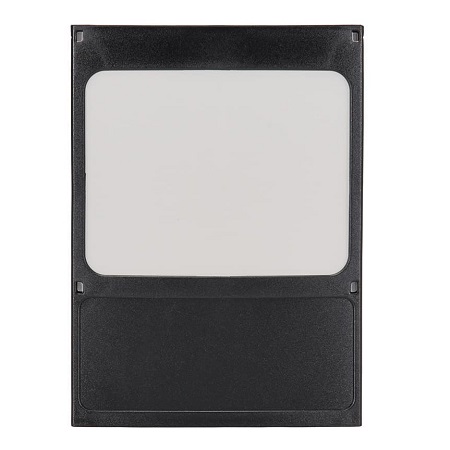

  • Additional optional lenses: 80° x 30°, 120° x 50°
• Optics - PLATINUM Elite SMT LEDs
• Consumption - 96W
• Input - 24V AC/DC
• Voltage - 13.5V current controlled
• Weight - 3.1kg (6.8lbs)
• Environmental - IP66
• Temp Range - -50° to +50°C (-58 to 122°F)
• Cable Length - 2.5m
• Colour - Black
• Wavelength - 850 or 940nm
• Dimensions - 277 x180x 118mm (11" x 7" x 4.6" approx)
• Bracketry - U Bracket Included

Integrated Command and Control Technology

• Integrated Standard Features
  • In-built photocell for automatic on/off operation
  • LED status indicator provides status o performance of the unit
  • Photocell following output
• Integrated Standard Features
  • Power adjust from 20 - 100%
  • Photocell sensitivity adjust
  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • LED status indicator on/off
  • Restore factory default settings

VAR-i16-1-C Specifications PDF
