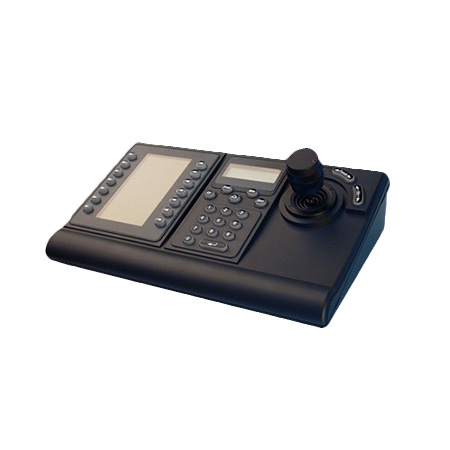

KBD-DIGITAL Bosch Intuikey Digital Keyboard W/ Lcd for Use with Divar DVR and 600 and 700 Series Recorders

The IntuiKey Series keyboards are full function,multipurpose keyboards used for system control and programming. The IntuiKey includes an integral variable speed pan/tilt/zoom (PTZ) joystick and a splash resistant design. An optional rack mount kit allows the IntuiKey to be mounted in a standard EIA 48 cm (19 in.) rack.

Specification

Electrical

• Operating Voltage - 12–15 VAC/DC (supplied by one, or a combination of Allegiant switchers, Divar Digital Video Recorder, System4 Multiplexers, or optional power supply)
• Power - 5 W nominal

Mechanical

• Construction Finish - Charcoal
• Width - 327 mm (12.9 in.)
• Depth - 190 mm (7.5 in.)
• Height - 75 mm (2.9 in.)
• Weight - 1.1 kg (2.6 lb)
• Allegiant Connector - RJ-11 data/power
• Mux/DVR Connector - RJ-11 data/power
• Aux Power Connector - Bayonet plug (optional)
• Console Connector - Male, 9-pin D-sub

Environmental

• Enclosure - Splash-resistant
• Operating - 0°C to 50°C (32°F to 122°F)
• Storage - –20°C to 50°C (–4°F to 122°F)
• Relative Humidity - 10%–90%, non-condensing
